Retail and Point-of-Purchase Applications
Checkout and Countertop Impulse Displays
The compact footprint and two-tier arrangement make this a natural fit for lightweight retail goods like cosmetics, packaged snacks, or small accessories. The angled side walls keep the lower shelf visible while framing the upper tier.
Retail Brand Presentations
The rolled front edges on the shelves and the fold-over header panel hide the raw corrugated edges. This provides a cleaner, more finished look than standard slotted trays, supporting higher-end graphics and branding.
Lightweight Cosmetics and Beauty Products
The clean rolled edges make this a strong fit for small beauty items, lotions, or skincare jars. The two-tier setup allows for clear product separation without taking up excessive counter space.
Packaged Snacks and Confectionery
For lightweight bagged snacks or candy, the angled side walls keep the lower shelf visible while framing the upper tier. The drop-in shelves can support these items when the right board grade is selected.
Fulfillment and Distribution Contexts
Manual Kitting and Co-Packing

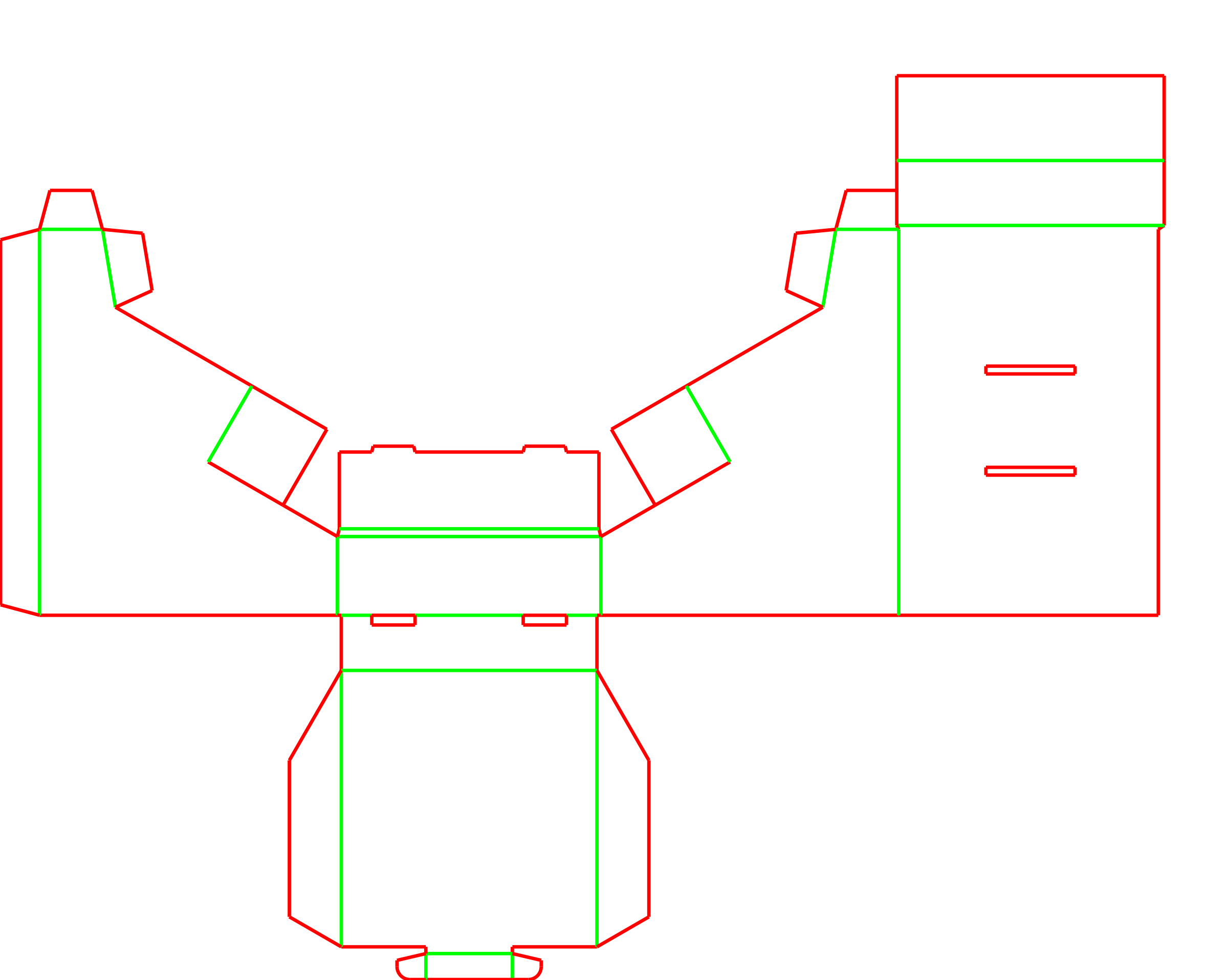

This display arrives flat and is folded by hand. The main body locks together using a roll-over base, and the two shelves are folded and dropped into place. Co-packers should account for this assembly time when planning fulfillment runs.
Retail Distribution
As an open-front display, this structure is not designed for direct parcel transit. It is usually packed in a properly sized master carton to protect the display and the loaded products during transit to the retail store.
Short-Run Promotional Campaigns
Because it can be cut on a flatbed or digital table and printed single-sided, this display is often used for seasonal promotions or limited retail rollouts where tooling for more complex automated displays might not make sense.
When to Consider a Different Display Style
Heavy or Bulky Products
The shelves rest on internal corrugated support tabs. While the rolled front edges resist bowing, heavy items like large beverage bottles or hardware often need a display with fully doubled side walls or a different support mechanism.
Automated Packing Lines
This is designed for manual assembly. If your packing line relies on automated folder-gluers or case erectors, a simpler crash-lock tray or a standard slotted carton converted into a display may be a better fit.
Board, Print, and Packing Decisions
Board Flute and Fold Cleanliness
The rolled shelf edges and fold-over header rely on 180-degree folds. E-flute is often preferred because it folds cleanly without cracking, while B-flute offers slightly more rigidity. Thicker boards like C-flute are generally a poor match because they resist tight folds and can tear.
Print Surface Planning
The display is well-suited for single-sided printing. The exterior side walls, the fold-over header, and the top surfaces of the shelves can all be covered by printing on one side of the corrugated board. Discuss artwork placement early to ensure the correct panels face outward.
Master Shipper Sizing
Because the display has an open front and angled sides, it needs an outer shipper for distribution. The dimensions of the fully loaded display, including the header, will dictate the size of the master carton.
Shelf Depth and Product Fit
The depth of the shelves determines how many units can be displayed and affects the overall stability of the unit. Testing a physical prototype with the actual product helps confirm that the shelves will not bow under the intended weight.
Structural Adjustments
Shelf Angle and Depth
The angle of the faceted side walls and the depth of the shelves can be adjusted to fit specific product dimensions. Steeper angles change the footprint and how much of the lower shelf is exposed.
Header Panel Sizing
The fold-over header can be heightened or shortened depending on the branding space. It is typically secured with double-sided tape or adhesive during assembly to keep it flat against the back wall.
Locking Tab Configuration
The number of locking tabs on the rolled front edge of the shelves can be adjusted based on the shelf width. Wider shelves may benefit from additional tabs to keep the rolled edge secure.
Packing details
Base Locking Mechanism
The main body uses a roll-over base flap that tucks into a bottom slot, trapping the side dust flaps. This holds the side walls square without tape or glue at the base.
Additional notes
Manual assembly labor
Because this display consists of three separate pieces (one body, two shelves) that are folded and locked by hand, fulfillment teams should budget appropriate time for manual setup before loading products.
FAQs
Does this display use glue or tape to assemble?
The main body and shelves use mechanical tab-and-slot locks for assembly. However, the fold-over header panel usually benefits from double-sided tape or a spot of adhesive to stay perfectly flat against the back wall.
How are the shelves supported?
The shelves rest on internal support tabs that fold inward from the main body blank. They do not rely on fully doubled side walls, which helps reduce the overall weight and material footprint.
Can this display be shipped fully loaded?
Yes, but it should be placed inside a corrugated master shipper. The display itself has an open front and is not designed to protect products from transit impacts or dust on its own.
Do I need double-sided printing for the inside of the side walls?
Usually, no. The design is optimized so that single-sided printing covers the exterior walls, the header, and the top surfaces of the shelves. The interior side walls will show the unprinted side of the board.
What board thickness is common for this design?
Thinner profiles like E-flute or B-flute are often used. The design relies on several tight 180-degree folds, particularly on the front edges of the shelves. Thicker boards like C-flute can crack or resist folding in these areas.
How do I prevent the shelves from sagging?
The shelves feature a rolled front edge that acts as a structural beam to resist bowing. For the best performance, ensure the product weight is distributed evenly and test the chosen board grade with a physical prototype.
Can I order a prototype before full production?
Yes, a physical sample cut on a digital table is highly recommended. This allows you to test the fold cleanliness, shelf support tabs, and overall stability with your actual products.
How are the shelves delivered?
The main body and the two shelves are delivered flat. They are folded and assembled at the packing station before the products are loaded.
