ICB10042

Juice Box Floor Display

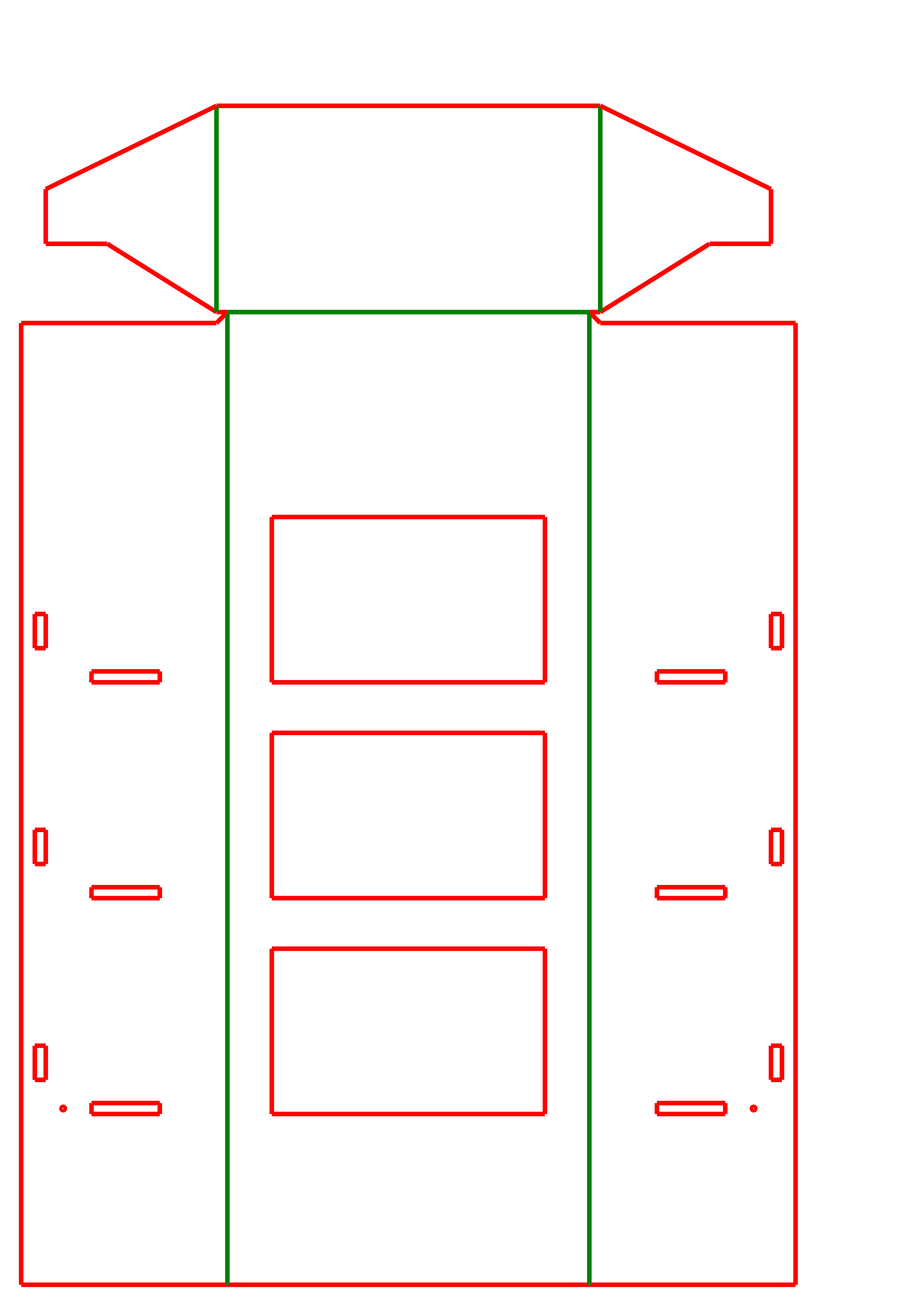

The ICB10042 is a freestanding, multi-shelf retail display designed to replicate the look of a giant beverage carton. Featuring an angled gable header and a cylindrical top cap, it provides visible merchandising for beverage launches, liquid products, and novelty brand promotions.

Because of its unique shape, this is a multi-component kit. The base and shelves use rigid corrugated board to support product weight, while the top cap uses a thinner board to roll smoothly into a cylinder. This display is typically shipped flat to a co-packer for pre-loading or sent as a kit for in-store assembly.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Novelty beverage carton shape with angled header and cap
  • Multi-piece kit involving manual assembly
  • Uses mixed board grades for structural strength and curved folding

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for display board preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Merchandising Beverages and Liquid Products

Beverage and Liquid Product Launches

The gable-top design naturally aligns with juices, dairy alternatives, and liquid household goods. The recognizable shape acts as a billboard in the aisle, drawing attention to new product lines or seasonal promotions.

Themed End-Cap and Freestanding Placements

With a flat back and tall profile, the display can sit flush against an end-cap or stand independently in high-traffic areas. The front cutouts provide clear access to the internal shelves.

Seasonal Grocery Promotions

The novelty shape helps brands stand out during high-traffic holiday or summer beverage pushes, offering a distinct visual break from standard rectangular shelving.

Kids' Brand Merchandising

The juice box shape naturally appeals to children's products, making it a strong fit for family-focused aisles and themed retail events.

Co-Packing and In-Store Assembly Paths

Co-Packer Fulfillment

Because the display involves multiple internal supports, shelves, and a separate header, many brands choose to have a co-packer assemble the unit and pre-load the product. The fully built display is then shipped to retail inside a protective master carton.

In-Store Assembly Kits

If shipping flat to the store, the display is typically kitted with clear instructions. Retail staff will fold and glue the main tube, insert the internal shelf supports, seat the shelves, and attach the novelty header and cap.

Trade Show and Event Marketing

Brands often use the display as a temporary, high-visibility prop for sampling booths or event spaces, where the unique shape draws attendees toward the product.

When to Compare Standard or Pallet Displays

Standard Floor Displays

If the juice box shape does not directly support the brand message, a standard rectangular floor display is often faster to assemble and involves fewer distinct die-cut parts.

Heavy-Duty Pallet Displays

For high-volume beverage distribution, such as club stores, a pallet-based display may be necessary to handle the total weight of the liquid goods safely.

Board Grades, Shelves, and Master Shippers

Mixed Board Grade Selection

This template is specifically designed to use different material thicknesses. The base, internal supports, and shelves use a rigid board to carry the product load. The cylindrical cap uses a thinner, more flexible board so it can be rolled into shape without cracking.

Shelf Count and Clearance

The number of shelves and the vertical distance between them should be matched to the exact height of the primary packaging, ensuring consumers can easily reach in and remove the product.

Print and Branding Strategy

The large front cutouts remove a large portion of the main display panel. Key branding and graphics should be focused on the header, the side panels, and the base area below the first shelf.

Master Shipper Requirements

Whether shipped flat as a kit or pre-loaded by a co-packer, an outer master carton is necessary to protect the components and the novelty header during transit.

Adjusting the Header, Cap, and Footprint

Header Angle and Cap Sizing

The slope of the gable top and the diameter of the cap can be adjusted to mimic specific carton styles. However, steep angles can complicate the attachment of the cap and should be prototyped.

Shelf Depth and Width

The footprint of the display can be adjusted to match specific product dimensions or retail floor space limits, though this changes the overall stability and center of gravity.

Base Height and First Shelf Position

Raising or lowering the bottom shelf helps keep products within easy reach and maintains display stability by adjusting the center of gravity.

Packing details

Internal Support Alignment

The strength of the shelves relies on separate internal support pieces that lock into the main base tube. These supports need to be seated correctly before the shelves are inserted, as they transfer the product weight to the outer walls.

Additional notes

Print Surfaces and Cutouts

The large front cutouts remove a large portion of the main display panel. Key branding and graphics should be focused on the header, the side panels, and the base area below the first shelf.

Related Floor and Pallet Displays

FAQs

Does this display pop open automatically?

No. This is a multi-piece kit. The base tube is formed, internal supports inserted, shelves seated, and the header and cap attached. It involves dedicated assembly time.

Why does the top cap use a different board grade?

The cap is formed by rolling a flat panel into a cylinder. Thick, rigid corrugated board will crack or crease unevenly when rolled, so a thinner flute profile is used for the cap while the load-bearing base uses heavier board.

Can this display be shipped fully loaded?

Yes, if assembled by a co-packer, but it should be placed inside a rigid master shipper carton to protect the display and the novelty header during transit.

How much weight can the shelves hold?

Shelf capacity depends entirely on the chosen board grade, the width of the display, and the internal supports. Heavy liquid products should always be physically tested on a prototype before a full production run.

How are the pieces held together?

The main base tube and the header typically use adhesive. The internal supports and shelves use a mechanical tab-and-slot design that locks into the base.

Can we change the number of shelves?

Yes. The template can be adjusted for different shelf counts and vertical spacing to match the height of the products being displayed.

What kind of printing is used for this display?

Litho-lamination or high-quality direct print is often used to maximize the novelty impact of the juice box shape, especially on the header and side panels.

Do I need a separate shipping box for this display?

Yes. Whether shipped flat as a kit or pre-loaded by a co-packer, an outer master carton is necessary to protect the components during transit.

For visible beverage and liquid promotions, the juice box display provides a distinct retail presence. Testing a prototype with your actual product ensures the shelves and supports handle the intended load.
