Event Merchandising and Retail Floor Displays
Trade show and exhibition tables
Provides a large, branded surface for product demonstrations or literature. The flat-pack design allows event teams to transport the table alongside other booth materials and assemble it quickly before the show opens.
Pop-up retail merchandising
Acts as a temporary floor fixture for folded apparel, boxed goods, or lightweight retail items. The thick V-cut tabletop edges give the display a premium appearance compared to standard folding carton displays.
Temporary registration and welcome desks
Creates a designated reception point for corporate events or conferences. The wide pillar legs offer visible space for directional signage or sponsor branding.
Product demonstration stations
Offers a stable, elevated area for hands-on product trials. The under-table grid prevents the center span from bowing when attendees lean on the surface.
Event Marketing and Visual Merchandising Teams
Event marketing teams
Teams managing multiple temporary installations benefit from the tool-free assembly. The locking keys and corner gussets keep the table stable during high-traffic events, and it can be broken down flat for removal.
Retail visual merchandisers
Merchandisers can use the entire tabletop and pillar legs as a printed canvas. The rigid board construction supports short-term seasonal rollouts where permanent wooden fixtures would be too difficult to deploy.
Experiential agency producers
Agencies building immersive brand activations need structures that look permanent but ship flat. The thick V-cut edges hide the raw board profile, elevating the perceived value of the installation.
Limits of Corrugated Event Tables
Heavy industrial or permanent retail loads
If the display must hold heavy machinery, dense liquid containers, or serve as a permanent year-round retail fixture, a corrugated or honeycomb table may not be sufficient. Permanent wood or metal fixtures should be evaluated for long-term, high-weight applications.
Small countertop merchandising
When floor space is limited or the product is small, a full-size table is unnecessary. Review smaller PDQ trays or tiered counter displays that sit on existing store fixtures.
Board, Print, and Freight Planning
Board selection and V-cut routing

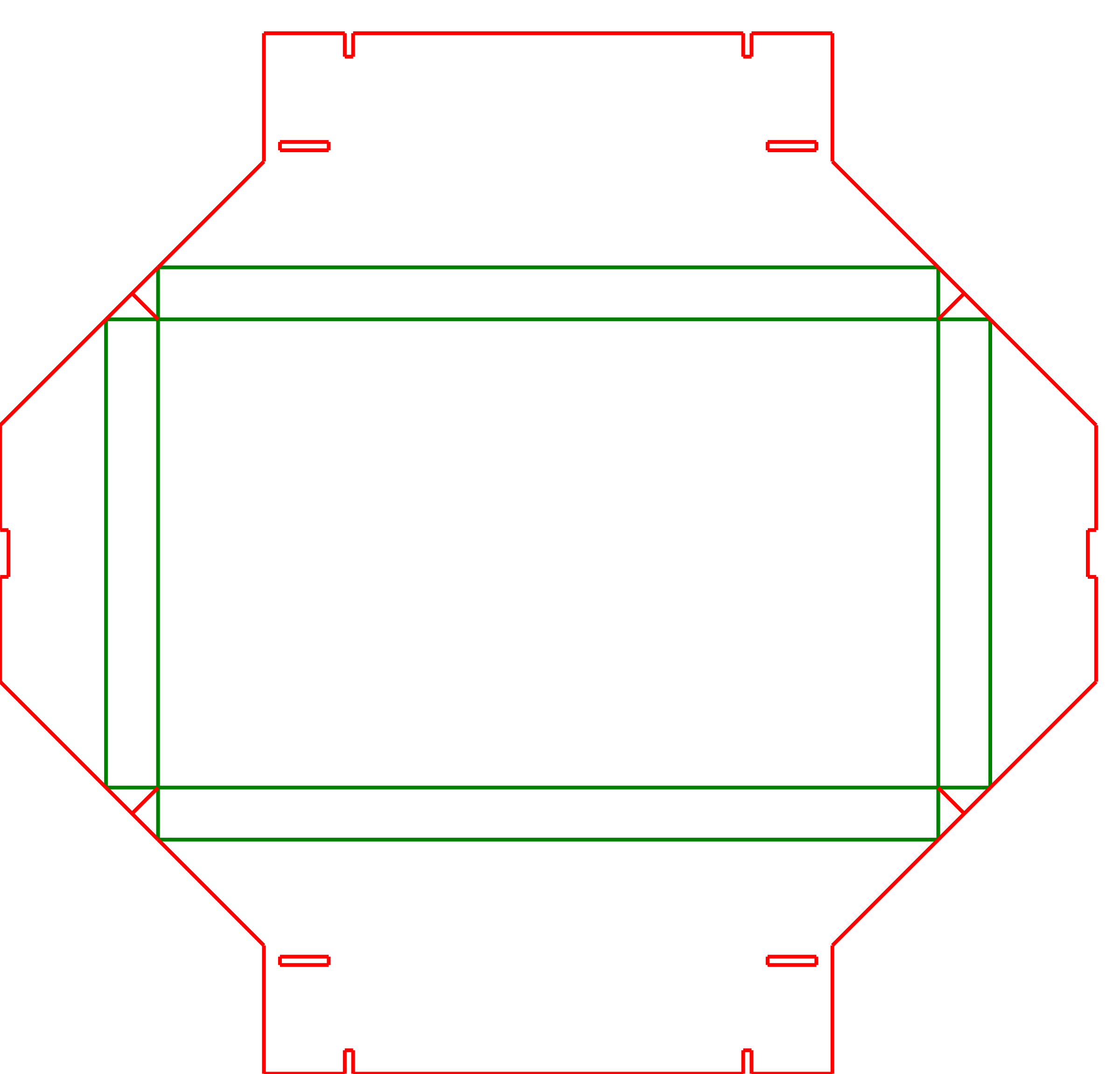

This structure relies on 16mm rigid board, such as honeycomb or inverted corrugated board (ICB). It cannot be made from standard thin corrugated board. The thick board requires CNC flatbed routing and precise V-cuts to achieve the clean 90-degree folds on the tabletop and legs.
Freight and pallet logistics
While the table ships knock-down, the flat components are large. A standard tabletop blank can measure two meters across, meaning the unassembled kit will require palletized freight or LTL shipping rather than standard parcel courier delivery.
Print coverage and edge banding
The top surface is the primary branding area, but the wide pillar legs also offer visible print space. Depending on the specific board used, the exposed honeycomb core on the leg edges may be visible unless edge banding or specific fold-over adjustments are planned.
Expected load and surface wear
For events with heavy product sampling or liquid exposure, the raw printed board may wear quickly. Discuss whether a protective top sheet, lamination, or specific coating is needed to preserve the branding.
Footprint, Height, and Grid Adjustments
Table length and width
The overall footprint can be scaled, but increasing the tabletop span requires adding more intersecting ribs to the under-table support grid to prevent the center from sagging under weight.
Leg height
The pillar legs can be lengthened for counter-height displays or shortened for low merchandising tables. Taller legs may change the center of gravity and should be checked for lateral stability.
Under-table grid density
The number of lengthwise and widthwise support ribs can be increased. A denser egg-crate grid provides more support for heavier products but increases the total board area and cutting time.
Packing details
Assembly space requirements
Because the tabletop blank is large and the under-table grid must be seated before the legs are attached, assembly requires a clear floor area larger than the final table footprint. Two people are usually needed to align and insert the folded legs into the grid receivers.
Additional notes
Board thickness and slot calibration
The interlocking slots and locking keys are precisely calibrated for 16mm board. Changing to a thinner or thicker material requires recalculating every joint in the CAD file, or the table will be too loose to stand or too tight to assemble.
FAQs
Does this table require glue or tools to assemble?
The entire structure is assembled mechanically. The support ribs intersect like an egg crate, the legs slot into the grid, and locking keys slide into place to hold the components together without adhesive.
Can standard corrugated board be used for this table?
The design requires 16mm rigid board, such as honeycomb or ICB. Standard corrugated board will crush under the weight and cannot support the V-cut folding method used for the thick edges.
How much weight can the table hold?
While the interlocking under-table grid distributes weight effectively, the exact capacity depends entirely on the specific honeycomb board used and the table's dimensions. A physical prototype should always be tested with the actual products.
Can this be shipped via standard parcel networks?
Even when packed flat, the main tabletop component is often too large for standard parcel couriers and requires palletized freight shipping to the event venue.
Can the table be moved after it is assembled?
The design includes locking fasteners and corner gussets that secure the legs to the tabletop grid, preventing the legs from falling out when the table is lifted and repositioned.
Are the edges of the board visible?
The V-cut method hides the raw edge along the main tabletop rim by folding the board inward. However, depending on the exact cut file, some raw honeycomb edges may be visible on the bottom of the legs or internal supports.
How is the tabletop supported across the middle?
An interlocking egg-crate grid sits under the main surface. This grid distributes weight across the span and transfers it to the pillar legs, preventing the center from sagging.
Can the table be disassembled and reused?
The mechanical locking keys can be removed, allowing the legs and grid to be packed flat again for future events, provided the board and joints are not damaged during use.
