Event And Retail Environments
Trade show counters
Provides a branded, lightweight gathering point that breaks down flat at the end of the event.
Retail tasting stations
Offers a temporary promotional surface for grocery or retail floors, easily moved and assembled by store staff.
Pop-up shop product pedestals
Provides a temporary, branded platform for presenting featured merchandise.
Event registration desks
Offers a quick-setup greeting point that packs flat for transport between venues.
Promotional And Marketing Teams
Event marketing
Fits campaigns that need high visual impact and easy transport between venues without specialized freight.
Pop-up retail
Provides custom-branded fixtures that do not demand long-term storage or complex installation.
Beverage sampling programs
Fits campaigns that deploy multiple temporary tasting stations across different retail locations.
When To Consider Permanent Fixtures
Heavy product displays
If the table will support heavy equipment or dense product stacks, a permanent wooden or metal fixture is a safer choice than corrugated board.
Long-term commercial furniture
This is a promotional display. For permanent cafe or bar seating, switch to traditional commercial furniture.
Board Thickness And Edge Finishing
Board selection
The design usually uses thick, rigid materials like 16mm honeycomb or inverted corrugated board. The exact caliper should be known before cutting so the interlocking slots fit tightly.
Edge treatment
Raw corrugated edges will be visible on the legs and tabletop. Decide if the project needs edge banding to protect against moisture and scuffing.
Outer shipping carton
The flat components are large and vulnerable to edge crush. A custom corrugated master shipper is often needed to protect the pieces during transit.
Top attachment method
Decide whether the tabletop will use pre-glued locator blocks or a slotted sub-top, which changes the assembly steps on location.
Table Height And Top Shape
Overall height
The pedestal legs can be lengthened or shortened to create a standard table or a high-top bar counter, though taller tables benefit from careful center-of-gravity testing.
Top diameter
The circular top can be resized, provided the base width is scaled proportionally to prevent tipping.

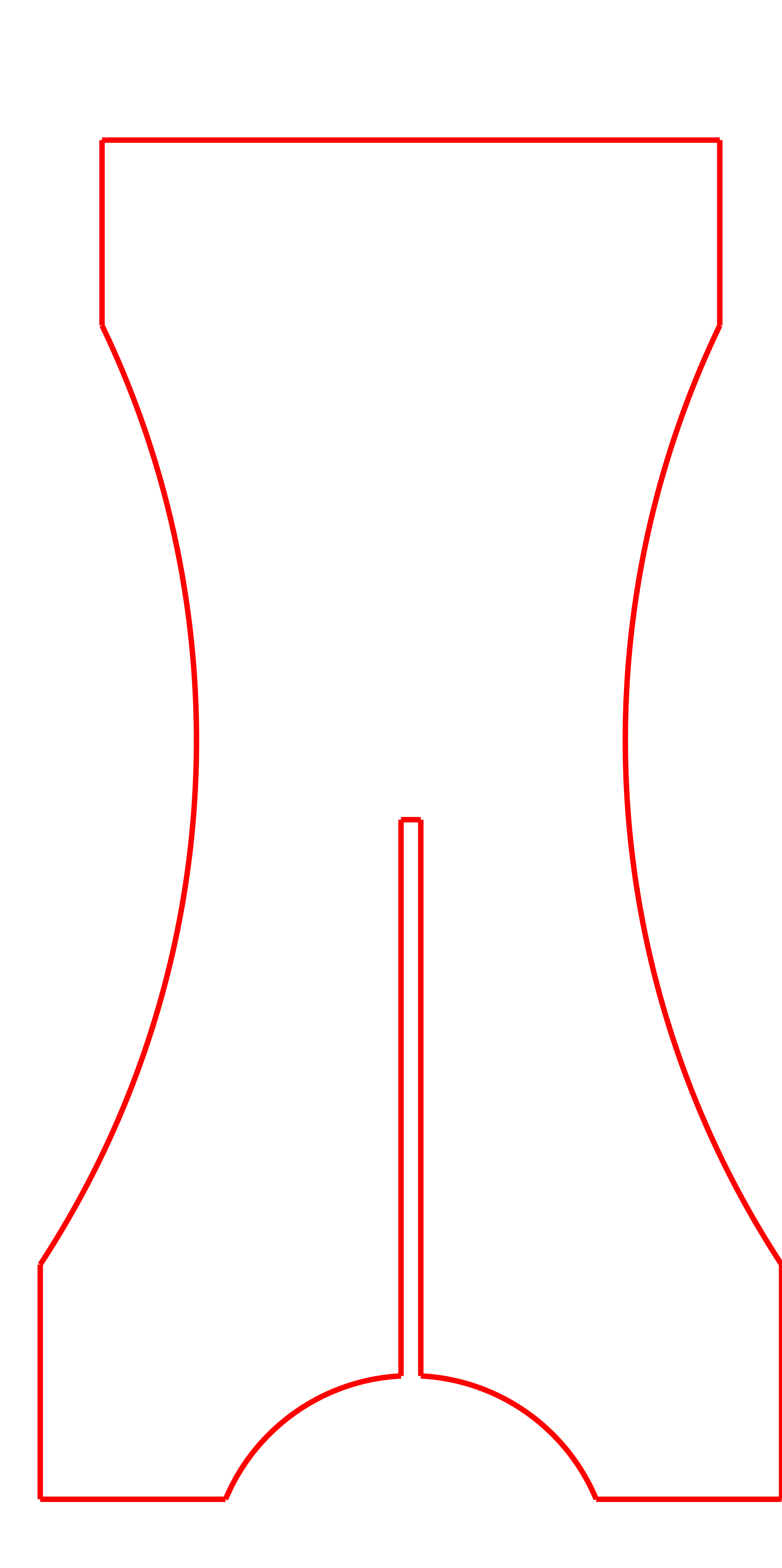

Leg contour profile
The curved shape of the pedestal legs can be modified for different aesthetics, provided the central interlocking slots remain intact.
Packing details
Print surface and branding
The large, continuous leg panels and circular top offer excellent real estate for direct-to-board digital printing. Both sides of the legs are visible in the final X-shaped assembly and should be printed.
Top Attachment Variants
ICB20100 (Glued Locator Blocks)
The standard design uses four small blocks glued to the underside of the tabletop, creating a socket that drops over the assembled base.
ICB20100_1 (Slotted Sub-Top)
This variant uses a secondary sub-top that locks onto tabs on the legs. The main solid tabletop is then adhered over the sub-top to hide the joints.
Additional notes
Edge exposure and banding
Because the table is cut from flat sheets, the flutes or honeycomb core will be visible along all edges. Edge banding can be applied to hide the core and protect against moisture, but this adds manual labor to the production route.
Related Display Structures
FAQs
How much weight can the table hold?
Capacity depends entirely on the chosen board grade, humidity, and load distribution. It is designed for lightweight promotional items and leaning, not for heavy equipment or sitting. Physical load testing is strongly advised.
Does the table need tools to set up?
The base legs slot together manually without tools. However, securing the tabletop involves an adhesive step: either pre-gluing locator blocks at the factory or applying double-sided tape on location, depending on the variant.
Can this ship bare via standard parcel delivery?
The knocked-down components are large and the raw edges are vulnerable to crushing. It usually needs a dedicated corrugated master carton to protect the edges during courier transit.
Can this be made from standard thin corrugated board?
The cross-halving joints and overall stability depend on thick, rigid materials, typically 16mm honeycomb or heavy inverted corrugated board.
Is the table stable on uneven floors?
The X-shaped base rests on four points. Like any four-legged table, it may rock on uneven surfaces. Its lightweight nature also means the center of gravity shifts quickly if pushed near the top edge.
Why is the exact board thickness so important?
The vertical slots in the legs should match the physical thickness of the board exactly. If the board is thicker than the slot, the pieces will bind; if it is thinner, the table will wobble.
How is the tabletop secured to the base?
The standard design uses four small blocks glued to the underside of the top, creating a socket that drops over the assembled base. A slotted sub-top variant is also available.
Can the table be printed on all sides?
Yes, the large leg panels and circular top offer excellent surfaces for direct-to-board digital printing. Both sides of the legs are visible in the final assembly and should be printed.
