Retail Environments for Arch Displays
Aisle-Spanning Promotions
The arch bridge is designed to span across a retail aisle or walkway, creating a branded tunnel that shoppers walk through. The dual towers hold the promoted products directly in the traffic flow.
End-Cap Anchors
When placed at the end of a gondola run, the arch creates a large, unmissable destination for seasonal campaigns or major product launches.
Trade Show Entrances
Beyond traditional retail, the arch structure serves as a branded gateway for event booths, providing high visibility across crowded exhibition floors.
Pallet-Skirted Bulk Displays
In club store environments, the wide span allows the towers to be positioned alongside bulk pallets, combining high-volume floor stock with organized shelf presentation.
Fulfillment and Assembly Realities
Co-Packer Assembly
With 16 separate components, including glued tubes, inserted shelves, locking panels, and gussets, this display is not suitable for quick in-store setup by retail staff. It is typically shipped knocked-down to a co-packer, where it is fully assembled, loaded with product, and shipped to retail on a pallet.
Large-Format Logistics
The sheer size of the arch bridge and tower panels means the knocked-down flat footprint is exceptionally large. This relies on specialized large-format die-cutting and careful pallet planning for transit.
Big Box and Club Retail
The wide footprint of the arch needs ample floor space, making it a natural fit for big box retailers and club stores with wide aisles that can accommodate the spanning bridge without blocking cart traffic.
When to Consider Simpler Display Formats
Store-Level Assembly Needs
If the display will be shipped flat directly to retail stores for staff to erect, a 16-piece arch is too complex. Review standard pop-up multi-shelf displays or simpler single-tower units that require fewer steps.
Limited Floor Space
Arch displays need a large amount of floor space. For tighter retail environments, a standard multi-shelf floor display provides vertical product housing without the wide footprint of the arch.
Structural and Material Choices
Board Thickness and Arch Rigidity
The arch bridge supports its own weight without sagging, and the towers bear the load of the arch plus the products. Double-wall corrugated or high-ECT board is usually needed to prevent buckling and splay.
Print Surface and Press Limits
The arch provides a large billboard. Litho-lamination or high-quality digital printing is typical, but the large panel sizes should match the converter's press and lamination capabilities.
Shelf Load Capacity
Determining the exact weight of products per shelf helps specify the right flute profile for the tower walls, ensuring the tabs do not tear and the walls do not buckle under the combined load.
Assembly and Fulfillment Routing
Deciding whether to ship knocked-down to a co-packer or pre-assembled on pallets changes the freight calculation and the required structural testing for transit.
Configuring the Arch and Towers
Shelf Count and Spacing
The number of shelves per tower and the vertical distance between them can be adjusted to fit specific product heights, though taller towers increase the overall center of gravity.
Arch Span Length
The width of the arch bridge can be modified to span different aisle widths. However, longer spans increase the risk of sagging and may need internal reinforcement or thicker board.
Header Card Additions
Slots can be engineered into the top of the arch bridge to accept interchangeable promotional header cards, allowing the main structure to be reused for different campaigns.
Packing details
Gussets and locking panels for joint stability
The critical junctions where the arch meets the towers are reinforced with dedicated locking panels and gussets. These components are essential to keep the towers standing straight and prevent the arch from collapsing inward.
Additional notes
Board thickness and slot clearance
Because the shelves, gussets, and locks rely on tab-and-slot connections, the CAD file should be precisely matched to the exact thickness of the chosen corrugated board to ensure a tight, stable fit.
FAQs
Can retail store staff assemble this display?
It is highly discouraged. The 16-piece construction, including large glued tubes and structural gussets, needs ample floor space and trained personnel. It is best assembled by a co-packer.
How are the towers and arch constructed?
The main vertical towers and the top arch bridge are formed by folding large corrugated panels into rectangular tubes and gluing the seams. The shelves, gussets, and locking panels use tab-and-slot friction fits.
How are the shelves installed?

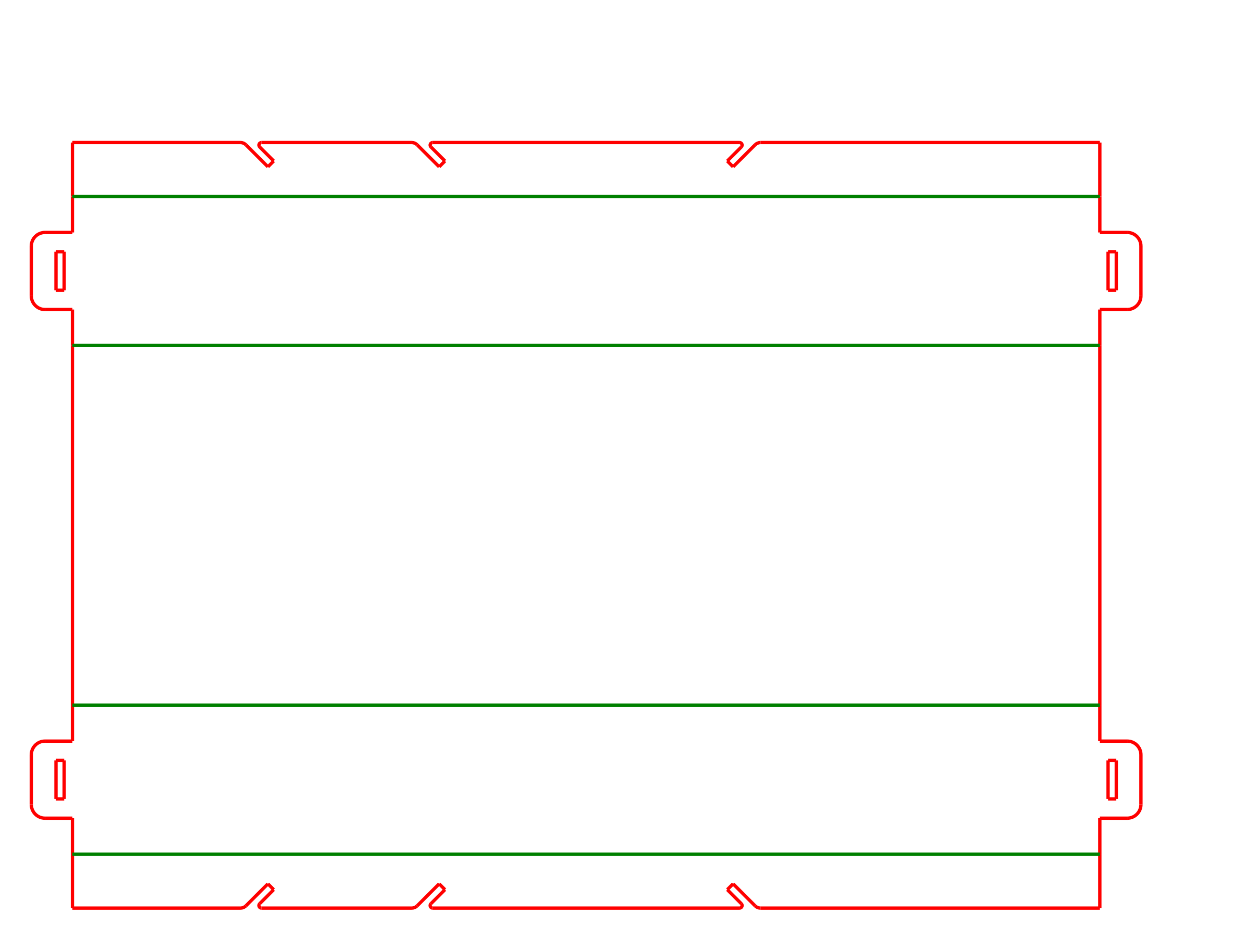

The shelves are folded and inserted horizontally into corresponding slots cut into the inner walls of the towers, relying on a tab-and-slot friction fit.
What prevents the arch from sagging in the middle?
The arch relies on the rigidity of the folded corrugated tube and the strength of the board grade, typically double-wall. The span length should be carefully checked against the board's deflection limits.
How is the arch secured to the towers?
The arch seats onto the top of the towers. Dedicated locking panels are inserted into aligned slots on both the arch and the towers, while corner gussets brace the 90-degree inner angles to prevent the towers from leaning.
Can the arch bridge hold product?
No, the arch bridge is designed as a structural span and a branding canvas. All heavy products are loaded onto the tower shelves.
Can this display be shipped via parcel networks?
No. The knocked-down flat components are large, and the fully assembled display is a large, palletized freight item. It is not suited for standard parcel courier networks.
Do I need a physical prototype?
Yes. A full-scale physical prototype loaded with your actual product is important to test for arch sag, tower buckling, and overall tipping stability before committing to a production run.
