Event and Retail Display Applications
Trade Show and Event Entrances
Creates a branded gateway for attendees. The flat-pack design allows the massive structure to be transported to event spaces via freight and assembled on-site without heavy construction equipment.
Retail Floor and Aisle Displays
Acts as a focal point over pallets or large product dumps. The thick rigid board provides a premium architectural look with sharp 90-degree corners that standard corrugated displays cannot match.
Experiential Marketing Activations
Sets the tone for pop-up shops and brand activations. The large printable surface area allows for complete brand immersion right at the entry point.
Temporary Store-in-Store Gateways
Defines a distinct zone within a larger retail environment. The arch provides clear physical separation for seasonal campaigns or specific product collections.
Best Fits for Large-Format Arches
Experiential Marketing Teams
Provides high visual impact without the cost and logistics of permanent wood or metal fixtures. The rigid board accepts direct digital printing beautifully, allowing for complete brand immersion.
Retail Merchandisers
Offers a sturdy, temporary architectural element that store staff or installation teams can erect for seasonal campaigns and major product launches.
Event Production Agencies
Delivers reliable, flat-shipping architectural elements that assemble quickly on-site without heavy tools, reducing setup time and labor costs.
When to Consider Alternative Display Structures
Standard Corrugated Displays
If the budget or production route does not support CNC V-cut routing on premium thick board, a standard creased corrugated display may be necessary. However, standard corrugated will lack the sharp corners, extreme rigidity, and premium finish of this arch.
Permanent Wood or Metal Fixtures
If the arch needs to stay in place for years or support heavy overhead lighting, permanent fixtures may be a safer choice than rigid board.
Material, Assembly, and Stability Decisions

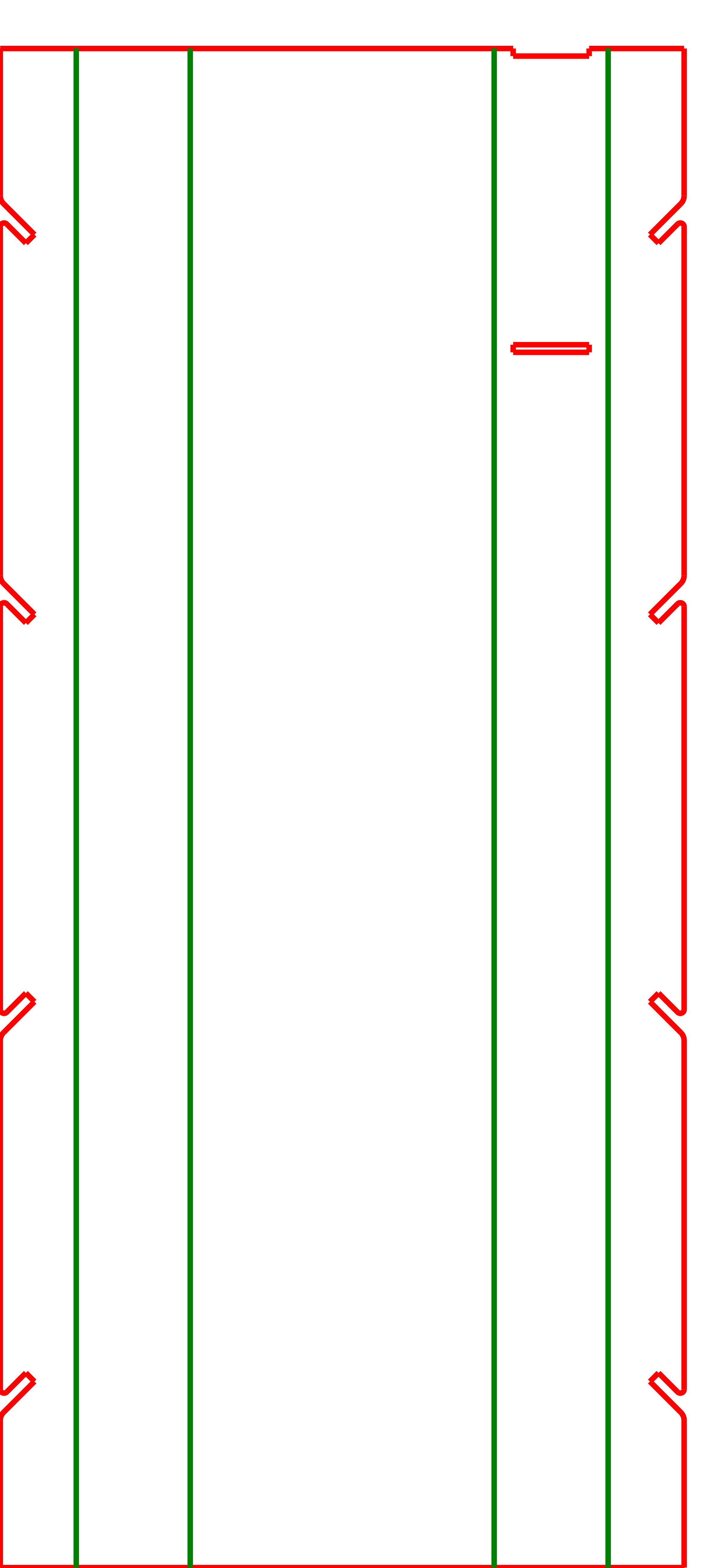

Board Thickness and V-Cut Calibration
This template is mathematically tied to the exact caliper of the board (default 16mm). If you change to a 10mm or 8mm board, the structural file must be updated so the V-cuts fold correctly and the interlocking slots align perfectly.
Pillar Seam Closure
The long mitered edges of the folded pillars do not have native mechanical locks. You must decide whether the converter will pre-glue these seams or if the on-site assembly team will secure them with tape or adhesive before erecting the arch.
Base Stability and Weights
For high-traffic retail environments or drafty event spaces, the arch may require additional base plates or internal weights to prevent tipping.
Print Surface and Graphic Alignment
Deciding how continuous graphics will span across the joints between the vertical columns and the top header affects the final artwork preparation.
Structural Adjustments
Overall Span and Height
The total width (span) and height of the arch can be adjusted to fit specific aisles or entrances. However, extreme sizes must be checked against the maximum dimensions of the master board to ensure the flat blanks can be produced in one piece.
Column Depth and Width
The footprint of the vertical pillars can be widened to increase freestanding stability and provide a larger side-panel area for branding.
Header Panel Height
The vertical face of the top header can be extended to provide more branding space, provided it fits within the master board dimensions.
Packing details
On-Site Assembly Labor
Because the components are often over two meters long, erecting the final arch requires at least two people to align the joints safely.
Freight Shipping
While the arch ships knocked-down (KD), the flat blanks are exceptionally long. Plan for palletized freight rather than standard parcel delivery.
Additional notes
Direct-to-Board Printing
The large, flat panels of rigid board provide an excellent surface for high-quality digital printing, allowing continuous graphics across the columns and header.
Corner Gussets and Locking Panels
The structure includes separate U-shaped gussets and T-shaped locking panels. These help brace the inner 90-degree corners and prevent the arch from racking or pulling apart.
Related Display Structures
FAQs
Does this arch require tools to assemble?
The main joints use a tool-free tab-and-slot system secured by locking panels and gussets. However, the long seams of the folded pillars usually require tape or adhesive to hold their 3D shape before the arch is joined together.
Can one person set this up?
Generally, no. Because the top header and columns are large and must be aligned simultaneously, it typically requires two people to safely erect the arch.
Can this be made from standard corrugated cardboard?
No. This specific design relies on V-cut routing, which requires thick, rigid materials like Inverted Corrugated Board (ICB) or honeycomb board (typically 10mm to 16mm thick) to form sharp 90-degree corners.
How does board thickness affect the design?
Every slot, tab, and V-cut offset is calculated based on the exact material thickness. If you switch from 16mm to 10mm board, the structural file must be recalibrated before cutting.
Can this ship via standard parcel services?
Usually not. The flat blanks for the columns are often over two meters long, which typically requires LTL freight shipping rather than standard courier networks.
Will the arch tip over easily?
While the thick pillars provide a sturdy base, tall arches in high-traffic areas or environments with air currents should be evaluated for additional base weights or floor anchoring.
How are the vertical pillars kept closed?
The long mitered edges of the folded pillars usually require tape or adhesive to hold their shape before the arch is joined.
Can graphics be printed across the entire arch?
Yes, the flat rigid board panels accept direct digital printing, but artwork must account for the seams where the header meets the columns.
