Retail And Event Archways
Trade show and event entryways
This module provides the scale and rigidity needed for event branding. The thick box-beam construction gives the appearance of a permanent architectural feature while remaining flat-packable for transport.
Large retail floor displays
Used to frame aisles, highlight specific product zones, or create immersive brand experiences. The outer skins provide massive, uninterrupted panels for high-impact digital printing.
Temporary pop-up shop framing
When building a temporary retail space, these archways define the footprint and entrance without requiring custom carpentry or heavy metal truss systems.
Branded aisle markers
Placed over wide retail aisles, the overhead beam provides high-visibility branding that shoppers can walk beneath, drawing attention to specific departments.
Event Marketing And Store Fixtures
Experiential marketing agencies
Agencies use this module to build temporary, high-end environments without the cost and drayage fees associated with custom carpentry.
Retail fixture procurement
For seasonal rollouts, this module offers a rigid alternative to metal framing, allowing for complete graphic coverage and easier end-of-life recycling.
Trade show exhibit builders
Exhibit houses incorporate these modules to create lightweight, printable overhead spans that reduce shipping weight compared to traditional booth hardware.
When To Consider Alternative Displays
Straight wall configurations
If the floor plan requires a continuous backdrop rather than an archway or overhead span, compare this to straight modular wall components like the ICB40014, which avoid the cantilever stress of a 90-degree beam.
Load-bearing shelving displays
This archway is a visual and physical framing element. If the display needs to hold heavy retail products, compare it to dedicated rigid board shelving units or floor stands designed for vertical load paths.
Production And Logistics Planning
Machine envelope and part size
The default column panels are 2.8 meters long. Before specifying, verify that your manufacturing partner has a CNC flatbed router large enough to cut these components in a single pass.
Material thickness and joint strength
The internal locking slots and gussets are parametrically tied to 16mm board. While thinner materials like 10mm board can reduce weight, they greatly weaken the cantilever joint and must be physically validated before production.
Oversized pallet logistics
Even when delivered flat, the sheer length of the primary panels requires oversized pallets. Plan for specialized freight handling rather than standard LTL or parcel networks.
Base weighting and anti-tip planning
Depending on the final height and floor traffic, the base of the column often requires internal weighting or floor anchors to prevent the archway from tipping over.
Display Adjustments
Column height and beam span
The overall height and width of the archway can be adjusted, but extending the horizontal beam increases cantilever stress on the corner joint. Major extensions require physical load testing.
Outer skin print coverage
Because the outer U-channel wraps over the internal frame, the entire exterior surface is available for continuous digital printing without visible hardware interruptions.
Base anchoring cutouts
The bottom of the column panels can be modified to accommodate specific floor weights, sandbags, or anchoring plates required for retail safety.
Packing details
Internal locking hardware
The 90-degree joint relies on a separate rigid board gusset and locking panel inserted into pre-cut slots. This internal bracing prevents the arch from racking and is completely hidden once the outer U-channel skins are wrapped over the frame.
Additional notes
Print surface and hardware concealment
Because the outer U-channel skins wrap entirely over the inner frame, all locking tabs and gussets are hidden. This provides a massive, uninterrupted surface for large-format digital printing.
Related Rigid Board Displays
FAQs
How is the archway corner secured without glue?

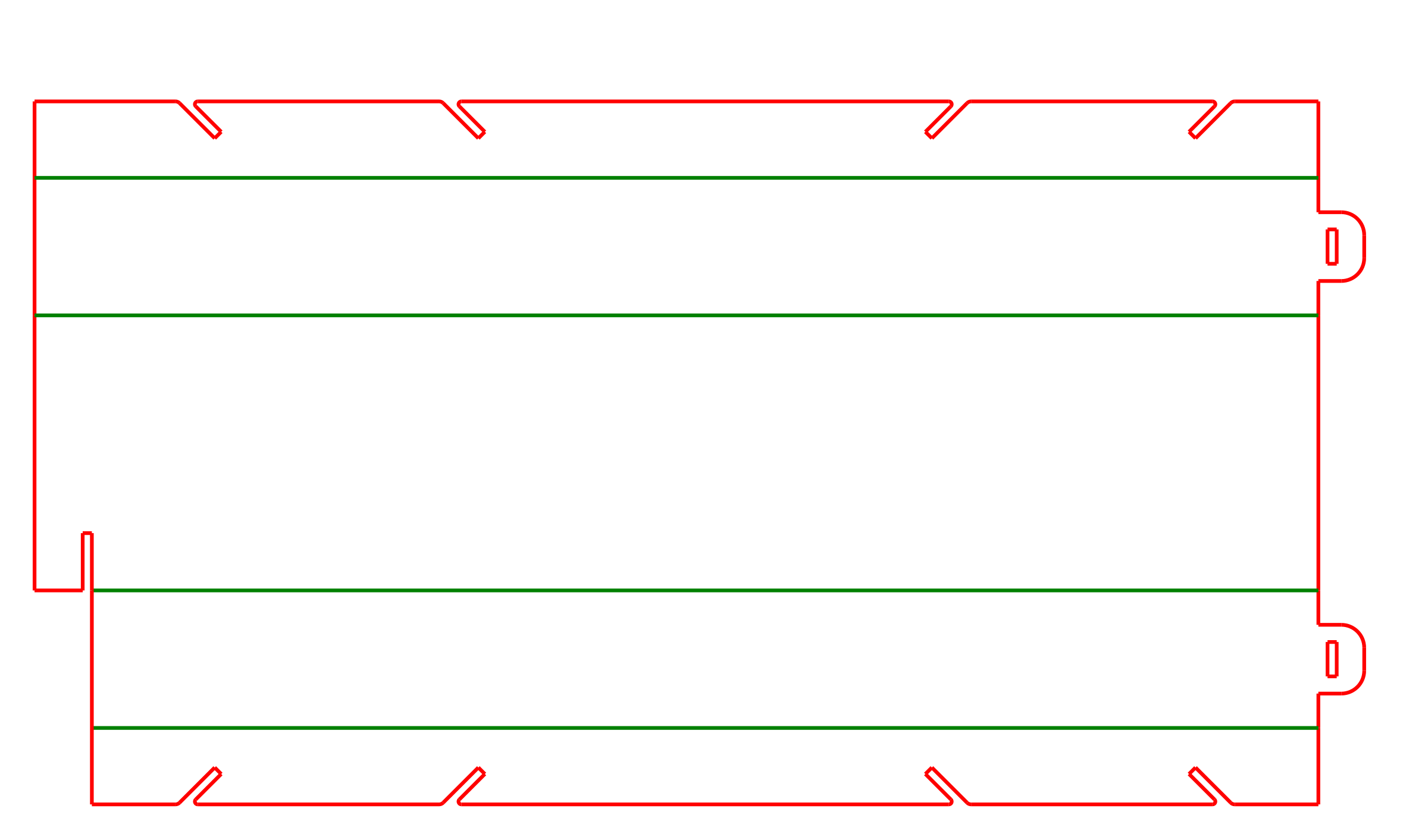

The inner column and beam are folded into U-channels and mated at 90 degrees. A rigid board gusset and locking panel are then inserted into pre-cut slots to brace the joint. Finally, outer U-channel skins slide over the assembly, locking everything in place via friction.
Can store staff assemble this display?
Due to the size of the 2.8-meter panels and the multi-step nesting sequence, assembly requires at least two people and ample floor space. It is more complex than a standard pop-up display.
Why does this require V-cut routing?
To fold 16mm rigid board cleanly at 90 degrees, a CNC router must cut a V-shaped groove into the material. Standard die-cutting cannot process board this thick.
What material is required for this archway?
The parametric slots and locking hardware are designed specifically for 16mm Inverted Corrugated Board (ICB) or equivalent heavy-duty honeycomb. Thinner boards will compromise the joint strength.
Can the horizontal beam support overhead weight?
The cantilever beam is designed primarily for its own weight and visual impact. Any additional overhead load, such as lighting or heavy signage, must be physically tested to ensure the corner gusset does not tear out.
Does the column need to be anchored?
Depending on the final height and floor traffic, the base of the column often requires internal weighting or floor anchors to prevent the archway from tipping over.
How is this module shipped?
The six components are delivered flat on oversized pallets. Because the main panels are 2.8 meters long, they cannot be shipped via standard parcel couriers.
Can the archway dimensions be customized?
The height and width can be adjusted, but the maximum size is strictly limited by the converter's CNC router bed. Extending the horizontal beam also increases stress on the corner joint and requires careful review.
