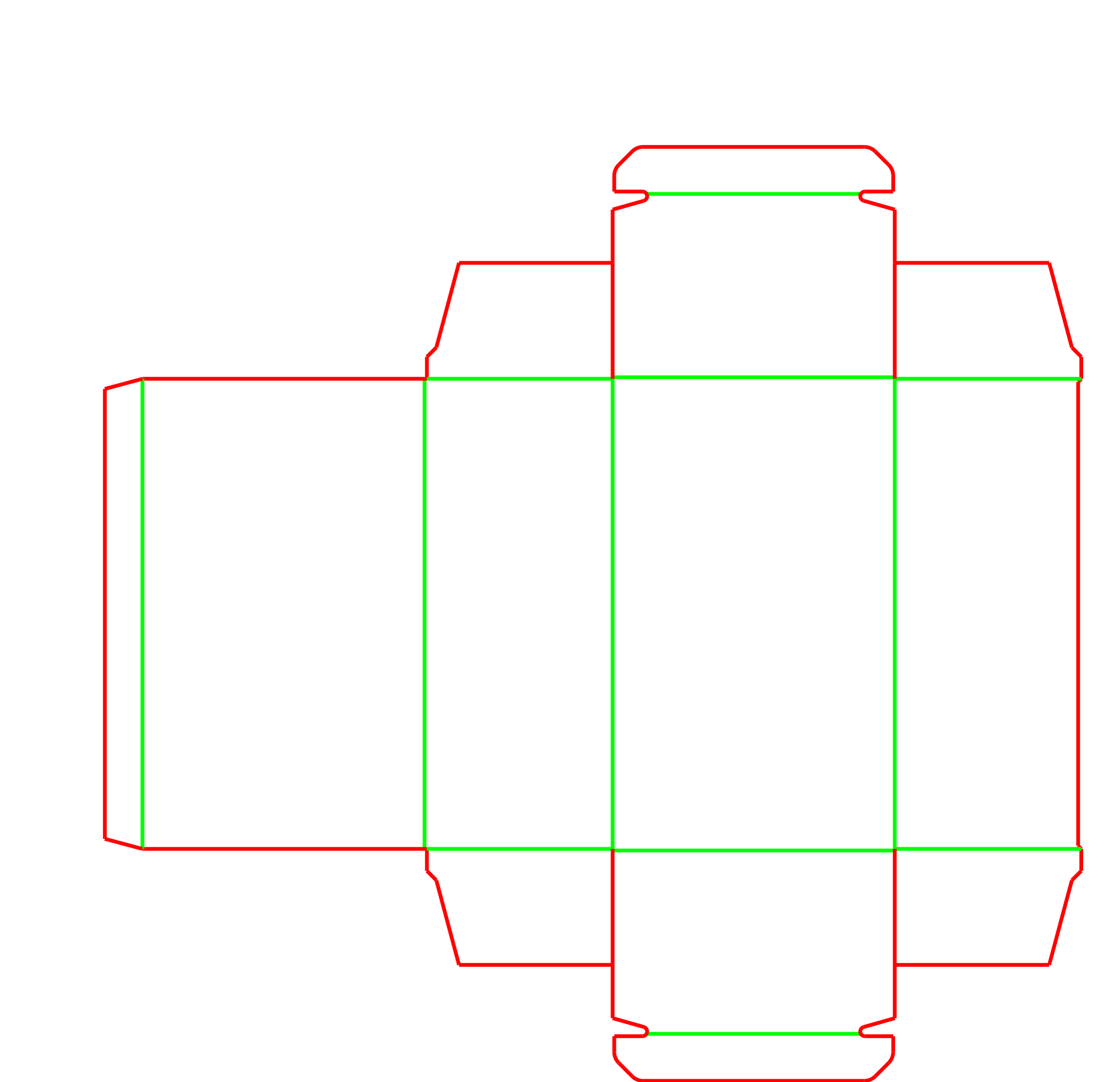

EVF11022

Straight Tuck Carton with Slit Locks

The EVF11022 is a straight tuck end (STE) folding carton designed for premium retail presentation. Because both the top and bottom closures hinge from the rear panel, the front face remains completely clean and uninterrupted by raw board edges.

To keep the carton securely closed on the shelf, the tuck flaps feature slit locks, small notches that catch against the inner dust flaps. This provides a stronger, more reliable hold than a standard friction tuck, making it an excellent choice for cosmetics, pharmaceuticals, and light consumer goods.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Clean front panel for uninterrupted retail branding
  • Slit locks on top and bottom prevent accidental opening
  • Delivered flat and easily opened for loading

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Primary Packaging Jobs

Premium Retail Display

The straight tuck design ensures the front panel has clean, folded edges at both the top and bottom. This uninterrupted surface is a strong choice for high-end graphics and primary branding where presentation is the top priority.

Products Requiring Secure Closure

The slit locks engage with the inner dust flaps, creating a mechanical catch. This keeps the carton closed during shelf handling and prevents heavier items from easily pushing the bottom open.

Shelf-Ready Primary Packaging

For lightweight retail goods, this carton provides a clean, self-contained presentation that stands upright on shelves without needing additional display trays.

Branded Insert Kits

The secure bottom closure makes this carton well-suited for holding custom paperboard or foam inserts, keeping multiple small components organized without the base giving way.

Industries and Retail Channels

Cosmetics and Personal Care

The clean presentation and secure closure fit the expectations of beauty retail, where packaging appearance is critical and raw board edges on the front face are undesirable.

Pharmaceuticals and Supplements

The slit locks provide a reliable closure that resists opening accidentally, keeping lightweight bottles or blister packs secure during transit to the store and while on the shelf.

Lightweight Consumer Electronics

Tech accessories often require a premium unboxing experience. The straight tuck design allows for full-panel artwork, while the slit locks keep cables and devices securely contained.

When to Consider Reverse Tucks or Standard Closures

High-Volume Material Efficiency

Straight tuck cartons are slightly less efficient to nest on a master sheet than reverse tuck cartons. If board yield is more critical than a clean front panel, a reverse tuck end (RTE) carton is worth reviewing.

Heavy or Dense Products

While slit locks improve security, a tuck bottom can still fail under heavy vertical loads. For heavier items, an auto-bottom or crash-lock base provides stronger support.

Board, Finish, and Packing Route Choices

Board Grade and Caliper

Solid Bleached Sulfate (SBS) or Folding Boxboard (FBB) are typical choices for this style, offering the stiffness needed for clean folds and reliable slit lock engagement.

Automated vs. Hand Packing

This carton can be erected and loaded on automated cartoning lines, but the slit locks must be precisely tuned to match the insertion force of the machinery to prevent jams.

Print Surface and Coating

Because the front panel is completely clean, it is often the focus for high-end finishes like foil stamping or spot UV. The chosen board must support these secondary processes.

Slit Lock Friction Fit

The depth of the slit locks determines how tightly the carton stays closed. This friction fit should be evaluated based on the weight of the product and how often the consumer will open the box.

Slit Lock and Flap Adjustments

Slit Lock Tuning

The depth and width of the slit locks can be adjusted based on the board thickness and whether the carton will be closed by hand or machine.

Glue Flap Width

The side seam glue flap can be widened to accommodate specific folder-gluer requirements or heavier board grades.

Dust Flap Bevel Angle

The angle of the inner dust flaps can be modified to change how aggressively they catch the slit locks, balancing security with ease of opening.

Packing details

Grain Direction

The board grain should run horizontally around the carton to ensure clean vertical folds and prevent the main panels from bowing outward.

Tamper Evidence

While the slit locks keep the carton closed, they are not natively tamper-evident. A clear wafer seal or label is needed if tamper evidence is required for retail.

Additional notes

Front panel branding advantage

Because the top and bottom tucks fold to the rear, the front panel has smooth, folded edges at both ends. This makes it the preferred choice when primary branding needs an uninterrupted surface.

Related Folding Cartons

FAQs

Does this carton require tape or glue to assemble?

The side seam is glued by the converter before delivery. Once you receive the flat carton, it opens into a tube and closes using the tuck flaps and slit locks. No tape or additional glue is needed for assembly.

What is the difference between a straight tuck and a reverse tuck?

On a straight tuck carton, both the top and bottom closures hinge from the same back panel, leaving the front panel completely clean. On a reverse tuck, the closures hinge from opposite panels, which saves material but leaves a raw board edge visible on the front.

Can this carton be used for parcel shipping?

No. Folding cartons are designed for retail shelves and primary presentation. They require an outer corrugated shipping box for parcel or courier delivery.

Are the slit locks difficult to open?

They provide a secure friction catch that resists accidental opening, but they are easily opened by a consumer pulling the tuck flap.

Can this carton run on automated packaging lines?

Yes, straight tuck cartons are widely used in automated cartoning. However, the slit locks may need slight geometric adjustments to ensure they engage smoothly without jamming the machinery.

What board materials are often used for this design?

Standard folding carton boards like FBB (Folding Boxboard) and SBS (Solid Bleached Sulfate) provide the right balance of stiffness and printability. Micro-flute corrugated is generally not recommended, as the slit locks may crush or fail to engage properly.

Can I use custom inserts inside this carton?

Yes. The secure slit-lock bottom provides a stable base for paperboard or foam inserts, making it a good choice for multi-component kits or fragile items.

Should I test the slit locks before a full run?

Yes. It is highly recommended to request a physical sample with your exact board grade. This allows you to verify that the slit locks hold your specific product weight without tearing or opening unexpectedly.

A secure, clean-faced retail carton ready for high-quality printing and presentation.
