Premium Presentation and Fragile Goods
Glass dropper bottles and serums

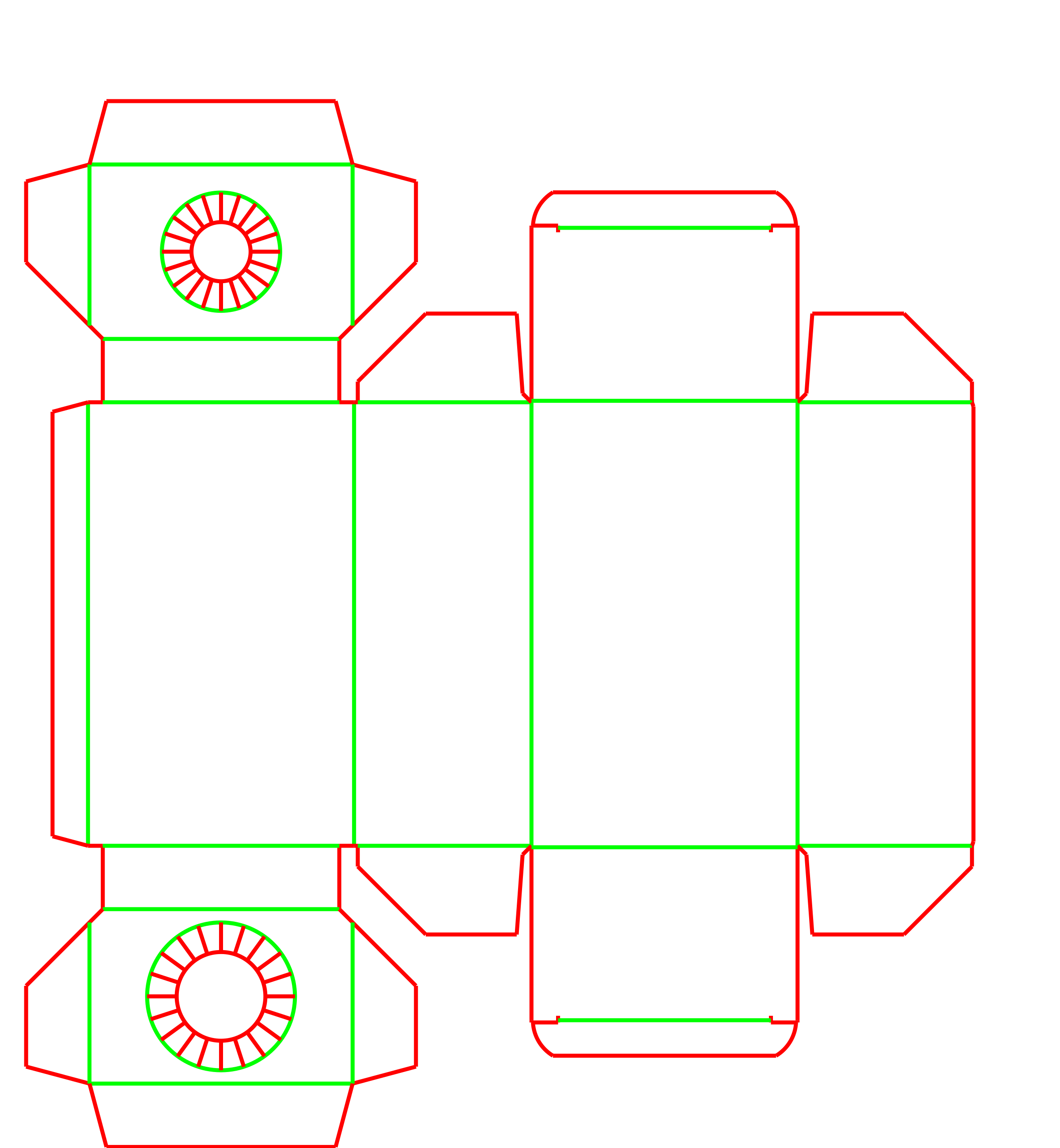

The suspended platforms keep fragile glass away from the outer impact zones. Radial tabs flex to hold the bottle securely in the center of the carton airspace.
Perfume and fragrance packaging
Provides a premium unboxing experience by presenting the bottle suspended in the center of the box, eliminating the need for a separate plastic or foam insert.
High-value cylindrical electronics
For small electronic components or specialized parts, the integrated buffer provides excellent presentation and prevents the item from rattling during transit or retail handling.
Skincare tubes and cosmetics
The radial tabs can be sized to grip the crimped or rounded ends of cosmetic tubes, keeping them upright and centered for display.
Retail and Boutique Manufacturing
Hand-packed retail programs
Because the internal platforms rely on a three-stage manual fold, this carton makes the most sense for operations where packing speed is secondary to the final unboxing experience.
Component reduction initiatives
By integrating the insert directly into the main carton blank, buyers only need to source, inventory, and manage a single SKU per product size.
Boutique manufacturing and limited runs
For smaller production volumes, using a single die-cut piece can be more practical than tooling and ordering a separate custom insert alongside a standard box.
When to Consider Standard Cartons or Separate Inserts
High-speed automated packing
The 180-degree and 90-degree folds that form the internal buffers are difficult for automated carton erectors to execute. If your line relies on automation, compare a standard straight tuck carton paired with a drop-in insert.
Heavy or non-cylindrical items
The radial tabs are meant to grip round ends. Heavy items may tear the tabs during a drop, and flat items will not seat correctly. A custom die-cut insert inside a standard carton is often a better fit for irregular shapes.
Board Choice and Packing Labor
Board caliper and cracking risk
The first segment of the buffer flap folds 180 degrees to lie completely flat against the inside wall. Thick or rigid board grades will bind and crack during this fold, distorting the platform. High-quality folding boxboard (FBB or SBS) with the correct grain direction is important.
Physical prototyping for product fit
The diameter of the central hole and the flexibility of the radial tabs should be tested with the actual physical product. A prototype ensures the tabs grip securely without tearing when the item is inserted.
Packing labor availability
The top and bottom buffers each involve a specific folding sequence before the outer tuck flaps can be closed. Buyers should account for this increased manual assembly time when planning fulfillment.
Print layout on the folded edge
Because the buffer flap folds 180 degrees inward, a small band of the inside front panel becomes visible at the very top and bottom edges. Artwork layouts should account for this to ensure a continuous exterior appearance.
Adjusting the Suspension and Grip
Buffer drop depth
The distance the platform sits below the outer closure can be adjusted to accommodate different product heights or to increase the crumple zone at the ends of the carton.
Radial tab sizing
The central cutout and the length of the friction tabs can be tailored to the exact diameter of the bottle or tube being packed.
Tuck lock style
The slit locks on the outer tuck flaps can be adjusted for depth and angle to provide more or less friction, depending on how securely the outer carton needs to stay closed.
Packing details
Platform depth and carton dimensions
The depth of the internal platform is strictly tied to the overall depth of the carton. If the carton dimensions change, the platform depth will need recalculating to ensure it reaches the back wall without bowing.
FAQs
Can this carton be erected on automated machinery?
Generally no. While the carton ships flat as a standard glued side-seam tube, forming the internal suspension platforms relies on a specific manual folding sequence that automated erectors struggle to perform.
Does this style work for square or rectangular products?
It is primarily designed for cylindrical items. The radial tabs in the buffer platforms are meant to flex around round edges. Square items may tear the tabs or fail to seat securely.
Can this be made from corrugated board?
Usually not. The internal buffer flaps fold 180 degrees flat against the inside wall. Corrugated board is too thick for this fold and will cause the carton to bind, crack, and lose its shape. It relies on a flexible folding carton board like SBS or FBB.
Does the internal buffer affect the exterior artwork?
Yes, slightly. When the buffer flap folds inward, a small section of the inside of the board becomes the new top and bottom outer edge. Your print layout may need to extend into this inside area to maintain a continuous color or pattern.
Why is a physical sample necessary before production?
A physical sample verifies that the chosen board can survive the 180-degree fold without cracking, and that the radial tabs provide the right amount of friction to hold your specific product without tearing.
How does the buffer depth affect the overall carton size?
The depth of the horizontal platform is geometrically tied to the front-to-back depth of the outer carton. If you make the carton deeper, the platform needs to be extended so it reaches the back wall.
Does this carton require glue for assembly?
The manufacturer glues the main side seam before shipping the carton flat. When you receive it, the buffers and outer flaps fold and lock into place without needing any additional tape or glue.
Can the radial tabs hold heavy glass bottles?
This depends on the board strength and the length of the tabs. Heavy items can tear the tabs during a drop or rough handling. For heavy glass, physical drop testing is important to ensure the tabs do not fail.
