Retail packaging and fulfillment applications
High-volume kitting and fulfillment
Because the internal sleeve erects automatically as the box is opened, packers do not need to fold, shape, or load a separate insert. This speeds up hand assembly for multi-part kits or fragile items.
Fragile retail goods
The internal buffer creates a crush zone between the product and the outer walls. This standoff helps protect cosmetics or small electronics from side impacts during retail handling and shelf stocking.
Glass bottles and dropper vials
The internal sleeve keeps glass containers away from the outer carton walls, reducing the risk of shattering during transit or retail display.
Small electronics and components
Suspends delicate devices in the center of the carton, providing an air gap that absorbs minor impacts before they reach the product.
Inventory, packing, and presentation contexts
Premium unboxing presentation
The suspended inner sleeve frames the product cleanly upon opening. The buffer panels can often be printed to match the exterior, offering a high-end presentation without the cost of a rigid setup box.
Reducing packaging inventory
By combining the outer carton and the inner retention platform into a single glued piece, brands only need to stock and manage one SKU instead of separate boxes and inserts.
High-speed manual packing lines
Because the buffer deploys automatically when the carton is squeezed open, packers do not lose time folding and loading a separate die-cut insert.
When to compare standard cartons or separate inserts
Heavy products or thick materials
The auto-erecting mechanism relies on folding carton board. Thick corrugated board or very heavy products can cause the internal tabs to bind or tear. For heavier items, a standard carton with a separate corrugated insert is usually a safer choice.
Multi-component kits requiring separate compartments
The built-in buffer forms a single rectangular sleeve. If the product requires multiple separated cavities, a standard carton with a custom die-cut insert is a better choice.
E-commerce parcel shipping without an outer mailer
Tuck-end closures can open during rough transit. For direct-to-consumer shipping, this carton usually requires an outer shipper or security tape.
Board, gluing, and print decisions
Multi-point gluing requirements
This is a one-piece design, but it requires a folder-gluer capable of multi-point gluing to anchor the internal buffer tabs to the opposite wall. Prototyping helps ensure the buffer deploys squarely at your chosen board thickness.
Board thickness and buffer kinematics
The auto-erecting mechanism relies on folding carton board memory. Thick board can cause the internal tabs to bind, so prototyping is necessary to confirm the sleeve deploys squarely.
Buffer gap dimensions
The air gap between the product and the outer walls can be adjusted. A larger gap offers more crush space but increases the overall footprint of the flat blank.
Print layout for the internal sleeve
The panels forming the internal buffer can often be printed. Deciding whether to add branding or instructions to this inner sleeve affects the artwork layout and printing process.
Buffer gap and sleeve adjustments
Tuning the buffer gap and product positioning
The internal sleeve can be adjusted to hold the product dead-center or offset to one side. The air gap dimensions can be tuned based on how much crush space the specific item needs.
Adjusting the internal sleeve height
The height of the internal buffer can be modified to hold the product tightly at the top and bottom or to allow some vertical clearance depending on the item's shape.
Offsetting the product cavity
The internal sleeve does not have to be perfectly centered. The buffer panels can be adjusted to push the product closer to one specific wall if required for display or weight distribution.
Packing details
Blank width and nesting

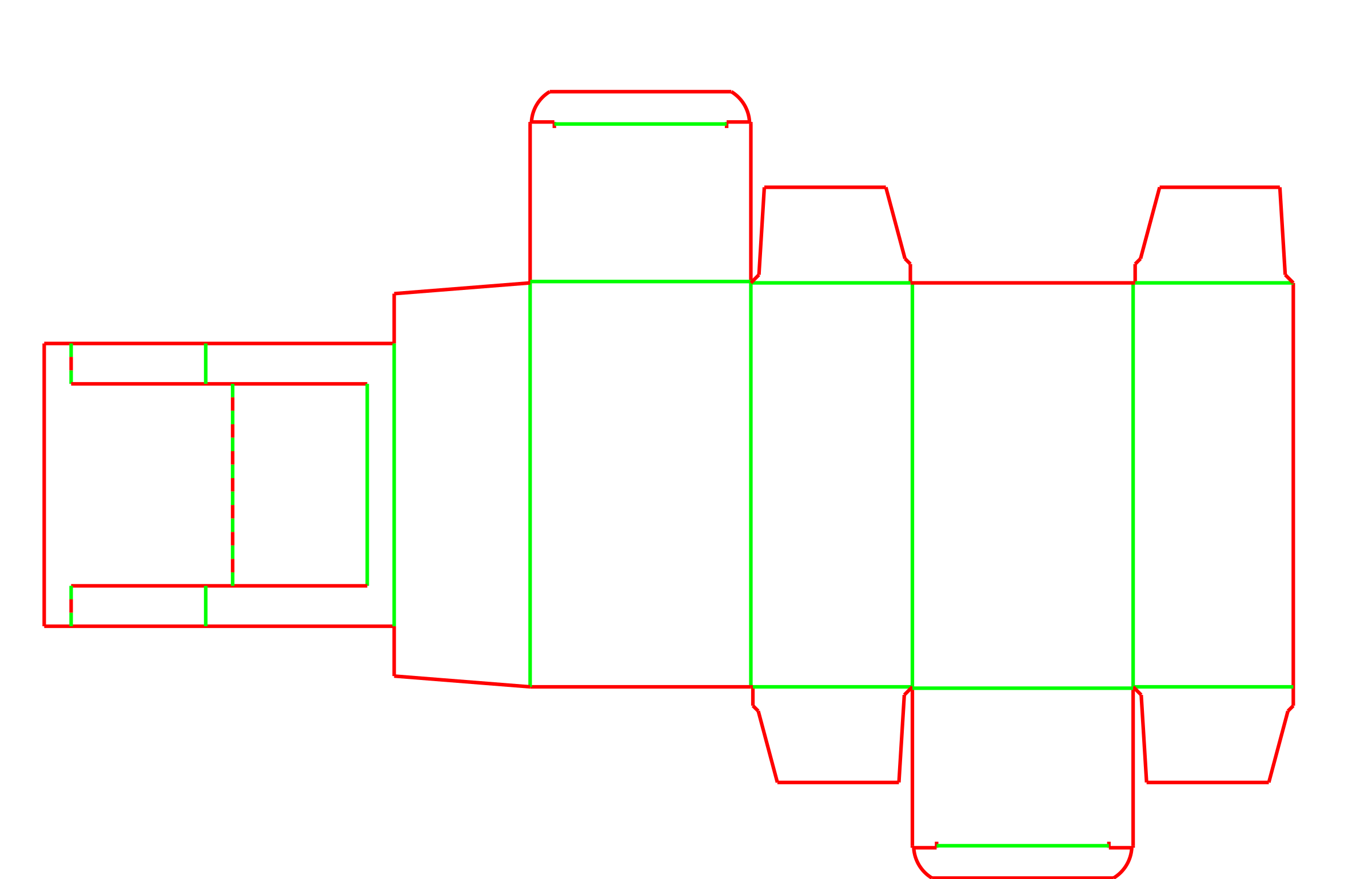

Because the buffer panels extend from the main glue flap, the flat blank is wider than a standard tuck carton. This can affect how many cartons fit on a single sheet during printing and die-cutting.
Closure variants
Straight tuck versus reverse tuck
The EVF11059 uses a reverse tuck closure, where the top and bottom flaps hinge from opposite panels. If your artwork or loading process requires a straight tuck, similar buffer designs can be adapted.
Additional notes
Short digital trial versus repeat run
Because the internal buffer requires specialized multi-point gluing, short digital runs may require manual gluing, which increases unit time. The design is better suited for larger repeat runs where automated folder-gluers handle the complex assembly.
FAQs
Can the internal buffer hold multiple items?
The standard buffer forms a single rectangular sleeve. While multiple small items can be dropped inside, it does not have individual partitions. For separated components, a custom die-cut insert may be needed.
Can this box be made from corrugated board?
The complex internal folds and glued tabs require folding carton board. Fluted corrugated material is too thick and will cause the auto-erecting mechanism to bind or crush.
Does the buffer require manual folding during packing?
The buffer is pre-folded and glued by the manufacturer. When the packer squeezes the flat carton to open it, the internal sleeve automatically pulls into its final shape.
Is this carton secure enough for parcel shipping?
While the internal buffer protects against side impacts, tuck-end closures can open during rough transit. For individual parcel delivery, this carton usually needs security tape or an outer shipping mailer.
Why is a physical prototype important for this design?
The auto-erecting buffer relies on precise clearances and board memory. A physical sample verifies that the internal tabs do not bind and that the sleeve forms squarely when opened.
Can the inside of the buffer be printed?
Depending on the layout, the panels that form the internal sleeve can be printed. This is often used to add branding or instructions visible immediately upon opening.
How does the internal buffer stay in place?
The buffer is formed by an extension of the main glue flap. During manufacturing, tabs at the end of this extension are glued to the opposite inner wall, anchoring the sleeve so it pulls open with the box.
Does the built-in buffer change the flat size of the carton?
Because the buffer panels extend from the main glue flap, the flat blank is wider than a standard tuck carton, which can affect how many fit on a single printing sheet.
