Retail and Flat-Goods Applications
Retail software and media
The flat profile and secure lock provide a premium feel for books, software boxes, and media kits.
Flat electronics and components
The lack of internal dust flaps prevents interference when sliding flat, rigid items into the carton.
Cosmetics and personal care
The edge lock keeps the carton securely closed on the shelf without relying on friction, maintaining a clean presentation.
Books and printed manuals
The double-wall overlap protects the edges of heavy printed materials, while the flat top allows for stable stacking.
Packing and Presentation Contexts
Manual kitting and assembly
The edge lock requires an operator to push the tongue into the receiving slot. This makes it a strong fit for hand-packing lines where workers can ensure the lock is fully engaged.
Retail display
The full-overlap flaps create an uninterrupted top and bottom surface, offering a clean look and a stable base for stacking or standing upright.
Premium unboxing experiences
The mechanical lock feels deliberate and secure, adding a tactile step to the unboxing process that friction tucks do not provide.
When to Consider Standard Tuck Cartons
High-speed automated packing
If your line relies on automated cartoners, the manual insertion of the edge lock will cause bottlenecks. A standard straight or reverse tuck end carton is usually a better fit.
Heavy retail items
While the double-wall overlap adds some rigidity, heavy items may stress the edge lock. A snap-lock or auto-bottom carton provides better weight retention.
E-commerce parcel shipping
The edge lock is designed for retail security, not the rough handling of parcel networks. E-commerce shipments will require an outer mailer or master carton.
Board, Fit, and Assembly Choices
Board caliper and lock tension
The thickness of the paperboard directly affects how tightly the tongue fits into the slot. Changing board grades requires adjusting the lock dimensions to prevent tearing or a loose fit.
Outer packaging for shipping
Because the edge lock can pop open under sorting stress, plan for an outer mailer or shipping box if these cartons will be sent through parcel networks.
Packing labor allocation
The manual insertion step for the edge lock takes slightly longer than closing a standard friction tuck. Factor this into your assembly time.
Print layout across alternating closures
The top and bottom closures mirror each other to balance the flat blank. The panel that forms the outer flap on top will form the inner flap on the bottom, which affects continuous graphics.
Lock and Flap Adjustments
Tongue and slot sizing
The width and depth of the locking tongue can be adjusted to balance security with ease of opening.
Flap overlap depth
The inner and outer flaps are sized to clear each other based on board thickness, ensuring the carton sits perfectly flat when closed.
Push-in tab shape
The U-shaped cut that creates the receiving slot can be modified to prevent the paperboard from tearing during repeated use.
Packing details

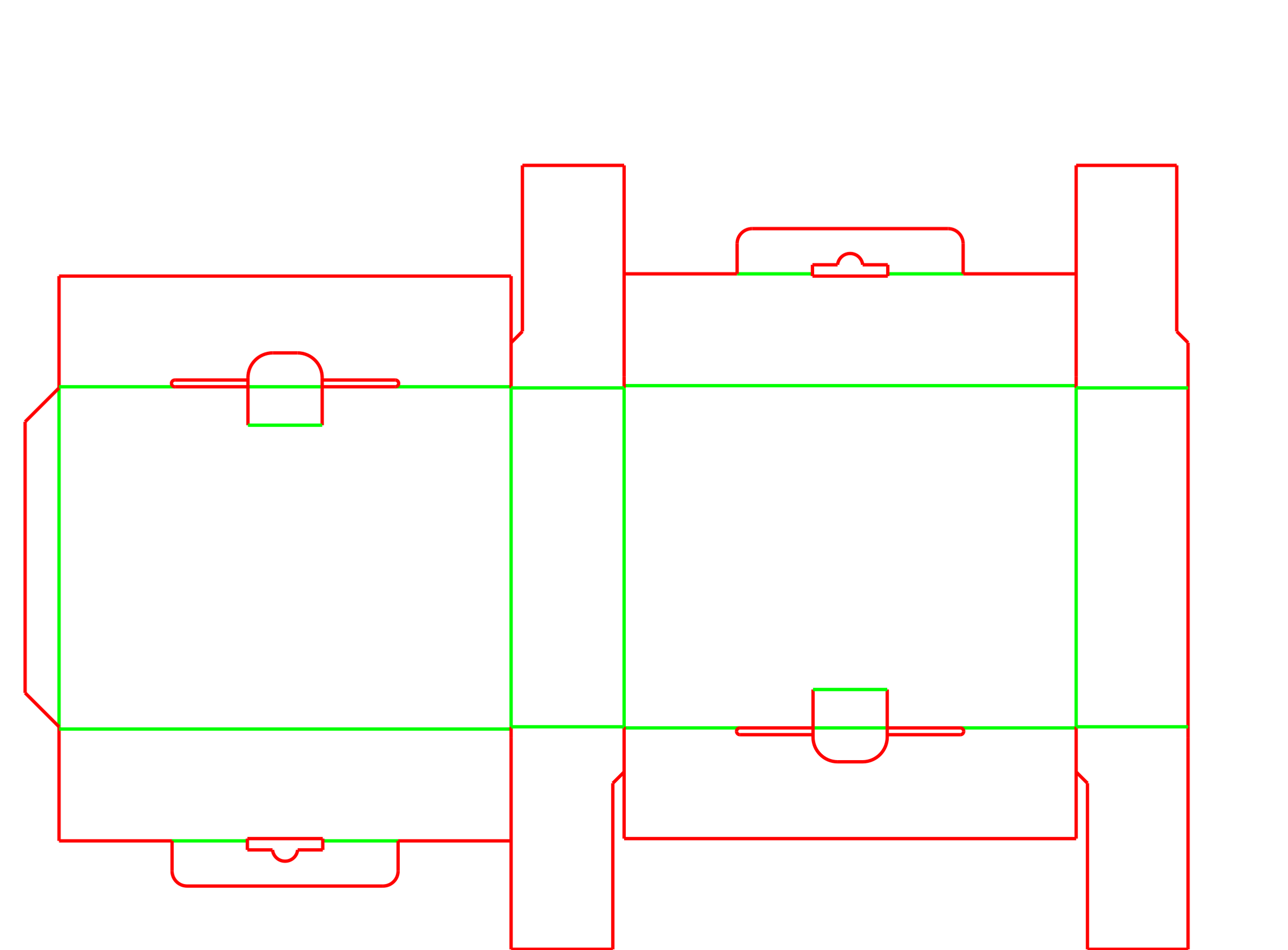

Alternating closures
The top and bottom closures alternate sides. The panel that provides the outer flap on top provides the inner flap on the bottom. This balances the flat blank for efficient manufacturing.
Internal clearance
Because there are no side dust flaps, the entire internal width is available, making it easier to load items that fit tightly against the side walls.
Additional notes
Prototyping the lock tension
Because the edge lock relies on exact board thickness, always request a physical CAD sample in your final production material to verify that the tongue inserts smoothly without tearing the slot.
FAQs
Can this carton be closed on an automated packaging line?
Generally, no. The edge lock requires targeted pressure to push the tongue into the slotted tab, which is difficult for standard automated cartoners. It is a strong fit for manual packing.
Why does this carton omit side dust flaps?
Removing the dust flaps allows the main flaps to overlap completely, creating a very flat, clean profile. It also removes internal bulk, which helps when loading flat or rigid products.
Will changing the board thickness affect the closure?
Yes. The slot and tongue dimensions are calculated based on the exact board caliper. If you switch to a thicker or thinner board, the lock may bind or become too loose, so a physical prototype is highly recommended.
Is the edge lock secure enough for e-commerce shipping?
The lock prevents accidental opening on a retail shelf, but it can pop open under the stress of parcel sorting. For e-commerce, this carton should be placed inside an outer mailer or shipping box.
Can the carton be opened and reclosed easily?
Yes. The tongue can be pulled out of the slot and reinserted. However, repeated opening may eventually fray the paperboard tab depending on the material used.
How does the lack of dust flaps affect product loading?
Without dust flaps folding inward, the entire internal width of the carton is clear. This prevents flat or rigid items from catching on paperboard edges as they slide in.
Does the edge lock require tape or glue to stay closed?
No. The tongue and slot create a positive mechanical hold that keeps the flaps secured without additional adhesives.
Why do the top and bottom closures alternate sides?
To keep the flat blank balanced for manufacturing, the closures are mirrored. The wide panel that forms the outer flap on top will form the inner flap on the bottom.
