Retail Display and Product Visibility
Retail Pegboard and Hook Displays

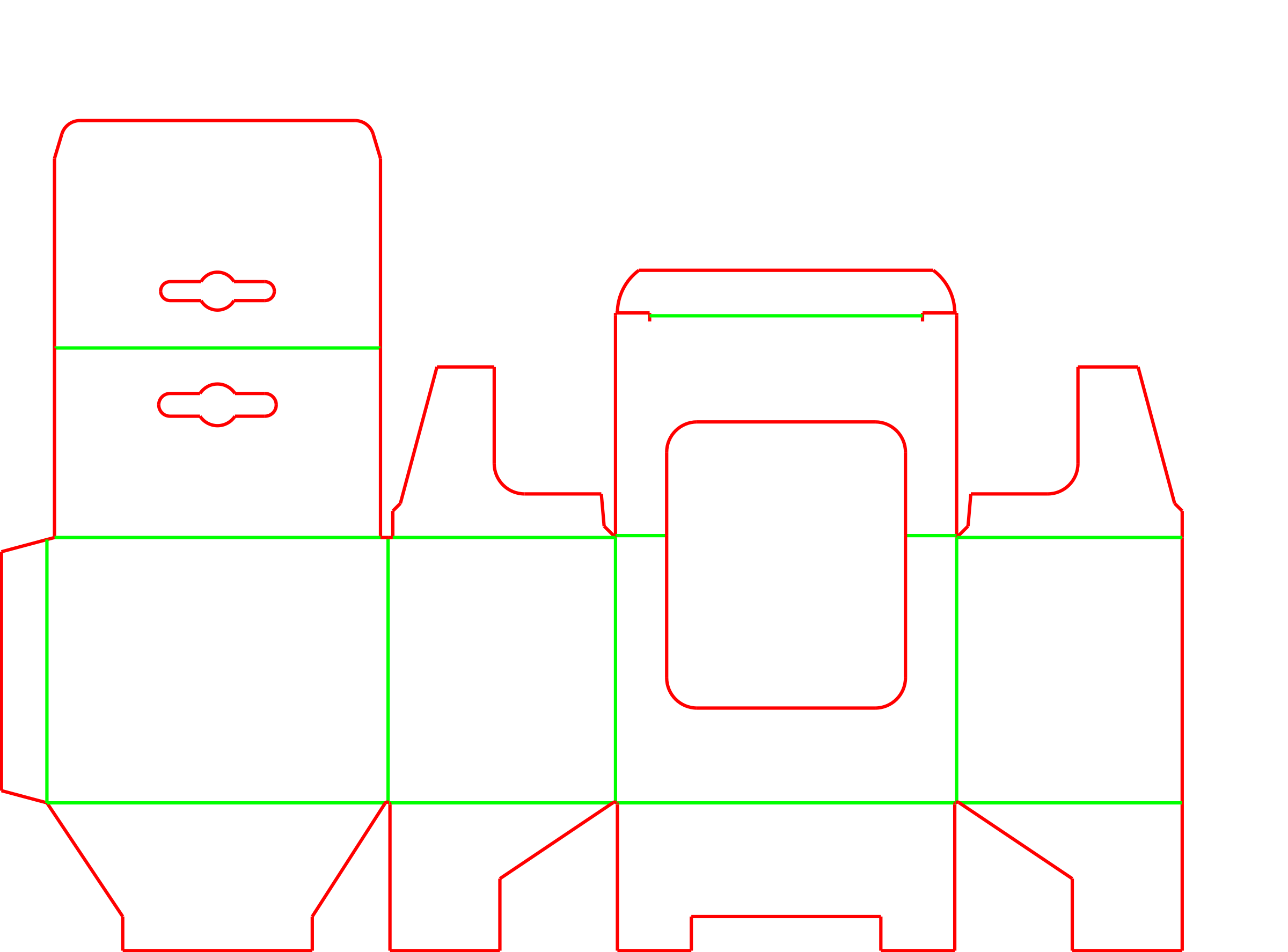

The double-thick header provides a secure suspension point for retail environments. The fold-over glued construction reinforces the hanger hole, reducing the risk of tearing when customers handle the product.
High-Visibility Product Presentation
The wrap-around window allows consumers to see the product from both the front and the top. The separate plastic insert protects the contents while restoring some of the structural rigidity lost to the large cutout.
Manual Packing Stations
The 1-2-3 snap-lock bottom is designed for hand assembly. Packers pop the carton open, fold the bottom flaps to lock the base, load the product, and tuck the top lid closed without needing tape or glue.
Lightweight Retail Goods
Because the snap-lock base carries the full weight of the product, this carton is best suited for lighter items. Heavy products may require a different base style to prevent the bottom flaps from disengaging.
Retail Channels and Product Types
Cosmetics and Personal Care
A strong fit for retail goods where visual presentation drives the purchase decision. The front-hinged lid and clear corner window create a premium unboxing experience.
Small Electronics and Accessories
Provides clear visibility for cables, chargers, and small devices, allowing customers to inspect the product without opening the package.
Toys and Collectibles
The large window showcases figures or small toys effectively, while the rigid plastic insert protects the item from dust and handling.
When to Consider Alternative Hanging Cartons
Automated Packing Lines
The snap-lock base and front-hinged tuck top require manual manipulation. If your operation relies on automated cartoners, a standard straight-tuck or reverse-tuck carton without a complex window may be a better fit.
Heavy Products
While the double-thick header is strong, the snap-lock base carries the full weight of the product. For heavier items, an auto-bottom (crash-lock) base or a reinforced tray may offer better security.
Window Patching and Production Route
Rigid Window Patching Capabilities
Because the window wraps around a 90-degree corner, the clear plastic insert must be scored and patched to the inside of the blank before the carton is folded. This requires specific converting equipment capable of handling rigid film.
Plastic Insert Thickness and Stiffness
The carton board and the plastic insert are specified separately. The thickness and stiffness of the plastic film will affect how easily the top lid folds during manual assembly.
Base Strength for Product Weight
The snap-lock bottom relies on interlocking flaps. The product weight should be tested to ensure the base does not bulge or disengage while hanging on a retail display.
Outer Shipper Planning
This carton is designed for retail display, not direct shipping. A corrugated master carton will be needed to protect the window and the hanging header during transit to the store.
Window and Header Adjustments
Window Size and Overlap Margin
The dimensions of the wrap-around window can be adjusted, but the plastic insert must maintain a sufficient overlap margin to ensure reliable gluing to the inside of the carton.
Hanger Hole Style and Placement
The standard sombrero (euro) hole can be modified in size or swapped for a simple round hole depending on the specific retail hook requirements.
Header Height and Graphic Space
The height of the double-thick header can be extended to provide more room for branding, barcodes, or product information above the hanger hole.
Packing details
Folder-Gluer Routing
Manufacturing this carton requires folding and gluing the header 180 degrees, patching the window, and gluing the side seam. This may require a multi-point folder-gluer or multiple passes through the equipment.
Additional notes
Base Strength and Product Weight
The snap-lock bottom relies on interlocking flaps to hold the product. Heavy items should be tested to ensure the base does not bulge or disengage while hanging.
FAQs
Does the window plastic come pre-attached?
Yes, the clear plastic insert is patched and glued to the inside of the carton blank by the manufacturer. The carton is delivered flat and ready for assembly.
Can this carton be machine-loaded?
No, the 1-2-3 snap-lock bottom and the front-hinged tuck top are designed for manual assembly at the packing station.
How strong is the hanging header?
The header is formed by folding an extension of the back panel over and gluing it to itself. This double-thick construction provides excellent tear resistance for typical lightweight retail products.
Does the large window weaken the box?
The cutout does reduce the vertical compression strength of the front panel. However, the glued plastic insert restores some rigidity. It is suited for hanging display rather than heavy stacking.
Can this box be shipped in the mail?
This is a retail display carton. It requires a corrugated outer master shipper for protection during parcel or courier transit.
Can the hanging header be printed on both sides?
Yes. Because the header folds over onto itself, both the front and back of the hanging tab can display graphics without requiring two-sided printing on the board.
Can the clear plastic insert be printed?
Yes, the plastic film can often be printed with branding or patterns, though this adds a step to the manufacturing process before the window is patched to the carton.
How is the bottom closed during packing?
The operator folds in the large U-shaped back flap, then the two side dust flaps, and finally presses the front flap down so its tabs lock under the side hooks.
