Retail and Lightweight Consumer Packaging
Primary retail packaging
The clean exterior and tape-free closures make this carton a strong fit for store shelves. The interlocking bottom holds lightweight items securely, while the top tuck flap features small slit locks that catch the carton edges to prevent the lid from opening inadvertently.
Kitting and inner cartons
When multiple small items need to be grouped inside a larger master shipper, this carton provides a structured, easily accessible inner pack. The gusseted dust flaps allow users to open and reclose the box smoothly without tearing the corners.
Pharmaceutical and supplement packaging
Products that require frequent access benefit from the smooth tuck top. The gusseted dust flaps guide the lid into place, reducing the chance of the paperboard fraying or binding over the life of the product.
Point-of-sale display boxes
Because the base locks together without tape or external seals, the carton maintains a clean, uninterrupted surface for branding and product information on all visible sides.
Fulfillment Labor and Assembly Speed
Manual packing operations
This carton is designed for hand assembly. The packer pops the flat tube open, folds the four bottom flaps in sequence to lock the base, loads the product, and tucks the top lid. It is not compatible with automated case-erecting machinery.
Moderate-volume fulfillment
For operations where packing speed is important but not the absolute bottleneck, the snap-lock base offers a middle ground. It is faster to pack than a standard tuck bottom, but avoids the higher manufacturing cost of a pre-glued crash-lock base.
Retail shelf presentation
Brands looking for a premium, tape-free look often choose this style. The slit locks on the top lid provide enough friction to keep the carton closed on the shelf without requiring clear wafer seals.
When to Consider a Pre-Glued Base
High-volume fulfillment lines
If packing speed is the primary bottleneck, the manual 1-2-3 bottom may slow down operators. In high-volume situations, a crash-lock base is often worth comparing; it costs slightly more to manufacture but pops into place instantly when the carton is opened.
Heavy products or parcel shipping
The snap-lock base relies on interlocking paperboard tabs. Heavy point loads or rough handling in a courier network increase the risk of the bottom disengaging. For parcel delivery, this carton is typically placed inside a dedicated outer shipper.
Board Caliper and Lock Friction
Board thickness and lock behavior
The intricate cuts of the snap-lock base and the top slit locks are very sensitive to material thickness. Standard folding carton board provides the right balance of flexibility and friction. Thicker corrugated materials will cause the locking tabs to bind or crush during assembly.
Packing labor versus piece cost
Buyers should weigh the time spent folding the four bottom flaps against the savings of a single-glued carton. If the packing line is already running at capacity, a pre-glued base might be a better overall investment.
Product weight limits
The interlocking bottom tabs support the full weight of the product. If the item is dense or concentrated in one spot, the base should be tested to ensure it does not disengage when lifted.
Print and finish requirements
The flat, tape-free panels provide an excellent surface for high-quality offset or digital printing. Buyers should consider how coatings or varnishes might affect the friction of the top slit locks.

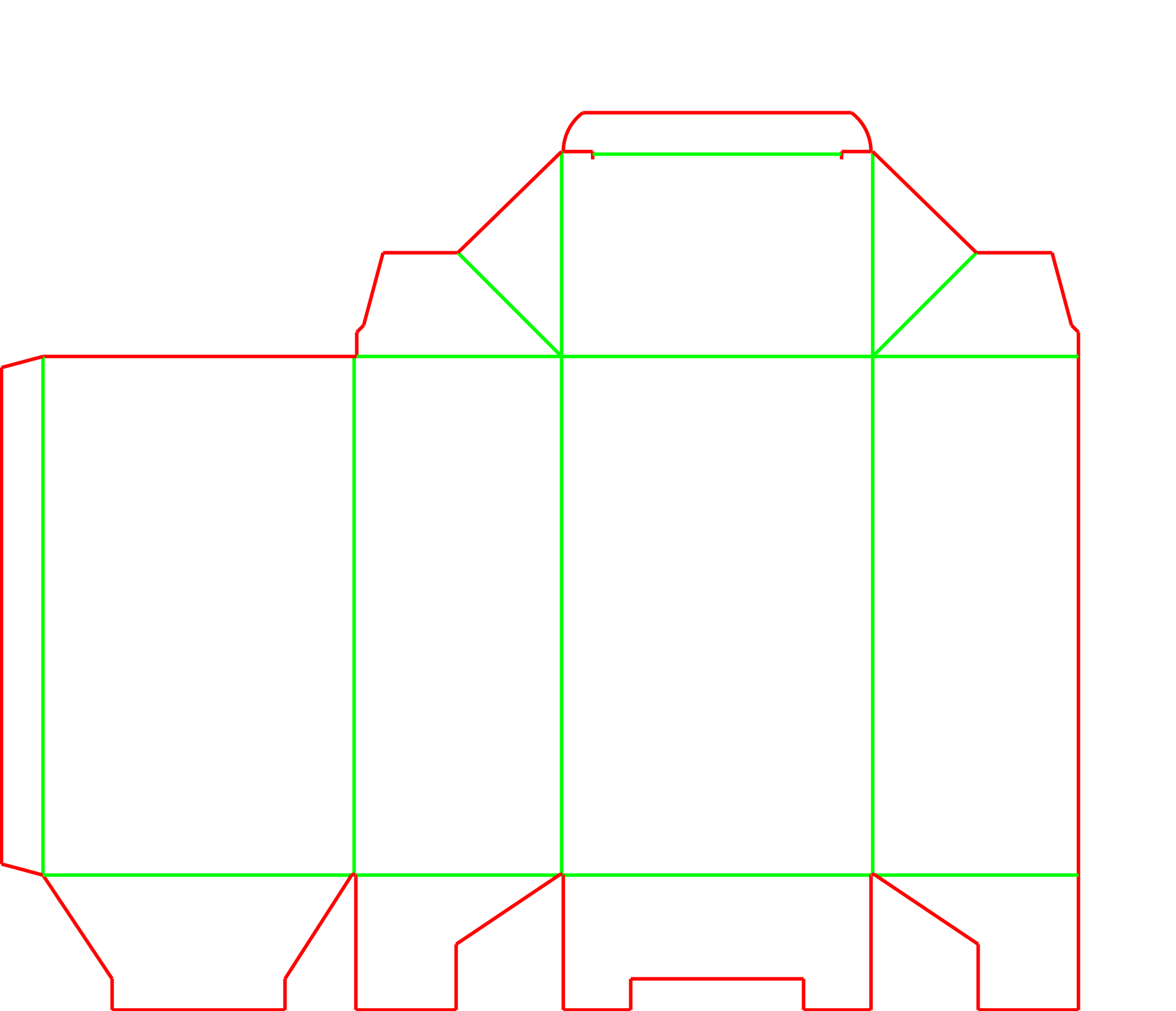

Tuning the Slit Locks and Snap Catches
Slit lock depth and angle
The small notches on the top tuck flap can be adjusted to increase or decrease the opening friction. A deeper lock provides more security for retail displays, while a shallower lock makes the carton easier for the end user to open.
Gusset chamfer size
The angled cutaways on the dust flaps can be widened or narrowed depending on the exact clearance needed for the tuck flap, ensuring a smooth closure regardless of the final carton dimensions.
Snap-lock catch distance
The central interlocking catch on the bottom flaps can be tuned based on the specific board grade chosen, ensuring the base snaps together securely without requiring excessive force from the packer.
Packing details
Grain direction for structural stability
To prevent the main panels from bowing and to ensure the vertical creases fold cleanly, the paperboard grain should run horizontally around the carton tube.
Additional notes
Top lid retention and slit locks
The top tuck flap includes small side notches that catch against the front edges of the carton. This provides a secure friction fit that keeps the lid closed on retail shelves without requiring clear tape or wafer seals.
FAQs
How long does it take to assemble the snap-lock base?
The 1-2-3 bottom requires the packer to fold four flaps in a specific sequence. While it is straightforward, it takes a few seconds longer per carton than a pre-glued crash-lock base. It is generally preferred for moderate-volume runs where lowering the piece cost outweighs the extra packing time.
Can this carton be shipped through parcel networks on its own?
The snap-lock bottom and tuck top are designed for retail presentation and may open if subjected to the drops and impacts of a mixed courier network. Parcel shipments usually require a corrugated outer shipper.
Is this carton suitable for heavy items?
The base relies entirely on the friction and stiffness of the interlocked paperboard tabs. It is intended for lightweight consumer goods, cosmetics, and pharmaceuticals. Heavy items can cause the bottom lock to disengage when lifted.
Can this be made from corrugated board?
Standard folding carton board is usually the best fit. The interlocking bottom tabs and the top slit locks require precise, thin edges to function correctly. Corrugated fluting is generally too thick and will crush or bind when folded.
What is the purpose of the gusseted dust flaps?
The top side flaps have angled cutaways, or gussets, at their corners. This creates extra clearance so the main tuck flap can slide into the carton smoothly without catching on the edges of the dust flaps.
Does this carton require special gluing equipment?
The carton is manufactured using a single straight-line glue joint along the side wall. This makes it efficient to produce compared to cartons that require multi-point gluing.
How do the slit locks work on the top lid?
The top tuck flap features small side notches that catch against the front edges of the carton. This creates a friction fit that keeps the lid closed on retail shelves without needing clear tape or wafer seals.
Can consumers easily reclose this carton?
Yes, the combination of the gusseted dust flaps and the tuck top makes it easy to open and reclose the carton multiple times without tearing the paperboard.
