Retail and Presentation Contexts
High-End Retail Display
The double-wall construction created by the nested insert gives the box a rigid feel on the shelf. The sliding action provides a deliberate unboxing sequence that elevates the perceived value of the product inside.
Fragile or Heavy Retail Items
The U-shaped insert reinforces the back and side walls, offering better vertical stacking strength than a single-wall folding carton. This makes it suitable for heavier cosmetics jars, electronics, or bottled spirits.
Multi-Component Kits
The sliding inner tray can be modified with custom cutouts or paired with additional partitions to hold multiple items securely in place during transit and display.
Limited Edition or Promotional Packaging
For special releases, the two-piece structure allows for contrasting colors or finishes between the outer sleeve and the inner tray, enhancing the visual reveal.
Industries Prioritizing the Unboxing Sequence
Cosmetics and Personal Care
Brands looking to differentiate their products often use the sliding insert to reveal the item gradually. The smooth paperboard surfaces of both pieces allow for high-quality printing, foil stamping, and embossing.
Consumer Electronics
The reinforced walls help protect devices, while the two-piece structure allows for creative internal partitioning or custom die-cut retention within the sliding tray.
Premium Spirits and Confectionery
The added side-wall strength helps support heavier glass bottles or dense confectionery items, while the snap-lock base keeps the bottom closed during handling.
When to Consider Simpler Cartons
Automated Packing Lines
This package relies on manual erection of the snap-lock base and manual folding of the inner tray. If your fulfillment line uses automated cartoning equipment, a standard straight-tuck or auto-bottom carton is a better choice.
Cost-Sensitive Projects
The two-piece design uses two separate blanks and more material than a single-piece box. For budget-conscious projects, a standard snap-lock carton provides similar base security with less material and labor.
Board Caliper, Friction, and Packing Choices
Board Caliper and Sliding Friction
The clearance between the outer sleeve and the inner insert is a critical detail. If the paperboard is too thick or the gap is too tight, the insert will bind. If it is too loose, the insert may rattle. This tolerance should be tested with physical prototypes using the exact production board.
Paperboard Versus Corrugated
This package is intended for folding carton board. Attempting to use corrugated micro-flutes increases the risk of binding, as the added thickness makes the sliding action difficult to control.
Manual Packing Labor
While the outer body's side seam is glued at the factory, final assembly happens at the packing station. Packers pop open the body, fold the 1-2-3 snap-lock base, fold the U-shaped insert, load the product, and slide the insert into the sleeve.
Print and Finish Coordination
Because the package consists of two separate pieces, you can mix materials or finishes. A heavily finished outer sleeve can be paired with a contrasting uncoated or brightly colored inner tray to enhance the reveal.
Customizing the Insert and Access
Thumb Cut and Access Adjustments

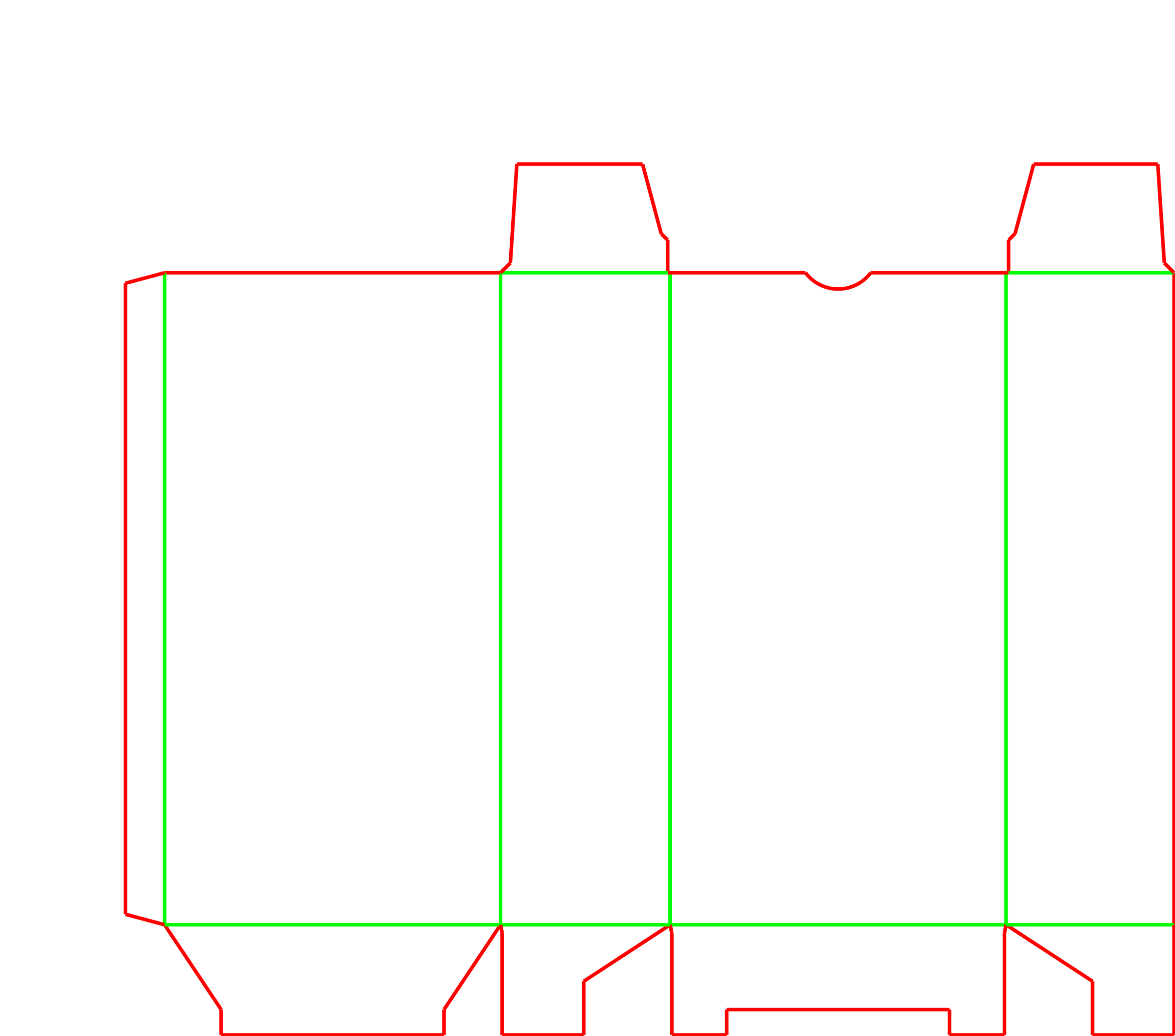

The outer body features a thumb cut on the front panel, allowing users to easily disengage the insert's tuck flap and pull the tray upward. The size and shape of this cutout can be adjusted to match the brand's aesthetic.
Modifying the Base Closure
The standard template uses a manual 1-2-3 snap-lock bottom. For higher-volume manual packing, this can be modified to a pre-glued auto-bottom to speed up the erection of the outer sleeve.
Insert Partitions and Cutouts
The U-shaped inner tray can be customized with die-cut holes or folded retention tabs to hold specific products, reducing the need for separate plastic or foam inserts.
Packing details
Die-Cutting Layout and Yield
The outer body and inner insert can be nested on a single combination die for shorter runs, or run on separate dies to optimize material yield for larger production volumes.
Additional notes
Grain Direction
For the smoothest sliding action and best stacking strength, the paperboard grain should run vertically on the outer sleeve.
FAQs
Can this box be loaded on an automated cartoning line?
No. The two-piece sliding structure and the manual snap-lock bottom rely on hand assembly and loading at the packing station.
Does this design work with corrugated board?
It is generally avoided. The sliding fit relies on precise clearances. Corrugated board is usually too thick and creates too much friction, causing the insert to bind inside the outer sleeve.
Can this box be shipped directly in the mail?
No. The tuck lid and snap-lock bottom are designed for retail presentation, not the rough handling of courier networks. It relies on an outer shipping box for parcel delivery.
Why is a physical prototype helpful before production?
The friction between the inner tray and the outer sleeve depends entirely on the specific paperboard chosen. A physical prototype verifies that the insert slides smoothly without being too loose.
How does the split top closure work?
The closure is split between the two pieces. The outer body has two side dust flaps that fold inward. The inner insert carries the main lid, which folds over the dust flaps and tucks into the front of the outer body.
Can the inner tray and outer sleeve be printed differently?
Yes. Because they are manufactured as two separate pieces, brands can specify different colors, finishes, or even board types for the sleeve and the insert.
Does the sliding insert improve stacking strength?
Yes. When the U-shaped insert is fully seated inside the outer sleeve, it creates a double-wall structure on the back and both sides, improving vertical compression strength compared to a single-wall carton.
What steps are involved in packing this carton?
Packers first pop open the outer sleeve and fold the snap-lock bottom. Then they fold the inner tray into a U-shape, load the product, slide the tray into the sleeve, fold the dust flaps, and tuck the lid closed.
