Retail display and high-volume manual packing
High-volume manual packing
The pre-glued crash-lock base eliminates the need to manually fold and interlock bottom flaps. Packers simply squeeze the flat carton, and the floor drops into place, speeding up the packing rhythm.
Center-aisle retail display
Because both wide panels have identical tuck flaps that overlap, the carton looks the same from the front and the back. This fits center-aisle displays or products where the consumer might view the box from multiple angles.
Products prone to outward bulging
The double-layered top closure provides more rigidity than a single tuck flap. This helps keep the top flat and secure when packing items that might press against the upper panels.
Premium unboxing presentations
The overlapping tucks hide the raw edge of a standard tuck flap, creating a clean, finished look on both primary display faces. This elevates the perceived value of the product inside.
Product categories and retail channels
Cosmetics and personal care
The clean top closure and rigid double-layered roof provide a premium unboxing experience, while the fast assembly keeps packing labor manageable for high-volume product launches.
Lightweight consumer electronics
The double tuck top resists outward pressure better than a single tuck, helping to keep cables, manuals, or lightweight devices securely contained without the top popping open on the shelf.
Pharmaceutical and healthcare
For over-the-counter products, the symmetrical design allows for clear branding and regulatory information on both sides, while the crash-lock base supports rapid fulfillment.
When to compare other carton styles
Automated top-load cartoning
This carton is designed specifically for manual packing. If your facility uses automated top-load cartoning equipment, a standard unglued straight tuck or reverse tuck carton is usually required.
Heavy point loads
Crash-lock bases rely on glued interlocking flaps. For heavy items, a full overlap seal-end carton or a corrugated shipper may be necessary to prevent the bottom from dropping out.
Board, packing, and production choices
Repeat programs versus short trials
The crash-lock base requires a multi-point folder-gluer to pre-fold and adhere the bottom flaps. This production route speeds up repeat programs, while very short prototype runs might be easier to trial with a simpler manual-fold base.
Board caliper and tuck friction
The two top flaps overlap and rely on friction to stay closed. The thickness of your chosen paperboard directly affects how tightly these flaps lock. The crease allowances must be adjusted based on your exact material to ensure a smooth but secure closure.
Product weight and base strength
While the crash-lock base is fast to assemble, its weight capacity depends on the board grade and the footprint of the product resting on the interlocked flaps. Heavy items should be tested to ensure the base remains secure.
Print layout for symmetrical tops
The symmetrical top means you have two primary display faces. Graphics can be oriented to allow the carton to be merchandised facing either direction without exposing a raw tuck edge.
Template adjustments and closure options
Thumb cut placement

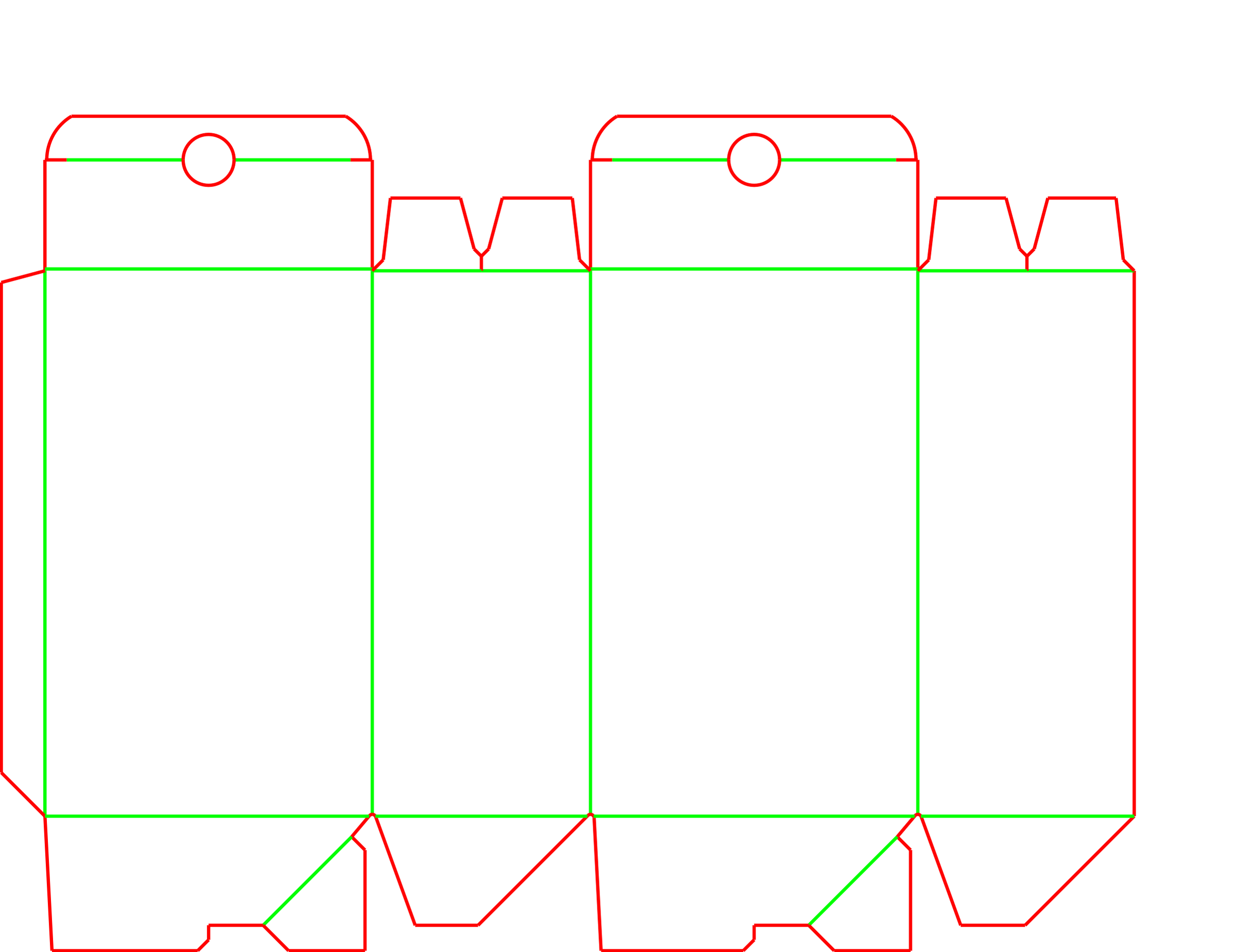

The template includes thumb cuts on both wide panels to make opening the double tuck easier. These can be resized or removed depending on your presentation preferences and security needs.
Window patching
A display window can be added to the main panels to display the product. This requires an additional window-patching process during production.
Dust flap angles
The internal dust flaps can be angled or tapered to clear specific product shapes or internal inserts during the loading process.
Packing details
Flat delivery and storage
These cartons are delivered knocked-down and pre-glued. They store completely flat and only take up their 3D volume once popped open on the packing line.
Related packaging options
FAQs
How does a crash-lock base change packing labor?
Compared to a standard tuck-bottom carton, a crash-lock base can often be erected in a fraction of a second with a single squeeze, reducing manual labor time on high-volume packing lines.
Does the double tuck top require tape or seals?
For retail display, the friction fit of the overlapping flaps is usually sufficient. However, if the carton will be shipped individually through a courier network, an outer mailer or tamper-evident seal is recommended to prevent it from opening.
What equipment is needed to produce this carton?
The die-cutting process is standard, but the gluing phase requires a multi-point folder-gluer to pre-fold and adhere the crash-lock base. Straight-line gluers cannot process this style.
How much weight can the crash-lock base hold?
It is designed for lightweight to medium consumer goods. The exact weight capacity depends heavily on the board grade and the footprint of the product resting on the interlocked flaps. Heavy point loads should be tested.
Why use a double tuck instead of a single tuck?
A double tuck provides a symmetrical appearance from both sides, eliminating the raw edge of a standard tuck flap. It also creates a double-thick top layer that resists outward bulging from the product inside.
What materials fit this carton style?
Folding boxboard (FBB) or solid bleached board (SBB) are typical choices. Micro-flute corrugated can sometimes be used, but the thickness must be carefully managed so the crash-lock base does not bind when folded flat.
Can this carton be packed on automated lines?
The pre-glued crash-lock base is designed specifically for manual erection. Automated top-load cartoning equipment typically requires unglued blanks, such as a standard straight tuck or reverse tuck carton.
How are these cartons delivered?
They are delivered knocked-down and pre-glued. They store flat and only take up their full volume once popped open during the packing process.
