Automated Retail Packing and Tamper Evidence
High-volume automated filling
This carton is a common choice when products are loaded and sealed by cartoning machines that automatically fold and glue the flaps. It uses material efficiently and runs predictably at high volumes.
Tamper-evident retail packaging
Because the top and bottom flaps are glued shut, the carton is usually torn to be opened. This provides built-in tamper evidence for food, pharmaceuticals, and sensitive retail goods without adding shrink wrap or seals.
Sift-resistant dry goods packing
When paired with an inner bag, the glued flaps create a secure outer shell that keeps dry goods like cereal or baking mixes contained and protected on the retail shelf.
Frozen food packing
Often used for frozen meals and pizzas, where the carton provides a large printable surface and a secure closure that withstands cold-chain storage when produced with the right board and coating.
Dry Grocery, Frozen Food, and Pharmaceuticals
Dry grocery and pantry staples
Commonly used for cereal, pasta, and snack foods, where the product is often held in an inner bag or tray and the carton provides the branded outer shell and stacking structure.
Frozen food and ready meals
Used extensively in the freezer aisle, providing a flat, stackable profile and a large billboard for product photography and nutritional information.
Pharmaceuticals and supplements
Used for high-volume blister packs or bottled liquids where packing speed and tamper evidence are priorities.
Hand Assembly and Heavy Base Requirements
Hand assembly and manual kitting
If your team is packing products by hand, a seal-end carton can be slow to assemble. Applying adhesive or tape to both ends adds labor. A reverse tuck or snap-lock bottom carton may be worth comparing, as they can be closed quickly by hand.
Heavy products requiring base strength
While the glued bottom is secure, very heavy items may need a crash-lock bottom or a corrugated package rather than a standard paperboard seal-end carton.
Cartoning Equipment Fit and Board Grade
Matching flap dimensions to cartoning equipment
The exact flap overlap, taper, and glue keep-out zones should align with the equipment erecting and sealing the carton.
Board grade and retail finish
Folding Boxboard (FBB) or Solid Bleached Sulfate (SBS) are typical choices, offering the stiffness needed for machine erecting and a smooth surface for high-quality offset printing and finishes.
Flap overlap logic
Depending on the sealing equipment and the level of dust protection needed, the major flaps can be configured for partial or full overlap.
Grain direction and machine erecting
For reliable performance on automated lines, the paperboard grain direction usually runs horizontally around the carton. This helps prevent the main panels from bowing outward and ensures the creases fold cleanly.

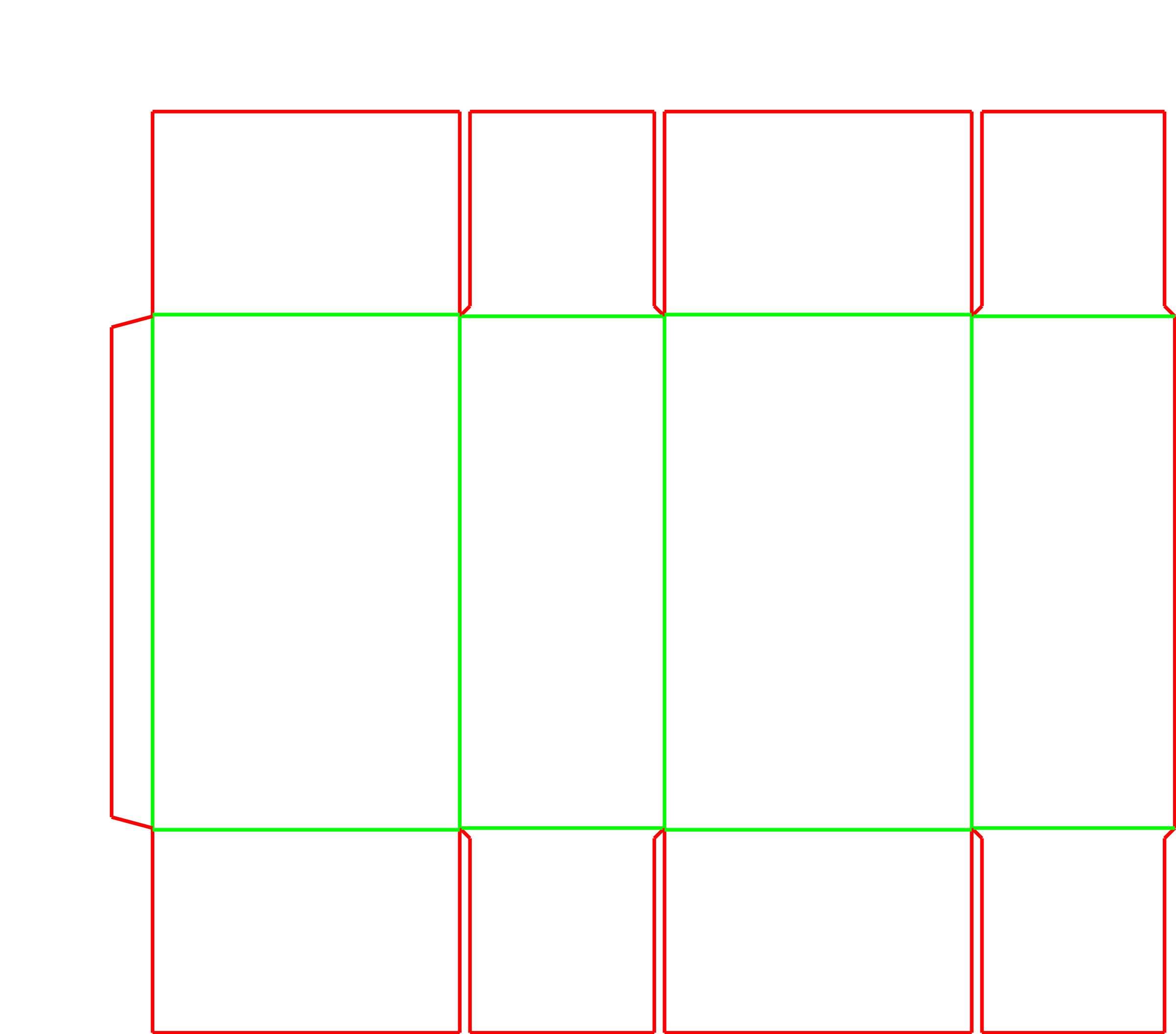

Flap Overlap and Glue Seam Adjustments
Flap overlap and coverage
The major flaps can be adjusted for partial or full overlap depending on the sealing equipment and the level of dust protection or base strength needed.
Glue flap width
The side seam glue flap can be widened or narrowed to match the belts on the converter's folder-gluer, helping ensure a square, reliable tube before it reaches your facility.
Layer step crease adjustments
The template can automatically adjust the crease positions to account for board thickness, ensuring the major flaps fold cleanly over the minor flaps without binding.
Packing details
Adhesive keep-out zones
The side glue flap and the areas on the top and bottom flaps that receive adhesive must be kept free of ink, varnish, and coatings to ensure a strong seal.
Additional notes
Flat delivery and machine erecting
The carton is delivered flat with the side seam already glued. Your cartoning machine opens it, folds the minor flaps, applies adhesive, and seals the major flaps.
FAQs
Can this carton be packed by hand?
While possible, it is usually slow. Because it lacks tuck flaps or mechanical locks, hand-packing means operators manually apply adhesive or tape to seal both ends. If you are packing manually, a tuck-end or snap-lock carton is often a better choice.
How does the carton stay closed?
The top and bottom major flaps are glued to the minor dust flaps using adhesive, often applied by automated cartoning machinery during the filling process.
Can this carton be shipped directly in the mail?
Paperboard cartons are generally used for retail presentation and shelf stacking. They usually need an outer corrugated shipper to ship through parcel or courier networks.
Where can graphics and finishes be applied?
All four main panels are fully printable. However, the side glue flap and the areas on the top and bottom flaps that receive adhesive must be kept free of ink, varnish, and coatings to ensure a strong seal.
Is this suitable for short trial runs?
Usually not. Because sealing the flaps efficiently often relies on automated equipment, it is typically produced in higher volumes for established packing lines.
Does it provide a dust-tight seal?
While the glued flaps provide a strong closure, standard seal-end cartons are not completely sift-proof for fine powders without an inner bag or specialized flap designs.
What board grades work well for this carton?
Folding Boxboard (FBB) and Solid Bleached Sulfate (SBS) are common choices because they offer the stiffness needed for machine erecting and a smooth surface for retail printing.
Can I use tape instead of glue?
While tape can physically close the flaps, it defeats the purpose of a seal-end carton, which is often used for automated gluing. If you plan to use tape, a corrugated slotted container might be more appropriate depending on the product.
