High-Volume Retail and Automated Packing
High-speed automated packing
Because this carton lacks friction locks or tuck tongues, it relies entirely on cartoning machinery to fold the flaps inward and apply adhesive. This makes it highly efficient for continuous-motion packing lines.
Tamper-evident retail presentation
The glued major flaps must be physically torn or broken to access the product. This provides immediate visual evidence of tampering without requiring secondary shrink bands or wafer seals.
Bag-in-box primary packaging
Often serves as the rigid outer shell for bagged cereals, baking mixes, and frozen items, providing a stable stacking shape and a flat surface for retail branding.
Sift-resistant granular containment
When the inner dust flaps are extended to close corner gaps, this glued-end style helps contain powders and granular products better than standard tuck closures.
Food, Pharma, and Fast-Moving Consumer Goods
Dry grocery and frozen foods
Used extensively for bagged cereals, baking mixes, and frozen meals where the inner bag holds the product and the carton provides the retail billboard and stacking shape.
Pharmaceuticals and supplements
The glued ends ensure the package remains sealed from the manufacturer to the consumer, supporting product safety requirements.
Cosmetics and personal care
Provides a clean, secure presentation for lightweight bottles and tubes, ensuring the product has not been opened on the retail shelf.
Manual Packing and Reclosable Cartons
Manual fulfillment operations
If your team is packing by hand, a seal-end carton is usually the wrong choice. Manually applying adhesive to every flap is slow and messy. A straight-tuck or reverse-tuck carton is a more practical choice for hand assembly.
Products requiring consumer reclosure
Once a seal-end carton is torn open, it cannot be securely reclosed. If the consumer needs to open and close the box multiple times, a tuck-end carton or a modified seal-end with a tear strip and tuck tab should be evaluated.
Cartoner Compatibility and Board Selection
Cartoner machine tolerances
The exact taper of the major flaps must be tuned to match the folding rails on your specific cartoning equipment to prevent jams.
Board caliper and hinge relief
Thicker boards require specific adjustments to the fold lines so the outer flaps can overlap the inner flaps without bulging or binding.
Adhesive keep-outs
If the carton will be coated or varnished, the exact areas where glue will be applied must remain uncoated to ensure a strong adhesive bond.
Flap overlap style
Depending on the product weight and the cartoner's glue pattern, the major flaps can be sized to partially overlap or fully overlap for maximum base strength.

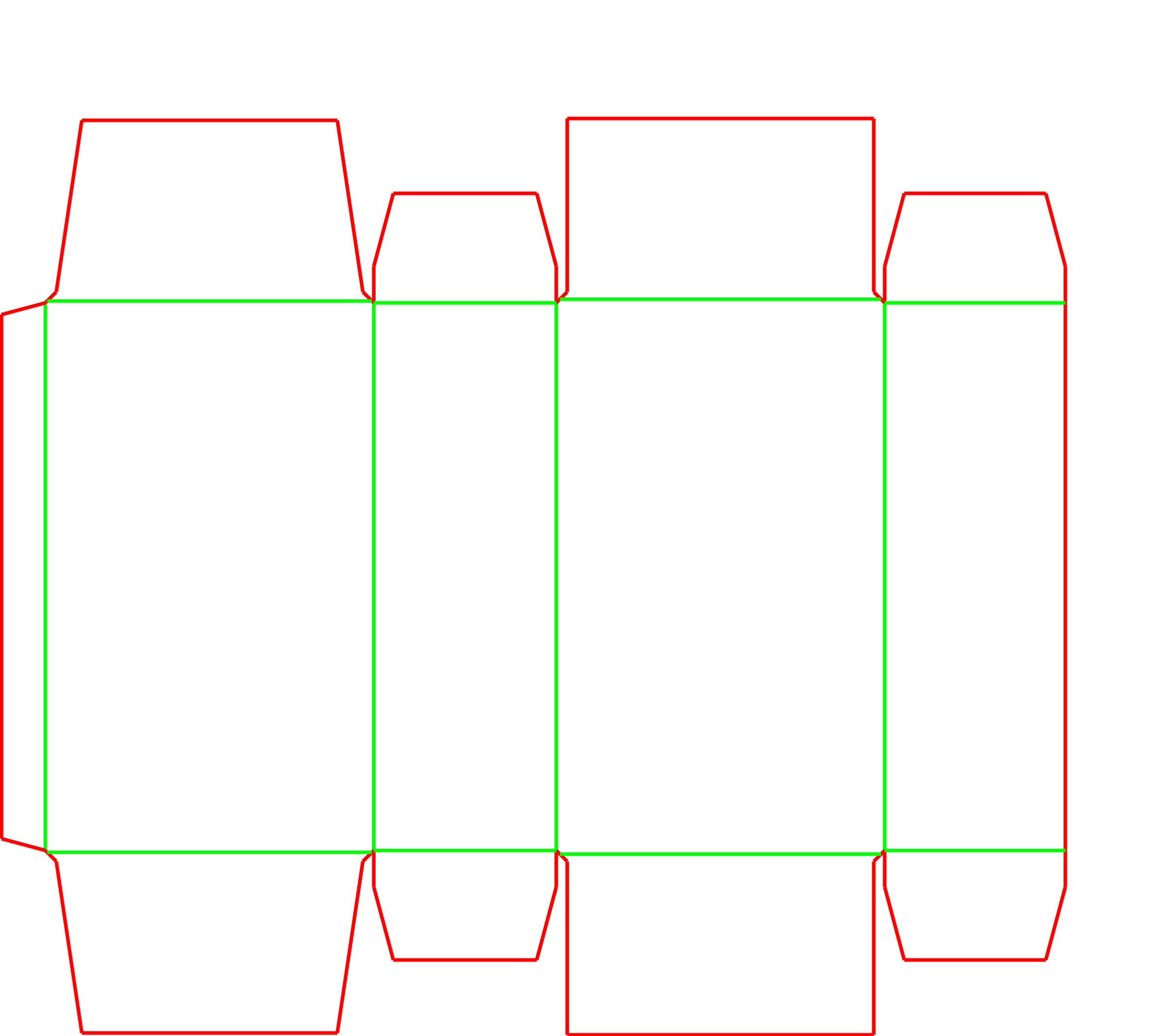

Flap Tapers and Glue Keep-Outs
Flap taper angles
The angled edges of the major flaps can be widened or narrowed to ensure smooth feeding through automated folding rails.
Dust flap width
The inner minor flaps can be adjusted to close corner gaps, which helps prevent sift leakage if the product is granular.
Layer step creases
The fold offsets can be recalculated based on the exact board thickness, ensuring the overlapping flaps lay flat without tension.
Packing details
Pre-breaking for machine speeds
For high-speed lines, the side seam and main folds are often aggressively pre-broken by the converter so the flat tube opens with minimal resistance on the cartoner.
Grain direction for panel flatness
Specifying the board grain to run horizontally around the tube helps prevent the wide main panels from bowing outward.
Flap Overlap Styles
Full versus partial overlap
Depending on the product weight and the cartoner's glue pattern, the major flaps can be sized to partially overlap or fully overlap for maximum base strength.
Additional notes
Adhesive application zones
The top and bottom flaps require adhesive application during the final packing stage, which dictates the need for uncoated glue zones.
FAQs
Can this carton be assembled by hand?
While it is physically possible to manually apply double-sided tape or adhesive to the flaps, it is extremely inefficient. This carton is designed specifically for automated cartoning machines.
Can the entire carton be coated with a gloss or UV finish?
No. The specific areas on the major flaps where adhesive will be applied must be left uncoated. Glue will not bond reliably to varnished or coated surfaces.
Is this carton strong enough to ship as a standalone parcel?
No. Folding carton board is designed for retail presentation and palletized distribution. It requires a corrugated outer shipper to handle parcel or courier networks.
Does this carton prevent fine powders from leaking?
Standard seal-end flaps leave small gaps at the corners. For fine powders or granular products, the inner dust flaps must be specifically extended, or the product should be sealed in a primary bag before cartoning.
How do we test this carton before ordering a full run?
A short run of unprinted samples is usually run through your specific cartoning machine to verify that the flap tapers, board stiffness, and crease resistance match the equipment's tolerances.
What board thicknesses are common for this style?
It performs well across standard folding boxboards and solid bleached sulfate. If a thicker board is used, the fold offsets must be recalculated to prevent the overlapping flaps from bulging.
How is the carton delivered to the packing facility?
The carton is delivered flat. The manufacturer folds and glues the long side seam, leaving the top and bottom open for your automated packing line.
Can the consumer reclose this carton after opening?
No. Tearing the glued flaps damages the closure, making it a single-use seal. If reclosure is needed, a tuck-end carton is a better choice.
