Retail Multi-Packs and Kitting
Beverage and Craft Liquid Multi-Packs
The central handle and open top are built for consumer grab-and-go convenience. The V-cut side walls expose the upper half of the bottles or cans, allowing primary product labels to remain visible while the carrier handles the weight.
Specialty Jar and Sauce Grouping
Beyond beverages, this carrier style works well for grouping heavy jars, sauces, or cosmetic sets into a single retail unit. The auto-bottom base supports the concentrated weight, provided the board grade is matched to the payload.
Retail Sample Sets and Sampler Packs
For promotional rollouts, the four-cell layout allows brands to group different flavors or product variations together. The open top encourages consumers to inspect the different labels before purchase.
Condiment and Pantry Kitting
Food brands use this layout to bundle related pantry items, such as hot sauces or marinades. The carrier keeps the items organized on the shelf and makes it easy for shoppers to pick up the entire set.
Beverage and Specialty Food Contexts
Retail Shelf Display
This carrier is designed strictly for the retail shelf and consumer carry-out. It does not enclose the product fully, meaning it relies on an outer master carton for distribution and is not suitable as a standalone parcel shipper.
High-Volume Hand Packing
Because the base and handle are pre-glued by the converter, packing lines do not need to tape or fold the bottom flaps. Operators simply pop the flat carton open, load the four items, and move to the next unit.
Promotional and Seasonal Kitting
When brands need to quickly bundle existing single units for a holiday or special event, this carrier provides a fast way to create a multi-pack without changing the primary product packaging.
When to Consider Different Carrier Sizes
Parcel and Courier Delivery
If the four-pack needs to ship through a courier network without an outer master carton, a fully enclosed mailer or a crash-lock box with a sealed top is a safer choice than an open-top basket carrier.
Different Product Counts
If the retail strategy shifts to a two-pack or a six-pack, the carrier geometry changes. Compare the EVF11745 for two items or the EVF11748 for six items to maintain the same handle and display style.
Board Strength and Divider Choices
Tear Resistance and Board Grade
The entire lifting load is concentrated on the die-cut handle hole. For heavy liquids or glass, standard paperboard may tear. Tear-resistant board or corrugated material is often needed to provide the necessary lifting strength.
Refrigeration and Moisture
If the carrier will sit in a cooler or move through cold-chain distribution, condensation can weaken standard paperboard. Discuss moisture-resistant coatings or specific board grades to prevent the handle from failing when lifted.
Internal Separation Needs
Determine whether the products can safely touch during transit. Aluminum cans and plastic bottles often use the open shell, while glass bottles typically use the integrated-divider variant to prevent clinking.
Master Carton Sizing
Because the central handle protrudes above the products, these carriers do not stack cleanly on top of one another. The outer master carton should be sized to clear the handles and bear the vertical weight during pallet transit.
Adjusting the Display Window and Handle
Display Window Depth
The V-cut on the front and back walls can be raised or lowered. A deeper cut exposes more of the product label, while a shallower cut provides more lateral retention for taller bottles.
Handle Height and Grip Clearance
The central handle can be extended upward to clear taller bottle caps or closures, ensuring consumers have enough room to comfortably grip the carrier without scraping their knuckles.
Base Folding Adjustments
For thicker boards or corrugated materials, the manufacturer can adjust the slit patterns on the bottom flaps. This helps the heavy board fold and glue securely without making the auto-bottom too stiff to pop open.
Packing details
Master Carton Loading
Because the central handle protrudes above the products, these carriers do not stack cleanly on top of one another. They are loaded into a corrugated master shipper that bears the vertical weight during pallet transit.
Open Shell vs. Integrated Dividers

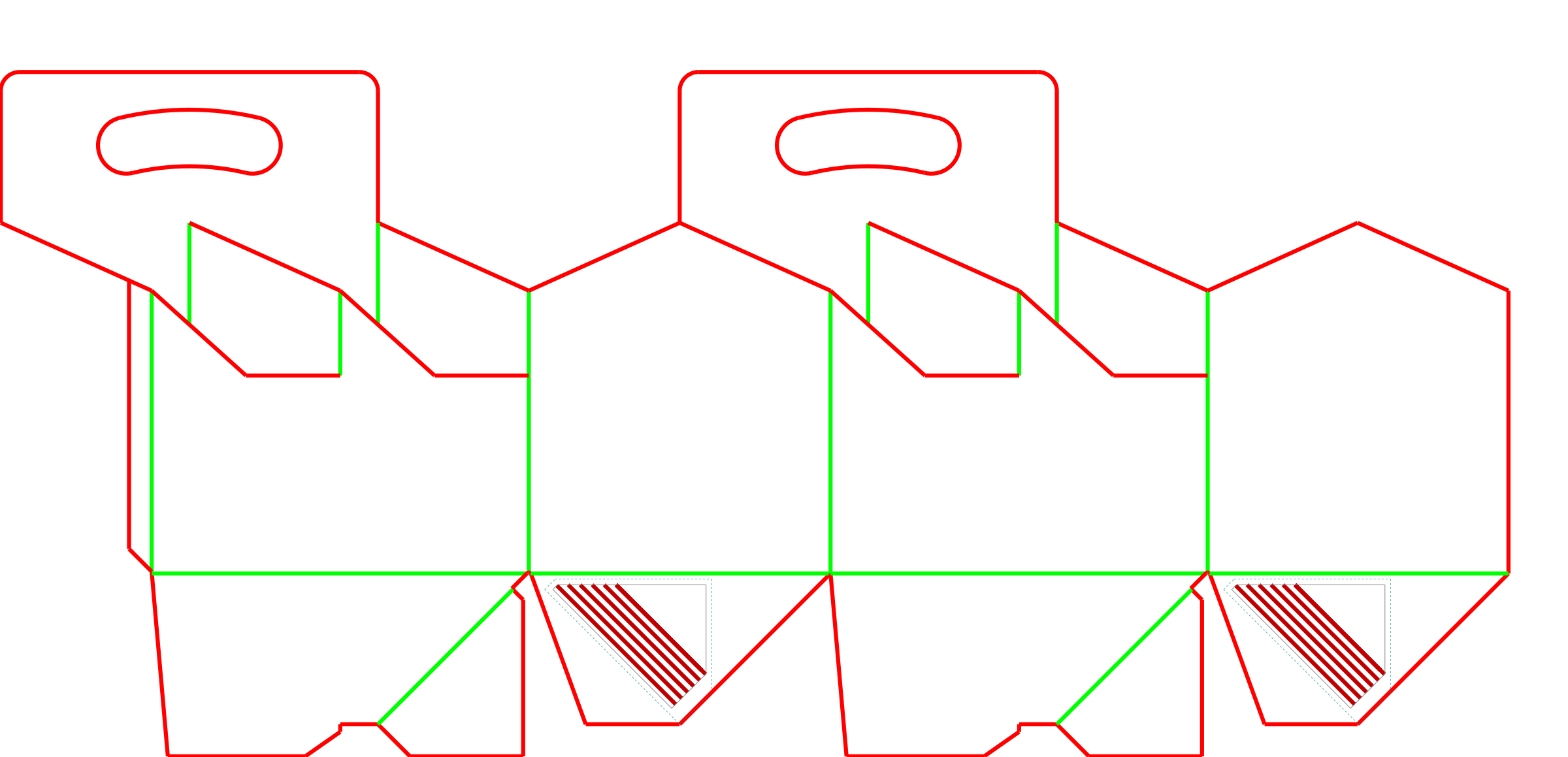

EVF11746 (Open Shell)
A simple perimeter shell without internal separation. Often chosen for aluminum cans, tins, or plastic bottles that can safely touch during transit.
EVF11746a (Integrated Dividers)
Includes internal divider panels that deploy automatically when the carton is opened. Often used for glass bottles to help separate the items and reduce clinking.
Additional notes
Grain Direction for Handle Strength
For maximum tear resistance, the board's grain direction should run vertically through the handle panels. This helps prevent the grip hole from tearing upward when the loaded carrier is lifted.
Related Multi-Pack Carriers
FAQs
Do I need the version with integrated dividers?
If you are packing glass bottles, the integrated dividers (EVF11746a) are often used to help separate the items and reduce glass-on-glass impact. For aluminum cans or plastic containers, the open shell (EVF11746) is usually sufficient and uses less board.
Can this carrier be shipped through the mail?
Not on its own. The open top and exposed handle mean products can easily fall out or be damaged in a courier network. It should be packed inside a corrugated outer shipper for parcel delivery.
Will the handle hold the weight of four heavy bottles?
This depends entirely on the board specified. Heavy payloads usually need tear-resistant carrier board or a corrugated material rather than standard paperboard.
Does the bottom need to be taped?
No. The crash-lock base is pre-glued by the manufacturer. When the flat carton is squeezed open, the floor automatically locks into place, allowing immediate loading.
How does the carrier arrive at the packing station?
The manufacturer glues the side seam and the bottom flaps, delivering the carrier knocked-down flat. This saves storage space and allows operators to pop them open as needed.
Can the front display window be made deeper?
Yes, the V-cut on the front and back panels can be lowered to expose more of the product label, though leaving enough wall height is important to keep taller bottles from tipping out.
What happens if the carrier gets wet in a cooler?
Standard paperboard will absorb moisture and weaken, which can cause the handle to tear. If the carrier will be refrigerated, discuss moisture-resistant coatings or specific board grades.
How do these stack on a pallet?
Because the handle sticks up above the products, the carriers themselves do not bear vertical weight. They are packed into a corrugated master carton, and those master cartons are stacked on the pallet.
