Retail and Promotional Beverage Packing
Craft Beer and Specialty Beverages
The 2x2 grid layout is a common format for craft beer, cider, and specialty sodas. The open top and curved side walls allow consumers to see the bottle caps and primary labels, while the central handle encourages grab-and-go purchasing.
Promotional Kitting and Condiments
Beyond beverages, this carrier works well for grouping hot sauces, marinades, or premium olive oils into gift sets. The rigid central divider keeps glass bottles separated longitudinally.
Cold Case and Grab-and-Go Displays
When placed in refrigerated retail environments, the carrier presents four items clearly. Buyers should discuss moisture-resistant board options to maintain handle strength under condensation.
Retail Sampler Packs
Brands introducing new flavors often use this four-pack format to bundle different varieties together, using the large side panels to explain the tasting experience.
Environments Using the 4-Pack Carrier
Manual Fulfillment Operations
Because the crash-lock bottom and handle are glued during production, this carrier is very fast for hand-packing. Operators simply push the edges to square the carrier, and the base interlocks automatically.
Refrigerated Retail Environments
When used in coolers, the carrier is exposed to condensation. Buyers packing cold beverages should discuss moisture-resistant board options to ensure the handle and base maintain their strength when damp.
Multi-Unit Sales Strategies
The carrier is designed to increase the average transaction size by grouping four individual items into a single, easy-to-carry purchase, making it a staple for specialty retail.
When to Consider Enclosed Cartons or Larger Carriers
Direct-to-Consumer E-commerce
This carrier offers no top protection and is not designed for parcel transit on its own. If shipping bottles directly to consumers, compare fully enclosed corrugated shippers with internal partitions.
Larger Product Groupings
If the retail strategy requires selling six items instead of four, compare the EVF11749 six-pack variant, which extends the footprint to a 2x3 grid while maintaining the same handle and base style.
Board, Moisture, and Profile Choices
Moisture resistance and board choice
Everyday board grades work well for dry retail environments. However, if the carrier will hold cold bottles that generate condensation, discussing moisture-resistant coatings or materials helps prevent the handle or base from weakening.
Handle reinforcement and lifting strength
The two tall center panels are glued back-to-back to form the handle. Discussing the expected weight of the filled bottles helps determine the right board thickness and handle reinforcement to maximize lifting strength.
Base style and packing speed
The crash-lock base is chosen for speed during manual loading. If packing speed is less of a concern or volumes are very low, a simpler manual-tuck base might be considered, though it increases assembly time.
Print surface and branding space
The curved side walls offer a balance between product visibility and branding space. Decide how much of the bottle label needs to be exposed versus how much continuous space is needed for the carrier's own graphics.
Adjusting the Handle and Display Curves
Side wall cutouts and label visibility
The height and swoop of the curved side walls can be adjusted. A lower curve exposes more of the product label, while a higher curve provides more lateral retention and a larger continuous print area for branding.
Finger hole ergonomics
The width and height of the finger cutouts can be modified to accommodate different target weights and consumer comfort preferences. The die-cut profile can also be adjusted for clean manufacturing.
Cell size and footprint
The internal dimensions of the 2x2 grid can be scaled to fit specific bottle or can diameters tightly, reducing movement during carry-out.
Packing details
Production route and gluing

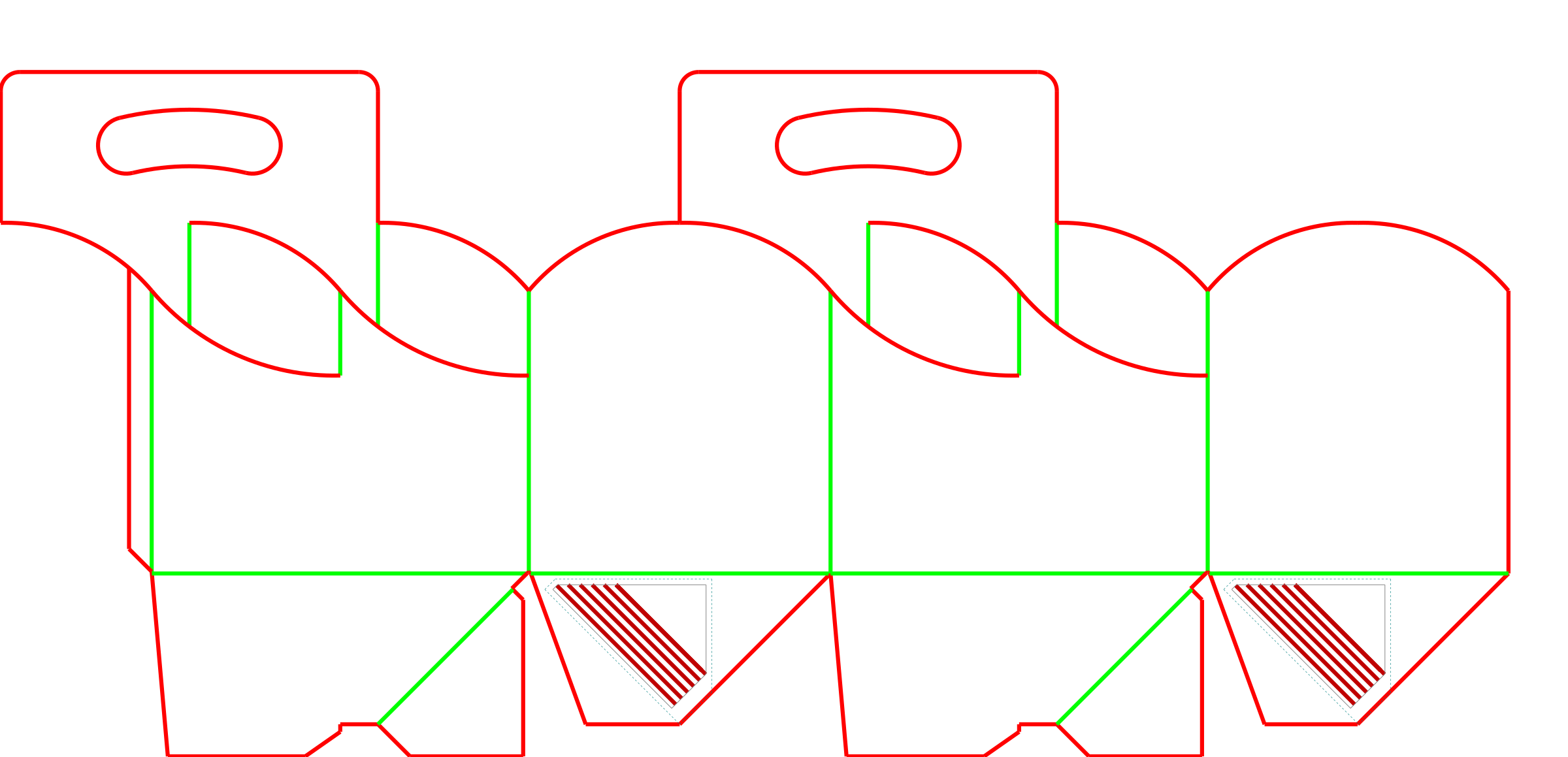

This package requires multi-point gluing during production to seal the side seam, the diagonal crash-lock flaps, and the central handle. This setup makes the unit fast for the final packer, but prototypes and short runs should be planned with this production route in mind.
Additional notes
Weight distribution and lifting strength
The central handle transfers the lifting force down through the end walls to the interlocking base. Discussing the exact weight of the filled bottles helps ensure the chosen board and handle profile provide enough lifting strength.
Related Retail and Beverage Packaging
FAQs
Does this carrier keep glass bottles from touching?
The central handle panels act as a longitudinal divider, separating the left and right rows. However, there is no transverse divider between the front and back bottles in this specific template. If complete separation is needed, an additional insert may be worth comparing.
Can I ship this carrier through the mail?
Not on its own. The open top and exposed products mean it usually requires an outer corrugated box with appropriate void fill for parcel transit.
What prevents the bottom from opening when lifted?
The crash-lock base features diagonal flaps that interlock mechanically when the carrier is opened. When glued correctly during production, this interlocking floor supports the weight of the four bottles.
How much time does it take to assemble?
Assembly is very fast. Because the base and handle are pre-glued, the packer only needs to push the flat edges inward. The carrier squares up and the bottom locks into place, ready for loading.
Do I need a special board grade for beer or soda?
If the beverages will be refrigerated or exposed to condensation, typical board can weaken. It is usually best to specify a moisture-resistant material or coating to maintain tear resistance.
Where can graphics be printed on this carrier?
The entire exterior of the blank can be printed, including the side walls, end walls, and the outer faces of the handle. The curved side panels are often used for primary branding.
Can the height of the side walls be changed?
Yes, the curve profile can be adjusted. A lower curve shows more of the primary bottle label, while a higher curve provides more space for the carrier's own printed graphics.
Should I test prototypes before a full run?
Yes. Because the handle bears the entire suspended weight of four liquid-filled bottles, physical drop and lift testing with the actual product and chosen board grade is an important step.
