Retail Carry-Out and Beverage Multipacks
Retail Beverage and Jar Packaging
The auto-bottom supports heavier retail loads like glass bottles or specialty jars, while the handle provides immediate consumer convenience for carry-out.
Gift and Promotional Kits
The curved top dust flaps and large main panels offer a premium presentation and uninterrupted billboard space for high-quality graphics.
Specialty Food and Pantry Items
Useful for grouping heavy sauces, oils, or gourmet food jars into a single, easy-to-carry retail unit.
Health and Beauty Multipacks
Fits shampoo, conditioner, or lotion sets, providing a sturdy base and a convenient handle for salon or retail environments.
Store-Level Packing and Promotional Kitting
High-Volume Manual Packing
The crash-lock base eliminates the need to manually fold and tuck bottom flaps. Packers simply push the edges, load the product, and lock the top handle, making it efficient for manual assembly lines.
Point-of-Sale Retail Display
The tall front and back panels provide excellent visibility on retail shelves, giving brands room for large graphic presentations.
Event and Promotional Giveaways
The integrated handle makes it easy for attendees to carry promotional items around trade shows or events without needing an additional bag.
When to Consider a Different Carrier Style
Direct Parcel Shipping
The handle can snag on sorting equipment, and the top is not sealed against dust or intrusion. If shipping directly to consumers, consider standard sealed mailers or use this as an inner retail pack.
Lightweight Bakery or Deli Items
If the product is very light, a simpler manual-tuck base or standard gable box may be more practical than a pre-glued crash-lock.
Board Strength, Handle Tear Risk, and Gluing
Board Caliper and Tear Resistance
Because the entire weight of the product hangs from the die-cut handle, the board should have high tear strength. Heavier kraft or SUS boards often handle the stress better than standard folding boxboard for heavy bottles.
Moisture and Cold Environments
If packing refrigerated beverages, the board coating and the crash-lock adhesive should be rated for condensation to help prevent the bottom from failing.
Production Route

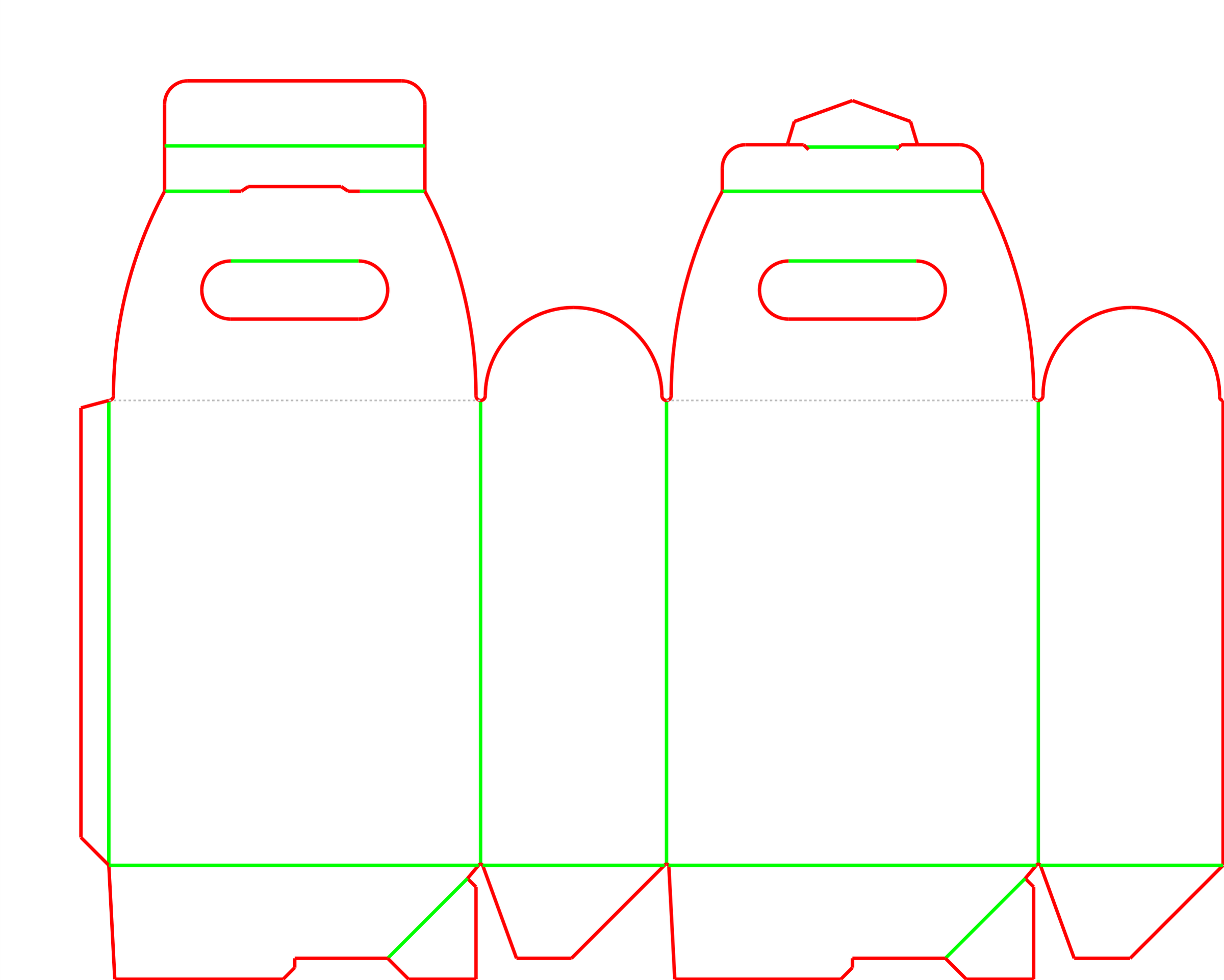

This template relies on a folder-gluer equipped with a multi-point gluing section to pre-glue the base before flat delivery.
Packing Line Setup
While the base erects quickly, the top handle involves manual folding and locking. This setup is well-suited for hand-packing stations rather than fully automated loading lines.
Handle Ergonomics and Top Profile Adjustments
Handle Hole Sizing
The width and height of the die-cut hand holes can be adjusted for better ergonomics, though making them too large relative to the panel width can weaken the carrying grip.
Tuck Tongue Security
The locking tongue that secures the two handle halves together can be tightened or loosened. A physical sample helps verify it stays closed during transit and does not tear during assembly.
Dust Flap Profile
The curved top edges of the side dust flaps can be modified to change the overall aesthetic of the gable top, matching specific branding or product shapes.
Packing details
Grain Direction and Wall Bowing
Running the board grain vertically increases handle tear resistance but can increase the risk of the side walls bowing. Horizontal grain keeps walls flat but may call for a stronger board to protect the handle.
Additional notes
Retail Print Surface
The tall front and back panels provide a large, uninterrupted area for branding, while the curved side dust flaps offer secondary space for branding or regulatory text.
Related Retail and Carrier Cartons
FAQs
Does the bottom need tape or glue during packing?
No. The crash-lock base is pre-glued by the manufacturer. It arrives flat and automatically locks into a weight-bearing floor when you pop the carton open.
How much weight can the handle support?
Capacity depends entirely on the board grade and tear resistance. Heavy items like glass bottles usually need a stronger kraft board or specific grain direction to prevent the handle from tearing.
Can I ship this carrier through the mail?
Not on its own. The handle can catch on sorting belts, and the top closure is not fully sealed. It should be placed inside a corrugated outer shipper for parcel delivery.
How is this carton delivered?
It is delivered knocked-down (flat). The manufacturer folds and glues the side seam and the complex bottom flaps, so it takes up minimal storage space before use.
Can we add a display window to the front panel?
Yes, a window patch can be added to display the bottles or jars, but it will reduce the overall rigidity of the carton and may call for a thicker board to compensate.
What should we test on the first physical sample?
Load the sample with your actual product and carry it. You need to verify that the handle does not tear, the tuck tongue stays locked while walking, and the bottom does not sag.
Can we use a standard folding boxboard for this carrier?
It depends on the product weight. Standard boxboard works for lighter promotional kits, but heavy beverage bottles usually rely on kraft or SUS board to prevent the handle from tearing.
How does the grain direction affect the carton?
Running the grain vertically strengthens the handle against tearing, while horizontal grain helps keep the large front and back panels flat. The better choice depends on your specific product weight and board grade.
