Retail presentation and display
Premium retail display
The combination of a display window and a truncated top creates a premium look that stands out from standard rectangular boxes. It is a strong fit for presenting the product while providing a structured, branded frame.
Gift and promotional sets
The unique silhouette elevates the unboxing experience, making it a strong choice for gift packaging, limited-edition releases, and promotional kits.
Single-item presentation
The angled top and clear front panel draw attention to a specific bottle, jar, or figure, framing the item securely while allowing consumers to view the actual product.
Countertop impulse displays
For smaller retail items, the pyramid-like shape captures attention on crowded countertops, encouraging impulse purchases through direct product visibility.
Product categories and shelf strategy
Cosmetics and personal care
The angled top and clear window allow bottles, jars, or tubes to be displayed securely while offering ample printable surface on the side and back panels.
Confectionery and specialty foods
Often used for chocolates, artisanal snacks, or specialty items where seeing the product drives the purchase decision.
Toys and collectibles
The structured frame and large viewing area make this carton an excellent choice for displaying figures or collectible items without requiring buyers to open the package.
When to consider simpler cartons
High-speed automated packing lines

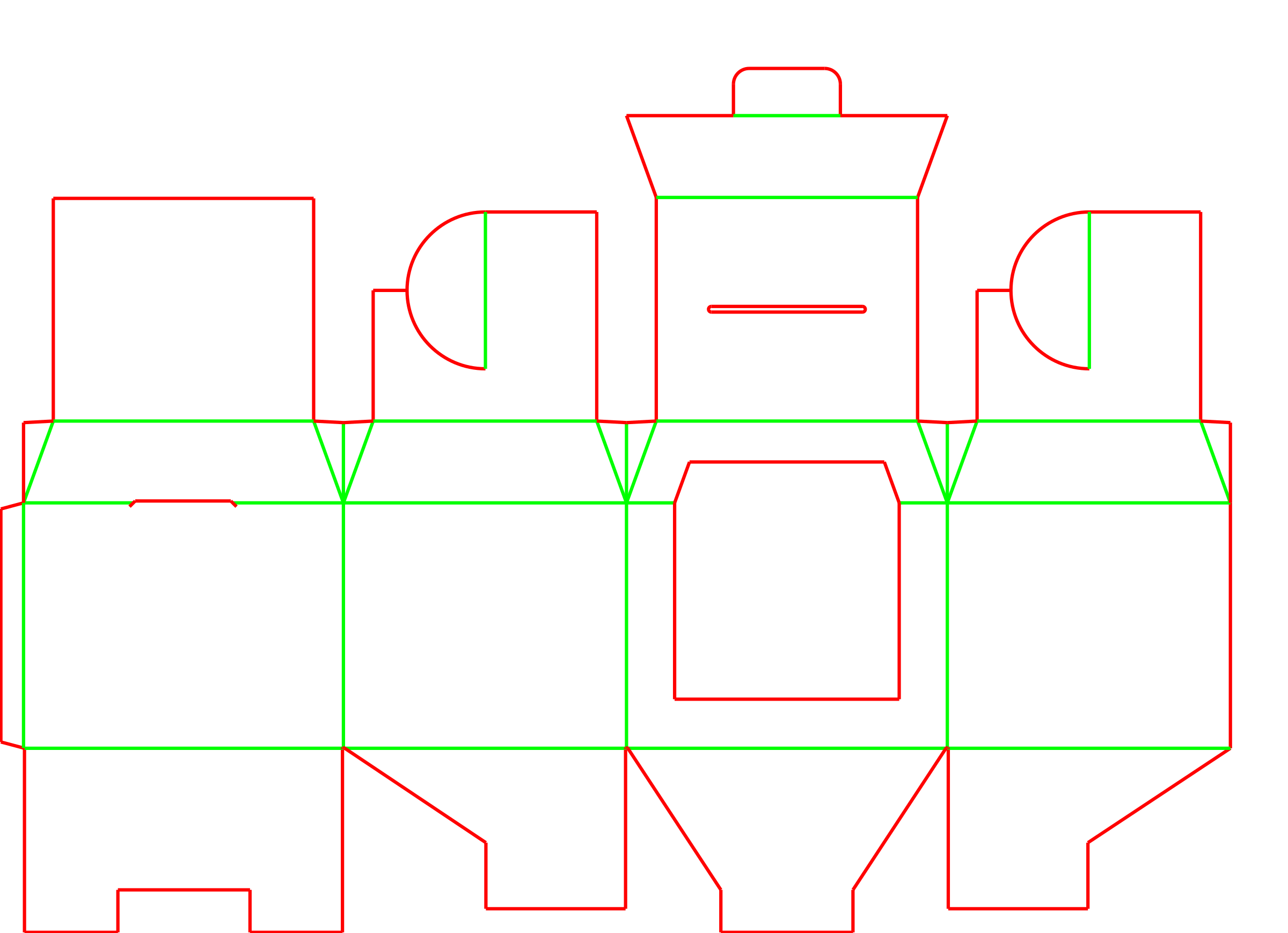

The 1-2-3 snap-lock base and the multi-step angled top closure require manual dexterity. If your packing line relies on automated carton erectors, evaluate an auto-bottom carton or a standard straight-tuck design.
Heavy or fragile retail items
While the snap-lock base is secure for lightweight to medium retail goods, heavy items may cause the interlocking flaps to disengage. For heavier products, consider a crash-lock base or an internal support insert.
Material, window, and assembly choices
Board thickness and score quality
The angled shoulder panels require precise folding. Specifying a board that is too thick or rigid can lead to cracking along the angled scores or cause the top closure to bind. Discuss board grade and score profiles with your converter.
Window film material
The front cutout requires a clear film patch applied during production. You will need to specify the film material and thickness based on the required clarity and puncture resistance.
Manual assembly and packing labor
Because the base must be manually interlocked and the top shoulders folded inward before tucking the lid, packing this carton takes longer than a standard tuck box. Factor this assembly time into your fulfillment planning.
Artwork alignment on angled panels
The inward slope of the top panels means graphics must be carefully aligned across the crease lines. Review your print layout to ensure a continuous visual presentation once the carton is fully erected.
Modifying the window and top angle
Window sizing and placement
The dimensions of the front window can be adjusted to reveal specific parts of your product. Ensure enough board margin remains around the cutout to maintain the strength of the front panel.
Top angle modifications
The slope of the truncated top can be modified. However, extreme angles can complicate the folding process or cause the top flaps to misalign, requiring careful prototyping.
Window shape variations
While a rectangular window is standard, the cutout can be modified to match the contours of your product or brand logo, provided the film patch has sufficient area to adhere to the inside of the panel.
Packing details
Outer packaging for transit
This carton is designed for retail shelves, not parcel networks. It requires a master shipper or corrugated outer box for protection during parcel or freight distribution.
Additional notes
Stacking considerations for angled tops
The truncated pyramid shape reduces the flat surface area on top, making these cartons difficult to stack directly on top of one another on a retail shelf.
FAQs
Can this carton be erected by machine?
The 1-2-3 snap-lock base and the complex angled top closure are designed for manual assembly. The carton is delivered flat and must be popped open and locked by hand.
How is the clear window applied?
The clear film is applied over the cutout during the manufacturing process (window patching) before the carton is folded and glued along the side seam, so it arrives ready to load.
What board thickness is appropriate for the angled top?
Standard folding carton grades work well. Heavier boards can resist the inward fold of the top shoulders and may crack along the angled crease lines, requiring careful score profile adjustments.
How does the top stay closed?
The top features a slit-lock tuck closure. After the angled shoulders are folded inward, the front flap folds over and a tuck tongue inserts into a slit on the back flap, creating a flush top surface.
Can this carton be shipped directly in the mail?
This carton is designed for retail display. The manual closures and film window are not built to withstand direct parcel courier handling without an outer corrugated shipper.
Can the window be removed from the design?
The carton can be produced without the window cutout if you prefer a fully enclosed package while keeping the distinctive angled top profile.
Does the snap-lock base require tape or glue?
The 1-2-3 bottom interlocks mechanically and holds its shape without tape or glue, though heavy items may require a different base style or a clear seal for added security.
How does the angled top affect artwork design?
The inward slope of the top panels means graphics must be carefully aligned across the crease lines to ensure a continuous visual presentation once the carton is fully erected.
