Retail and presentation uses
Specialty food and confectionery
The tapered shape mimics classic specialty food packaging, making it a natural fit for wrapped candies, baked goods, or dry mixes. The flat top provides a clear surface for branding or labeling, while the tongue lock allows consumers to open and close the box easily.
Boutique gifts and cosmetics
For lightweight retail items, the angled walls offer a break from standard rectangular boxes. The four main panels provide continuous billboard space for high-quality offset printing and finishes.
Premium dry goods and mixes
The wide top opening makes it easy to fill with bagged dry goods, loose leaf tea, or coffee beans. The snap-lock base holds the weight of moderate fills securely without tape.
Promotional kitting and event giveaways
The distinctive shape stands out at events or in promotional mailers. Because it ships flat and sets up quickly by hand, it is practical for on-site kitting and assembly.
Hand-packing and retail display contexts
Hand-packed retail operations
This carton is side-seam glued by the converter and delivered flat. Packing teams squeeze the edges to open the tube, fold the bottom flaps in sequence, and snap the final tab into place. This makes it suitable for manual kitting and store-level fulfillment.
E-commerce and fulfillment
Because the carton is vulnerable to crushing under heavy vertical weight, it is typically placed inside a corrugated mailer or master shipper for transit.
Point-of-sale display
The tapered profile is designed to be seen from multiple angles on a retail shelf or counter. The flat top allows for clear top-down branding, which is useful for lower shelf placements.
When to compare straight-walled cartons
High-volume automated packing
If the packing line uses automated cartoners, the tapered shape and snap-lock bottom can complicate feeding and erection. A standard straight-walled auto-bottom or tuck-end carton is often easier to run on existing equipment.
Heavy stacking requirements
Because the top opening is wider than the base, vertical weight presses on the top closure rather than transferring down the side walls. If the primary packages will be stacked heavily on retail shelves or in storage, a straight-walled carton provides better structural support.
Board, print, and packing decisions
Board caliper and memory
The snap-lock base relies on the paperboard's memory to spring back and hold the lock. Standard folding boxboard (FBB) or solid bleached sulfate (SBS) usually provides the right balance of stiffness and foldability. Recycled boards may need testing to confirm the bottom tab snaps securely.
Slit width and tongue fit
The width of the receiving slit on the top closure should be matched to the exact thickness of the chosen paperboard. Changing board materials late in the process often means adjusting the template so the tongue does not tear or slip out.
Nesting and material yield

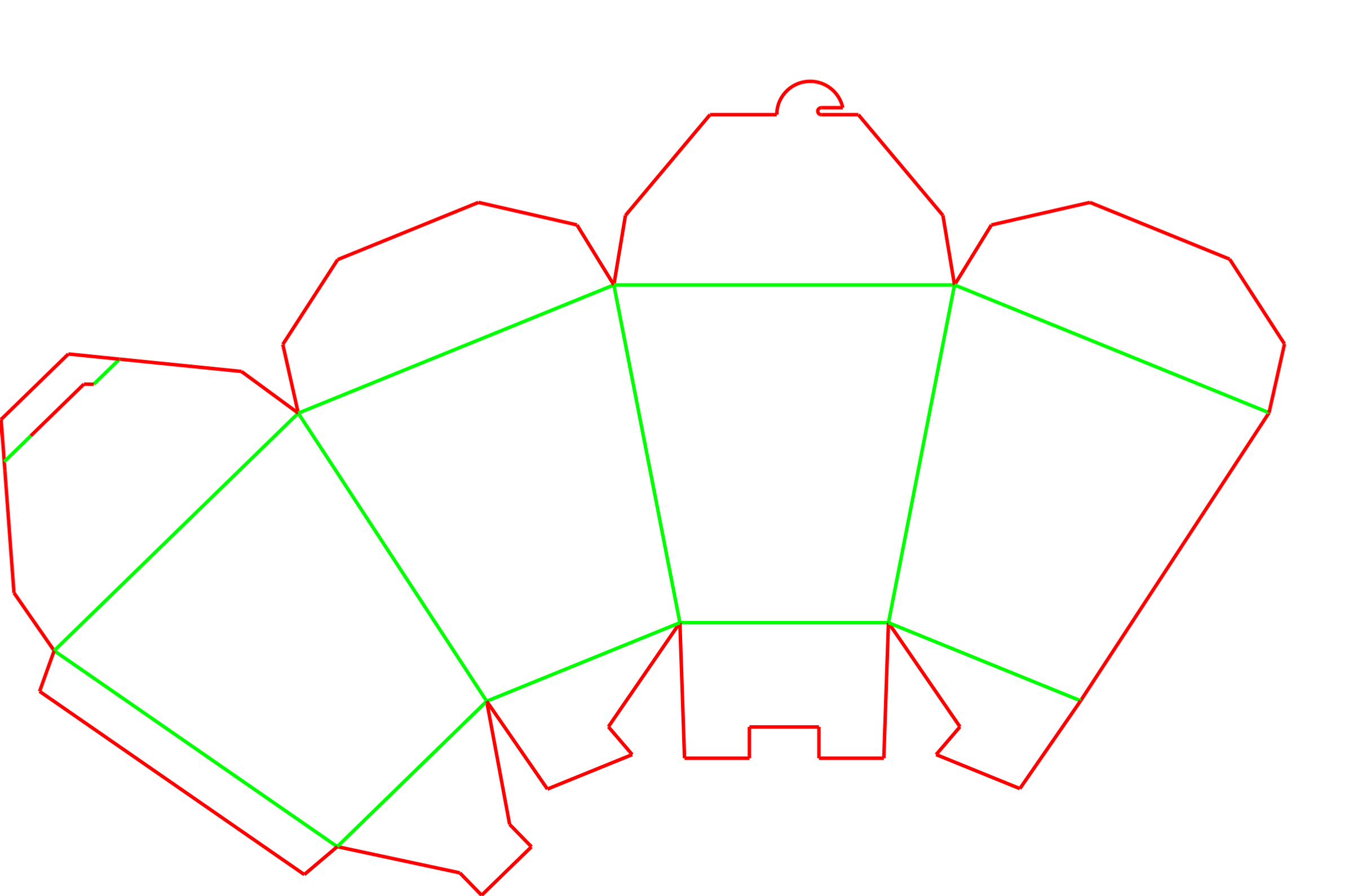

When laid flat, the angled creases give the blank a curved footprint. This reduces nesting efficiency on the printed sheet compared to simple rectangles. Discussing sheet layout early can help optimize the overall material yield.
Print layout across angled panels
Because the walls taper, graphics that cross the corner creases need careful alignment. The 3D shape means horizontal lines on the flat blank will appear angled once the carton is erected.
Template adjustments
Taper ratio adjustments
The difference between the top width and the bottom width dictates the angle of the walls. Steep tapers can complicate the folder-gluer process or cause the snap-lock base to bind. Moderate adjustments are safer for standard production.
Snap-lock tab clearances
The locking tab on the bottom flap can be adjusted based on the board thickness and the weight of the product. A tighter clearance provides a more secure lock but takes more force to assemble.
Tongue and slit sizing
The top closure tongue and its corresponding slit can be widened or narrowed. A wider tongue offers more security for heavier boards, while a narrower tongue is easier to open and close repeatedly.
Packing details
Folder-gluer setup
While the carton is glued on a single side seam, the angled creases need specific folder-gluer handling to help the panels align correctly when folded flat. This can slightly reduce running speeds compared to straight-line cartons.
Additional notes
Manual assembly speed
The 1-2-3 bottom is faster to assemble than a standard tuck bottom, but slower than an auto-bottom (crash-lock) carton. It is a practical middle ground for hand-packing operations.
FAQs
Can this carton be shipped through parcel networks?
Usually not on its own. The tapered shape and paperboard construction are designed for retail presentation, not transit. It is typically placed inside a corrugated master shipper or mailer box for parcel delivery.
Does the bottom close without tape or glue?
The 1-2-3 snap-lock base uses interlocking flaps that hold securely under moderate weight without tape. The side seam is pre-glued before delivery.
Is this suitable for heavy items?
The friction-fit bottom and angled walls are intended for lightweight goods like cosmetics, wrapped confections, or small gifts. Heavy items can cause the bottom lock to disengage.
Can this be made from corrugated board?
The complex angled creases and small locking tabs rely on the clean folding properties of paperboard (like FBB or SBS). Corrugated board, even micro-flutes, often crushes or binds during assembly.
Can these boxes be stacked on retail shelves?
Stacking is difficult. Because the top is wider than the base, the weight of a box placed on top will press directly into the top closure flaps rather than being supported by the side walls.
Is this carton safe for direct food contact?
That depends entirely on the paperboard and coatings selected. If packing unwrapped food, specify food-grade board and barrier coatings during the quoting process.
Can the top closure be opened and closed multiple times?
The tongue-and-slit top is designed for easy reclosure without tearing the board, making it useful for products that are consumed over time.
Is this carton suitable for automated packing lines?
The tapered shape and snap-lock bottom are designed for hand assembly. If the packing line uses automated cartoners, a straight-walled tuck carton is a better starting point.
