Retail and Presentation Uses
Cosmetics and beauty packaging
The angled profile naturally draws the eye, making it a strong fit for lightweight beauty products, perfumes, or boutique items. The top tuck flap includes slit locks that keep the lid secure on the shelf without requiring clear tape or seals.
Lightweight novelty gifts
Because the carton relies on a manual interlocking base and angled walls, it is best suited for lighter items. Heavy products can cause the base to disengage or the leaning walls to bow during handling.
Boutique personal care
Soaps, lotions, and skincare bottles benefit from the non-rectangular shelf presence. The flat base ensures stability on the shelf, while the leaning body provides unique angles for branding.
Premium confectionery
For artisan chocolates or specialty sweets, the leaning shape signals a premium product. The carton can be sized to hold a specific volume of wrapped treats, though an inner bag is required for direct food contact.
Retail and Fulfillment Contexts
Brands seeking shelf differentiation
Brands looking to stand out often use this shape to break up the visual monotony of straight-walled boxes. The leaning panels offer unique angles for primary graphics and branding.
Hand-packing fulfillment operations
This carton requires manual assembly. The packer must pop the flat tube open, fold in the bottom flaps, and snap the final tongue into place. It fits well in fulfillment centers set up for hand assembly rather than automated erecting.
Short-run promotional campaigns
For limited-edition releases or seasonal promotions, the distinctive shape creates immediate visual interest. The manual assembly is often acceptable for these lower-volume, high-impact runs.
When to Compare Straight-Walled Cartons
High-speed automated packing
If your packing line relies on automated carton erectors, the manual 1-2-3 snap-lock base will be a bottleneck. Compare this to a pre-glued crash-lock carton if speed is your primary concern.
Heavy vertical stacking
The leaning geometry creates an asymmetric load path. If the primary package must support heavy top weight on a pallet or in a warehouse, a straight-walled carton will provide much better vertical compression strength.
Board, Print, and Transit Decisions
Board stiffness and grain direction
The angled walls are more prone to bowing than straight walls. Selecting a sturdy folding boxboard (FBB) or solid bleached board (SBS) helps maintain the crisp leaning shape. Grain direction is typically oriented to resist bowing on the main panels.
Master shipper planning
Because of the leaning shape and tuck closures, this carton cannot be shipped individually through parcel networks. You will need to plan for a corrugated outer shipper to protect the cartons during transit.
Print layout across angled panels

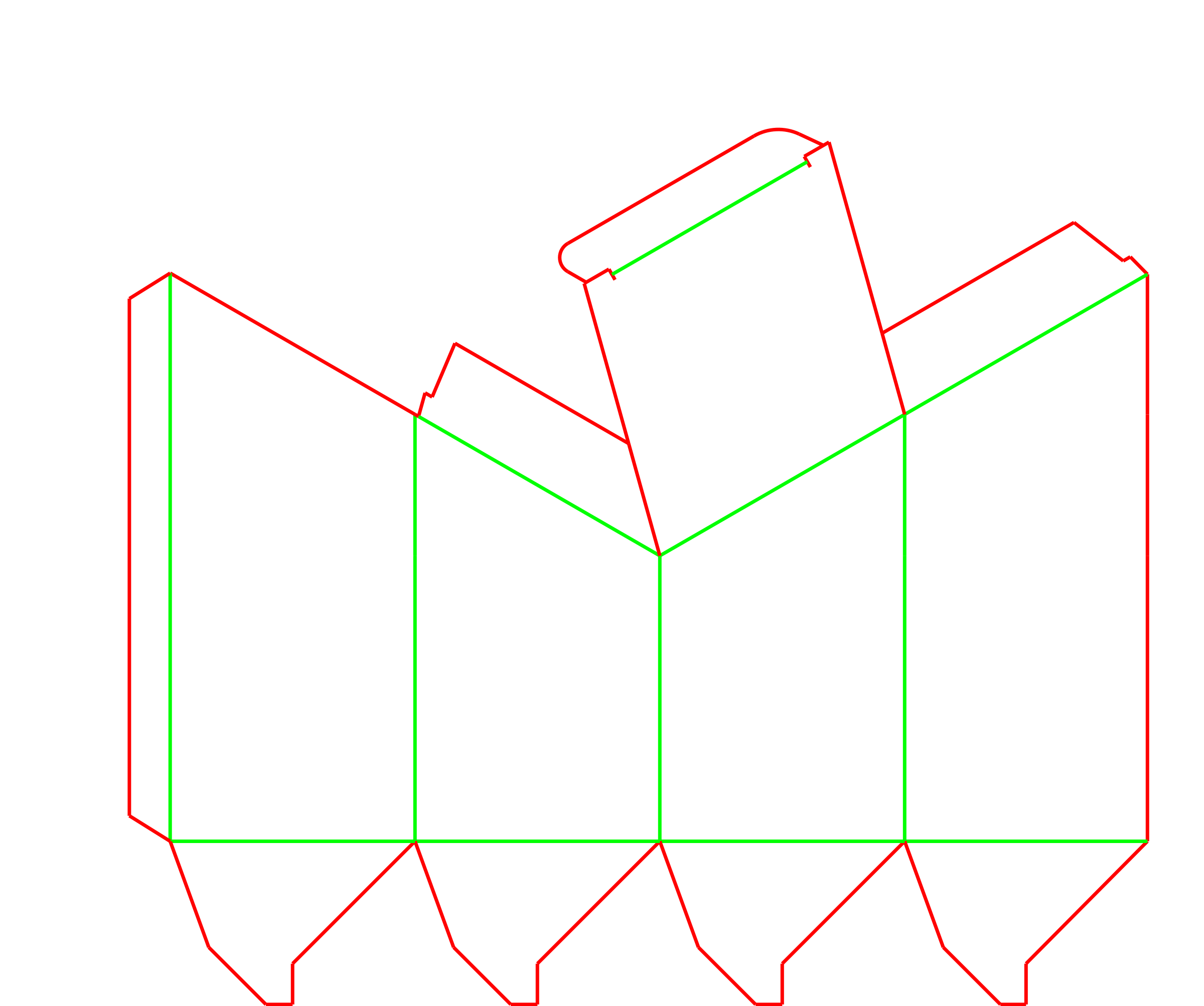

The parallelogram shape of the main panels means graphics must be carefully aligned. Continuous patterns or text crossing the angled creases require precise registration during printing and die-cutting.
Packing labor and fulfillment speed
The 1-2-3 snap-lock bottom takes longer to assemble by hand than a pre-glued crash bottom. You should weigh the visual impact of the carton against the increased labor time per unit.
Adjusting the Lean and Closures
Modifying the lean angle
The severity of the lean can be adjusted. A slight taper offers a subtle visual cue, while a more extreme angle creates a dramatic display. However, extreme angles can make the carton prone to tipping and complicate the bottom interlocking mechanism.
Tuning the slit locks
The small catches on the top tuck flap can be adjusted for a tighter or looser fit, depending on the board thickness and how frequently the consumer needs to open and close the carton.
Adjusting the tuck flap length
The insertion depth of the top tuck flap can be extended for added security or shortened to save material, depending on the product weight and how the carton will be handled on the retail floor.
Packing details
Understanding the 'Semi-Auto' label
In some packaging catalogs, the 1-2-3 bottom is called a 'semi-auto lock.' This simply means the flaps interlock to form a secure floor without tape. It does not mean the carton pops open automatically like a pre-glued crash-lock base; it still requires manual folding.
Additional notes
Nesting and master shipper efficiency
Because the cartons lean, they do not form perfect cubes when packed together. Your master shipper layout may require alternating the orientation of the cartons to minimize wasted space and prevent crushing.
FAQs
Does this carton pop open automatically?
No. While the base is sometimes called a 'semi-auto lock,' it is actually a 1-2-3 snap-lock. The carton is delivered flat, and the packer must manually fold and interlock the four bottom flaps to create the floor.
Do I need tape or glue to seal the bottom?
The 1-2-3 snap-lock base uses interlocking flaps that hold securely under the weight of lightweight to medium products without tape. The side seam is pre-glued by the manufacturer.
Can I ship this carton directly in the mail?
The leaning shape, tuck closures, and folding carton board are designed for retail display, not the rough handling of courier networks. It requires a corrugated outer shipper for transit.
Is this shape stable on a retail shelf?
The base is perfectly flat, providing good stability. However, the center of gravity shifts depending on the lean angle and the product inside. It is best used for lightweight items where the weight distribution will not cause the carton to tip.
Can the angle of the lean be changed?
The taper angle can be adjusted during the structural design phase. Keep in mind that extreme angles may reduce stability and make the carton harder to pack efficiently into a master shipper.
What board works best for this leaning shape?
A sturdy folding boxboard (FBB) or solid bleached board (SBS) is usually recommended. The stiffness helps prevent the angled main panels from bowing, keeping the presentation crisp.
Can I print continuous graphics across the angled folds?
The parallelogram shape allows for continuous graphics, but it requires careful artwork setup. Graphics that cross the angled creases need precise registration to align correctly once the carton is folded into its 3D shape.
How does the top flap stay closed without tape?
The top tuck flap features small slit locks on its sides. These catches engage with the edges of the front panel, providing enough friction to keep the lid secure on a retail shelf.
