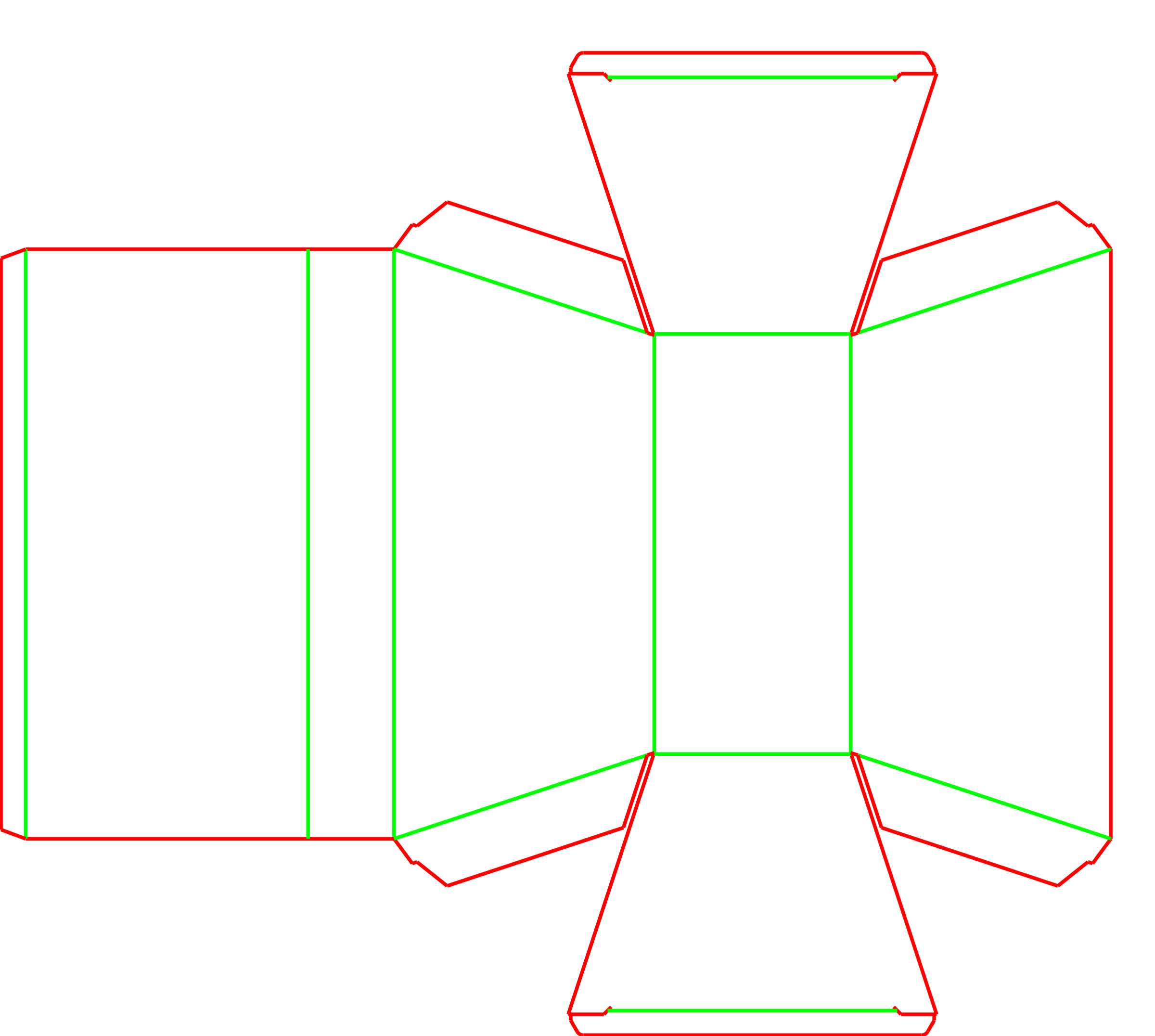

The EVF12030 is a distinctive trapezoidal folding carton designed for premium retail presentation. Featuring a narrow front face, a wide back panel, and angled side walls, it creates a striking geometric silhouette that stands out on crowded shelves for cosmetics, confectionery, and specialty gifts.
Despite its irregular 3D shape, a specialized vertical production crease on the back wall allows the carton to be glued and delivered completely flat. Packers simply squeeze the edges to pop the tube open, then secure the top and bottom with straight tuck closures.
The angled side walls and trapezoidal footprint draw immediate visual attention, making this carton an excellent choice for hero products or limited editions where shelf presence is the primary goal.
Hand-packed specialty goods
Because the carton is delivered flat and pops open with a gentle squeeze, it is highly efficient for manual packing lines. The straight tuck ends close quickly and secure the contents without tape.
Gift-ready confectionery
Often used for chocolates or artisan foods, the trapezoidal shape elevates the perceived value of the product inside, turning a standard folding carton into a presentation piece.
Cosmetic and personal care launches
The unique geometry pairs well with bottles, tubes, or jars, offering a premium unboxing experience that stands out from standard rectangular cosmetic packaging.
Product Categories
High-end cosmetics and skincare
Brands in this space often use the rigid folding boxboard surface for high-end finishes like foil stamping or embossing, complementing the unique shape.
Specialty confectionery and artisan foods
The distinctive profile helps specialty food items command attention in boutique grocery settings or as standalone gift purchases.
Boutique retail and promotional gifting
For short-run promotions or boutique environments, the unusual shape creates a memorable physical interaction without complicating the packing process.
When to Consider Standard Rectangular Cartons
Heavy vertical stacking
The angled side walls may buckle under heavy top-load compression. If the cartons will be stacked high on pallets or retail floors without protective outer master cases, a standard rectangular straight tuck carton is a safer choice.
Automated packing lines
The asymmetric flat profile and unique pop-open mechanics are designed for hand assembly. High-speed automated erecting and loading equipment typically handles standard rectangular profiles more reliably.
Board, Artwork, and Packing Choices
Board grade and caliper
This shape relies on the stiffness of the material to maintain its crisp angled walls and flat back panel. Standard folding boxboard (FBB) or solid bleached board (SBS) usually provides the necessary rigidity, while micro-flute corrugated is often too thick for the complex folding geometry.
Artwork placement on the back wall
To allow the irregular shape to fold flat for delivery, the wide back wall features a vertical production crease. Artwork, text, and critical branding elements on the back panel should be designed to accommodate this central fold line.
Outer shipper requirements
Because the friction-fit tuck ends can pop open under rough handling, and the angled walls are sensitive to crushing, these cartons often need a well-fitted corrugated outer shipper for transit to distribution centers or retail stores.
Closure security and tamper evidence
While the slit locks provide a secure friction fit for normal handling, brands should decide if clear wafer seals are needed on the top and bottom flaps for tamper evidence in retail environments.
Shape and Proportion Adjustments
Base and top proportions
The ratio between the wide base and the narrow top can be adjusted to make the angled walls steeper or shallower, depending on the product's footprint and the desired visual impact.
Dust flap and tuck clearances
The internal dust flaps and tuck tongues can be modified to accommodate different board thicknesses or to adjust the friction feel of the closure.
Slit lock depth
The depth and angle of the slit locks on the tuck ends can be tuned to increase or decrease the opening resistance, balancing security with the unboxing experience.
Packing details
Folder-gluer alignment
While the carton runs on straight-line gluing equipment, the asymmetric flat profile requires careful belt and guide tuning during production to prevent twisting at high speeds.
Additional notes
Print panel and back wall crease
The vertical production crease on the back panel is a structural necessity for flat delivery. Designers should treat the back panel as two adjacent visual zones or use continuous patterns that are not disrupted by a fold line.
Another angled retail carton style to review if the primary display face needs a different geometric profile.
FAQs
Does this trapezoidal box ship flat?
Yes. A specialized vertical crease on the wide back wall allows the asymmetric shape to fold completely flat for efficient delivery and storage. It pops open into its 3D shape when the edges are squeezed.
Can this carton hold heavy items?
It is best suited for lightweight to medium-weight retail goods. Heavy items can cause the angled side walls to buckle or the bottom friction tuck to open if not properly supported.
How does the folding mechanism affect my artwork?
The front, top, bottom, and angled side walls are uninterrupted. However, the wide back wall has a vertical production crease that allows the box to fold flat. You should avoid placing small text or critical graphics directly over this line.
Can this be made from corrugated board?
This specific folding geometry and the slit-lock tuck ends are designed for rigid paperboard. Corrugated material is usually too thick for the precise folding math required to make this shape lay flat.
Is this suitable for ecommerce parcel shipping?
Not on its own. The angled walls and friction-fit tuck ends are designed for retail presentation, not the rough handling of courier networks. It should be placed inside a protective corrugated mailer or shipping box for ecommerce fulfillment.
Does it require glue or tape to assemble?
The side seam is glued during manufacturing. For the packer, the box pops open and the top and bottom close using secure friction tucks with slit locks, requiring no tape or glue for basic assembly.
Can the tuck ends be secured for retail shelves?
The slit locks provide a secure friction fit for normal handling, but clear wafer seals are often added to the top and bottom flaps for tamper evidence in retail environments.
How does the flat-folding mechanism affect the side walls?
The angled side walls remain solid and uncreased. The folding action relies entirely on a vertical production crease hidden on the wide back panel.
A striking geometric profile that elevates retail presentation while maintaining the efficiency of flat delivery and simple hand assembly.
