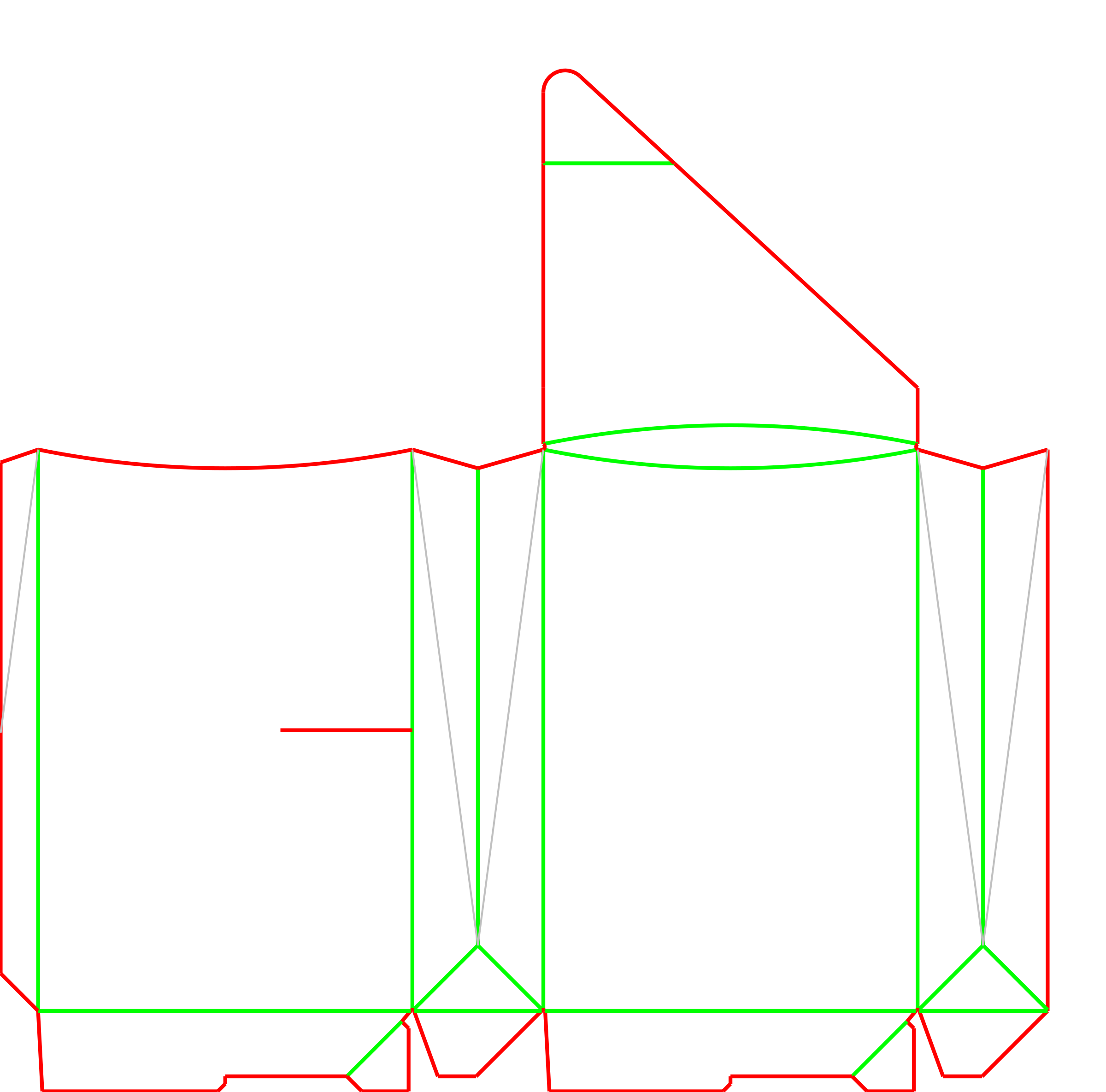

EVF12040

Crash-Lock Gusset Bag Carton

The EVF12040 combines the premium, pinched-top aesthetic of a retail bag with the fast-erecting convenience of a crash-lock box. Delivered flat, the base drops into place for loading, while the side gussets pinch inward to form a tapered profile.

Because the top tapers to a fold-over tuck closure, this carton does not support vertical stacking. It is designed for upright retail display, lightweight gift packaging, and fast manual fulfillment where presentation matters more than compression strength.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Fast-erecting crash-lock base drops into place for loading
  • Pinched side gussets create a premium bag-like profile
  • Fold-over lid secures into a front-panel slit via friction fit

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product Fit for Gusseted Cartons

Premium Confectionery and Gift Packaging

The bag-like shape stands out on retail shelves, offering a higher-end unboxing experience than a standard rectangular carton. The flat base keeps the package upright, while the fold-over lid provides a clean, finished look.

Lightweight Retail Presentation

Well-suited for cosmetics, apparel accessories, or specialty foods when used with an inner primary bag. The crash-lock base supports moderate weight, but the carton is best suited for items that will not cause the floor to sag.

Coffee and Tea Outer Packaging

Often used as a secondary retail carton for foil-sealed coffee or tea bags. The flat base provides shelf stability, while the pinched top mimics traditional bag silhouettes.

Apparel Accessories and Soft Goods

A strong fit for scarves, ties, or small garments. The gusseted top allows flexible items to settle into the base without putting pressure on the closure.

Packing and Retail Display Contexts

Hand Assembly and Fulfillment

This carton is built for fast hand assembly. The operator simply pushes the edges to snap the base open, drops the product in, pinches the sides, and tucks the lid. It eliminates the need to fold and lock bottom flaps manually.

Upright Retail Shelf Display

The flat crash-lock floor ensures the carton stands securely on retail shelving. However, the pinched top means these cartons are not designed to be stacked on top of one another; they are typically displayed side-by-side or in custom retail trays.

Premium Unboxing Experiences

The fold-over lid and pinched gussets create a reveal that feels more like opening a gift bag than a standard box, adding perceived value to the enclosed product.

When to Compare Flat-Top or Rigid Cartons

Heavy or Dense Payloads

If the product is heavy enough to cause a crash-lock base to sag, compare this to a full-overlap seal-end carton or a rigid setup box.

Vertical Stacking and Palletizing

Because the top tapers to a point, this carton offers minimal vertical compression resistance. If your distribution or retail environment relies on stacking cartons, a flat-top folding carton may be a better fit.

Automated Packing Lines

While the base folds open quickly, the top relies on a human operator to pinch the gussets and tuck the lid. If you are setting up fully automated loading and closing, a straight-tuck or reverse-tuck carton is worth comparing.

Board, Print, and Gluer Setup Choices

Board Thickness and Gusset Flexibility

The board should be rigid enough to form a strong base, but flexible enough that the side gussets pinch inward easily. If the board is too thick, the vertical creases may resist closing. A physical prototype helps test this balance.

Production Route and Gluer Setup

The crash-lock base is usually produced on a multi-point folder-gluer. This setup is efficient for large runs but can make short digital trials more expensive compared to a simple straight-line glued carton.

Print Placement and Side Folds

The front, back, and fold-over lid offer uninterrupted space for branding. However, graphics placed on the side panels will fold inward when the gussets are pinched closed.

Inner Bag or Liner Needs

Because the base and top are not sift-proof, loose items, powders, or granular products need a sealed inner bag before being placed inside the carton.

Lid and Base Adjustments

Lid Height and Taper

The height of the fold-over lid and the angle of its tapered edges can be adjusted to change the final aesthetic or to accommodate different branding layouts.

Slit Width and Placement

The receiving slit on the front panel should be sized to match the tuck tongue and the chosen board thickness, ensuring a secure friction fit.

Base Proportions

The length and width of the base can be modified to balance shelf footprint against the height of the tapered top, ensuring the carton remains stable when loaded.

Packing details

Outer Shipping Requirements

This carton is designed for primary retail presentation, not parcel shipping. It should be packed inside a protective corrugated master shipper for transit.

Additional notes

Testing the gusset fold

Always request a physical prototype in your final board material. This ensures the side gussets pinch cleanly without excessive force and that the tuck lid stays securely in the slit.

Related Carton Styles

FAQs

Can this carton hold powders or fine granules?

The crash-lock base and pinched top are not sift-proof. Powders or loose items need a sealed inner bag before being placed in this carton.

How much weight can the base support?

The weight capacity depends on the chosen board grade and the size of the base. While crash-lock bottoms are secure, very heavy items can cause the interlocking flaps to sag. Testing a physical sample with your exact product is advised.

Does this carton need tape or glue to close?

The factory typically glues the side seam and the crash-lock base. At the packing station, the base folds open, and the top is secured by tucking the lid into the front slit.

Can this be closed by automated machinery?

The crash-lock base is designed for fast manual erection. The complex motion of pinching the side gussets and tucking the fold-over lid is usually handled by hand rather than automated equipment.

Can I ship this directly in the mail?

The pinched top provides minimal crush resistance, and the tuck closure is not secure enough for courier networks. It should be placed inside a corrugated outer shipper.

Where is the best place for logos and text?

The front panel, back panel, and the fold-over lid provide flat, continuous surfaces for printing. Avoid placing critical text on the side panels, as they fold inward and will be hidden.

How are these delivered to the packing station?

They are delivered flat. The side seam and the crash-lock bottom are pre-glued by the manufacturer, allowing the carton to fold open into its 3D shape during packing.

Can the fold-over lid be secured with a tamper-evident seal?

Yes. If additional security is needed for retail shelves, a clear wafer seal or branded sticker can be applied over the tucked lid to keep it locked in place.

A striking retail presentation that does not slow down your packing line.
