Retail and Presentation Fits
Luxury Confectionery and Cosmetics
The sharp, converging lines provide an elegant unboxing experience. The flat base allows the carton to stand upright on retail shelves, while the continuous triangular panels offer uninterrupted space for premium graphics, foil, or embossing.
Event Gifting and Novelty Packaging
For short-run promotions or event giveaways, the pyramid shape immediately distinguishes the product from standard rectangular boxes. The edge-lock base holds lightweight items securely without requiring tape or adhesive.
Hanging Retail Displays
With a die-cut hole added near the apex or base, the pyramid can be adapted for pegboard displays. This orientation draws attention to the geometric shape while keeping the product secure at the wider end.
Point-of-Sale Counter Displays
The flat, full-overlap base provides a stable footprint for checkout counters. The sloping walls naturally angle branding upward toward the customer, making it a strong choice for impulse-purchase items.
Product and Channel Contexts
Retail Shelf Display
The package is designed to stand on its flat square base, pointing upward. Alternatively, it can be inverted and seated into a custom die-cut display tray, presenting the flat base as the top surface.
Master Shipping and Distribution
Because the sharp apex cannot support vertical weight, these cartons cannot be palletized or stacked directly. Distribution relies on a custom corrugated master shipper, often using alternating up-and-down nesting layouts to protect the tips and maximize carton count.
Hand Assembly and Fulfillment
The edge-lock base is closed manually. The operator folds two dust flaps, an inner panel, and an outer tuck flap. This process is straightforward for hand-packing lines but adds seconds per unit compared to automated closures.
When to Consider Alternative Closures
High-Volume Fulfillment Lines
If packing speed is the primary concern for a large rollout, the manual folding required for the edge-lock base may slow down the line. A pyramid with a crash-lock base can reduce assembly time by snapping into place automatically.
Heavy or Fragile Transit
If the product is heavy or will be shipped individually through parcel networks, a standard folding carton pyramid may not protect the goods from crush risks. A corrugated mailer with a custom internal insert is often a safer choice for direct-to-consumer routes.
Board, Transit, and Assembly Decisions
Board Caliper and Apex Tearing
The four triangular panels converge at a single sharp point. Thick materials or micro-flute corrugated boards can bunch, crack, or tear at this apex during die-cutting. High-quality folding boxboard (FBB or SBS) is usually required to maintain a clean, sharp tip.
Nesting Efficiency and Sheet Layout

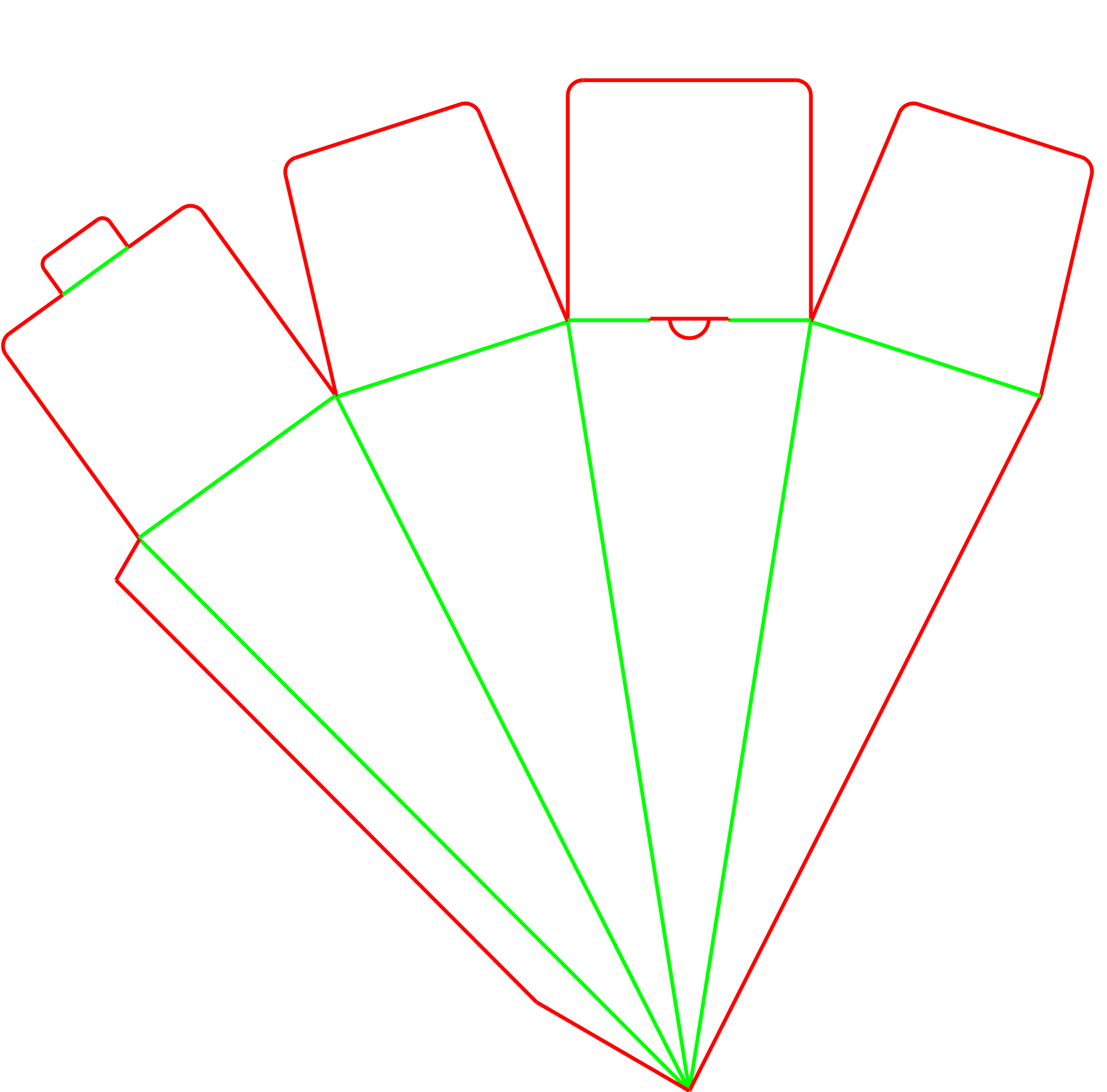

The flat blank for a pyramid is fan-shaped, which creates significant negative space on the printed sheet. This lower nesting efficiency means material yield per unit is often different from a standard rectangular carton of similar volume.
Base Closure Method
The full-overlap edge lock provides a clean, flat bottom surface, which is excellent for standing displays. However, it requires manual folding. The choice between this and a crash-lock base depends on whether presentation or packing speed is more important.
Print Layout on Sloping Panels
The four triangular faces offer large, uninterrupted surfaces for graphics. However, artwork must be carefully warped or tapered in prepress to account for the sloping walls, ensuring logos and text appear straight when the carton is erected.
Proportions and Base Adjustments
Height and Base Proportions
The ratio between the base width and the overall height dictates the slope of the pyramid. The template automatically recalculates the complex wall angles when these primary dimensions change, ensuring the apex always closes cleanly.
Tuck Flap Friction and Lock
The width and depth of the tuck flap can be adjusted to increase or decrease the friction lock. A deeper tuck provides more security for heavier items, while a shallower tuck is easier to open for the end user.
Thumb Cut Radius
A thumb cut on the inner base panel helps the user grip and open the tuck flap. The radius of this cut can be modified to balance ease of opening with the visual cleanliness of the base.
Packing details
Grain Direction and Wall Bowing
For taller pyramids, the grain direction of the paperboard must be balanced carefully. Running the grain perpendicular to the main vertical creases helps prevent the long triangular panels from bowing outward, though this must be weighed against the risk of cracking at the apex.
Additional notes
Print panel continuity
The four triangular faces offer large, uninterrupted surfaces for graphics. However, artwork must be carefully warped or tapered in prepress to account for the sloping walls.
Related Presentation Packaging
FAQs
Does the pyramid require glue for assembly?
No tape or glue is needed on the packing line. The converter pre-glues the side seam, delivering the carton flat. The operator simply pops it open into a 3D shape and locks the base flaps by hand.
How are these packed for distribution?
Because the sharp apex cannot support weight, pyramids are not stacked directly. They are usually packed into custom corrugated master shippers, often using an alternating up-and-down layout to protect the tips and fit more units per case.
Can this be made from corrugated board?
It is generally not recommended. The four panels converging at the tip create too much bulk for corrugated fluting, causing the apex to bunch or tear. It performs best in solid bleached board (SBS) or folding boxboard (FBB).
How does the product sit inside the pyramid?
The product rests against the flat bottom panels. Because the interior cavity narrows to a point, the usable volume is much smaller than the overall height suggests. Products should be test-fitted to ensure they do not push against the upper walls and bow the carton.
How does the fan-shaped blank affect sheet layout?
The radiating triangular panels create a fan-shaped flat blank. This shape does not nest as tightly on a standard sheet of paperboard as a rectangular box, which changes the material yield per sheet.
Does the pyramid have to stand on its flat base?
While it naturally stands on the flat square base, it can also be displayed inverted (like a cone) if you use a custom die-cut tray or insert to hold the pointed end upright.
Does the edge-lock base need tape?
For lightweight retail items, the friction of the tuck flap holds the base closed without tape. If the product is heavier, the tuck flap dimensions can be adjusted, or a clear wafer seal can be added for extra security.
Why is a physical sample important for the apex?
The sharp point where the four panels meet is sensitive to board thickness. A physical prototype confirms that the chosen paperboard folds cleanly at the apex without cracking the coating or tearing the fibers.
