Retail Presentation and Kitting
Premium Retail Presentation
The unbroken bottom panel provides a clean, continuous surface that looks excellent on retail shelves. Without bottom flaps or glued seams, the package feels deliberate and high-quality.
Manual Kitting and Inner Cartons
For short-run fulfillment or multi-item kitting, this box provides a rigid, double-walled enclosure. It works well as a strong inner carton inside a master shipper, keeping the presentation intact when the customer opens the outer box.
High-End Component Packaging
When packing small electronics, cosmetics, or hardware, the solid floor prevents small parts from slipping through bottom gaps that might exist in a standard tuck-bottom carton.
Limited-Run Promotional Kits
Because this carton is delivered completely flat, it is often chosen for short promotional runs or trial programs where the labor of hand assembly makes more sense than committing to a pre-glued carton.
Premium Retail and Short-Run Fulfillment
Trial Programs and Limited Rollouts
An efficient choice for short-run digital programs or limited retail rollouts where hand assembly labor is acceptable and a premium, unbroken base is desired.
Heavy or Fragile Retail Items
The solid base absorbs product weight directly without the risk of bottom flaps giving way. The double-wall front and back add vertical compression support, protecting heavier items better than a standard single-wall tuck box.
Hand-Packed Assembly Lines
This carton is a practical fit for fulfillment centers that rely on hand packing, provided the team is trained on the specific sequence of folding the side walls, interlocking the inner flaps, and rolling over the front lock.
When to Consider Pre-Glued or Simpler Alternatives
Faster Packing Lines
The interlocking flaps and 180-degree roll-over panel require careful hand folding. If your packing line needs to move quickly, or if repeat order volume increases, evaluate a standard crash-lock or auto-bottom carton that opens with a quick push.
Standalone Parcel Shipping
This is a folding carton with a standard friction tuck lid. It is not designed to ship through a courier network on its own. If you are shipping directly to consumers, you will likely need an outer mailer or shipping box.

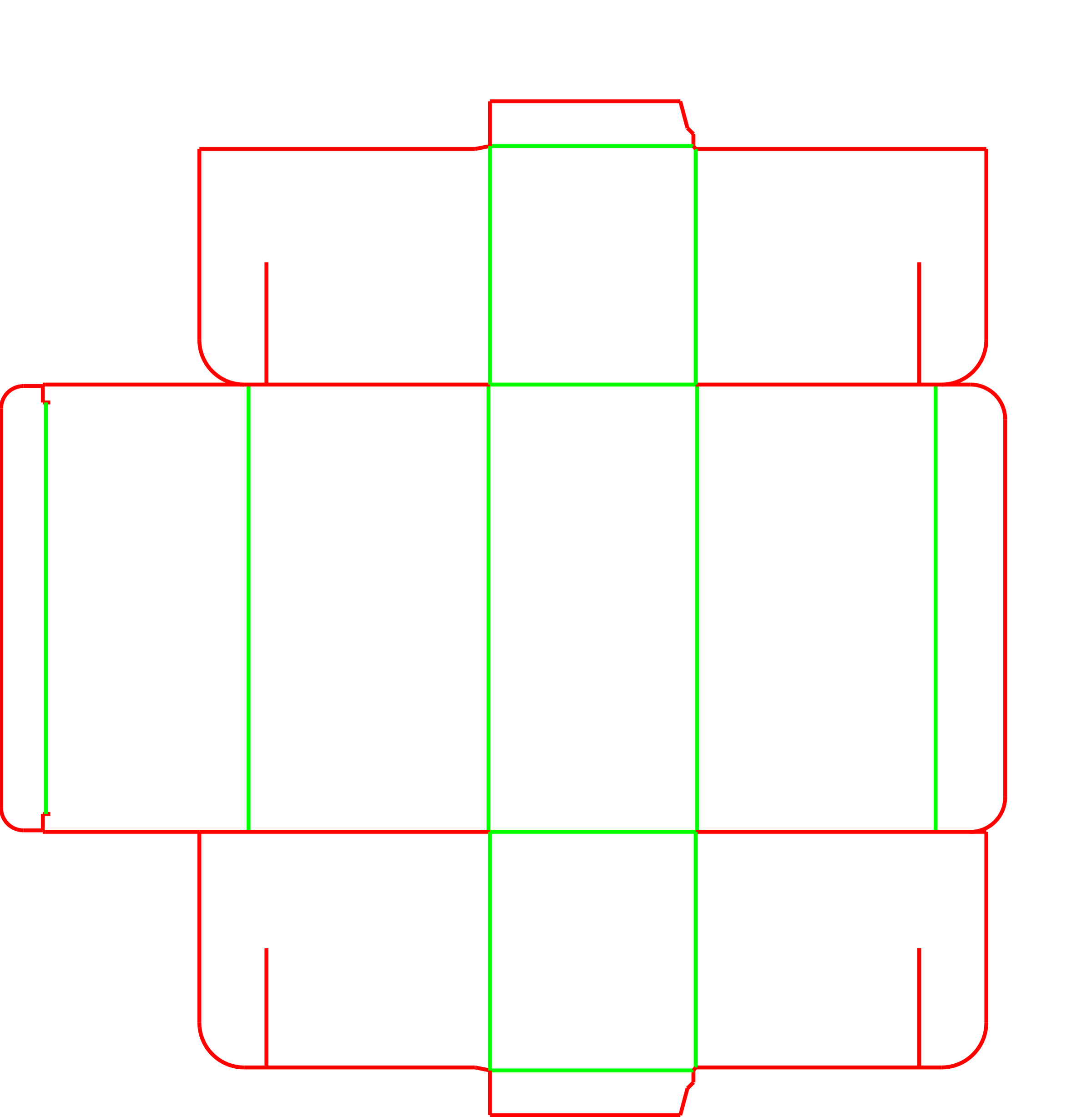

Board Caliper and Assembly Labor
Board Thickness and Locking Clearances
This box is highly sensitive to board caliper. The central slits on the inner flaps and the 180-degree roll-over front panel must be sized for your chosen material. If the board is too thick, the flaps may bow and the front lock might not seat correctly. A physical prototype on the exact production board is highly recommended.
Fulfillment Labor
Understand the assembly sequence before committing. The packer must fold the side walls up, interlock the inner flaps, fold the front wall up, and roll the top panel over to lock the box. This takes more time than loading a standard pre-glued box.
Print Panel Placement
The outer front, back, sides, and lid are fully available for graphics. Because the inner front and back walls are formed by flaps folding inward, they will display the inside surface of the sheet unless the board is printed on both sides.
Outer Shipping Requirements
Decide early whether this carton will be handed directly to a customer, placed on a retail shelf, or shipped in a parcel network. If it will be shipped, plan for a master carton or corrugated mailer to protect the unglued box.
Modifying the Flap Lock Box
Roll-Over Flap Height
The front roll-over panel can be adjusted. It should be long enough to stay securely tucked behind the front wall, but short enough to clear the product inside.
Window Patching
A window can be added to the lid or the outer front wall to display the product. Avoid placing windows on the side walls or the interlocking flaps, as this would weaken the assembled box.
Dust Flap and Tuck Lid Clearances
The friction fit of the top tuck lid and the supporting dust flaps can be adjusted based on the board grade to ensure the lid stays closed without binding during opening.
Packing details
Flat Delivery and Storage
Since the box is unglued, it ships completely flat. This maximizes pallet density and reduces storage space in your facility before the boxes are needed.
Additional notes
Board Caliper Sensitivity
The locking mechanism relies on precise friction. Changing the board grade after the initial design is approved will likely require the cutting die to be adjusted.
FAQs
Is this box suitable for fast packing lines?
The interlocking inner flaps and the roll-over front lock require specific hand manipulation. It is typically chosen for hand-assembly operations where presentation matters more than packing speed.
Is the bottom strong enough for heavy items?
The base is a single, solid panel. Because there are no bottom flaps or seams to give way, it handles downward weight very well, provided the overall board grade is appropriate for the product.
Can I use a thicker corrugated board for this box?
Moving to a thicker micro-flute requires careful adjustment. The interlocking slits and the 180-degree fold are calibrated for standard folding carton board. Thicker materials can cause the panels to bind or crack, making a physical sample an important step.
Will the inside of the box be blank?
By default, the inside of the box shows the unprinted side of the board. However, because the inner front and back walls are formed by flaps folding inward, those specific inner walls will also show the unprinted side unless you specify double-sided printing.
Does this box need tape to stay closed?
The main box locks together without tape or glue. The top lid uses a standard friction tuck. While it holds itself closed for retail display or kitting, it will likely require an outer shipper or heavy sealing if sent through a parcel network.
Why choose this over a pre-glued box?
It is delivered completely flat and provides a solid bottom and double-wall ends, offering a cleaner presentation than a standard glued tuck box.
How does the front roll-over panel work?
It folds over the interlocked side flaps to secure the front wall in place, relying on friction and board thickness rather than adhesive to hold the box together.
Why is board caliper so important for this box?
The interlocking slits on the side flaps and the friction fit of the front roll-over panel depend on the exact thickness of the paperboard. If the board changes, those cuts and scores usually need to be adjusted so the box folds cleanly.
