Retail Presentation and Flat Goods Kitting
Premium Retail and Software Packaging
The double-wall construction creates a clean, framed appearance around the product. This makes it a strong fit for high-value flat items, software boxes, or media where the unboxing presentation matters more than high-speed packing.
In-Plant Kitting and Hand Assembly
Because the tray is delivered flat and uses no gluing, it works well for manual kitting stations. Operators fold the side and front walls to lock the tray, drop the items in from the top, and secure the hinged lid with the front tongue.
Limited-Edition Books and Media
The flush front profile and double-thick walls provide a sturdy, attractive housing for special editions. The unglued design allows the entire interior to be printed and displayed when the lid is lifted.
Flat Apparel and Accessories
For boutique clothing or accessories, the tray offers a structured presentation that feels more substantial than a simple sleeve or envelope, while still shipping flat to the fulfillment center.
Fulfillment Centers and Premium Retail
Boutique Retailers and Direct-to-Consumer Brands
Brands looking for a clean aesthetic often choose this style. The friction-fit tongue closure provides a flush front profile without the visual interruption of tape or glued seams, supporting a minimalist presentation.
Corporate Gifting and Promotional Kits
When assembling welcome kits or promotional boxes, the unglued tray allows teams to build and pack boxes on demand without specialized equipment, while still delivering a high-end feel.
Specialized Fulfillment Centers
Operations that handle manual assembly and kitting can use this tray efficiently. The fold-over locking sequence is straightforward for hand-packing stations handling lower-volume, higher-value goods.
When to Consider Glued or Corrugated Alternatives
High-Volume Automated Packing
This tray involves manual folding of the inner panels to lock the walls in place. If the packing line relies on high-speed case erectors, a glued straight-tuck or crash-lock carton is often faster to load.
Standalone Parcel Shipping
The front tongue relies on friction to stay closed. If the package is entering a courier network, it usually benefits from an outer mailer or secure external sealing to prevent the lid from opening during rough transit.
Board Caliper, Print Surfaces, and Assembly Labor
Board Thickness and Fold Behavior
This design relies on the inner panels folding 180 degrees over the outer walls. Standard folding boxboard (FBB) handles this cleanly. Thicker corrugated boards can make the tight folds difficult, potentially causing the inner panels to bind or the front tongue to misalign.
Two-Sided Printing for Unboxing
When the lid is opened, the inside of the cover and the fold-over inner walls are immediately visible. Planning for two-sided printing allows you to carry branding, instructions, or color across the entire interior presentation.
Outer Shipping Protection
Because the tray is unglued and uses a friction tuck, buyers should decide early if the product will be handed out in-store or shipped. Shipped items will likely require a fitted outer mailer to protect the presentation tray.
Assembly Labor Planning
The unglued design saves on manufacturing gluing costs but shifts the labor to the packing station. Buyers should ensure their fulfillment team has the capacity for the multi-step folding sequence.
Adjusting the Tongue and Tray Depth
Tongue Width and Receiver Slit
The width and depth of the tuck tongue can be adjusted to change the friction fit. A wider tongue provides more retention but requires slightly more effort to open and close.
Tray Depth and Wall Proportions
The height of the outer walls dictates the depth of the tray. Adjusting this depth changes how much product can be stacked inside, though very deep trays may need thicker board to maintain rigidity.
Inner Panel Cutouts for Inserts
The fold-over inner panels can sometimes be modified with small cutouts or notches to help anchor custom inserts or hold specific product components in place.
Packing details
Manual Assembly Sequence

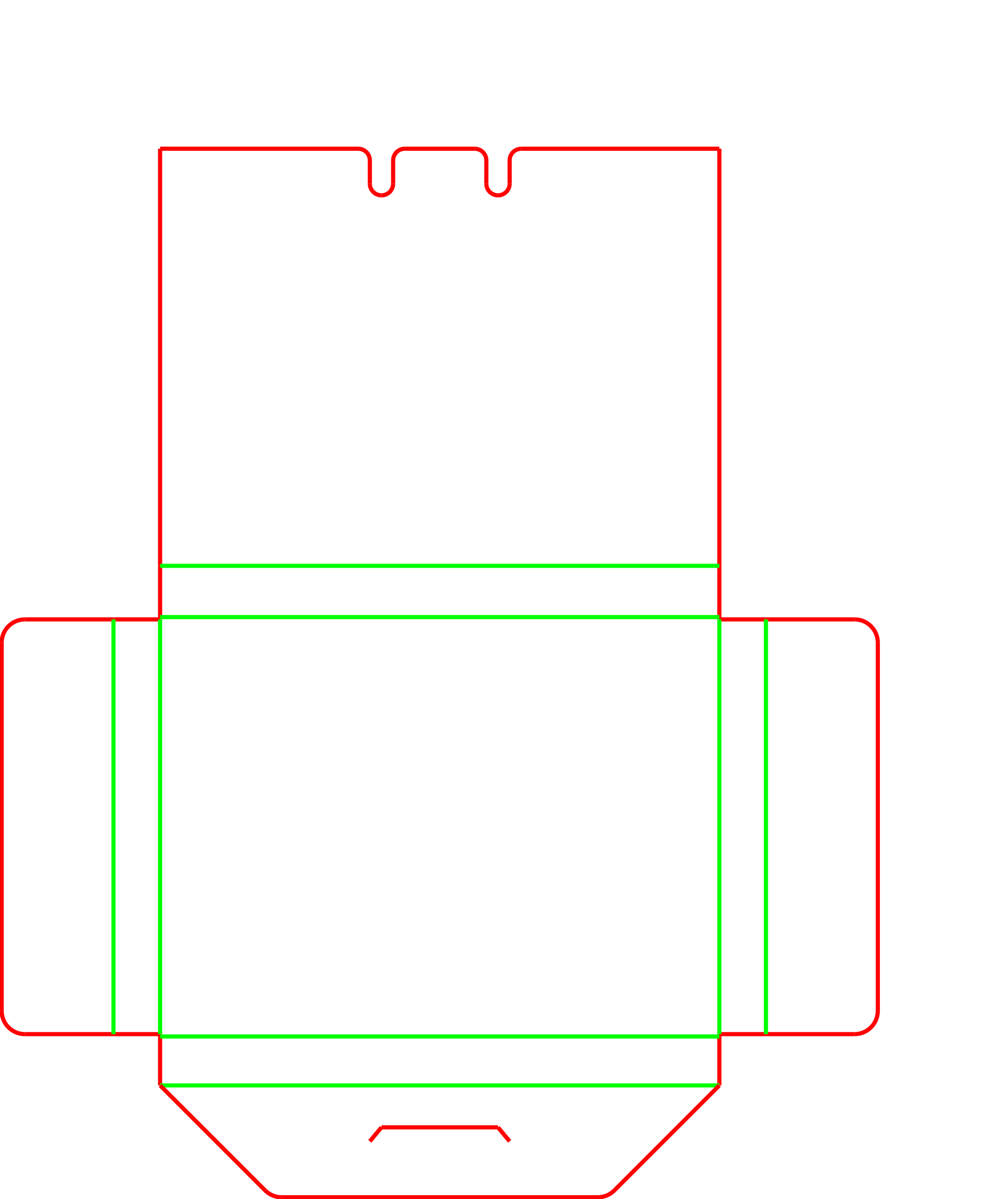

Packing this tray follows a specific sequence: the side walls fold up and over first, followed by the front wall, which locks the sides in place. The product is then loaded, and the hinged back wall and lid fold over to close the package.
Additional notes
Print panel and scuff risk
The large, flat top lid provides an excellent billboard for primary graphics, but it is also the most exposed surface during stacking and handling. Consider a protective varnish or coating if the carton will be stacked in retail environments.
Related Presentation Trays
FAQs
Can this tray be erected on an automated packing line?
This specific double-wall fold-over sequence is typically assembled by hand. While specialized tray-forming equipment exists for some unglued styles, automated erecting lines usually handle glued crash-lock or straight-tuck cartons more easily.
Is this carton secure enough to ship in the mail on its own?
The tuck tongue is a friction fit designed for presentation and retail shelves. For parcel shipping, the carton should be placed inside an outer mailer or secured with heavy-duty tamper labels.
Can I use corrugated board for this tray to make it stronger?
Thicker corrugated boards can make the tight 180-degree folds difficult, potentially causing the inner panels to bind or the front tongue to misalign. Standard paperboard usually provides the crisp folds this design relies on.
Which panels are visible when the customer opens the box?
Upon opening, the customer sees the inside of the main lid, the inner base, and the fold-over panels that make up the side and front walls. Two-sided printing is often used to maximize this presentation area.
Does this tray require any glue or tape to hold its shape?
The front inner panel geometrically locks the side panels in place, and the lid secures via the tuck tongue. It holds its shape entirely through these folded locks.
What types of products fit best in this style?
It works well for relatively flat, lightweight to medium-weight items like software, books, stationery, or kitted components that benefit from a framed presentation.
Can I use custom inserts inside this tray?
The flat base and straight double-thick walls provide a clean interior cavity that easily accepts die-cut paperboard or foam inserts to hold multiple items securely.
Should I request a physical sample before ordering?
Testing a physical sample is strongly recommended to verify that the chosen board thickness folds cleanly and that the friction tongue provides the right amount of closure tension for the product.
