Retail and Takeaway Presentation
Bakery and Food Service Takeaway
The solid, unbroken base panel makes this box useful for pastries, deli items, or boxed meals. Unlike crash-lock bottoms that have seams, the flat floor prevents crumbs or small items from escaping, while the curved roof provides clearance for frosted or delicate goods.
Gift and Promotional Kitting
The distinctive curved top and built-in handle create an immediate presentation piece for event handouts or retail gift sets. The non-glued construction allows the boxes to be stored completely flat until the event, saving space in crowded retail backrooms.
Retail Boutique Purchases
For apparel, accessories, or cosmetics, the curved profile offers a premium unboxing experience. The integrated handle encourages immediate carry-out, reducing the need for a separate shopping bag.
Event and Conference Handouts
The flat-shipping nature of the box makes it easy to transport to event venues. Once assembled, the handle makes it convenient for attendees to carry promotional materials or welcome kits throughout the day.
Store-Floor and Kitting Environments
Manual Retail Assembly
This package relies entirely on friction and mechanical interference. Staff fold the main walls, tuck the inner base flaps, and interlock the large side panels before securing the handle. This involves more dexterity than popping open a pre-glued box, making it better suited for on-demand retail packing rather than high-volume fulfillment lines.
Flat-Storage Environments
Retail backrooms and event spaces often have limited storage. Because this box has no glue seams, the blanks lie perfectly flat, maximizing the number of boxes that can be stored on a single shelf or pallet.
Direct-to-Consumer Hand-Delivery
When goods are delivered locally by courier or handed directly to the customer, the handle and curved top remain intact. This context avoids the stacking and sorting pressures of mixed-carrier networks.
When to Consider Glued or Auto-Bottom Carriers
High-Volume Packing Lines
If your packing operation involves rapid, repetitive assembly, compare this to a standard glued gable box with an auto-bottom. Pre-glued carriers pop open quickly, reducing labor time at the cost of a glued side seam and a folded floor.
Parcel and Courier Shipping
The curved roof and carrying handle prevent vertical stacking and can snag in transit. If the product travels through a courier network, an outer shipper is usually necessary, or a standard rectangular mailer might be a better choice.
Board Choice, Fit, and Handle Tear Resistance
Board Tear Strength
The entire weight of the package is supported by the small tuck tongues that lock the handle halves together. Heavy kraft or high-quality folding boxboard is usually necessary to prevent the handle slots from tearing under load.
Material Thickness and Interlocking Flaps
The side locking flaps need to flex slightly to engage their curved notches. While standard paperboard handles this easily, thicker materials like microflute corrugated board can cause the interlocking mechanism to bind or crush, meaning careful adjustment of the flap overlap may be needed.
Print and Finish Coverage
The large, curved side panels and the sweeping roof offer uninterrupted space for branding. Consider how graphics will align across the interlocking side flaps, as the overlap will hide a portion of the underlying panel.
Handle Clearance
Ensure the packed product does not interfere with the handle locking tongues. The tongues fold inward through the slots, so tall items placed directly under the handle may block the closure.

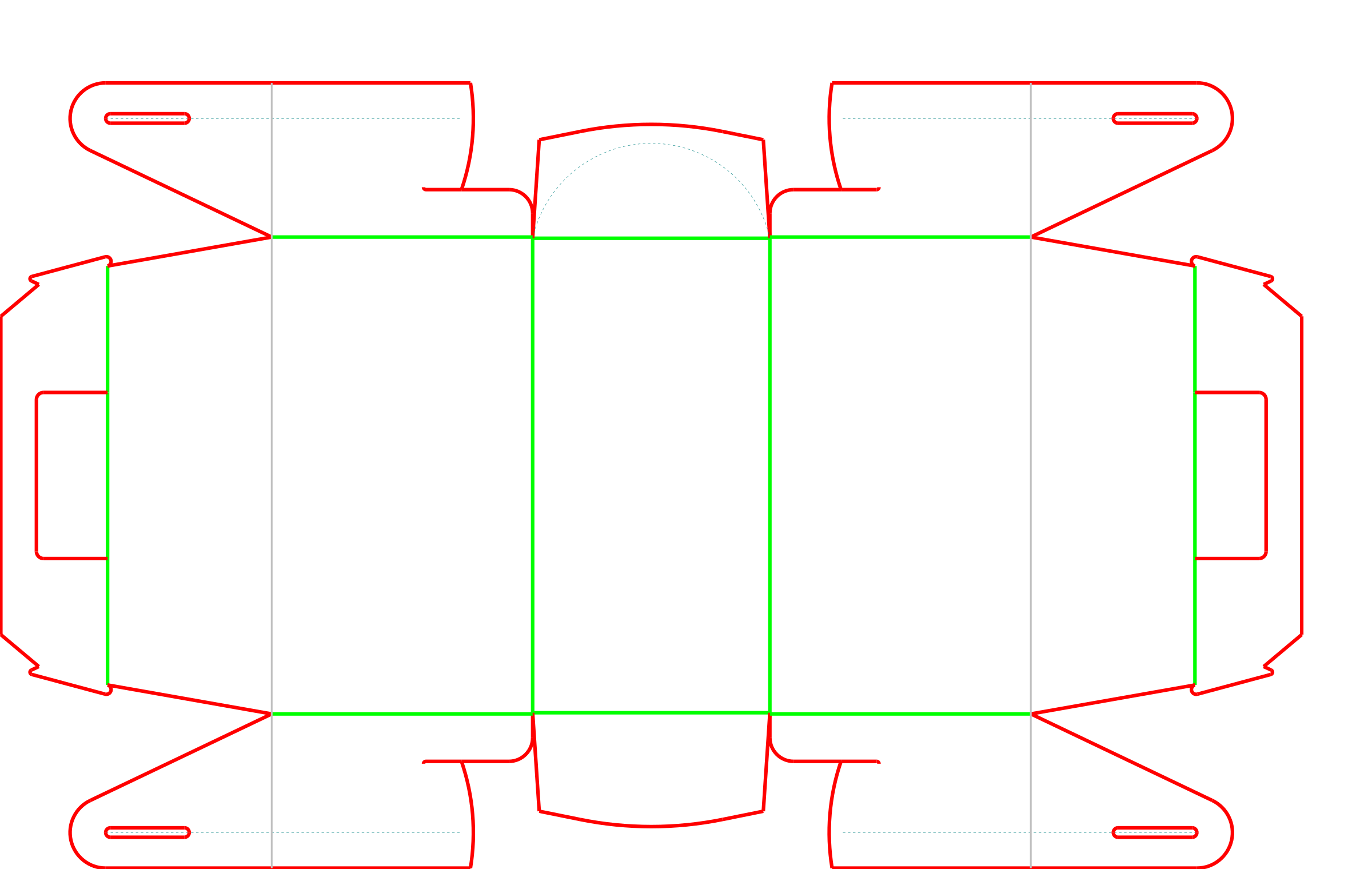

Template Adjustments for Fit and Closure
Handle Height and Grip
The height of the carrying handle and the distance from the product to the curved roof can be adjusted to accommodate taller items or provide a more comfortable grip for the end user.
Locking Flap Overlap
The amount the side flaps overlap can be modified to tighten or loosen the friction fit, depending on the flexibility of the chosen board and the required security of the side walls.
Roof Curvature
The arc of the top panels can be adjusted to create a steeper or shallower curve, changing the overall profile of the box and altering the internal clearance.
Packing details
Flat Delivery and Storage
Because there are no glue seams, the blank is delivered completely flat. This maximizes shipping efficiency from the converter and minimizes storage space required at the retail location.
Additional notes
Solid base panel advantages
Unlike crash-lock boxes that have a seam down the middle of the floor, this template uses a single unbroken base panel. This makes it particularly useful for items that might leak crumbs or require a perfectly flat resting surface.
Related Carrier and Takeaway Boxes
FAQs
Can this box be erected automatically?
No. The complex interlocking side flaps and handle tongues rely on manual assembly. It is designed for hand-packing at retail counters or kitting stations.
How much weight can the handle support?
Load capacity depends entirely on the tear resistance of the chosen paperboard. The handle slots bear the full weight of the box, so heavier products often need stronger board grades and physical testing before a full production run.
Can I ship this box through the mail?
Not on its own. The curved top prevents stacking, and the handle can catch on sorting equipment. For parcel delivery, this carrier should be placed inside a standard corrugated shipping box.
Does this design work with corrugated board?
It is primarily designed for folding carton board. Using microflute corrugated board may cause the interlocking side flaps to bind, meaning cutout adjustments may be needed.
Does the box require tape or stickers to stay closed?
The design relies on mechanical friction from the interlocking side flaps and the handle tongues. While tape is not structurally required, a clear wafer seal is sometimes added over the handle lock for tamper evidence in food applications.
How is the box delivered?
It is delivered completely flat. Since it has no glued seams, it takes up minimal space in storage until it is manually folded into shape.
How does the base stay closed without glue?
The base is a single solid panel. The vertical walls are held upright by the large, curved side flaps that interlock at the ends of the box, preventing the package from unfolding.
Can the handle shape be modified?
Yes, the handle height, width, and the length of the locking tongues can be adjusted to suit different hand sizes or board thicknesses.
