Retail and Presentation Fits
Bakery and Confectionery Takeaway
The wide base and tented top provide clearance for decorated pastries, cakes, or bundled confections. The integrated handle eliminates the need for a separate shopping bag, making it efficient for counter service.
Boutique Retail and Gifting
The unique triangular profile stands out on a shelf or counter. The top flap folds cleanly over the apex, hiding the handle base and providing a smooth, uninterrupted front panel for high-end graphics.
Cosmetics and Personal Care Kits
For bundled skincare or beauty items, the tent shape offers a premium unboxing experience. The un-glued base supports lightweight bottles and jars while acting as its own gift bag.
Event and Corporate Swag
The built-in handle makes this a practical choice for welcome kits or event giveaways. Attendees can easily carry the box, and the large front panel offers a clear surface for event branding.
Who Uses This Box
Retail Storefronts
Operations that hand products directly to consumers benefit from the built-in handle. However, staff should be trained on the multi-step folding sequence, as the webbed gussets and reinforcement panels rely on manual manipulation.
Pop-up Shops and Markets
Because the design uses no glue, it ships and stores completely flat. This helps vendors with limited storage space who still want a distinctive, bag-free presentation for their goods.
Corporate Event Planners
Planners looking for an all-in-one presentation and carry solution often choose this style. It removes the need to source separate gift bags and tissue paper for attendee gifts.
When to Consider a Different Style
High-Volume Packing Lines
If your operation relies on fast, automated, or semi-automated erection, this un-glued, complex-fold design will likely create a bottleneck. Review common auto-bottom gable boxes that use a glued manufacturer's joint for faster setup.
Parcel Shipping or Stacking
The triangular apex and handle prevent stable vertical stacking. If the product ships through courier networks or stacks heavily on pallets, a traditional rectangular shipper or mailer is usually a better fit.
Key Decisions for Specification
Board Grade and Fold Endurance
The webbed side gussets rely on intersecting diagonal creases. The board needs excellent folding endurance (such as FBB) to prevent the material from cracking or tearing when pushed inward.
Handle Clearance
The width of the die-cut handle hole determines finger clearance. This should be reviewed against the expected weight of the product and the comfort of the end user.
Assembly Labor Allocation
Since the box is 100% un-glued, packing stations need time to pre-fold reinforcement panels and lock the top tuck tongue. This labor should be factored into the overall fulfillment plan.
Print Surface and Graphics
The front panel offers an uninterrupted canvas, while the back panel includes the receiving slot for the tuck tongue. Artwork should be planned around this functional cut.

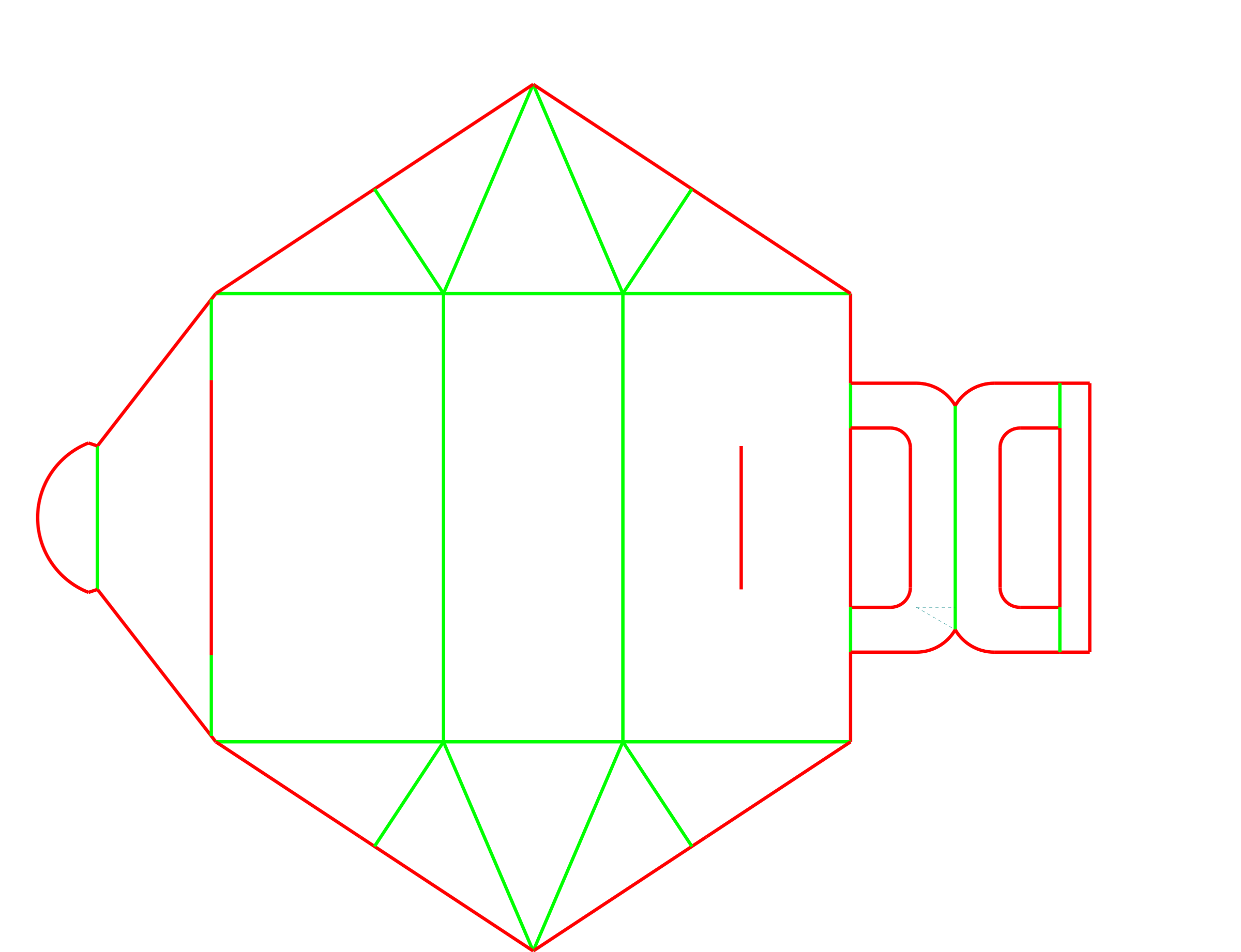

Template Adjustments
Handle Hole Width
The template allows adjustment of the handle opening to accommodate different hand sizes or to balance the remaining board strength on the back panel.
Tuck Tongue Dimensions
The width and height of the top locking tongue can be modified to increase friction retention, depending on how tightly the box needs to stay closed during transit.
Base Proportions
Changing the ratio of the base length to the overall height alters the angle of the tent shape. This can be adjusted to create a steeper or shallower profile based on the product inside.
Packing details
Manual Folding and Reinforcement Steps
Assembly involves pre-folding several 180-degree reinforcement panels, pushing the side gussets inward, bringing the front and back panels together at the apex, and locking the top flap over the handle base. This is a deliberate, multi-step manual process.
Additional notes
Flat Delivery and Storage
Because the design uses no glue, it ships completely flat from the converter, maximizing storage efficiency before use.
FAQs
Is this box suitable for automated packing lines?
No. The un-glued construction, 180-degree reinforcement folds, and inward-pushing webbed gussets rely on fully manual assembly.
Is this box suitable for parcel courier shipping?
Not on its own. The handle and triangular top prevent stacking and are vulnerable to crushing. It needs to be placed inside a sturdy outer corrugated shipper if sent through a courier network.
What board characteristics matter for this design?
A high-quality folding boxboard (FBB) or solid bleached board (SBB) is often chosen. The material needs to withstand sharp diagonal folds on the side gussets without cracking.
How does the top closure secure the box?
It uses a friction lock. A top flap extends from the front panel, folds over the base of the handle, and secures via a tuck tongue into a slot on the back panel.
Are glued joints used for assembly?
No. The EVF23030 is a 100% un-glued design. It relies entirely on its fold geometry and the top tuck tongue to hold its shape.
How does the base handle heavier products?
Because it is a single-piece un-glued base, heavy items can cause the floor to bow. It is better suited for lightweight to medium-weight retail goods.
Can the handle size be adjusted?
Yes, the width of the handle hole can be modified in the template to provide more finger clearance or to leave more board for strength.
Can this box hold loose or granular items?
The webbed gussets close the sides effectively, but because it is an un-glued folding carton, very fine powders or tiny loose items might escape the corners. It is better suited for wrapped items, pastries, or solid goods.
