High-Speed Packing and Kitting
Fast-Paced Fulfillment
When packing speed is the primary bottleneck, a pop-up tray removes assembly time entirely. Packers simply pull the walls up, drop the product in, and move to the next order. It is useful for kitting lines where hundreds of trays are loaded per hour.
Space-Constrained Workstations
Because these trays ship knocked down, they take up a fraction of the space of rigid, pre-erected trays. A packer can keep a dense stack of flat trays at their station, pulling and opening them only as needed.
Lightweight Component Kitting
For sorting small parts or lightweight components on an assembly line, the tray provides a quick, open-top bin that can be discarded or recycled after the run is complete.
Hand-Packed Retail Displays
When preparing goods for retail shelves, the tray offers a clean base that can be quickly loaded and then slid into a printed sleeve for final presentation.
Retail, Bakery, and Apparel
Bakery and Food Kitting
Often used as a base for pastries, baked goods, or food kits, providing a clean, open presentation. The tray can be slid into a separate sleeve or outer carton for final delivery.
Retail Apparel and Soft Goods
Provides a structured base for folded garments or soft accessories, keeping items organized on the shelf or inside a master shipper.
Subscription Box Inserts
Acts as an inner tray to hold curated items together before the entire assembly is placed into a corrugated mailer for shipping.
When to Consider Rigid or Unglued Trays
Heavy or Bulky Products
The diagonal creases that allow the tray to fold flat also reduce the vertical compression strength of the side walls. If you are packing heavy industrial parts or need the tray to support top weight without an outer box, a rigid, non-collapsible tray or a standard corrugated box is a safer choice.
Short Trials and Hand Packing
This tray is usually produced on a specialized 4-corner folder-gluer. For short runs or prototype testing, the machine setup may be impractical. In those cases, an unglued roll-end tray that is folded by hand is often a faster way to trial a new product.
Board Choice and Production Route
Material Thickness and Flute Profile
This design works best with standard folding carton or micro-flute corrugated. If you attempt to use heavy corrugated board, the diagonal creases will crush the flutes, and the folded tray will become too bulky to stack efficiently.
Outer Packaging Needs
This is an open-top tray. If the product is entering a parcel or courier network, an outer shipping box, a tight-fitting sleeve, or a mailer is usually necessary to enclose the tray and protect the contents.
Print and Varnish Keep-Out Zones
Because the four corners rely on adhesive to hold the tray together, the glue tabs and their receiving areas should remain free of ink, varnish, or specialty coatings to ensure a strong bond.
Production Volume and Tooling
The speed of this tray on the packing line relies on automated 4-corner gluing at the factory. It makes the most sense when packing labor savings outweigh the need for a simple, unglued trial package.
Clearance and Machine Tolerances
Layer Step and Fold Clearance
When specifying thicker micro-flutes, the layer step clearance should be adjusted. This ensures the tray can fold completely flat without tearing the glued corners or springing back open due to board tension.
Glue Flap Taper
The horizontal and vertical tapers on the glue flaps can be adjusted to prevent the flaps from catching on adjacent panels during high-speed machine folding.
Crease Angle
The diagonal creases are typically set at 45 degrees to allow flat folding. Altering this angle is generally avoided as it can break the flat-folding geometry and cause the tray to warp.
Packing details
Grain Direction and Hinge Behavior
The diagonal creases act as living hinges. Aligning the board grain parallel to the main longitudinal creases helps prevent bowing, though the diagonal creases will always cross the grain at an angle.
Additional notes
Automated gluing and packing labor
The speed of this tray on the packing line relies on automated 4-corner gluing at the factory. It makes the most sense when packing labor savings outweigh the need for a simple, unglued trial package.
FAQs
Does this tray need any folding by the packer?
No. The factory pre-folds and glues the four corners. The tray arrives flat, and the packer simply pulls the end walls upward to snap it into its final 3D shape.
Can I ship this tray on its own?
This is an open-top tray. For parcel or courier shipping, it is typically placed inside a master carton, a mailer, or a protective sleeve.
Can this be made from heavy corrugated board?
It is not recommended. Heavy corrugated board does not fold well along the diagonal creases, resulting in bulky, unstable stacks and potential cracking. It is best suited for paperboard or micro-flute.
Is this tray suitable for short prototype runs?
Because it relies on a specialized 4-corner folder-gluer to assemble the flat tray, it is typically used for repeat, high-volume packing programs. For short trials, a hand-folded tray is often easier to source.

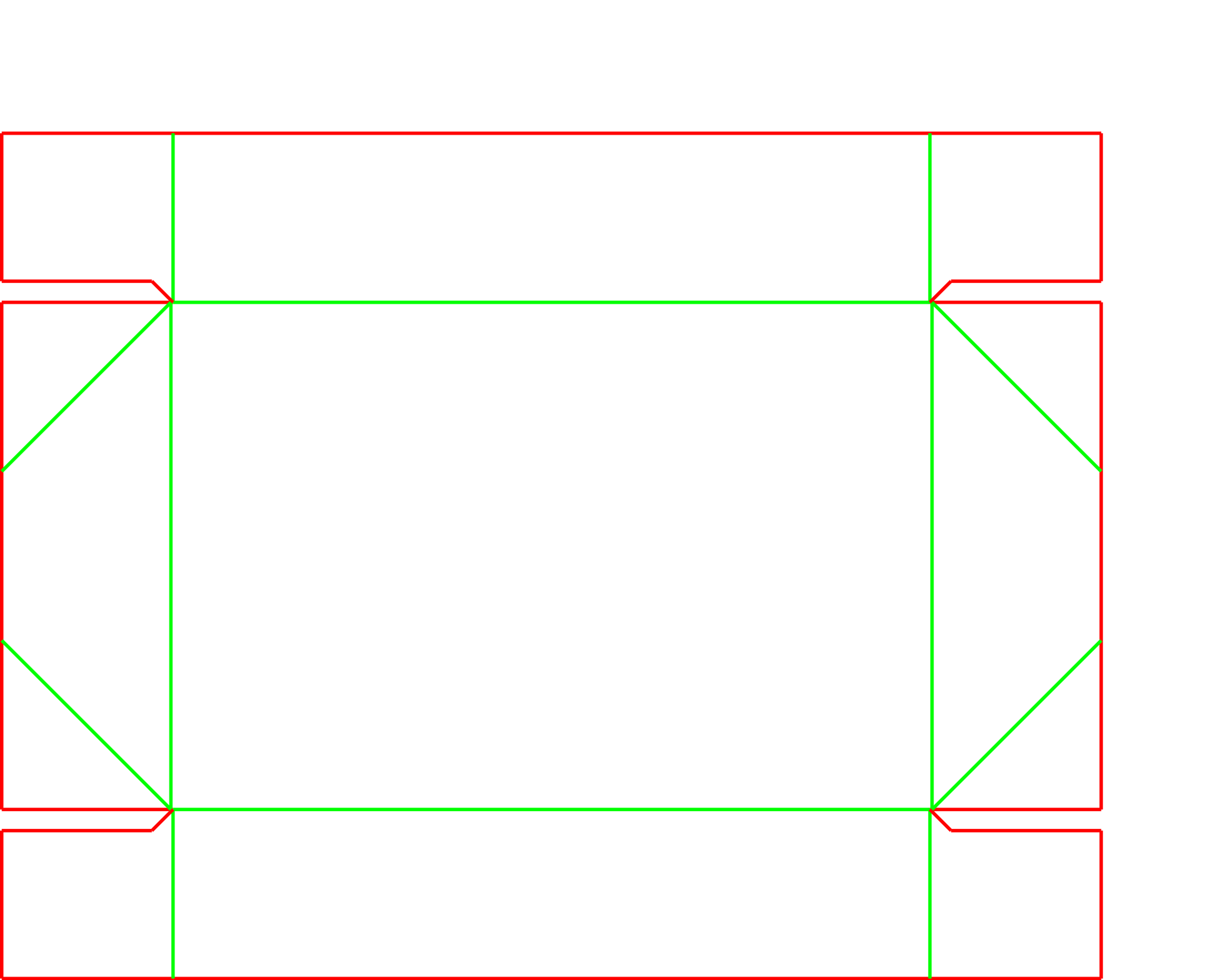

Why are there diagonal lines on the side walls?
Those diagonal creases act as hinges, allowing the side walls to collapse inward so the entire tray can lay flat for shipping and storage.
How does the tray stay open once erected?
When the end walls are pulled up, the diagonal creases straighten out. Board tension and friction hold the walls at a 90-degree angle, keeping the tray open for loading.
What happens if ink or varnish gets on the glue tabs?
Ink and specialty coatings can prevent the adhesive from bonding properly. The artwork template should include keep-out zones over the corner flaps and their receiving areas.
Can I change the angle of the diagonal creases?
The creases are set at 45 degrees to ensure the tray folds completely flat. Changing this angle can prevent the tray from collapsing properly and is generally avoided.
