High-Speed Manual Packing and Retail Presentation
Retail Kitting and Assembly Lines
The pop-up action saves time at the packing station. Packers simply pull the tray open, load the product, and tuck the lid, making it efficient for fast-paced fulfillment.
Bakery and Pastry Packaging
This is a classic style for pastries and premium food items. The attached lid keeps the presentation clean, and the fast assembly helps keep lines moving in retail environments.
Premium Apparel and Accessories
The clean interior and double-wall corners create a high-end unboxing experience for clothing and accessories, offering a structured feel without the complexity of a rigid setup box.
Quick-Serve Food Presentation
For food service operations, the fast assembly helps keep lines moving, while the lid secures contents for hand-carry. Direct food contact depends on specific board and coating choices.
Retail, Bakery, and High-Volume Packing Contexts
High-Volume Manual Packing
When packing speed is the primary bottleneck, the instant pop-up action reduces hand-assembly time, making it a practical choice for large-scale manual fulfillment.
Retail Display and Presentation
When the unboxing experience matters, the attached lid and clean interior provide a premium feel, especially when produced in Solid Bleached Sulfate (SBS) board.
Limited Storage Space
Because the trays ship flat, they offer excellent pallet density before use, saving valuable warehouse space compared to pre-assembled rigid boxes.
When to Compare Other Retail Cartons
Short-Run or Prototype Programs
Because this tray relies on a specific folder-gluer setup to bond the four corners, a common Roll-End Tuck-Top (RETT) box may be easier to trial if hand-folding the walls is acceptable.
E-Commerce Parcel Shipping
The tuck flap and slit locks are designed for retail closure, not the rough handling of courier networks. For parcel shipping, an outer corrugated shipper is usually needed.
Board, Closure, and Production Choices
Board Thickness and Corner Behavior
Common folding carton calipers work well. Thicker materials, such as micro-flute corrugated, can cause the pre-glued corner webs to bulge when the carton is knocked down, which may affect stacking.
Closure Security vs. Easy Access
The common template uses slit locks on the tuck flap that catch on the front corners for a secure hold. If the end-user needs to open and close the box frequently, a simple friction tuck may be preferred.
Grain Direction and Wall Bowing
Paperboard grain direction should run parallel to the main horizontal hinges to prevent the front and back walls from bowing outward, which helps keep the lid closure smooth.
Production Route and Order Maturity
Because the four corners are glued during production, this style is often chosen for mature, repeat orders where the packing labor savings offset the specific production routing.
Adjusting the Lid and Locks

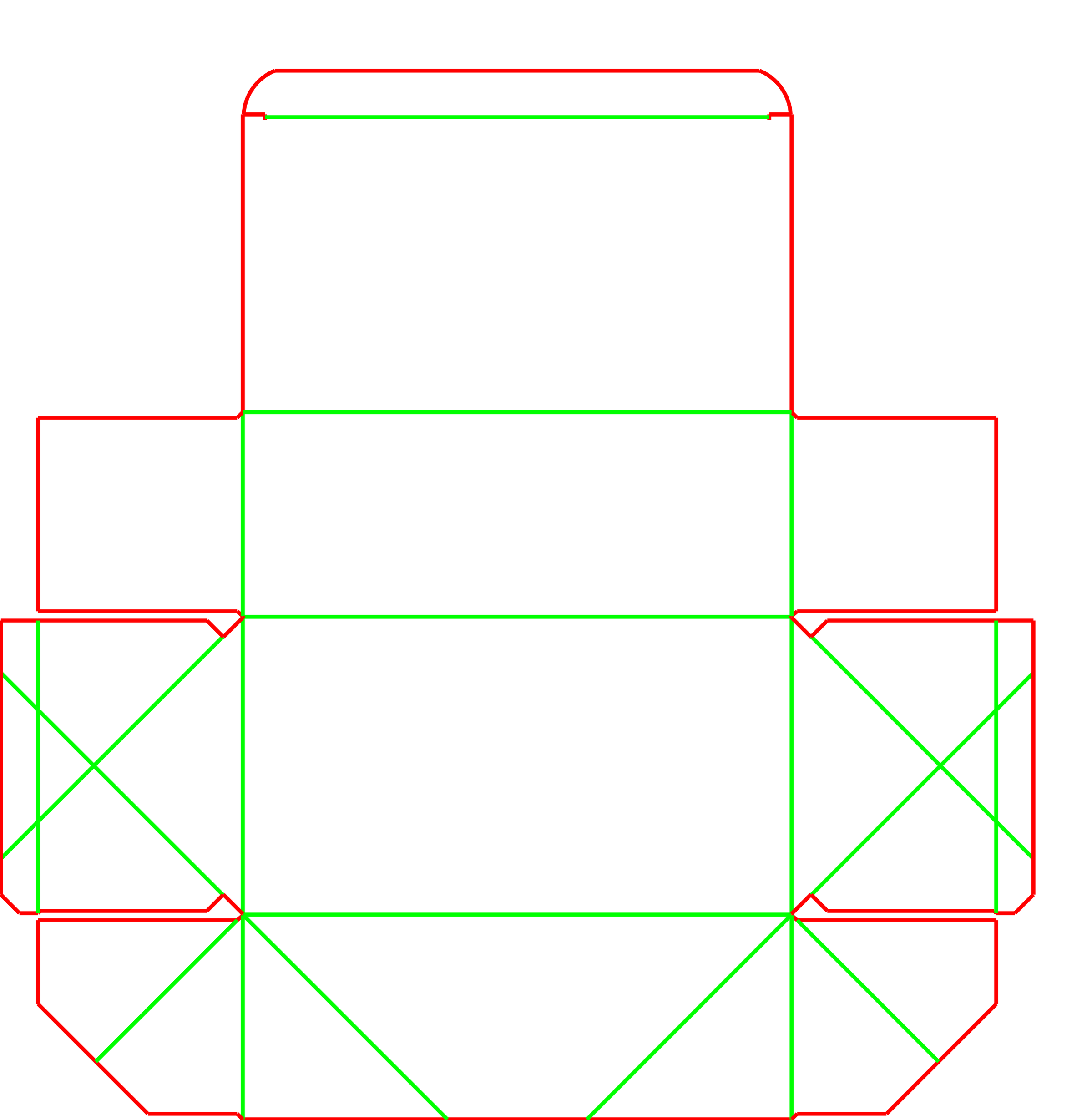

Tuck Flap Depth and Lock Placement
The height of the front tuck flap and the depth of the slit locks can be adjusted to change the friction needed to open the lid.
Window Patching
A display window can be added to the lid panel to display the product, provided it is kept away from the lid hinges to maintain box strength.
Corner Web Angles
The diagonal creases in the collapsible corners can be modified, though this changes the folding geometry and should be checked with a physical sample.
Packing details
Artwork across the lid hinge
The attached lid hinges directly from the back wall. When planning graphics, keep in mind that the back wall and the top of the lid share a continuous surface, allowing for uninterrupted branding that remains visible as the box is opened.
Additional notes
Print and branding surfaces
The lid and outer walls offer uninterrupted space for graphics. Because the lid hinges open, the interior of the tray is also fully visible to the consumer during unboxing.
Related Trays and Cartons
FAQs
Why choose this over a common tuck-top box?
Labor savings on the packing line. A common tuck-top box involves the packer folding and locking the side walls into place by hand. This tray opens in one motion because the corners are glued during production, reducing assembly time.
Does this work on automated packing lines?
Most automated case erectors are built for standard slotted boxes. This tray is typically chosen to speed up hand-packing stations rather than for fully automated loading.
Can this be used as a standalone shipping box?
The tuck flap and slit locks provide a clean retail closure, but they are vulnerable to opening during rough courier transit. An outer corrugated shipper is usually needed for parcel delivery.
Can we use corrugated board for this tray?
Paperboard is common. Thicker corrugated micro-flutes can cause the complex diagonal corner webs to bind or bulge when folded flat during production, which may affect how well the cartons stack before use.
What keeps the lid closed?
The lid features a front tuck flap with slit locks on the edges. When tucked inside the front wall, these notches catch on the front corners to help keep the lid from opening accidentally.
How is this carton delivered?
Because the corner webs are glued flat during production, the cartons ship knocked down to save warehouse space before use.
Can a display window be added?
A window patch can often be added to the lid panel to display the product, provided it leaves enough border space near the hinges to maintain the structure.
Does the board grain direction matter?
Running the grain parallel to the main horizontal hinges helps prevent the walls from bowing and keeps the lid closure smooth.
