Premium Retail and Presentation Jobs
Luxury Gift Sets and Cosmetics
The hollow buffer walls act as a built-in frame, elevating the perceived value of the product inside. The double-thick lid adds weight and rigidity, mimicking the feel of a more expensive rigid setup box while still shipping flat to your facility.
Fragile Electronics and Components
The rolled-over side and front walls create empty crush zones around the perimeter. This absorbs lateral impacts during handling and retail display, keeping delicate items safely suspended away from the outer edges.
High-End Confectionery and Artisanal Foods
The clean, hidden raw edges and substantial lid provide an excellent canvas for premium finishes. The rigid structure helps protect delicate chocolates or baked goods from side compression.
Premium Promotional Kits and Influencer Mailers
When the unboxing experience is the primary goal, the double-thick lid and framed interior create a memorable presentation. The structure supports custom inserts to hold promotional items securely.
Industries Using Buffer Wall Trays
Retail and Boutique Brands
Brands competing on retail shelves use this structure to stand out. The clean lines and substantial lid provide an excellent canvas for premium finishes like foil stamping, spot UV, and embossing.
Manual Fulfillment Operations
Because the three buffer walls must be rolled over and locked into the base by hand, this package fits operations set up for manual kitting and assembly. It is not a fit for high-speed automated cartoning lines.
E-commerce Presentation
While this tray requires an outer master shipper for parcel transit, it serves as an excellent primary package for e-commerce brands looking to deliver a high-end reveal once the outer box is opened.
When to Consider Simpler Tray Styles
High-speed automated packing
If your fulfillment relies on automated case erectors or cartoners, the manual roll-over walls of this tray will cause bottlenecks. A standard reverse tuck or straight tuck carton is a better fit for machine loading.
Material efficiency priorities
The double lid and hollow walls consume a large footprint on the paperboard sheet. If board efficiency is a priority, a standard roll-end tuck-top box offers a similar opening style with less board.
Four-sided buffer protection

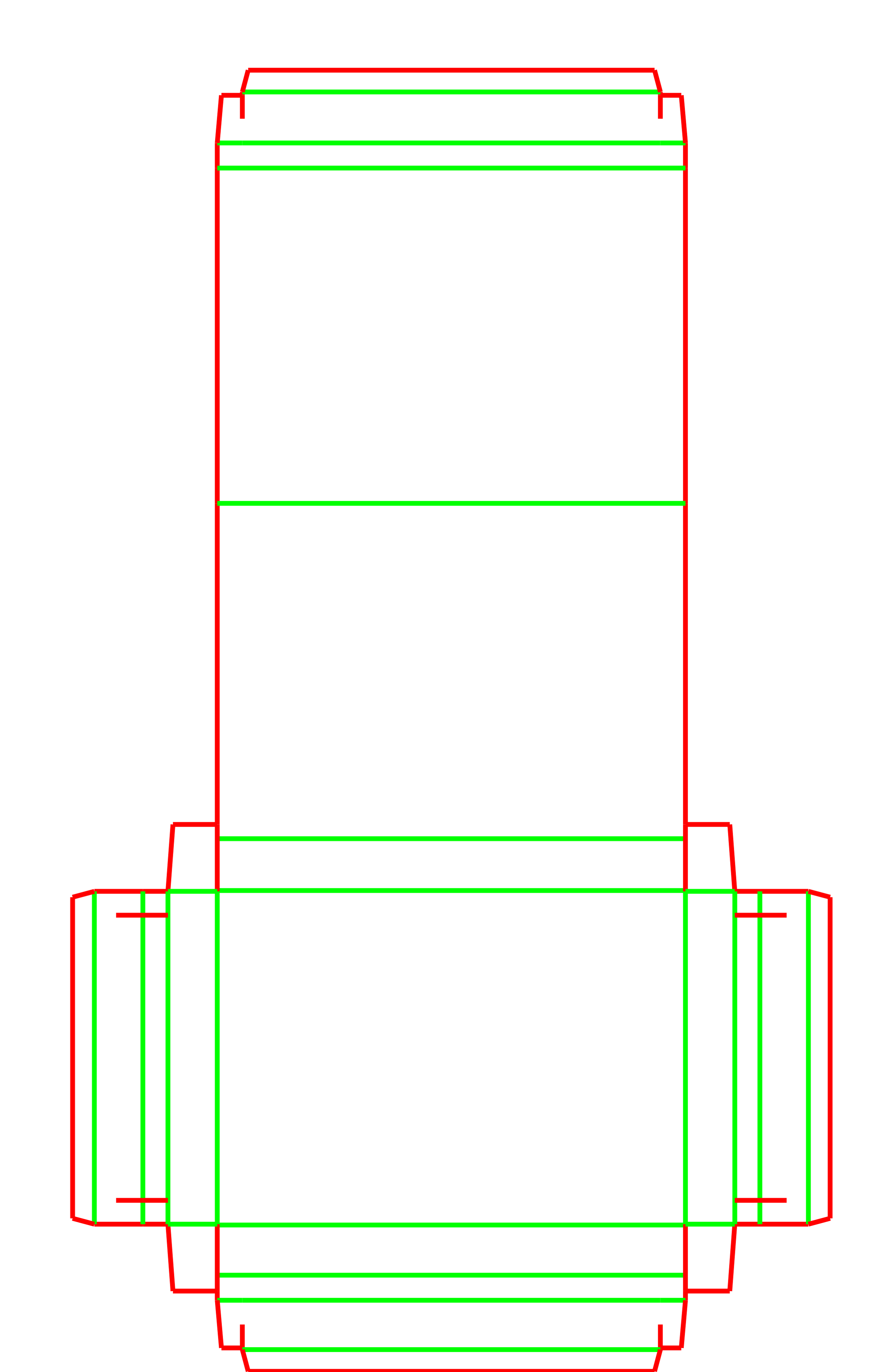

This specific template features buffer walls on the left, right, and front sides, with the back wall serving as the lid hinge. If the product requires hollow crush zones on all four sides, a full-frame tray with a separate lid should be evaluated.
Board, Folding, and Assembly Choices
Board Caliper and Fold Cracking
The lid achieves its double thickness through a 180-degree production fold. This puts immense stress on the board fibers. Solid Bleached Sulfate (SBS) or Folding Boxboard (FBB) are usually required to prevent the outer print from cracking at the hinge. Micro-flutes are generally avoided for this exact reason.
Folder-Gluer Processing
While the final tray is erected by hand, the blank must pass through a straight-line folder-gluer at the factory to fold and adhere the double lid. The flat blanks are delivered with this step already completed.
Internal vs. External Volume
Because the buffer walls consume internal space, always specify your exact product dimensions when requesting a prototype. The structural designer will calculate the necessary outer dimensions to ensure the product fits perfectly within the framed cavity.
Closure Security and Sealing
The front tuck flap secures the lid by sliding into the cavity of the front buffer wall. Depending on the product weight and retail environment, clear wafer seals may be added to the outside to prevent tampering or accidental opening.
Adjusting the Buffer Walls and Fit
Buffer Wall Width
The width of the hollow walls can be adjusted to create a wider or narrower frame around your product. Keep in mind that widening the buffer walls reduces the internal usable space, so the outer footprint must grow to accommodate the same payload.
Locking Tab Clearances
The front tuck flap secures the lid by sliding into the cavity of the front buffer wall. The cut offsets and locking tabs must be precisely matched to your chosen board thickness so the lid stays closed without bowing the front wall.
Layer Step Crease
The crease where the double lid folds over the tray can be adjusted to account for the thickness of the board. This ensures the lid overlaps the front wall smoothly without creating tension that could pop the box open.
Packing details
Print surface and 180-degree fold stress
Because the lid folds completely flat against itself during production, the outer hinge is under high tension. Discuss grain direction and board coatings with your converter to ensure premium graphics do not crack along this critical fold.
Lid and Wall Variations
Single Lid Variants
If the rigid feel of the double lid is unnecessary, similar buffer wall trays are available with a standard single-ply lid to reduce material usage and eliminate the folder-gluer pass.
Additional notes
Manual assembly time
The roll-over buffer walls require manual dexterity to erect and lock properly. Ensure your fulfillment team accounts for this assembly time when planning packing shifts.
Related Presentation Packaging
FAQs
Can this tray be erected by automated machinery?
The left, right, and front buffer walls must be manually rolled over and locked into the base panel. This structure is designed for hand-packing and kitting operations rather than automated case erectors.
Can I use corrugated board for this design?
The 180-degree fold required to create the double lid will typically crack or crush corrugated micro-flutes. This package is designed for high-quality folding carton boards like SBS or FBB.
Is this box secure enough to ship via parcel networks without an outer carton?
This is a primary retail presentation box. The tuck closure is not designed for direct parcel transit. It should be placed inside a master shipper for protection during shipping.
How does the buffer wall affect the size of the box?
The hollow walls take up space on the left, right, and front sides. If you require a specific internal clearance for your product, the outer dimensions of the box will be larger to accommodate the buffer zones.
Does this box require gluing?
While the tray itself locks together via friction tabs during fulfillment, the double-thick lid must be folded and glued at the manufacturing facility before the flat blanks are shipped to you.
Should I request a physical sample before ordering?
Because the buffer walls rely on precise friction locks and the lid requires a 180-degree fold, a physical sample on the exact production board is critical to verify the closure feel and check for any hinge cracking.
Does the lid stay closed on its own?
The lid features a tuck flap that slides into the hollow cavity of the front buffer wall, holding it closed via friction. For retail environments, a clear wafer seal is often added for extra security.
Can the inside of the lid be printed?
Because the lid is formed by folding a single panel 180 degrees back onto itself, both the inside and outside of the final lid are printed on the same side of the flat paperboard sheet.
