Retail and Presentation Uses
Premium Retail Display
The double-wall structure hides raw board edges, presenting a clean, framed interior. This makes it a strong fit for cosmetics, jewelry, and high-end electronics where the unboxing experience is a priority.
Confectionery and Baked Goods
When paired with a food-safe board or barrier coating, the tray provides a sturdy base for delicate items. The optional windowed lid allows full product visibility while protecting the contents.
Electronics and Component Kitting
For smart home devices or premium tech accessories, the double-wall structure provides a clean frame that pairs well with molded pulp or foam inserts, keeping components organized.
Cosmetics and Skincare Sets
Gift sets benefit from the rolled edges, which give a premium unboxing feel without the bulk and storage footprint of traditional rigid boxes.
Fulfillment and Kitting Contexts
Manual Kitting Operations
Because the tray and lid are erected by hand without machinery or glue, they are well-suited for in-house kitting lines. Packers can assemble the boxes on demand, saving warehouse space compared to pre-assembled rigid boxes.
Flat-Shipping Logistics
The blanks ship completely flat. While the sprawling cross-shaped blanks use more material than standard cartons, the logistics savings often offset the material cost for premium programs.
Premium E-commerce Unboxing
When paired with an outer corrugated mailer, the tray acts as the primary presentation layer, elevating the customer experience upon opening the shipping box.
When to Consider Alternative Trays
High-Speed Automated Packing
This tray involves a multi-step manual fold to lock the inner walls. If your packing line relies on automated tray formers or folder-gluers, compare standard four-corner glued trays instead.
Direct Parcel Shipping
The friction-fit lid and foot-locks are designed for presentation, not rough transit. For direct-to-consumer shipping, this tray should be placed inside a dedicated corrugated outer mailer.
Board, Fit, and Assembly Decisions
Board Caliper and Fold Memory
The inner walls fold 180 degrees to lock into the base. Thick or rigid boards can resist this fold, causing the walls to bow inward. The die-cutting profile should be matched to your chosen board thickness.
Lid Friction and Fit
For two-piece variants, the lid relies on friction against the body walls. Heavy varnishes, laminates, or changes in board caliper will alter this fit, making the lid either too tight to remove or too loose to stay on.
Insert Compatibility
Decide whether to use a molded pulp, foam, or folded board insert. An insert resting on the base can help keep the foot-locks seated and hold items securely within the double walls.
Print and Finish Strategy
Because the inner walls roll over from the outside, the exterior print naturally continues inside. This allows continuous graphics without requiring two-sided printing.
Clearances and Structural Options
Base Reinforcement Pads
An optional flat pad can be dropped into the base of the tray. This covers the locking tabs, creating a completely smooth floor and adding puncture resistance for heavier items.
Thumb Cuts for Lids
Full-telescoping lids can be configured with semi-circular thumb cuts on the sides, allowing users to grip the base tray and easily slide the lid off.
Window Cutouts
A clear PVC or PET window can be added to the lid for retail visibility. This involves a patching step during production but allows consumers to see the product without opening the box.
Packing details
Continuous Interior Graphics
Because the inner walls are formed by rolling the outer panels inward, the interior walls share the same print surface as the exterior. This allows for continuous graphics that wrap from the outside of the box directly into the tray.
Tray and Lid Configurations

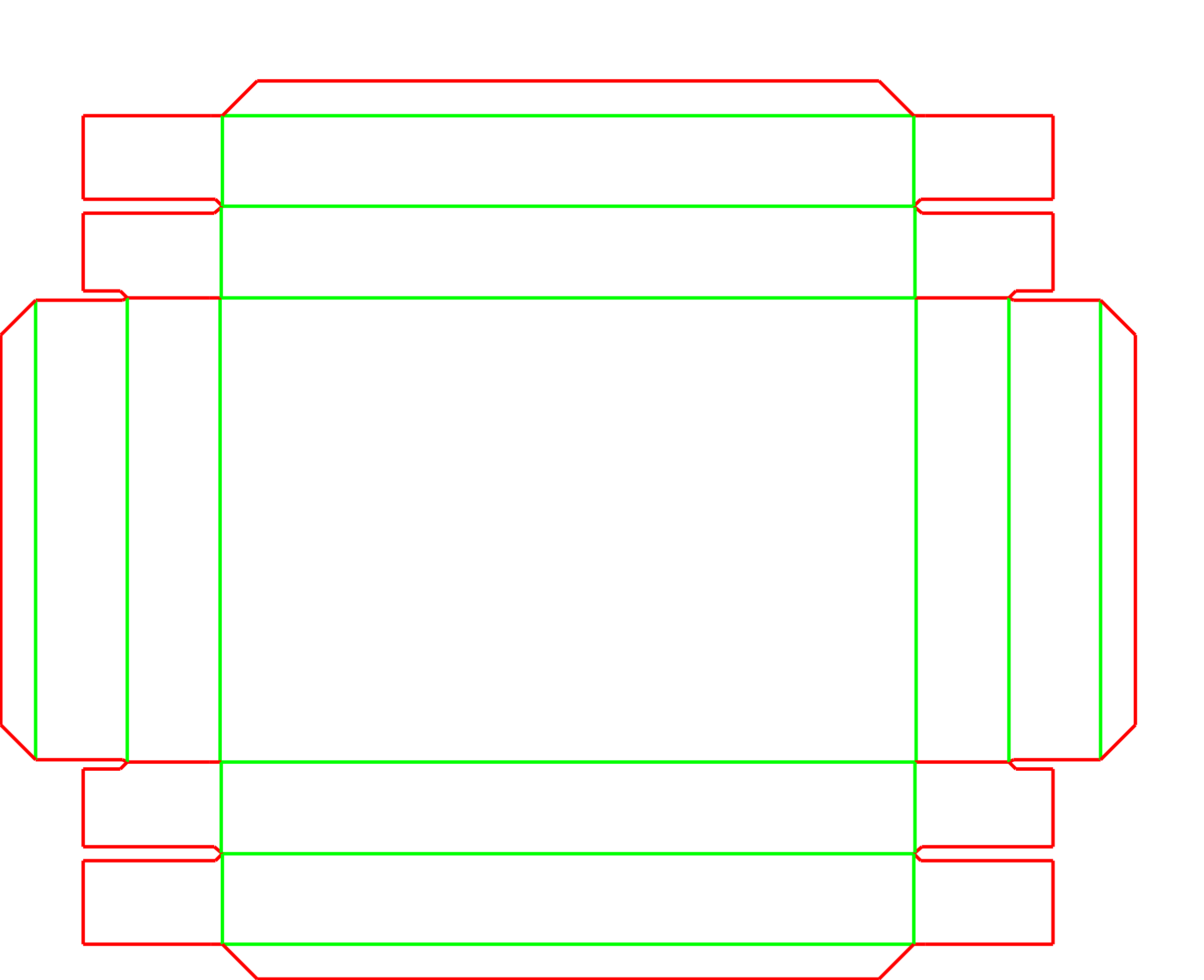

EVF41041 (Base Tray)
An open-top tray with double walls and foot-locks on all four sides.
EVF41041b (Body and Lid)
A two-piece set featuring the base tray and a matching friction-fit lid. The lid can be configured for full or partial depth.
EVF41041c (Window Lid and Pad)
A four-piece presentation set including the base tray, a full-telescoping lid with a display cutout, a clear window patch, and a base reinforcement pad.
Additional notes
Lid clearance and coatings
If you plan to use heavy laminates or high-build varnishes, mention this early. The added thickness can make a friction-fit lid too tight to remove easily.
FAQs
Does this tray need glue to stay together?
No. The tray uses a mechanical foot-lock system. The inner walls roll over and press flat against the base, using the board's own tension to hold the structure rigid.
Can this tray be erected by machine?
This specific foot-lock design is intended for manual assembly. The sequence of folding the inner walls over the dust flaps and seating the locks is difficult to automate on typical packing equipment.
What board types are suitable?
Standard folding carton boards fold cleanly. Heavier boards or micro-flute corrugated can be used, but the 180-degree folds should be carefully scored to prevent the liner from cracking or the walls from bowing inward.
How does the lid stay on?
The lid uses a friction fit against the double walls of the base tray. The clearance is calculated based on the board thickness, so any material changes should be updated in the template.
Can we add a window to the lid?
Yes. The EVF41041c variant includes a top cutout designed for a clear film patch, allowing product visibility while keeping the box closed.
What is the purpose of the base reinforcement pad?
The optional pad drops into the bottom of the tray to cover the foot-lock tabs. This creates a completely flat, continuous floor for premium presentation and adds puncture resistance.
How does the double-wall structure affect the print layout?
The inner walls roll over from the top, meaning the exterior print surface naturally becomes the interior wall surface. This allows continuous graphics from the outside in without two-sided printing.
Is this tray suitable for direct shipping?
No, it is an open tray or friction-fit lid designed for presentation. It should be placed inside a dedicated corrugated mailer for parcel networks.
