Retail Presentation and Kitting Roles
Retail Shelf Display
The double-folded walls hide raw edges, providing a clean, premium look for cosmetics, electronics, or specialty foods.
Premium Kitting
Acts as a rigid base for organizing multiple components, often paired with custom inserts or partitions.
Inner Drawer or Sleeve Tray
The smooth, double-wall exterior slides easily into a matching paperboard sleeve for a complete unboxing experience.
Bakery and Confectionery
The clean interior presentation without glue seams makes it a frequent choice for wrapped baked goods or specialty chocolates.
Packing Environments and Channels
Hand-Packing Operations
Fits operations where trays are erected on demand without automated gluing equipment.
Premium Retail Channels
Appeals to brands needing a polished interior presentation, as the 180-degree folds bring the printed front side of the board into the inside of the tray walls.
Multi-Component Kitting
Useful for operations assembling gift sets or sample packs where the tray serves as a rigid base for custom inserts.
When to Consider Glued or Corrugated Alternatives
High-Volume Packing Lines
If manual folding slows down fulfillment, a pre-glued crash-bottom tray or a machine-erected tray may be more efficient.
Standalone Parcel Shipping
Consider a corrugated mailer or a dedicated outer shipping carton if the tray will ship individually through a courier network.
Board, Print, and Assembly Choices
Board Thickness and Lock Fit
The locking tongues and receiving cuts are highly sensitive to material caliper. Changing from a standard folding carton board to a thicker micro-flute requires recalculating the fold clearances to prevent the walls from bowing.
Print Surface Planning
Because the inner walls fold completely over, the interior of the assembled tray displays the front (coated) side of the board. This allows for continuous high-quality graphics inside and out without requiring two-sided printing.
Assembly Labor
The multi-step folding sequence provides a premium result but requires dedicated manual labor. Packers fold the outer walls, trap the corner flaps, and seat the locking tongues into the base cuts.
Insert and Partition Compatibility
If the tray will hold multiple items, decide whether to use a folded paperboard insert or a molded tray. The double-wall sides provide a rigid perimeter to hold inserts securely.
Structural Adjustments for Fit
Locking Tongue Offsets
The depth and position of the locking tabs can be adjusted to ensure a secure friction fit based on the specific board grade chosen.
Panel Height and Clearance
The inner folding panels are slightly shorter than the outer walls to accommodate the board thickness when folded flat.
Base Proportions
The length and width can be adjusted to fit specific shelf depths or to match the footprint of an outer sleeve.
Packing details
Flat Delivery and Storage

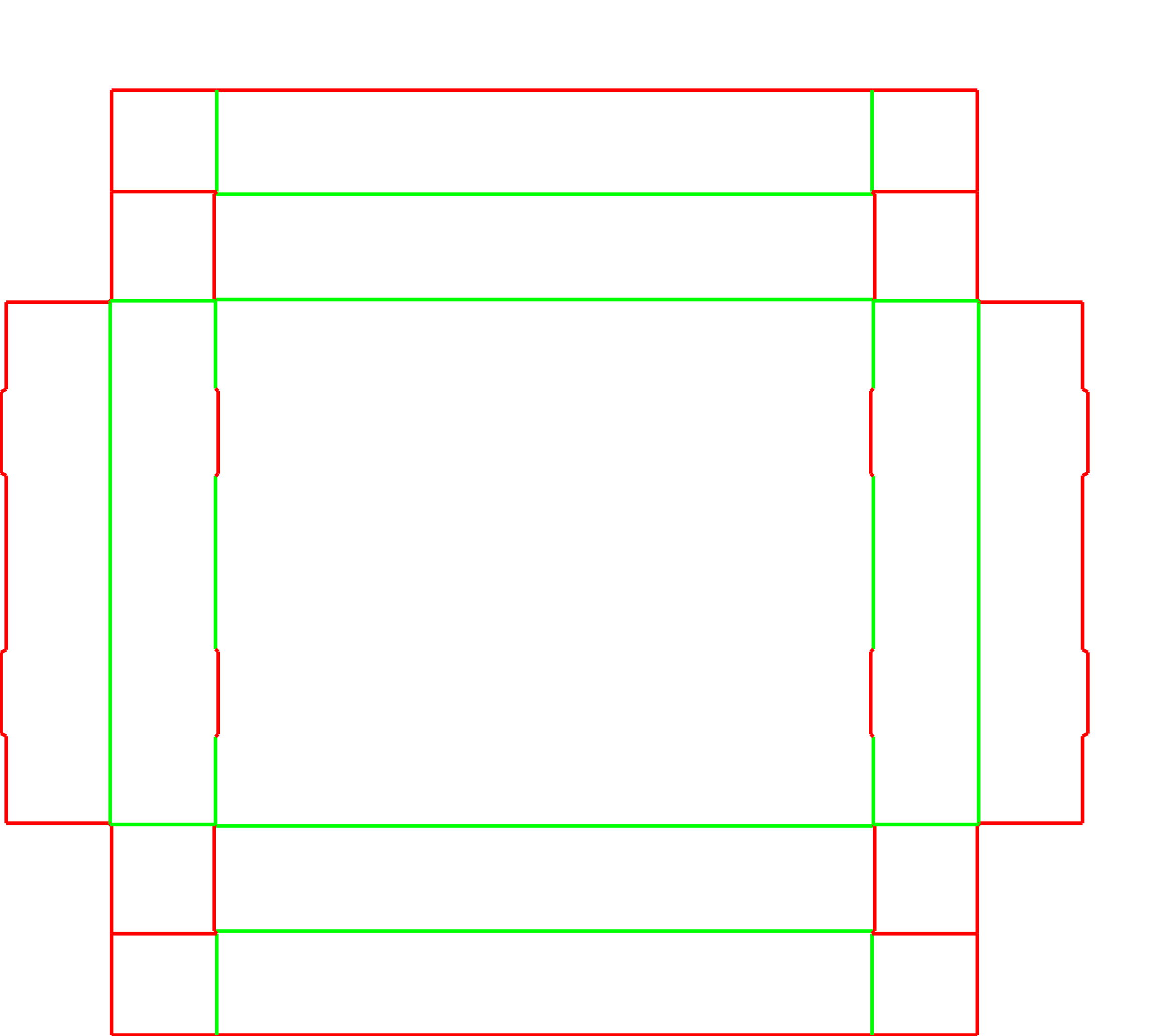

The unglued cross-shaped blank ships completely flat, maximizing pallet density before use.
Corner Flap Tapering
The internal corner flaps are angled to prevent binding when the inner walls fold over them, ensuring a square, rigid corner.
Additional notes
Board thickness and locking cuts
The friction locks depend on exact material thickness. If the board grade changes between prototyping and production, the cut depths and fold clearances should be updated to ensure the tray stays locked.
Related Trays and Outer Packaging
FAQs
Does this tray require glue or tape to stay together?
The tray relies on a sequence of folds and friction locks. The inner walls fold over corner flaps, and hidden tongues slot into cuts at the base to hold the shape securely.
How is this tray typically assembled?
This specific unglued structure is typically erected by hand at the packing station, though specialized plunging mandrels exist for some roll-end trays.
Do I need two-sided printing to have graphics on the inside of the tray?
Because the side walls fold 180 degrees over themselves, the front (print side) of the board becomes the visible interior of the tray walls. The base floor, however, will show the back of the board unless printed.
Can I use a thicker corrugated board for this template?
Switching to corrugated board is possible but requires precise structural adjustments. The 180-degree folds and locking cuts must be recalculated for the thicker caliper to prevent the board from cracking or the locks from failing.
Can this tray ship individually through a courier network?
Because it is an open-top tray, it usually requires an outer shipper, mailer, or secure sleeve if it will be shipped individually through a courier network.
How does the double-wall construction affect internal space?
The folded walls consume a small amount of internal footprint. When sizing the tray for a specific product or custom insert, the internal dimensions should account for the double board thickness on all four sides.
How are the trays delivered to the packing facility?
The unglued blanks are delivered flat, which helps maximize pallet density and storage space before assembly.
What happens if we change the board thickness after prototyping?
The friction locks and fold clearances depend on the exact material thickness. If the board grade changes, the cut depths and fold offsets should be updated to ensure the tray stays locked.
