Retail and Bakery Uses for the Foot-Lock Tray
Premium Bakery and Confectionery
The webbed corner design means there are no vertical slits or gaps at the corners of the tray. This makes it very effective at containing crumbs, powders, or small particulates, though it is not waterproof.
High-End Retail and Gift Sets
The inner walls fold 180 degrees over the corner gussets, creating a continuous, double-thick perimeter. This gives the tray a rigid, premium feel suitable for cosmetics, boutique items, or gift assortments.
Apparel and Soft Goods
Because the inner walls roll over and lock into the base, the top edges of the tray are smooth and folded. This prevents sharp paperboard edges from snagging delicate fabrics or apparel.
Component Kits and Assortments
The double-wall construction provides a sturdy perimeter that resists bowing. This makes the tray a strong foundation for holding custom inserts, partitions, or molded trays that organize multiple components.
Packing and Production Contexts
Manual Packing Operations
This tray is delivered flat and is erected by hand. The packer folds the outer walls up, collapses the corners inward, and rolls the inner walls over to lock the foot flaps against the base. It is a strong fit for operations that rely on hand assembly rather than automated tray formers.
Short to Medium Production Runs
Because the tray relies entirely on friction and geometry to hold its shape, it bypasses the folder-gluer process at the factory. This makes it practical for trial runs, seasonal promotions, or medium-volume programs where avoiding gluing setup is beneficial.
Retail Display Environments
The clean, unglued corners and thick-walled appearance make this tray suitable for direct retail presentation. It is often used as the base for a two-piece rigid box alternative or paired with a clear sleeve for shelf display.
When to Compare Other Tray Styles
High-Speed Automated Packing
If your packing line uses automated tray formers, the complex diagonal folds and foot-lock mechanism of this tray will not run efficiently. Review standard glued four-corner trays or crash-lock trays for mechanized lines.
Strict Material Efficiency
The double-wall construction and extended foot flaps use a relatively large flat blank. If minimizing board usage is the primary goal, a standard roll-end tray with friction tucks may be a better choice.
Board, Print, and Assembly Choices
Board Grade and Caliper
Because the webbed corners involve diagonal folding, the board needs to fold cleanly without cracking. Solid Bleached Sulfate (SBS) or Folding Boxboard (FBB) are usually the better choices. Thicker boards or micro-flutes may cause the corners to bind during assembly.
Print Layout and Visibility
The interior of the assembled tray is formed by the inner roll-over walls and the central base panel. If the design includes graphics on the inside of the tray, discuss the print-side routing with your converter to ensure the artwork is placed correctly on the flat blank.
Packing Line Labor
The specific sequence of folding the gussets and locking the foot flaps takes more time per unit than popping open a pre-glued tray. Evaluate whether the premium look justifies the extra seconds of hand assembly.
Outer Shipping Strategy
This is an open presentation tray, meaning it cannot ship through a parcel network on its own. Decide whether it will be placed inside a custom sleeve, a mailer box, or a master shipping carton.

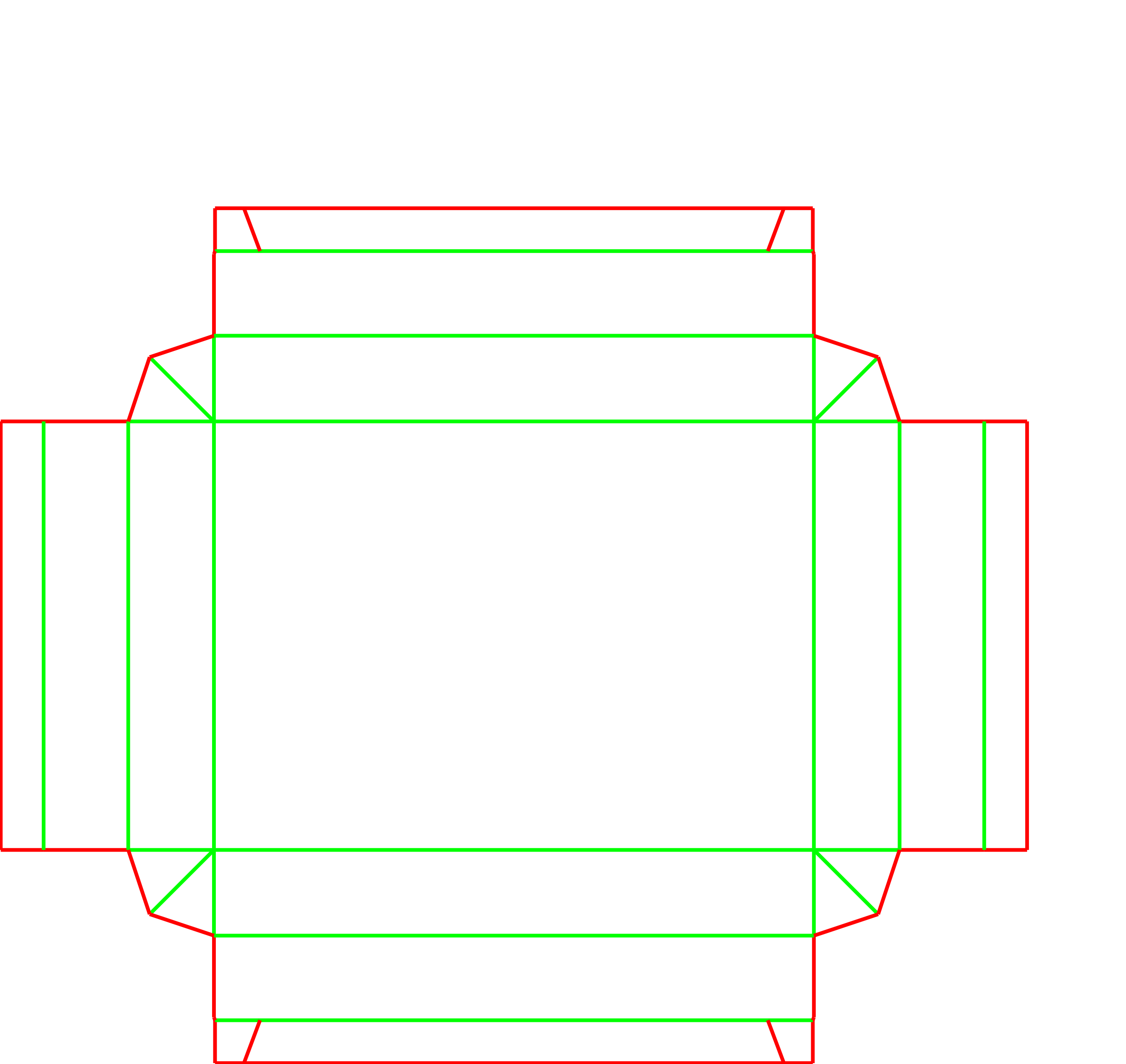

Template Adjustments for Fit and Function
Inner Corner Clearance
The template allows adjustments to the inner wall corners, such as adding a chamfer. This provides extra clearance when folding thicker boards, preventing the inner walls from catching on each other as they lock into place.
Foot Flap Width
The width of the foot flaps (the panels that rest on the base to keep the walls locked) can be adjusted. They need to be wide enough to provide secure friction against the base, preventing the walls from springing back open.
Webbed Gusset Offset
The geometry of the diagonal corner folds can be modified to change how the gusset collapses. This helps tune the folding behavior based on the specific board thickness and stiffness.
Packing details
Shipping and Outer Packaging
As an open-top tray, this package needs a secondary component for transit or parcel shipping. It is typically paired with a custom sleeve, a clear lid, or placed inside a master shipper.
Additional notes
Manual packing labor
Because this tray relies on a specific sequence of folds to lock the corners and seat the foot flaps, it takes slightly longer to assemble by hand than a pre-glued crash-lock tray.
FAQs
How does the tray stay together without glue?
The inner walls fold over the corner gussets and terminate in foot flaps that bend 90 degrees to sit flat on the bottom of the tray. The friction and geometry of these flaps pressing against the base keep the walls securely locked in place.
Is this tray leak-proof?
The webbed corners prevent dry particulates like crumbs or powders from leaking out, making it great for bakery items. However, it is not liquid-tight or waterproof.
Can this tray be machine-erected?
No. The diagonal folding of the webbed corners and the specific roll-over locking sequence involve manual assembly. It completely bypasses the folder-gluer process at the factory.
Can I use corrugated board for this tray?
It is generally not recommended. The complex diagonal folds in the corners are prone to cracking or binding if the material is too thick. Standard folding carton boards like FBB or SBS are the safer choice.
Where can I print on this tray?
You can print on the exterior walls, the interior walls, and the base. Because the inner walls roll over from the outside, your converter will help map the artwork so it appears correctly on the assembled tray.
Can I ship this tray in the mail?
Not on its own. It is an open presentation tray and will need to be inserted into a mailer box, a sleeve, or a master shipping carton for parcel transit.
Can I use this tray for heavy items?
The double-wall perimeter provides excellent rigidity and stacking strength for a paperboard tray. However, the overall weight capacity depends on the specific board grade chosen and the strength of the outer shipping box.
Do I need special tooling to cut this tray?
No. The tray is produced using standard flatbed die-cutting equipment. Because it needs no gluing, it avoids the folder-gluer stage entirely.
