Retail and Food Service Applications
Bakery and Catering
The unbroken bottom corners keep crumbs, powders, and viscous glazes contained. The double-wall sides provide enough rigidity to support heavier baked goods or dense catering portions.
Premium Retail Kitting
The separate lid and clean, rolled-over tray edges create a high-end presentation. The friction fit allows the lid to be removed and replaced smoothly, making it useful for gift sets or cosmetics.
Confectionery and Chocolates
For truffles or powdered sweets, the continuous bottom corners prevent fine particles from escaping, while the double-wall tray provides a sturdy frame for custom inserts.
Specialty Powders and Dry Goods
The webbed gussets eliminate the corner gaps found in standard trays, keeping fine dry goods securely inside the carton before the lid is removed.
Packing and Assembly Environment
Store-Level and Manual Packing
Because the tray and lid require no gluing equipment, they can be shipped flat and erected on demand at a retail counter or prep station. The foot-locks snap into place by hand.
Low-to-Medium Volume Runs
The manual assembly makes this carton highly accessible for short runs and regional rollouts, though it becomes labor-intensive for high-speed, automated fulfillment lines.
High-End Presentation Requirements
When the unboxing experience matters as much as containment, the separate lid and clean interior walls offer a premium feel without requiring glued joints.
When to Consider Alternative Tray Styles
High-Speed Automated Packing
If your operation relies on automated folder-gluers or case erectors, a crash-lock or straight-line glued carton will be much faster to erect than this manually folded gusset tray.
Heavy Transit or Courier Shipping
As a friction-fit two-piece carton, the lid can detach during rough parcel transit. For single-item e-commerce shipping, evaluate a mailer box with an integrated locking lid, or plan to use an outer shipping carton.
Board Flexibility and Lid Clearance
Board Flexibility and Cracking Risk
The webbed corners must fold 180 degrees inward during assembly. Highly recycled or very thick, brittle boards can crack along these tight folds. Discuss grain direction and board flexibility early.
Lid Friction and Clearance
The tightness of the lid depends on the exact board thickness and the clearance gap built into the template. A prototype should be tested to ensure the lid stays on without tearing the tray corners during removal.
Coatings for Food Contact
While the structure resists leaks, the material itself must handle the product. Greasy or moist foods will require specific poly or aqueous coatings on the inside of the board.
Print Surface and Finishing
Because the tray walls roll over to the inside, the interior walls display the same printed side of the board as the exterior, allowing continuous graphics without double-sided printing.
Template Adjustments
Tray Depth and Wall Taper
The height of the tray walls can be adjusted independently of the lid, and slight tapers can be introduced to change the visual profile or clearance.
Webbed Flap Angle
The geometry of the corner gussets can be modified to accommodate different board thicknesses, ensuring they fold flat without binding against the outer walls.
Lid Depth and Coverage
The lid can be configured as a shallow cover or extended into a full telescope design that reaches the bottom of the tray for added side-wall strength.
Packing details

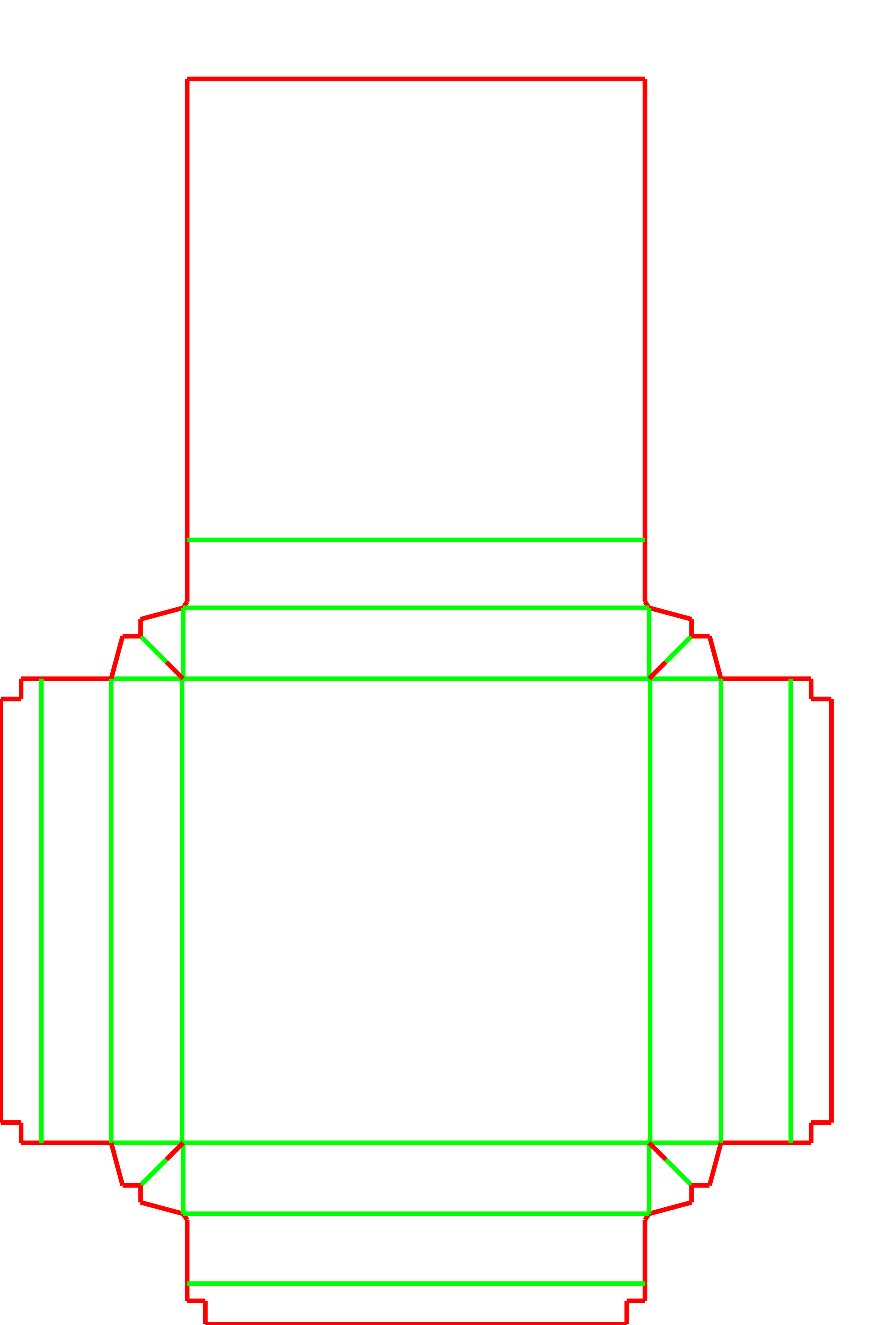

Die Layout and Tooling
Because this is a two-piece design, the tray and lid can be nested on a single die board for smaller footprints, or run on separate dies to maximize material efficiency on larger press runs.
Additional notes
Grain direction and corner folds
Because the corner gussets fold diagonally, they will cross the board's grain regardless of orientation. Testing a physical sample helps verify that the chosen material and coating can handle these compound folds without cosmetic damage.
Related Packaging to Compare
FAQs
Does this tray require glue or tape to stay together?
No. The tray walls roll over the corner gussets and secure themselves using foot-locks that press into slots on the base panel. The lid holds its shape through a similar friction-fit roll-end design.
Can this box be erected by automated machinery?
This specific structure is designed for manual assembly. The complex inward fold of the webbed corners and the roll-over locking sequence are difficult to automate on standard folder-gluers.
Is the bottom of the tray waterproof?
The continuous webbed corners prevent physical gaps where powders or thick liquids might escape. However, true waterproof performance depends entirely on selecting a board with the correct moisture-resistant coating.
What board types fit this design?
Flexible folding boxboards (FBB) or solid bleached boards (SBB) are usually preferred. The board must be able to handle tight 180-degree folds at the corners without cracking or splitting.
How tight is the lid?
The lid relies on a friction fit. The exact clearance gap is adjustable in the template, and it should be tested with a physical sample using your chosen board to ensure it is neither too loose nor too difficult to remove.
Can this be shipped as a standalone parcel?
Two-piece friction-fit boxes are generally a poor fit for direct courier shipping without an outer mailer, as the lid can detach. They are better suited for retail shelves, direct hand-offs, or packed inside a master shipper.
How does the foot-lock mechanism work?
The inner walls of the tray roll over the folded corner gussets, and small tabs at the bottom of these walls press into pre-cut slots on the base panel, locking the entire tray together.
Can I print on the inside of the tray?
Yes. Because the outer walls roll over to form the inner walls, the inside of the tray displays the same side of the board as the outside, allowing continuous branding without requiring two-sided printing.
