Retail and Presentation Packing
Premium retail and boutique packaging
The double-wall structure hides the raw edges of the paperboard, creating a smooth, framed interior. This makes it a strong choice for cosmetics, jewelry, and high-end accessories where the unboxing presentation is a priority.
Influencer kits and electronics unboxing
The hinged lid and tongue lock offer a deliberate, secure opening sequence. When paired with custom inserts, the rigid double walls provide a stable base for heavier or delicate items.
High-end cosmetics and skincare sets
The clean interior walls provide a framed presentation for jars and bottles. The lack of glue seams ensures a pristine look that aligns with luxury branding.
Apparel and accessory presentation
The friction-fit tongue lock and rigid double walls offer a deliberate opening experience for wallets, belts, or folded garments, elevating the perceived value of the product.
Premium Goods and Kitting Operations
Manual kitting and fulfillment
This tray is delivered flat and erected by hand at the packing station. The roll-end assembly requires multiple folding steps, making it better suited for dedicated kitting lines rather than automated environments.
Two-sided printing programs
Because the inner walls roll over from the outside, graphics can be designed to flow continuously from the exterior into the tray's interior, maximizing the branding surface without requiring a separate printed liner.
Low-to-medium volume premium launches
Because it requires no gluing setup, this tray is accessible for limited runs where manual assembly time is acceptable and the focus is entirely on the final presentation.
When to Consider Corrugated Mailers or Glued Cartons
High-volume automated packing
If your fulfillment line relies on automated carton erectors, the manual roll-end folds of this tray will slow down production. A pre-glued crash-lock base or standard tuck-end carton may be a better fit for speed.
Standalone parcel shipping
The friction-fit tongue lock may open during rough transit. If the package will ship through courier networks without an outer master carton, evaluate a corrugated mailer with a more secure locking mechanism or plan for an external seal.
Board Thickness and Assembly Planning
Board grade and fold clearance
The 180-degree roll-over folds require precise creasing. Folding boxboard (FBB) or solid bleached sulfate (SBS) typically yields the crispest edges. If a thicker board is specified, the layer step creases must be adjusted so the walls do not bind during assembly.
Tongue lock friction
The security of the closure depends on the width and depth of the tongue lock relative to the board's stiffness. Prototyping helps confirm that the lock holds firmly without tearing the paperboard upon insertion.
Interior print strategy
Decide if the continuous roll-over walls will carry branding or instructions, as this changes the artwork layout and requires careful alignment between the outer and inner panels.
Outer shipping requirements
Determine if this tray will be placed inside a master shipper or a courier bag, which affects the required board thickness and whether an external tamper-evident seal is necessary.
Tongue Lock and Clearance Adjustments
Lock and tuck modifications
The dimensions of the central tongue lock and the side tuck ears can be adjusted to increase or decrease opening resistance, depending on the weight of the product and the desired unboxing feel.
Layer step crease widening
For thicker paperboards, the crease offsets can be increased to prevent the double walls from binding during assembly, ensuring the tray sits perfectly square.
Dust flap length adjustments
The side dust flaps can be shortened if they interfere with the inner roll-over panels during manual folding, making the assembly process smoother for the packing team.
Packing details

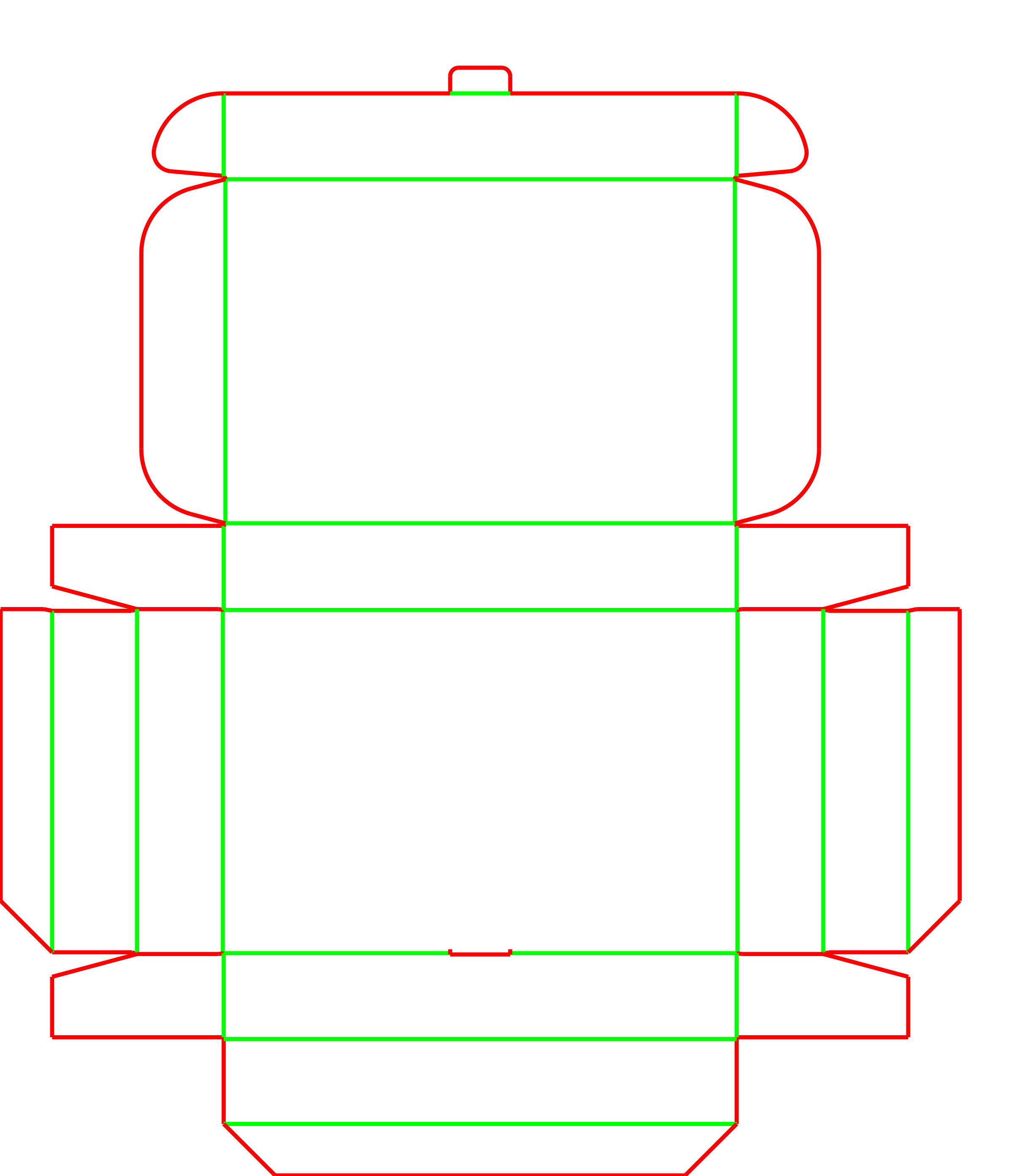

Blank footprint and material yield
The extended flaps required to form the double walls result in a larger flat blank than a standard glued carton. This increases the material used per unit, which is a necessary tradeoff for the unglued, clean-edge presentation.
Additional notes
Layer step creases for thicker boards
If specifying a heavier paperboard, the template's layer step creases must be widened. This ensures the lid and double walls fold flat without bowing or stressing the hinges.
Related Presentation and Shipping Boxes
FAQs
Can this tray be erected by automated machinery?
The multi-step roll-end assembly is designed for manual folding. It is not a fit for automated folder-gluers or carton erectors.
Is this box secure enough for parcel shipping?
The tongue lock is designed for retail presentation and inner kitting. For parcel shipping, it usually requires an outer shipping carton or a secure external seal to prevent accidental opening.
Can this be made from corrugated board?
While possible with thin micro-flutes, corrugated board often struggles with the 180-degree roll-over folds, leading to bulky or cracked edges. It performs much better in standard folding carton grades like FBB or SBS.
Does the double-wall design affect interior printing?
Yes, it provides a distinct advantage. The outer panels roll inward to form the interior walls, allowing exterior graphics to wrap continuously inside the tray without exposing raw paperboard edges.
How secure is the tongue lock?
It provides a satisfying, friction-fit closure suitable for retail shelves and presentation. The exact resistance depends on the board thickness and the lock's cut dimensions, which should be tested with a physical sample.
What should be checked during sampling?
Pay close attention to the fold clearances on the double walls and the friction of the tongue lock. If the board is too thick, the walls may bind, or the lock may tear during insertion.
How does the double-wall structure affect the flat blank size?
The extended panels required to roll over and form the inner walls increase the flat footprint. This means fewer trays fit on a single sheet of paperboard compared to a standard glued carton.
Can this tray hold heavy items like glass jars?
The double-wall sides provide excellent vertical strength, but the unglued base relies entirely on friction. For heavy items, a custom insert is often used to distribute the weight and keep the inner walls locked in place.
