Retail, Bakery, and Presentation Packing
Retail Apparel and Accessories
Clean lines and a hinged lid provide a premium unboxing experience for shirts, scarves, and accessories without the need for glued seams.
Bakery and Confectionery
The unglued mechanical locks keep the tray free of adhesives, while the telescoping lid protects delicate goods during local transport.
Promotional Kitting
For seasonal assortments or influencer kits, the flat delivery reduces inbound freight space, balancing out the manual assembly time.
Point-of-Sale Gift Packaging
The unglued design allows retail staff to keep blanks flat under the counter, erecting them only when a customer requests a gift box.
Boutique, Bakery, and Kitting Environments
Point-of-Sale Packing
Store staff can keep a stack of flat blanks under the counter and erect them on demand, saving valuable retail floor space.
Seasonal and Promotional Kitting
For promotional kits or seasonal assortments, the flat delivery reduces inbound freight space, balancing out the manual assembly time.
Limited Storage Environments
Operations that lack the warehouse space for pre-glued, nested trays often rely on flat-packed hook-lock designs to maximize storage density.
When to Consider Glued or Tuck-Top Alternatives
High-Speed Fulfillment
If packing speed is the primary bottleneck, compare this to a four-corner glued tray, which erects quickly and eliminates the need to manually seat hook tabs.
Parcel Shipping
Mechanical hook locks can disengage under rough courier handling. If shipping directly to consumers without an outer box, a roll-end tuck-top mailer offers a more secure closure.
Board Thickness, Fit, and Assembly Labor
Board Caliper and Lock Fit
The hook tabs and receiving slits are highly sensitive to material thickness. If you plan to use a thicker board or micro-flute, the lock parameters should be widened to prevent tearing or binding.
Assembly Labor Capacity
Erecting this tray involves folding and locking six separate tabs. Buyers should verify they have the manual labor capacity to support this before committing to an order.
Outer Shipping Needs
Because the lid does not mechanically lock into the base, this tray often needs an outer shipper or secure taping if it will enter a mixed-carrier transit network.
Print and Finish Surfaces
The unglued flat blank allows for straightforward printing on both the inside and outside, but the large footprint of the sprawling flaps should be considered when planning premium finishes.
Lock Tolerances and Lid Clearances
Locking Tab Width and Offset
The necks of the hook tabs can be adjusted to accommodate different board grades or to change how tightly the locks engage.
Lid Clearance
The depth and width of the lid are calculated to telescope smoothly over the base. This clearance can be fine-tuned based on the exact board thickness to prevent a lid that is too tight or too loose.
Female Slit Adjustments

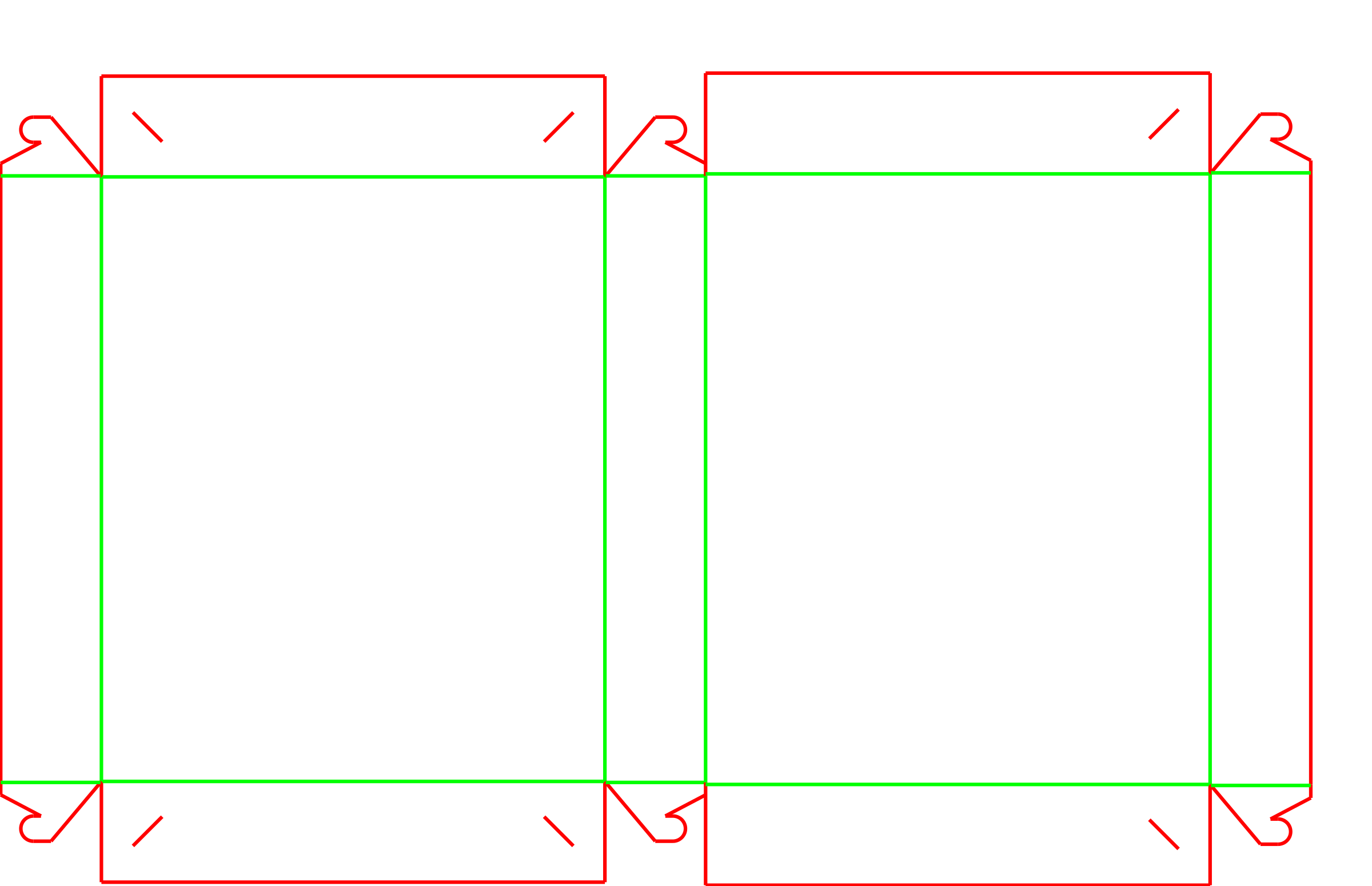

The diagonal receiving slits on the side walls can be lengthened or widened to ensure the hook tabs seat fully without tearing the surrounding board.
Packing details
Flatbed Die-Cutting Efficiency
Because the attached lid and locking flaps sprawl outward, the flat blank has a large footprint. This can reduce the number of cartons that fit on a single sheet, which should be factored into material yield planning.
Grain Direction
To prevent the main lid hinge from cracking during repeated opening, the board's grain direction should run parallel to the back wall.
Additional notes
Board thickness and lock tearing
The most common failure point for hook-lock designs is using a board that is too thick for the cut slits. Always validate the lock fit with a physical prototype when changing materials.
Related Presentation Trays
FAQs
Can this tray be erected on automated packaging lines?
The six-ear hook lock design relies on manual dexterity to fold the tabs and seat them into the diagonal slits. It is intended for manual assembly rather than automated erecting equipment.
Is this tray secure enough for courier or parcel shipping?
On its own, the mechanical locks and hinged lid can disengage during rough transit. For parcel shipping, it should be placed inside a corrugated outer shipper or secured with heavy-duty tape or banding.
Can I use a thicker corrugated board instead of standard folding carton?
Switching to a thicker board or micro-flute is possible, but the template's lock dimensions should be recalculated. If the slits are not widened to match the new caliper, the hook tabs may tear or fail to seat properly.
Does the lid lock securely into the base?
The lid forms its own rigid shape using two hook locks, and it telescopes over the base tray. It does not mechanically lock into the base, meaning it can be opened freely unless sealed with a label or tape.
Does this package require gluing?
No. The entire structure is held together by mechanical hook-and-slit locks, bypassing the folder-gluer entirely and shipping completely flat.
Why is a physical sample important for this design?
A CAD sample verifies that the hook tabs fit perfectly into the slits for your specific board choice. It also allows your team to test the manual assembly time before ordering.
How is this tray delivered?
Because it uses no glue, the tray is delivered completely flat. This maximizes pallet density and reduces the warehouse space needed to store the packaging before use.
Can the inside of the lid be printed?
Yes. Since the package is cut from a single flat sheet, both the inside and outside surfaces can be printed, allowing for branding or instructions on the interior lid panel.
