Retail, Bakery, and Gift Presentation
Boutique Retail and Apparel
The deep 3D lid and clean, glue-free corners create a high-end unboxing experience suitable for clothing, accessories, and cosmetics.
Bakery and Confectionery
Often used as a premium pastry or cake box, the rigid walls protect delicate items while the hinged lid allows for easy top-loading and display.
Gift Sets and Kitting
The sturdy base can accommodate custom inserts or partitions, keeping multiple items secure for curated gift presentations.
Corporate Welcome Kits
The rigid tray and hinged lid provide a structured presentation for onboarding materials, tech accessories, and branded merchandise.
In-Store Assembly and Event Gifting
In-Store Assembly
Works well for retail environments with limited backroom space. The boxes store completely flat and can be folded on demand by staff.
Low-Volume Fulfillment
Fits specialized e-commerce or subscription boxes where the packing team has time to manually engage the hook locks for a premium presentation.
Event Gifting
Delivered flat to event venues, these boxes can be assembled on-site to create premium gift packages without requiring bulky pre-assembled storage.
When to Compare Glued Trays or Outer Shippers
High-Speed Packing Lines
If your operation relies on automated carton-forming machinery or rapid hand-packing, compare this to a pre-glued crash-lock base or a standard tuck-top box. The eight manual locks on this design can slow down high-volume lines.
Direct Parcel Shipping
This box is designed for presentation, not rough transit. If shipping directly via courier, an outer mailer or a different structural design is usually needed to prevent the mechanical locks from popping open.
Board Caliper, Assembly Labor, and Outer Shipping
Board Caliper and Lock Fit
The width of the locking slots needs to match your chosen board thickness. If the board is too thick, the hooks may crush or tear during assembly; if too thin, the box may not hold its shape.
Material Selection
Standard folding boxboard (FBB) or solid bleached board (SBB) provides a good balance of clean folding and tear resistance for the intricate ear hooks. Heavy corrugated board is generally a poor fit for this design.
Assembly Labor
Plan for the manual folding time. Staff fold and lock four base corners, fold the lid flaps, and engage the two front ear hooks for every box.
Outer Shipping Strategy
Because the mechanical locks are designed for presentation rather than transit, shipping these boxes individually usually involves planning for a fitted outer mailer.
Lid Depth and Lock Geometry Adjustments
Lid Depth
The depth of the 3D lid can be adjusted independently of the base height, allowing for a full telescope look or a shallower cover depending on your aesthetic preference.
Insert Integration
The internal dimensions can be sized to fit custom die-cut inserts, ensuring products remain centered and protected within the rigid base.
Locking Tab Adjustments
The geometry of the ear hooks and base locks can be modified to accommodate different board thicknesses, helping ensure a secure fit without tearing.
Packing details
Print Coverage and Hook Tab Finishing
The flat blank allows for excellent print coverage on all visible panels. However, avoid heavy varnishes or coatings directly on the hook tabs, as this can cause the board to crack when flexed during assembly.
Additional notes
Training for manual assembly
Because the box involves folding and locking eight separate points in a specific sequence, providing a folded sample or quick reference guide to your packing team can help ensure consistent, damage-free setup.
Related Non-Glued Trays and Lids
FAQs
Can this box be erected on automated packaging lines?
This design relies on a multi-step folding sequence that is generally erected by hand. High-speed automated lines usually use pre-glued crash-lock or standard tuck-top designs.
Can I use corrugated board for this design?
It is usually not recommended. The intricate ear hooks and tight locking slots are designed for thinner folding carton boards like FBB or SBB. Thicker corrugated flutes may crush or tear when forced into the locking slots.
Is this box secure enough to ship in the mail on its own?
The mechanical hook locks and hinged lid are designed for presentation and may open under the stress of a courier network. For parcel shipping, this box is usually placed inside a protective outer mailer.
Why is a physical sample important for this specific box?
Because the locks rely entirely on friction and exact board thickness, a physical prototype confirms that the hooks engage smoothly without tearing and hold the box securely in your chosen material.
Can the depth of the lid be changed?
Yes. The lid's side and front flaps can be adjusted to create a deep, full-telescope cover or a shallower lid, depending on how much of the base tray you want exposed.
Does this box require tape or stickers to stay closed?
The lid's ear hooks hold its 3D shape, and the hinged cover rests over the base. While it stays closed for retail display, adding a clear wafer seal or custom sticker can provide tamper evidence and extra security for retail handling.
How is this box delivered?

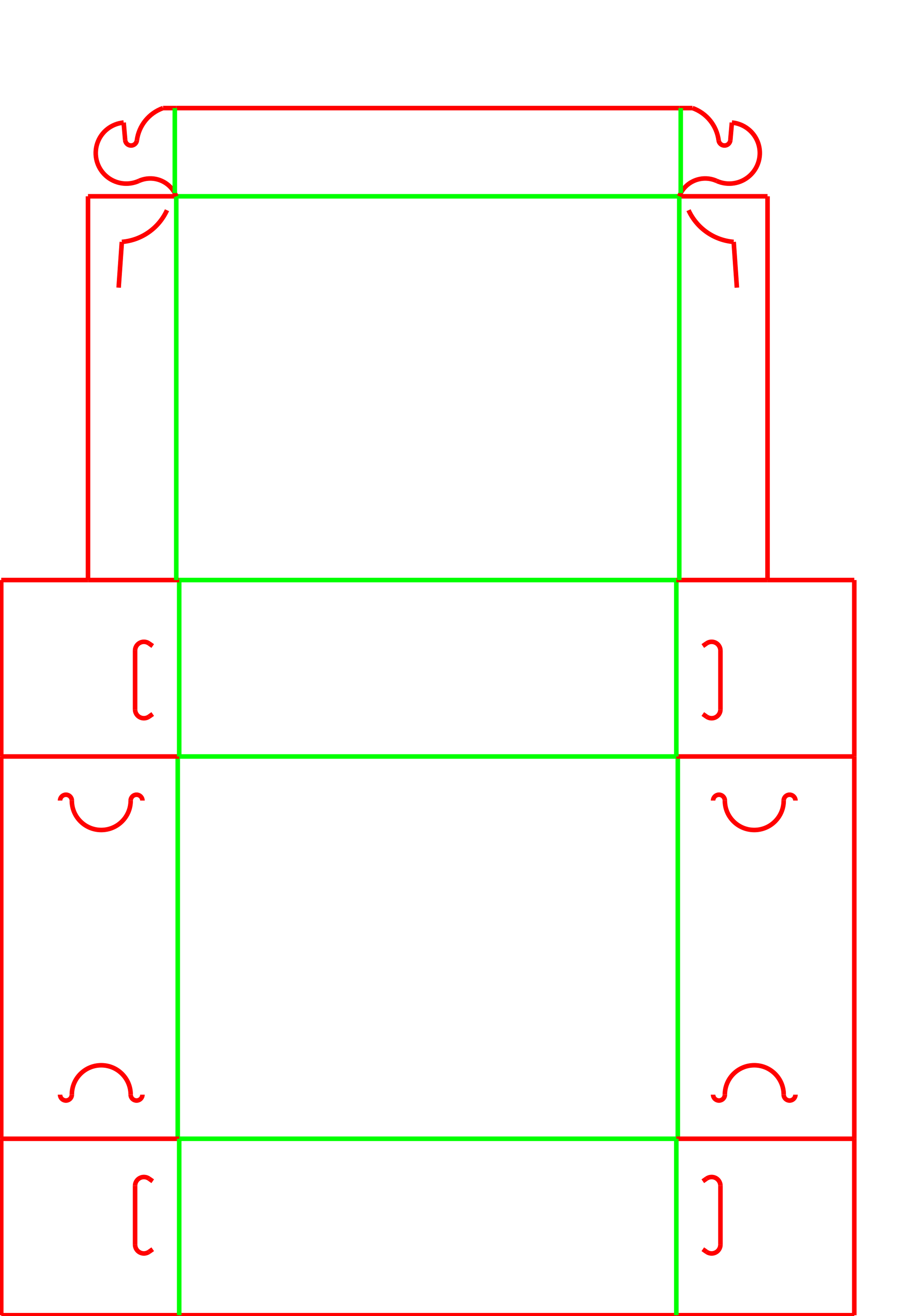

It is delivered completely flat. The base and lid are formed from a single die-cut sheet, which helps maximize pallet density and reduce inbound shipping space.
Can the base locks be glued instead of hooked?
This specific template is designed entirely around mechanical hook locks. If you prefer a glued base for faster assembly, a different structural template, such as a four-corner glued tray, would be a better starting point.
