Retail Presentation and Kitting
Lightweight retail goods and cosmetics
The clean, unglued corners and attached lid provide an excellent unboxing experience for cosmetics, electronics accessories, and apparel. The lack of glued seams leaves the interior and exterior panels uninterrupted for high-quality graphics.
Pegboard and shelf displays
With an optional hanging hole integrated into the locking panel, the closed tray can be hung directly on retail pegboards or stacked neatly on shelves. The front tuck flap keeps the lid secured during customer handling.
Apparel and soft goods kitting
Soft items that do not exert heavy outward pressure on the side walls are well-suited for this tray. The attached lid allows for easy presentation of folded garments or accessory kits.
Electronics accessories and small parts
For lightweight tech accessories, the tray provides a structured presentation. The friction-fit dust flaps and front lock help keep small components contained on the retail shelf.
Low-Volume Rollouts and Flat-Storage Operations
Operations prioritizing flat storage
Because the tray uses no pre-gluing, it ships completely flat. This maximizes inbound freight efficiency and minimizes warehouse footprint before the product is packed.
Manual kitting and fulfillment
This package relies entirely on human hands to fold the corner flaps and seat the ear hooks into their slots. It fits well in manual kitting lines where operators are already handling multiple components.
Short-run retail promotions
For limited-edition products or seasonal rollouts, avoiding the folder-gluer setup can make short production runs more practical. The tradeoff is the additional time spent assembling the trays by hand.
When to Consider Glued or Roll-End Trays
High-volume packing lines
If packing speed is the primary bottleneck, the manual ear-hook assembly will slow down fulfillment. A four-corner glued tray or an auto-bottom carton is often a better choice for high-speed operations.
Heavy products or parcel shipping
The mechanical locks are designed for lightweight retail presentation. Heavy items can cause the side walls to splay, and the friction-tuck lid can pop open during rough courier transit. For direct-to-consumer shipping, consider a corrugated mailer or place this tray inside a secure outer shipper.
Board Tear Strength and Display Routing
Board tear resistance
The ear hooks bear the tension of the erected walls. Brittle or overly thin board can tear at the hook roots during assembly. Specifying a board with high tear resistance, such as virgin FBB or SBS, helps ensure the locks hold securely.
Board caliper and slot width
The width of the receiving slots should be calibrated to the chosen board thickness. Changing the board caliper without adjusting the die-cut profile can result in hooks that either fail to lock or tear when forced.
Display routing
Decide whether the product will hang on a pegboard or sit on a shelf. This determines whether the hanging hole should be included in the final die, as removing it can simplify the cut and strengthen the end wall.
Packing labor capacity
Because every corner is manually hooked into place, fulfillment takes longer per unit than with pre-glued crash-lock cartons. Factoring this labor time into the overall rollout schedule helps avoid bottlenecks.
Hanging Holes and Lock Styles
Pegboard hanging hole
The base template includes a hanging hole on the short wall opposite the lid hinge. If the tray will only be stacked on shelves, this hole can be removed to simplify the die and strengthen the wall.
Front lock style
The front tuck flap can engage with different receiver styles. The base model uses a tongue lock, while variants can use a slit lock receiver on the front wall for a different closure feel.
Dust flap friction tabs
The side dust flaps on the lid include small friction tabs that fold slightly to provide tension inside the tray. These can be adjusted based on the board thickness to ensure the lid stays closed without being too difficult to open.
Packing details
Stripping complexity
The intricate cuts for the ear hooks and the front lock receiver demand precise stripping during die-cutting to ensure all waste is removed cleanly before delivery.

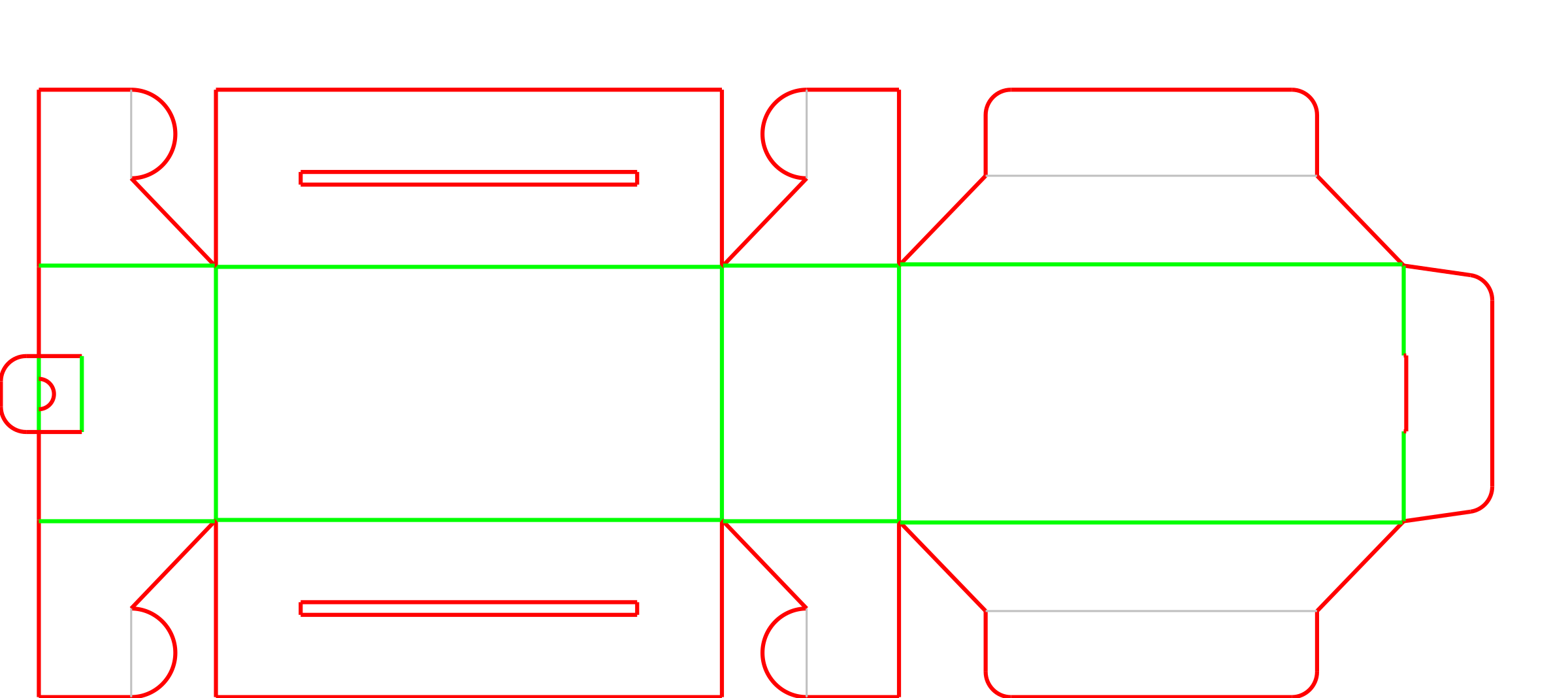

Template Variants
EVF41168
The base configuration features a tongue lock for the front tuck flap and includes a hanging hole for pegboard displays.
EVF41168_1
A variant that uses a slit lock receiver on the front wall instead of a tongue lock, and typically omits the hanging hole for standard shelf stacking.
Additional notes
Packing labor considerations
Because every corner is manually hooked into place, fulfillment will take longer per unit than with pre-glued crash-lock cartons. Factoring this labor time into the overall rollout schedule helps avoid bottlenecks.
FAQs
Can this tray be erected on automated packaging lines?
The ear-hook locking mechanism relies on manual manipulation to fold the corner flaps and seat the tabs into the side wall slots. It is designed for hand assembly.
Does this package use glue or tape?
The tray and lid assemble entirely through mechanical friction locks. Tape or clear wafer seals are only necessary if tamper evidence is desired for retail shelves.
What board types work well for the ear-hook locks?
Folding carton boards with high tear resistance, such as Solid Bleached Sulfate or virgin Folding Box Board, are often recommended. Recycled or brittle boards are more prone to tearing at the hook joints during assembly.
Is this tray suitable for e-commerce parcel shipping?
The friction-tuck lid and mechanical corner locks can dislodge under the impact of mixed-carrier transit. It is generally placed inside a corrugated outer shipper for direct-to-consumer delivery.
Can the hanging hole be removed?
If the product will be stacked on shelves rather than hung on pegboards, the hanging hole can be removed from the template to create a solid end wall.
Can I change the board thickness later?
Any change in board caliper means recalculating the width of the receiving slots and the ear-hook clearances. Using a thicker board without updating the die can make the tray difficult to assemble without tearing.
How does the lid stay closed on the shelf?
The lid features a front tuck flap that inserts into the tray and engages a tongue or slit lock on the front wall, preventing accidental opening during customer handling.
Does the tray ship flat or pre-assembled?
Because it uses no gluing during manufacturing, the tray ships completely flat to the fulfillment center, maximizing inbound freight efficiency.
