EVF41182

Tapered Carrier Box with Handle

The EVF41182 is a classic retail carrier box featuring an integrated handle and a distinctive tapered shape. Designed without the need for glue, it ships completely flat and locks together manually, making it a staple for bakery goods, takeout food, and boutique gift packaging.

Because the entire weight of the product is suspended from the top handle, this style relies on strong, tear-resistant board. It excels in point-of-sale presentation and customer hand-carry, though its protruding handle and unsealed top mean it usually needs an outer master carton if shipped through parcel networks.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Self-locking top closure with integrated carrying handle
  • Unglued design ships flat for space-saving retail storage
  • Tapered walls create a wider top opening for easy loading

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Hand-Carry Applications

Bakery and Pastry Packaging

The tapered walls allow delicate items like cakes or pastries to be lowered in without catching on the sides. The flat roof provides clearance above the product, while the handle makes it easy for customers to carry the box without tilting it.

Takeout and Deli Carriers

Often used for multi-item takeout orders, the wide base provides stability for containers, while the interlocking top keeps the contents secure during the trip home. The unglued format means staff can store hundreds of flat blanks under a counter.

Retail Gift and Promo Kits

The distinctive shape and large, flat side panels offer excellent billboard space for branding. It works well for curated gift sets or event promo kits that are handed directly to attendees.

Event and Catering Boxes

For boxed lunches or corporate catering, the integrated handle allows attendees to grab their meal and move quickly. The flat top provides a clear surface for labeling dietary restrictions or event branding.

Store-Floor and Takeout Environments

Manual Store-Floor Assembly

This box is designed to be folded and locked by hand at the point of sale. The assembly sequence involves folding the walls, standing the handles up, and threading the slotted roof panels over the grip. This process is straightforward but involves manual labor, making it a fit for retail rather than high-speed automated packing lines.

Direct-to-Consumer Hand-Carry

The primary job of this package is to move safely from a store counter to a car or home. It is not designed for raw parcel shipping. If you plan to ship these carriers, they usually need to be packed inside a standard corrugated master shipper.

Low-Volume Promotional Kitting

When preparing promotional kits or influencer mailers by hand, the unglued design avoids the need for specialized folding equipment. Teams can assemble the boxes on demand, load the products, and lock the top securely.

When to Consider a Different Carrier Style

Heavy or Dense Products

Because the entire payload hangs from a single die-cut paperboard handle, heavy items can cause the handle to tear or the bottom to bow. For heavier retail kits, a corrugated carrier or a box with a reinforced crash-bottom may be a safer choice.

Stacking and Palletizing

The vertical handle prevents these boxes from being stacked directly on top of one another. If your retail display requires stacking, consider a standard tuck-end box or a carrier with a fold-down handle.

Board, Handle, and Fit Considerations

Board Tear Resistance

The handle is the primary stress point. Discussing board grades with high tear resistance helps prevent the grip from snapping under load, especially for heavier takeout items.

Slot and Caliper Clearance

The top locks by threading two slotted panels over the double-thick handle. If you change the board thickness, the slot width should be adjusted parametrically so the lock remains secure without binding or tearing during assembly.

Grain Direction for Handle Strength

The direction of the paperboard grain plays a role in handle durability. Aligning the grain perpendicular to the handle fold can provide extra resistance against tearing when the box is lifted.

Print Surface and Branding

The flat inner and outer roof panels, along with the four tapered side walls, provide continuous surfaces for retail graphics. Deciding whether to print on the inside of the handle or the inner roof panels can change the visual impact when the customer opens the box.

Adjusting the Taper and Handle Ergonomics

Taper Angle and Footprint

The difference between the bottom base and the top opening dictates the taper angle. A wider top makes loading easier, but extreme tapers can change how the corner dust flaps behave when folded.

Handle Ergonomics

The width, height, and finger-hole radius of the handle can be adjusted. A wider handle distributes weight more comfortably for the customer, but the locking slots should be lengthened to match.

Base Dimensions and Capacity

The length and width of the bottom panel determine the overall footprint. Adjusting the base size automatically scales the tapered walls, allowing the box to accommodate different container sizes or pastry boards.

Packing details

Nesting and Blank Sprawl

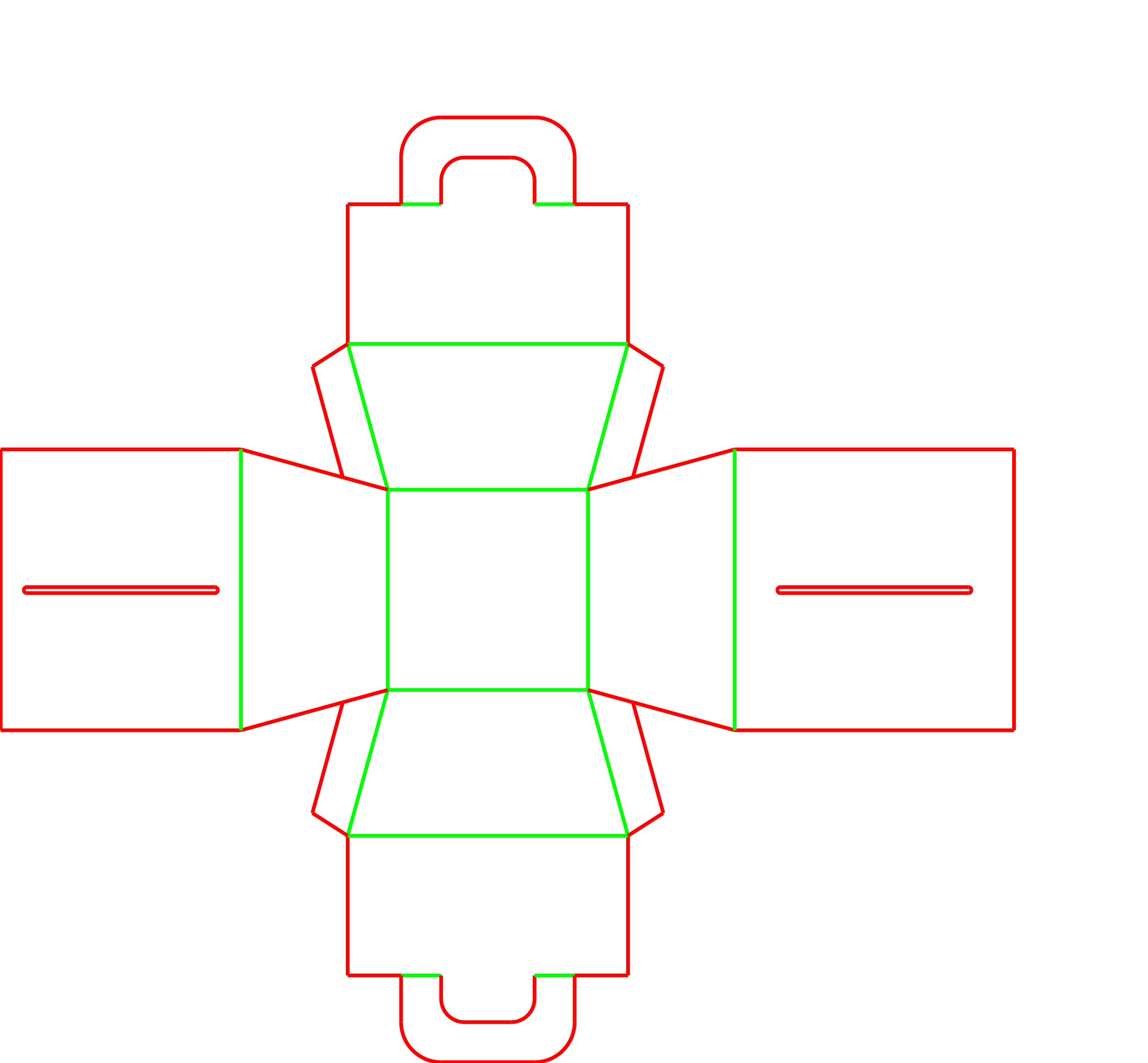

In its flat state, this template forms a large cross shape. Depending on the exact dimensions, the protruding handles and slotted panels can make nesting on a single sheet less efficient than a standard rectangular box. This blank sprawl is a normal tradeoff for a one-piece, unglued carrier.

Additional notes

Print panel and branding space

The flat inner and outer roof panels, along with the four tapered side walls, provide continuous, uninterrupted surfaces for retail graphics and branding.

Related Packaging Options

0430: Corrugated Carrier Box

Review this option when the product weight exceeds the safe limit for folding carton board and needs corrugated strength.

0215: Crash-Bottom Carton

Consider a glued crash-bottom box when you need faster manual assembly and a flat top for stacking on retail shelves.

FAQs

How much weight can this carrier hold?

Weight capacity depends entirely on the board grade and handle design. Because the load is suspended from the die-cut handle, heavier items benefit from tear-resistant board and proper grain direction. Physical lift testing with your actual product helps confirm safety.

Does this box require glue or tape?

No. The EVF41182 is a fully self-locking design. The side walls trap the corner tabs, and the slotted roof panels thread over the handle to secure the entire structure without adhesive.

Can this box be packed on an automated line?

This style is designed for manual assembly at the point of use. The multi-step folding sequence and the threading of the handle through the roof slots make it difficult for automated packing equipment.

Can I ship this box through the mail?

Not on its own. The protruding handle prevents stacking, and the unsealed top leaves the contents vulnerable. To ship this carrier via parcel networks, it should be placed inside a standard corrugated shipping box.

Can the handle shape be customized?

Yes. The handle width, height, and grip opening can be adjusted for better ergonomics. However, any change to the handle dimensions means the locking slots on the roof panels should be updated to match.

Can this be made from corrugated board?

While it is primarily a folding carton design, it can be adapted for fluted corrugated board. If using corrugated material, the locking slots and fold allowances should be widened to accommodate the extra thickness.

How does the tapered shape affect loading?

The outward taper creates a top opening that is wider than the base. This makes it easier to lower delicate items, like frosted cakes or wide takeout containers, into the box without catching on the side walls.

Can these boxes be stacked on retail shelves?

The vertical carrying handle prevents direct stacking. If your retail display requires boxes to be stacked on top of one another, a standard tuck-end carton or a carrier with a fold-down handle may be a better fit.
