The Tapered Gusset Tray with Lid is a distinctive, single-piece folding carton designed for manual assembly. Featuring flared walls and a secure tongue lock, it ships completely flat and uses no glue to erect.
Its defining feature is the webbed corner gussets. Instead of cut and glued seams, the corners fold inward, creating a continuous base that is a strong fit for takeout, bakery, and deli applications.
Food Service and Retail Uses for Tapered Gusset Trays
Takeout and Food Service
The continuous, uncut base provided by the webbed corners makes this tray very resistant to minor leaks and grease, especially when paired with a poly-coated board. It is a staple for deli counters and restaurant takeout.
Bakery and Confectionery
The wide top opening allows for easy loading of delicate pastries, while the tapered walls provide a distinctive presentation. The tongue lock secures the lid without the need for tape or stickers.
Lightweight Retail and Gifts
The flared profile offers a unique unboxing experience. Because the walls angle outward, the interior is clearly visible, making it an excellent candidate for inside printing.
Event and Catering Portions
For boxed lunches or catering drops, the flat-shipping design allows large quantities to be stored efficiently and folded on-site as needed.
Store-Floor and Kitchen Assembly Contexts
Store-Floor and Kitchen Assembly
This carton is designed to be stored flat under counters or in kitchens and folded on demand. Staff manually form the corners and engage the tongue lock, which takes slightly longer than a glued crash-lock box but saves considerable storage space.
Hand Handoff and Local Delivery
The friction-fit tongue lock is secure for hand-carrying and local delivery. For mixed-carrier courier networks, the friction-fit closure and tapered walls usually mean an outer shipping carton should be considered.
Flat Storage Constraints
Because the tray is unglued, it ships and stores completely flat. This is very beneficial for retail environments with limited back-room storage.
When to Consider Straight-Walled or Glued Alternatives
High-Speed Packing and Automated Erection
If your operation relies on automated case erectors or needs instant setup, compare this to a glued crash-lock bottom box. The EVF41183 relies on two-handed manual folding.
Heavy Retail Stacking
The tapered walls and flat lid offer limited vertical compression strength. For heavy items that will be stacked high on retail shelves, a straight-walled tray or a corrugated structure is often a safer choice.
Board, Print, and Closure Decisions
Board Flexibility and Barrier Coatings
The 180-degree folds needed for the webbed gussets benefit from a flexible board, such as Folding Boxboard (FBB). If packing food, specify a poly-coated or grease-resistant barrier. Heavy or very rigid boards can crack at the corners during folding.
Inside Print and Brand Placement
The flared profile means the inside walls are clearly visible when the box is opened. Consider whether inside printing will enhance your presentation.
Taper Angle and Footprint
The difference between the top and bottom dimensions determines the angle of the taper. A steeper taper allows open trays to nest more deeply but reduces the flat bottom area for the product.
Closure Security and Tamper Evidence
The tongue lock relies on friction. If the package will be handled frequently or needs tamper evidence for food delivery, plan for a branded sticker or seal over the closure.
Taper Angle and Footprint Adjustments
Base Footprint and Taper Angle
The footprint and the top opening can be scaled. The difference between the top and bottom dimensions determines the angle of the taper.
Tongue Lock Friction Fit
The width of the tuck tongue and the corresponding receiver slit can be adjusted to ensure a tight friction fit based on the chosen board thickness.
Asymmetric Tapering
The template can be adjusted to taper at different angles for the length and width, accommodating specific rectangular products.
Packing details
Blank Sprawl and Material Use

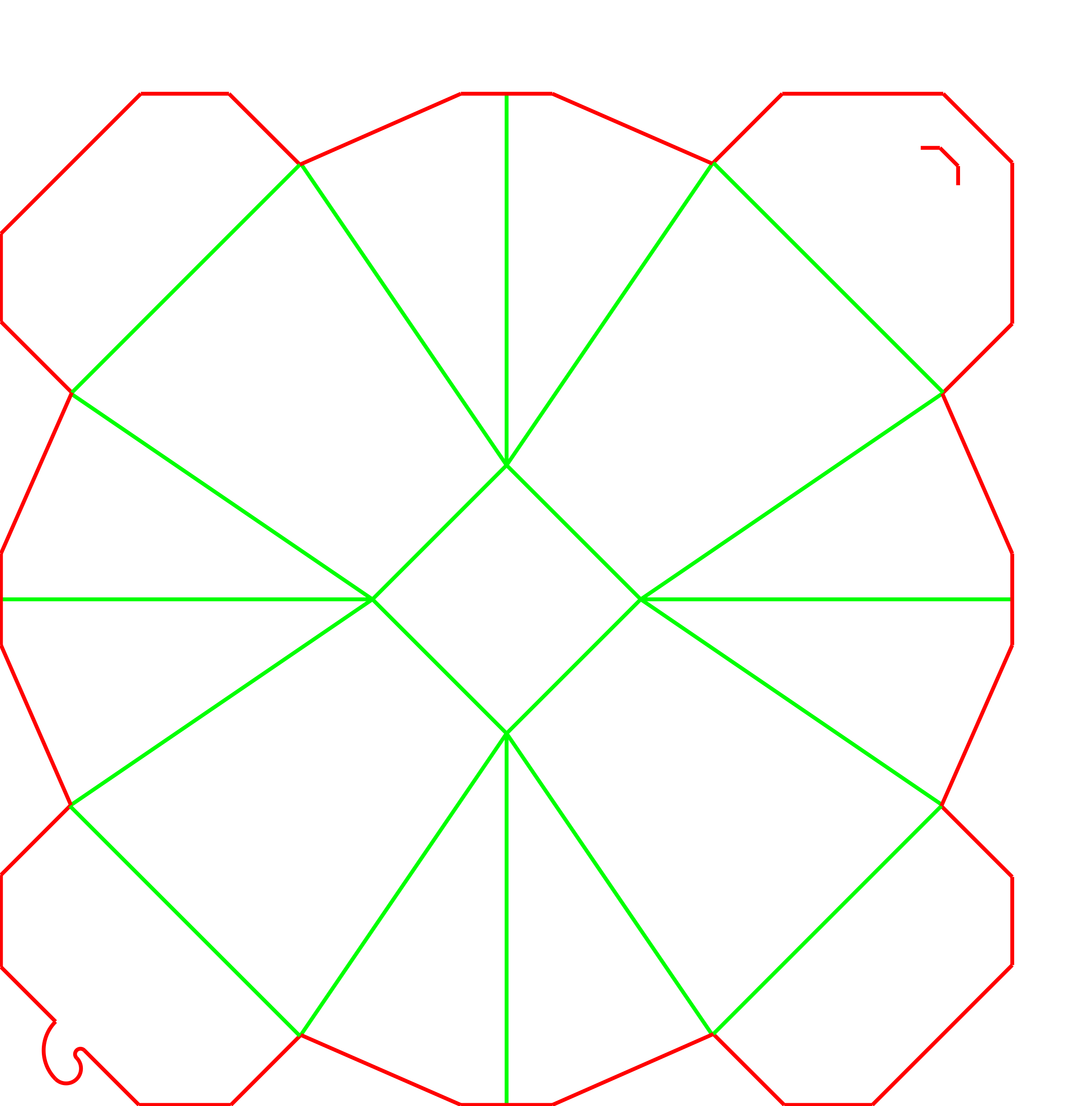

Because the webbed gussets extend outward from the corners when flat, the uncut blank has a star-like shape. This can lead to slightly more offcut waste during die-cutting compared to straight-line cartons, though this is often offset by the elimination of gluing costs.
Asymmetric Taper Variants
EVF41183a (Asymmetric Taper)
Allows the length and width to taper at different angles. This is useful for fitting specific rectangular products, like long bakery trays, where a uniform taper would waste space.
Additional notes
Grease and Moisture Barriers
If the tray will hold hot or greasy foods, a food-safe, grease-resistant coating should be specified to protect the board.
Staging and Nesting
The outward taper of the walls allows open, empty trays to nest partially, which can help stage multiple orders during busy service periods.
Review this alternative if the product requires a different gusset or lid style within the non-glued tray family.
FAQs
Can this tray hold liquids?
The webbed corners create a continuous base that resists minor leaks and spills better than cut-corner boxes. However, it is not waterproof unless manufactured with a specific liquid-barrier coating and thoroughly tested.
Does the tongue lock require tape?
The tray is erected by folding the webbed gussets, and it stays closed using a friction-fit tongue lock. Tape or a sticker is only needed for tamper evidence or rough handling.
Can this tray be machine-erected?
The complex, multi-axis folding of the webbed corners relies on manual assembly. It is designed for point-of-use setup by hand.
Can heavy corrugated board be used for the webbed corners?
Heavy corrugated board is a poor fit. The webbed gussets must fold 180 degrees to lay flat against the walls. Thick or very rigid corrugated board can crack or resist folding cleanly. Flexible folding carton boards handle the corner tension better.
Can this tray be shipped through parcel networks?
The friction tongue lock and tapered walls are generally not suited for the impacts of a mixed-carrier parcel network on their own. The tray is usually placed inside a sturdy outer shipping box for transit.
When is the asymmetric taper variant useful?
The symmetric version tapers equally on all sides. The asymmetric variant (EVF41183a) allows the length and width to taper at different angles, which helps fit specific rectangular items more snugly.
Can the inside of the tray be printed?
Because the walls flare outward, the interior of the tray is clearly visible to the consumer upon opening, making it a strong location for branding or instructions.
How is this tray delivered?
Because it uses no gluing during manufacturing, it is delivered completely flat. This maximizes pallet density and saves storage space at the retail or food service location.
A classic, leak-resistant presentation for takeout and retail, ready to be sized for your product.
