Retail Display and Specialty Food Uses
Retail Pegboard Displays
The integrated hanging hole and flat top closure fit lightweight retail items that hang on pegs. The tapered shape provides a distinctive profile compared to conventional rectangular boxes.
Specialty Confectionery
The pail-like base and webbed corners offer a premium unboxing experience for chocolates or baked goods. The folded bottom corners help keep crumbs inside.
Grab-and-Go Food Service
For dry or semi-dry food items, the webbed corners provide a secure base. If specified with a poly-coated board and heat-sealed corners, it serves as a distinctive takeout container.
Boutique Gift Packaging
The unique tapered shape elevates the perceived value of the product inside, making it an excellent choice for gift-ready items that sit on display counters.
Retail Channels and Food Service Environments
Boutique Retail and Gift Shops
The tapered profile stands out from conventional rectangular boxes, helping premium items catch attention on shelves or hanging displays.
Specialty Food Service
Bakeries and confectioners use the webbed-corner base to hold dry goods securely, often pairing it with grease-resistant board for takeout applications.
Point-of-Purchase Displays
The hanging hole allows this carton to be placed on impulse-buy racks near checkout counters, provided the product is light enough for the selected board.
When to Compare Other Carton Styles
High-speed automated packing
Webbed corners do not fold linearly, making them difficult to run on conventional straight-line folder-gluers. If you need high-speed automated erection, a conventional crash-lock or auto-bottom carton is worth comparing.
Heavy products or stacking needs
The tapered walls and hanging hole offer minimal vertical compression strength. If the product is heavy or the boxes will be stacked on pallets, a straight-sided carton may be a better fit.
Parcel shipping
This is a primary retail or presentation carton. It will crush easily in a parcel delivery network, so an outer corrugated shipper should be considered for transit.
Board, Erection, and Sealing Choices
Manual assembly versus tray forming
Decide how these will be erected. Low volumes are typically folded by hand, which involves folding four webbed corners simultaneously. High volumes often use specialized nested tray-forming equipment.
Board strength for hanging
The entire weight of the package is supported by the top edge of the hanging hole. The board caliper and tear resistance should be matched to the product weight to prevent the hole from tearing out.
Corner sealing method
The webbed corners can be left unglued, relying on the lid to hold the shape, or they can be glued or heat-sealed for increased stability and leak resistance.
Print panel distortion on tapered walls
Because the side walls are angled, printed graphics or text should be conically distorted during the prepress stage so they appear straight when the carton is fully erected.

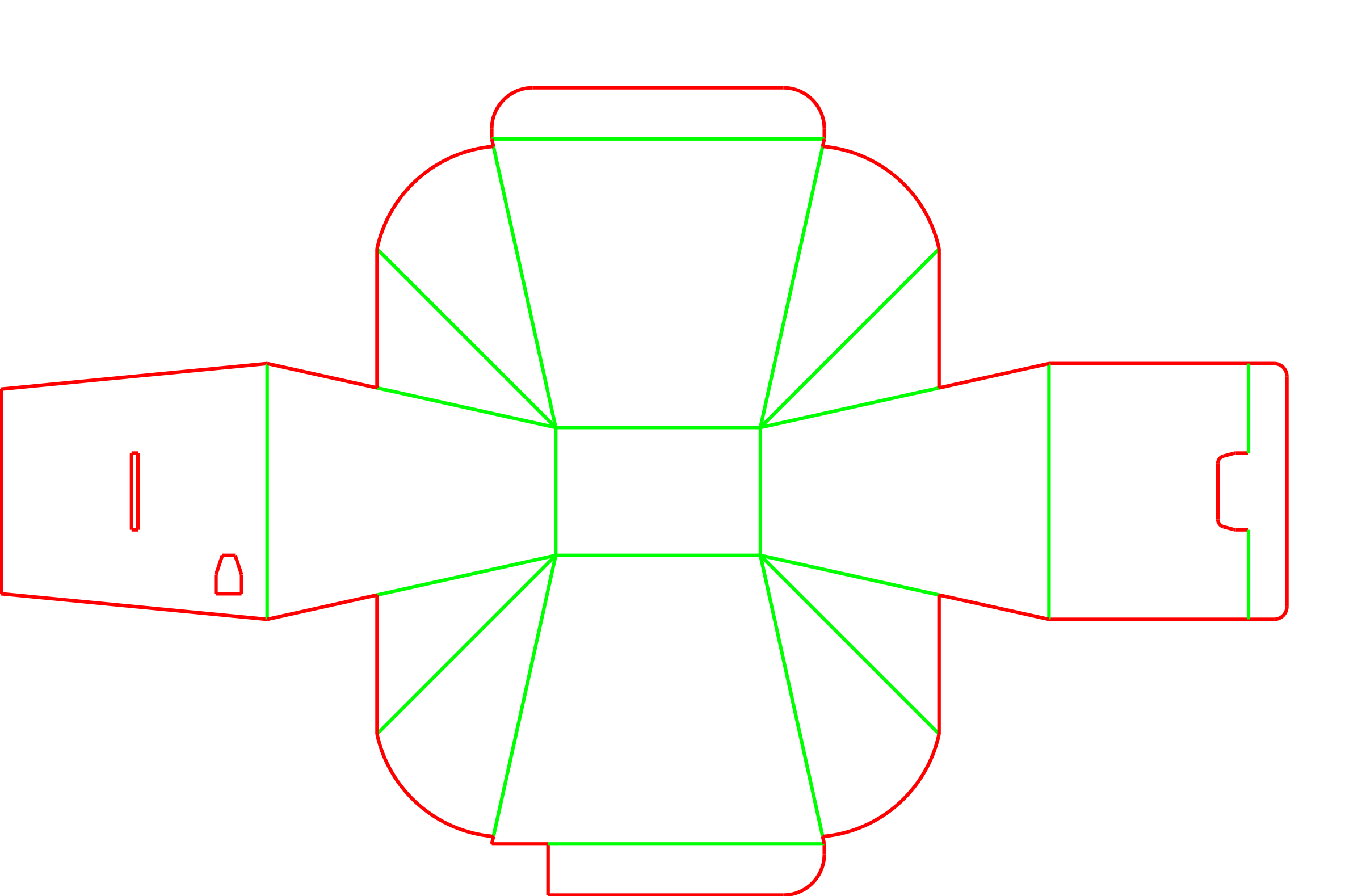

Template Adjustments for Fit and Display
Taper angle and base footprint
The base dimensions and the top opening size can be adjusted independently, which changes the severity of the taper. A wider top relative to the base increases the taper angle.
Hanging hole dimensions
The width and length of the D-shaped cutouts can be modified to fit specific retail pegboard hooks.
Tuck tongue lock
The width and insertion depth of the top tuck tongue can be adjusted to increase or decrease the friction lock of the overlapping lid.
Packing details
Waste stripping for hanging holes
The hanging hole and the receiving slot for the tuck tongue require clean internal waste stripping during die-cutting to ensure the package functions correctly on the packing line.
Additional notes
Flat delivery and manual assembly space
These cartons are delivered flat to maximize storage space. The packer folds the walls up and the webbed corners inward to form the tray before loading the product and closing the overlapping lid.
Related Packaging Options
FAQs
How much weight can this carton hold on a pegboard?
This depends entirely on the board grade and caliper chosen. Because the hanging hole supports the full weight of the package, heavy items will require a tear-resistant board. Physical testing with your actual product is advised.
Can this box be erected on conventional automated packaging lines?
Usually not. The webbed corners do not fold linearly, making them incompatible with conventional straight-line folder-gluers. Automated assembly often uses specialized tray-forming equipment. Otherwise, they are erected by hand.
Is the base completely leak-proof?
The webbed corners create a continuous base without cut edges, which helps prevent dry items or crumbs from escaping. However, to hold liquids or grease, the carton should be manufactured from a poly-coated or barrier board and the corners should be properly sealed.
Does the tapered shape affect my artwork?
Yes. Graphics placed on the tapered side panels should be warped or conically distorted in the design file so that they look straight and level once the box is folded into its 3D shape.
Can I ship this carton in the mail?
This carton is designed for retail display and presentation. The tapered walls and hanging hole do not provide the structural strength needed for parcel delivery networks. It should be packed inside a corrugated outer box for shipping.
Can these cartons be stacked on retail shelves?
The tapered profile makes vertical stacking unstable. They are designed to be hung on pegboards or placed individually on shelves or counters.
Do the webbed corners need to be glued?
They can be left unglued, relying on the closed lid to hold the box's shape. However, gluing or heat-sealing the corners provides much better stability and helps keep the base secure.
What board types work well for food applications?
If the food is greasy or moist, a poly-coated board or a specific barrier coating is usually selected. For dry, wrapped items, conventional folding boxboard may be sufficient.
