Retail and Food Presentation
Bakery and Takeout Food
The wide base and secure wrap-over closure make this a strong fit for pastries, boxed meals, and specialty food items. The integrated handle allows customers to carry the product easily without an additional bag.
Retail Kits and Gift Packaging
The distinctive arched profile and inward-leaning walls create a premium presentation for curated kits, cosmetics, or promotional gifts. The unglued design means it can be stored flat in retail backrooms until needed.
Corporate Event Lunches
The flat base and secure wrap-over closure keep individual meals organized and easy to distribute at events. The handle makes it simple for attendees to grab their lunch and move.
Specialty Confections
The unglued, premium presentation fits high-end confectionery, allowing customers to carry delicate items flat. The unique shape stands out on retail shelves before purchase.
Store-Floor Assembly and Retail Hand-Off
On-Demand Retail Assembly
Because this box uses no glue or tape, retail staff can assemble it on demand. The process involves folding the handle halves together, bringing up the front and back walls, and locking the roof panels into the side slots.
Flat Storage in Tight Backrooms
Because this box requires no gluing, it ships and stores completely flat. This saves valuable space behind the counter or in the stockroom before the boxes are needed for customer hand-off.
Premium Unboxing Presentation
The wrap-over roof and arched side walls create a distinct opening experience. Unlocking the top panels feels more deliberate and high-end than opening a standard glued carton.
When to Consider Conventional Gable Boxes
High-Volume Automated Packing
This carrier is assembled by hand. If your packing line relies on automated erecting or folder-gluer compatibility, a conventional crash-lock or auto-bottom gable box is often a better choice.
Parcel Shipping
The top handle prevents stacking, and the tuck closures are not tamper-evident. For courier or postal networks, this box should be placed inside a corrugated outer shipper.
Board Choice and Assembly Labor
Tear-Resistant Board Selection
The weight of the product is suspended from the top handle and transferred through the side walls. Specifying a board with high tear resistance, such as Solid Bleached Sulfate (SBS) or virgin Folding Boxboard (FBB), helps prevent the handle or locking slots from failing under load.
Grain Direction
Discuss grain direction with your converter. Running the grain horizontally across the handle improves lifting strength, but this should be balanced against the risk of bowing on the longer front and back panels.
Print Surface and Coating
The outward-leaning side walls and inward-leaning roof panels present different angles to the customer. Discuss coating options that prevent cracking along the handle creases and ensure your graphics display cleanly across the varied surfaces.
Packing Labor and Speed
This is a hand-assembled tray. If your team needs to pack hundreds of units per hour, the multi-step folding sequence may slow down fulfillment compared to an auto-bottom box. Evaluate your labor capacity before committing to this unglued design.
Adjusting the Taper and Handle
Taper Severity
The outward lean of the handle walls and the inward lean of the front and back walls can be adjusted. Large tapers will change the overall footprint and mean verifying that the roof panels still meet the locking slots cleanly.
Handle Height and Cutouts
The height of the handle and the size of the finger cutouts can be modified to accommodate different hand sizes or to clear taller products inside the box.
Locking Slot Clearances
The width of the angled receiving slots must be calibrated to the exact thickness of your chosen paperboard. This ensures the tuck tongues hold securely without tearing the material during assembly.
Packing details
Blank Sprawl and Material Efficiency

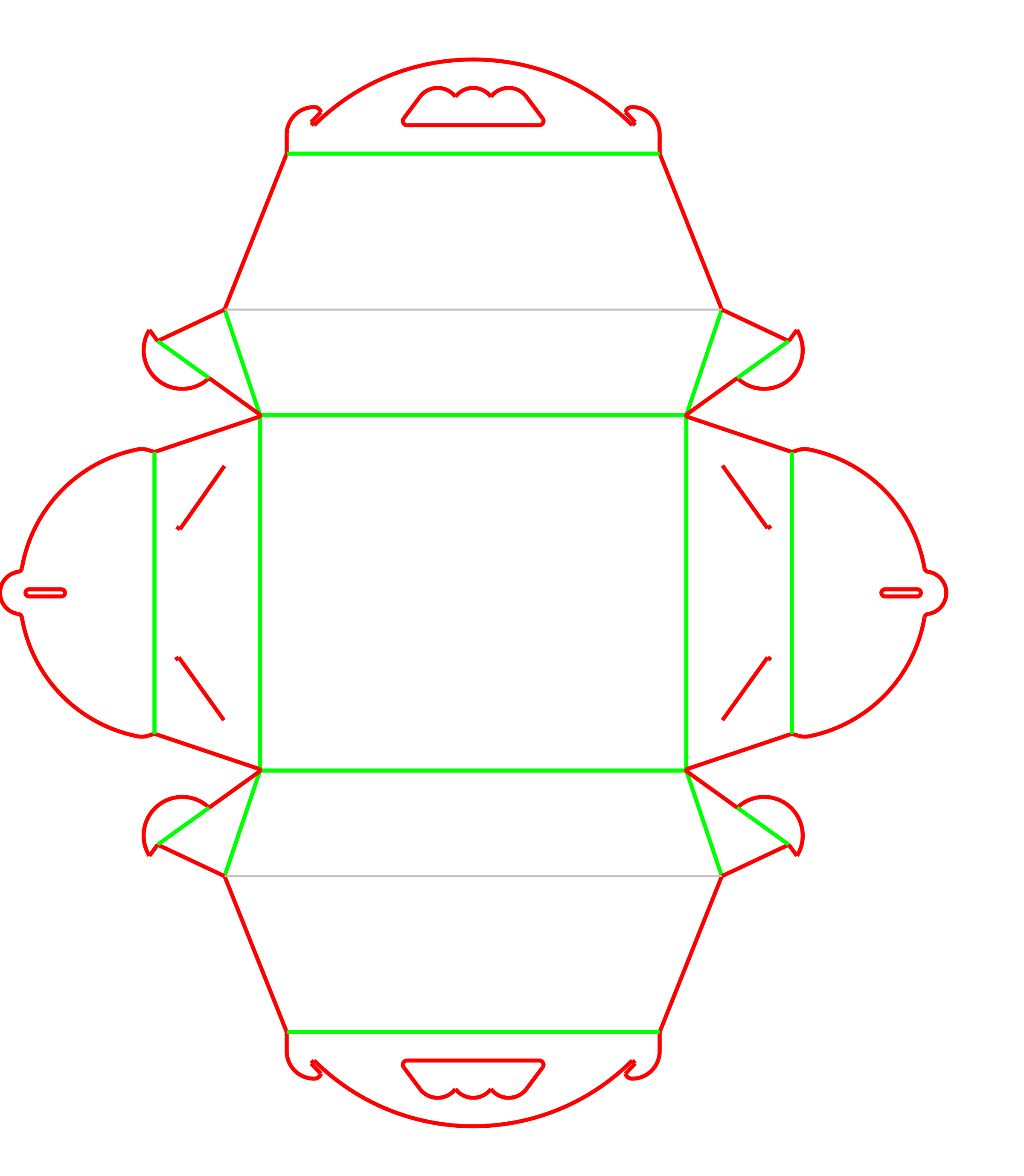

The flat blank for this box resembles a cross with extended handle and roof panels. This irregular shape creates moderate waste during die-cutting compared to simple rectangular cartons. The premium presentation often offsets the lower nesting efficiency.
Additional notes
Handle Load Testing
Always request a physical sample in your chosen board grade to test with your actual product weight. The locking slots and handle cutouts are the primary stress points during carrying.
FAQs
Does this box use any gluing?
No. The EVF41193 is a one-piece structure that locks together entirely through mechanical folds. The roof panels wrap over the arched side walls and secure via tuck tongues inserted into angled slots.
Can this box be erected by machine?
The complex multi-axis folding sequence, specifically the wrap-over roof and slot insertion, is designed for hand assembly.
What board grade makes sense for this carrier?
Because the handle bears the weight of the contents, a tear-resistant board like SBS or virgin FBB is strongly recommended. Recycled boards may be too brittle and prone to tearing at the handle cutouts or locking slots.
Can these boxes be stacked on a pallet?
Once assembled, the top handle prevents vertical stacking. They are designed to ship flat to your facility and be assembled individually for retail or customer hand-off.
Is this suitable for ecommerce shipping?
Not on its own. The handle prevents stacking, and the tuck closures can catch or open during rough transit. It should be packed inside a corrugated outer box for parcel delivery.
Can the taper angles be changed?
Yes, the difference between the top and bottom dimensions dictates the taper. However, large changes mean verifying that the wrap-over roof panels still align correctly with the side locking slots.
How is the handle formed?
The side walls fold upward and lean outward, bringing the two handle cutouts together in the center to form a two-ply grip.
Does the box ship flat?
Yes. The unglued design means the converter delivers the blanks entirely flat, which reduces inbound freight costs and storage space.
