Luxury Gift Sets, Electronics, and Premium Kitting
Luxury Gift Sets and Cosmetics
The hollow walls create a substantial high-end frame around smaller items, increasing the perceived value of the set. The wide shoulder panels provide excellent real estate for branding, foil stamping, or color blocking right next to the product.
Fragile Electronics Kitting
The double-wall perimeter acts as a crush zone, absorbing side impacts before they reach the central cavity. This makes it a strong choice for housing delicate devices, provided the tray is paired with a secure outer sleeve.
Confectionery and Premium Chocolates
When lined with food-safe barriers or inserts, the framed walls elevate the presentation of high-end chocolates and confections. The unglued construction keeps adhesives away from the product area.
High-End Apparel Accessories
For items like silk scarves, premium ties, or leather goods, the tray provides a structured presentation that prevents the product from shifting while offering a clean framed display upon opening.
Manual Fulfillment, Retail Display, and Subscription Programs
Manual Fulfillment Operations
This tray is designed for hand-packing. The multi-step roll-over folding sequence is not designed for standard automated folder-gluers. It makes sense for lower-volume, high-margin products where the presentation justifies the assembly labor.
Retail Display
When paired with a clear sleeve or a printed slipcase, the tray serves as an attractive retail display piece. The unglued construction means there are no visible glue seams to detract from the presentation.
Subscription Box Programs
For premium subscription tiers, this tray acts as an impressive internal organizer. It holds hero items securely in the center while the hollow walls fill out the master shipping box, reducing the need for loose void fill.
High-Speed Lines and Uniform Frame Needs
High-Speed Automated Packing
If your fulfillment line relies on automated tray formers or folder-gluers, this friction-locked multi-fold design will cause bottlenecks. Consider a standard glued crash-bottom tray or a simpler four-corner glued tray instead.
Uniform Frame Requirements
This specific template features asymmetric walls, meaning the top and bottom are wider than the sides. If your product layout needs an equal frame width on all four sides, a symmetric buffer wall tray is a better starting point.
Board, Assembly, Print, and Outer Packaging Choices
Board Grade and Caliper
Because the tray relies on multiple roll-over folds and small locking tongues, material choice is important. Solid Bleached Sulfate or Folding Boxboard provides the necessary crisp folds without cracking. Thicker boards or micro-flutes often need precise CAD adjustments to prevent the locks from binding.
Outer Packaging Strategy
This is an open tray, not a complete package. Before finalizing the design, decide whether it will slide into a folding carton sleeve, sit inside a rigid setup box, or act as an insert within a larger master shipper.
Print and Finish Placement
The flat base and the wide top and bottom shoulders offer the most visible print areas. Since the tray is cut from a single sheet, the interior base and the top faces of the buffer walls are printed on the same side of the board.
Assembly Labor Planning
The unglued design saves on manufacturing costs but shifts the burden to the fulfillment center. Factor in the manual folding time per unit when evaluating the total cost of the packaging program.
Adjusting Frame Proportions and Base Dimensions
Shoulder and Wall Widths
The width of the top and bottom shoulders and the left and right side walls can be adjusted independently. This allows you to tailor the internal cavity exactly to your product while maintaining the desired exterior footprint.
Base Panel Proportions
The overall length and width of the tray can be scaled to fit different product assortments. Keep in mind that very large base panels may need thicker board to prevent bowing when lifted.
Locking Tongue Adjustments
The small tabs that secure the final roll-over walls are highly sensitive to board thickness. The cutting die is usually adjusted to match the exact caliper of your chosen material to ensure a tight secure lock.
Packing details
Blank Sprawl and Material Yield

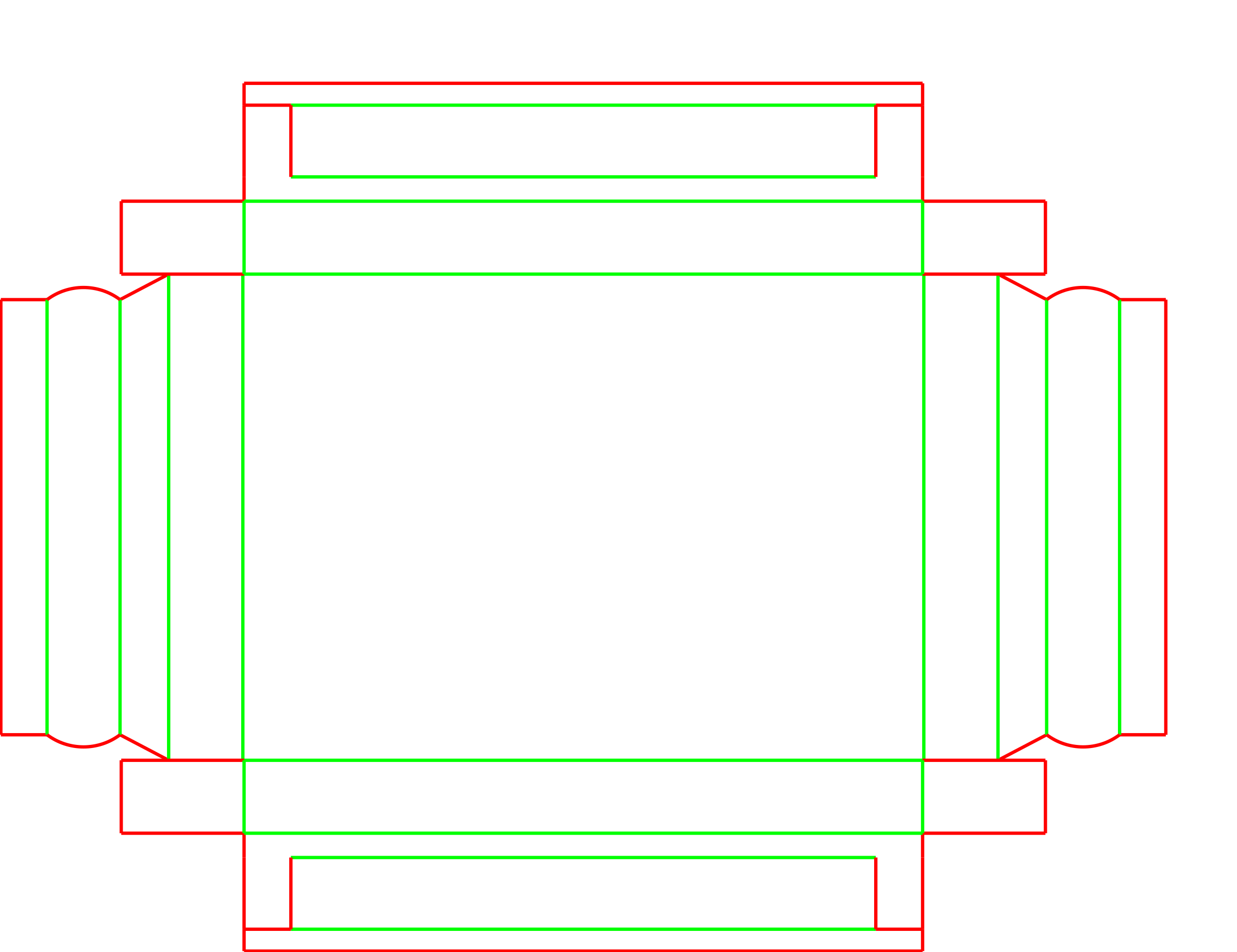

The cross-shaped flat blank needed to form the four double-wall roll-overs consumes a large amount of board and creates offcut waste in the corners. This higher material usage is a trade-off for the premium unboxing experience.
Additional notes
Sample validation for locking tabs
Always request a physical sample in your chosen board caliper. The small locking tongues that hold the tray together are highly sensitive to material thickness and should be tested to ensure they hold securely.
Related Presentation Trays
FAQs
Can this tray be machine-assembled?
The multi-step roll-over sequence and friction locks are designed for manual assembly. It is delivered flat and folded by hand at the fulfillment center.
Does this tray use glue or tape?
The entire structure locks together using mechanical tucks and friction. The side walls roll over and trap the corner flaps, securing the tray without adhesive.
What is the best material for this tray?
High-quality folding carton boards like SBS or FBB are often chosen. They handle the complex tight folds without cracking and provide a smooth surface for premium printing.
Can I ship this tray on its own?
It is an open-top insert or presentation tray. It should be placed inside a sleeve, a rigid box, or a shipping carton to protect the contents during transit.
What does 'with shoulders' mean?
It means the hollow walls on the top and bottom of the tray are wider than the walls on the left and right, creating a framed shoulder effect around the product.
Can I change the width of the hollow walls?
The width of the top and bottom shoulders and the side walls can be adjusted independently to fit your product while keeping the outer dimensions fixed.
How does the tray stay locked together?
The left and right inner walls feature shaped tuck tongues that fold down and lock into the bottom corners of the tray, trapping the other panels in place.
Can I print on the inside of the hollow walls?
The top faces of the hollow walls and the interior base of the tray are printed on the same side of the flat board, making it easy to apply continuous graphics or branding.
