Premium Retail and Fragile Goods
Primary Retail Presentation
The thick shoulder walls create a distinct frame around the product, hiding raw board edges and elevating the perceived value of the contents. This makes the tray a strong choice for primary retail packaging where presentation is the main priority.
Standoff Protection for Fragile Components
The hollow perimeter acts as a physical crush zone. Side impacts are absorbed by the outer and inner buffer walls before reaching the central product cavity, offering an extra layer of security for delicate items.
Multi-Component Kitting
The deep, framed cavity provides a clean boundary for holding multiple items, often paired with a custom insert to keep individual components organized during unboxing.
Glue-Free Fulfillment
Because the tray relies on friction and tongue locks, it can be assembled at the packing station without adhesive, keeping the presentation clean and free of glue residue.
Cosmetics, Electronics, and Luxury Kits
Cosmetics and Personal Care
Often used to hold glass bottles, jars, or premium skincare sets. The wide shoulder panels provide additional billboard space for branding, instructions, or ingredient lists right next to the product.
Consumer Electronics
Provides a clean, structured cavity for devices and accessories. The friction-locked walls keep the presentation sharp without relying on visible adhesive or plastic inserts.
Luxury Confectionery and Gifting
Premium chocolates or curated gift sets benefit from the clean edges and framed presentation, enhancing the unboxing experience for high-value items.
Evaluating Simpler Tray Options
High-Volume Automated Packing
The multi-segment folds required to build the hollow shoulders usually require manual folding. If your fulfillment line relies on high-speed mechanical setup, a simpler glued tray or a roll-end tray is worth comparing.
Cost-Sensitive Commodity Goods
Because all four sides roll over multiple times, the flat blank is significantly larger than the assembled tray. This high material usage and the manual labor involved often point toward simpler tray styles for budget-focused packaging.
Board Thickness and Assembly Planning
Board Caliper Validation
The complex folds that form the inner shoulders rely on exact material thickness allowances. Changing the board grade or caliper without adjusting the cutting die will cause the inner walls to bow, bulge, or tear. Physical prototypes help confirm the folds sit flush.
Fulfillment Labor
Operators manually fold and lock the short-side tongues, then roll the long sides inward to complete the friction fit. Fulfillment centers should review the folding sequence to accurately estimate assembly time per unit.
Outer Packaging Strategy
Since this is an open tray, it usually pairs with a custom sleeve, a rigid outer box, or a dedicated mailer for transit. The outer package helps keep the tray locked and protects the contents.
Print and Branding Surfaces
The wide inner shoulders offer additional billboard space. Decide if these inner walls will carry graphics, which may require two-sided printing depending on the fold exposure.
Cavity Sizing and Print Surfaces
Inner Cavity Proportions
The width of the hollow shoulders is determined by the difference between the outer footprint and the inner product cavity. Adjusting the cavity size directly changes how thick the buffer walls appear.
Tongue Lock Sizing
The locking tabs on the short sides can be scaled to adjust the tension and retention of the short buffer walls, depending on the board thickness and tray size.
Layer Step Creases

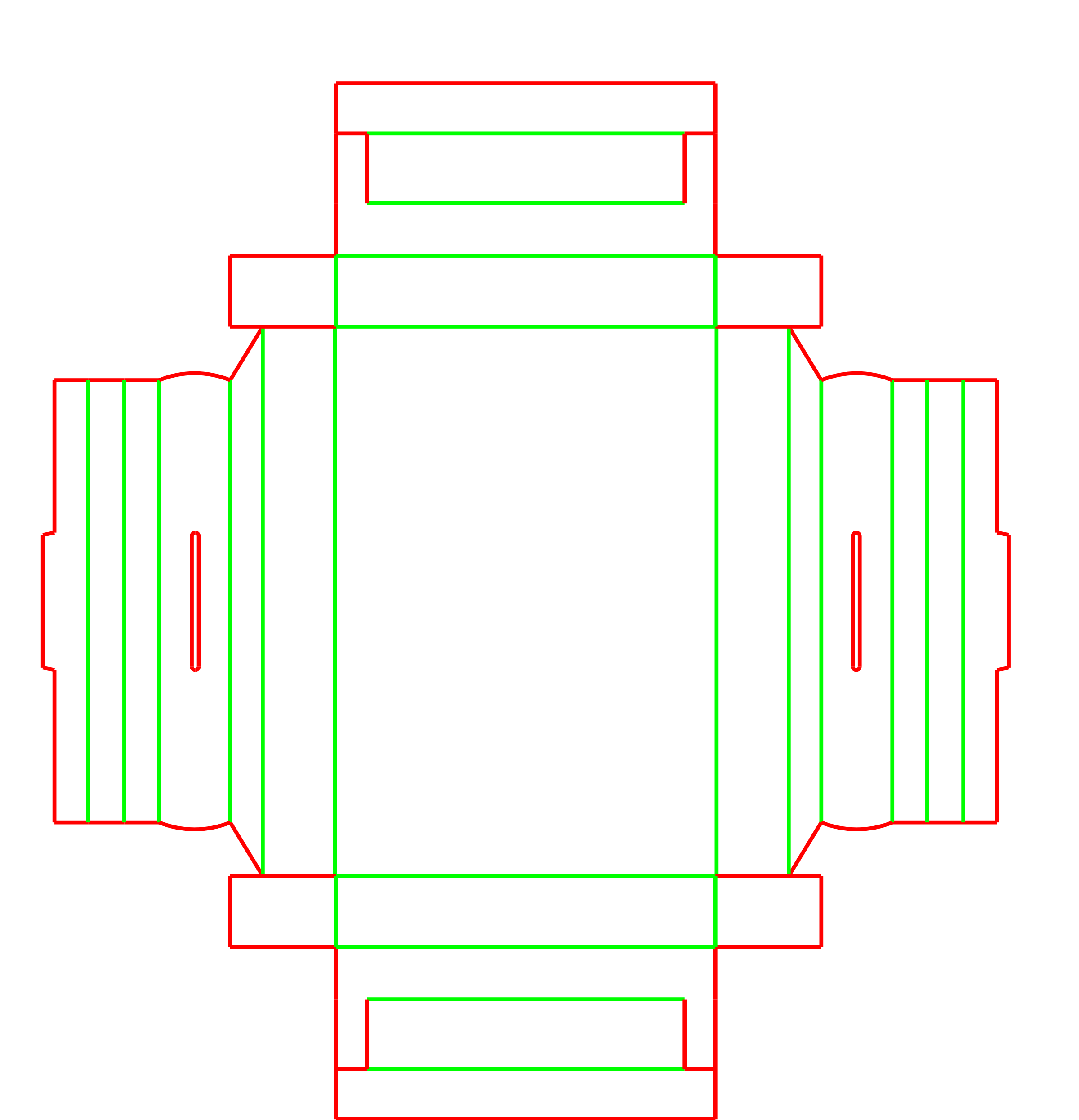

The template includes layer step crease adjustments to accommodate the board thickness as it rolls over itself, ensuring the final shoulder sits flat without binding.
Packing details
Outer Packaging Requirements
This is an open tray. For retail shelves, it is typically paired with a folding carton sleeve. For direct-to-consumer shipping, it is usually placed inside a dedicated corrugated mailer or master shipper.
Additional notes
Prototyping the shoulder folds
Always request a physical sample in the final production board. The friction fit of the long walls and the tension on the base slots should be tested to ensure the tray stays locked and square.
Related Presentation and Retail Trays
FAQs
Does this tray require glue to stay assembled?
No. The short sides lock into the base panel using tuck tongues, and the long sides use a friction fit against the short walls to hold the shoulder structure in place.
Can this tray be erected by automated machinery?
The multi-segment roll-over walls usually require manual folding. It is generally not a fit for standard automated tray erectors.
Can I use any paperboard thickness for this design?
The template is highly sensitive to board caliper. The folding allowances are calculated for a specific thickness, and changing the material requires updating the die to prevent the inner walls from bowing.
Can the inner shoulder walls be printed?
Yes. Because the walls roll inward from the main blank, the inner shoulders can display graphics or text. This often requires two-sided printing or careful layout planning depending on the exact fold exposure.
Is this tray suitable for parcel shipping?
As an open presentation tray, it usually needs an outer sleeve, mailer, or master carton to secure the contents during transit.
Why is the flat blank so large compared to the assembled tray?
To create the hollow double-wall perimeter, the board extends outward and rolls back over itself on all four sides. This extreme sprawl increases the overall material footprint.
How does the tray stay locked together?
The short sides lock into the base panel using tuck tongues, while the long sides rely on a friction fit against the short walls to hold the shoulder structure in place.
Can I use micro-flute corrugated board for this tray?
This specific template is designed for folding carton board. The complex multi-segment folds may crack or bind if used with fluted corrugated board without significant template adjustments.
