Premium Retail and Display Applications
Luxury Unboxing and Presentation
The thick, elevated rim acts as a stage, drawing focus to the central product cavity. The continuous top surface of the buffer walls provides an unbroken canvas for premium graphics, foil stamping, or embossing.
Fragile Item Perimeter Protection
The hollow space inside the rolled walls creates a dedicated crush zone. This absorbs side impacts before they reach delicate items like glass cosmetics bottles or small electronics.
Retail Display Staging
When placed on a retail shelf, the wide buffer walls give smaller products a larger visual footprint, increasing perceived value and shelf presence.
Component Separation for Kits
The recessed central cavity provides a clean boundary for custom inserts, keeping multi-part kits or gift sets organized within a structured outer frame.
Product Types That Fit Buffer Wall Trays
Cosmetics and Skincare
Often used to hold premium jars or compacts, keeping them centered and protected while delivering a high-perceived-value unboxing experience.
Consumer Electronics
Provides the clean, structured look expected in modern device packaging, often paired with a custom insert to hold cables or accessories in the base.
Luxury Confectionery
Frames premium chocolates or specialty sweets, offering a rigid, high-end feel without the expense of a two-piece rigid board box.
High-End Hardware and Tools
Presents specialty tools or precision instruments in a structured layout, using the buffer walls to protect heavy items from shifting outward.
When to Consider Simpler Tray Styles
High-Volume Automated Packing
The four manual roll-over walls make this tray slow to assemble by hand and incompatible with standard automated tray formers. If packing speed is a priority, compare this with a pre-glued tray that opens quickly.
Individual Parcel Delivery
This is an open-top presentation tray. If the package will be shipped individually through courier networks, it is usually paired with a sturdy outer mailer or a closely fitted sleeve.
Key Decisions for Fit, Board, and Assembly
Board Caliper and Material Choice
This design relies on precise folding boxboard (FBB or SBS) to achieve crisp 90-degree edges. The exact board thickness should be specified early, as the template recalculates the inner wall drop depth to ensure the locks sit flush.
Buffer Wall Width
The width of the hollow rim can be adjusted to create a wider frame or a larger central cavity. However, wider buffer walls increase the overall footprint of the flat blank, which affects material yield.
Assembly Labor Planning
Because the tray is delivered flat and requires folding all four sides and engaging the base locks, buyers should account for the manual fulfillment time when planning large runs.
Outer Packaging Strategy
Since the tray lacks a lid, buyers need to decide how the product will be enclosed for transit or retail sale, such as adding a clear sleeve, a paperboard slipcase, or placing it inside a master carton.
Adjusting the Frame and Locking Tabs
Locking Tongue Friction
The tongues that secure the rolled walls into the base cuts can be adjusted for a tighter or looser fit, depending on the board finish and how often the tray might be opened.
Cavity Depth versus Wall Height
The height of the outer walls and the depth of the inner drop can be modified to raise or lower the product within the frame, depending on how much of the item should be visible.
Layer Step Crease Allowances
The template can automatically adjust flap heights to prevent paperboard from binding when multiple layers overlap during the roll-over fold, ensuring the walls sit square.
Packing details
Blank Sprawl and Material Yield

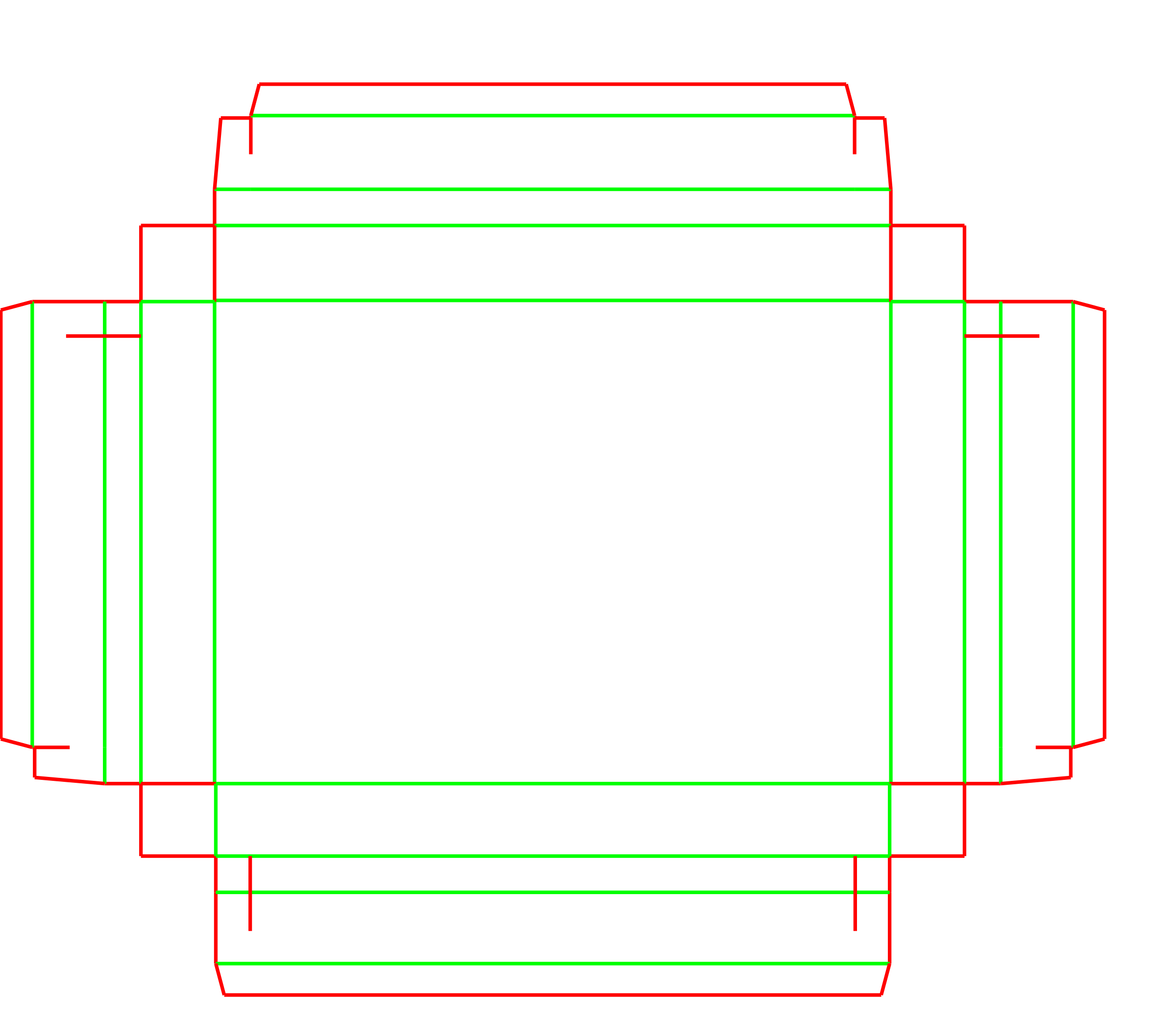

Because the flat blank must account for the base, the outer walls, the top rim, and the inner walls dropping back down, the unfolded footprint is quite large. This cross-shaped blank can lead to higher offcut waste compared to simpler tray styles.
Additional notes
Print surface and high-end finishes
The continuous, flat top surface of the buffer walls provides a strong canvas for foil stamping, embossing, or spot UV, as there are no visible raw edges on the top face.
FAQs
Can this tray be assembled by automated machinery?
The EVF41222 is assembled manually. The sequence of rolling the extended panels over and inserting the locking tongues into the base cuts is done by hand.
Is this tray suitable for corrugated board?
Generally, no. The intricate tongue-and-cut locks and the narrow buffer walls are designed for folding carton board (like FBB or SBS). Corrugated fluting is usually too thick to fold cleanly into this specific hollow-wall shape.
Does this tray need an outer box for shipping?
Yes. As an open-top frame tray, it provides excellent side protection but no top cover. For parcel delivery, it is typically placed inside a master shipper, mailer box, or paired with a secure sleeve.
Can the width of the buffer walls be changed?
Yes, the width of the hollow rim can be customized to frame your product differently. Keep in mind that widening the walls increases the size of the flat paperboard blank, which can impact material costs.
Will the inner walls bow or bulge after assembly?
If the board thickness is specified correctly before cutting, the inner walls will drop perfectly to the base and sit square. Bowing usually only happens if the board is thicker than the template was calculated for.
Does this tray require glue or tape to stay together?
No. The tray relies entirely on mechanical friction locks. The terminal tongues on the inner walls insert into precise cuts in the base panel to hold the structure under tension.
Can I print on the inside of the buffer walls?
Yes. Because the buffer walls are formed by rolling the outer panels inward, the top rim and the inner walls are part of the same printed side of the flat blank, allowing for continuous graphics.
Can I use this tray for heavy industrial parts?
This tray is generally better suited for lighter premium goods. While the buffer walls provide excellent side-impact protection, heavy top compression can cause the hollow rim to buckle.
