Practical Uses for the Buffer Wall Tray
Premium Retail Presentation
The double-thick end walls and hollow side buffers give the tray a substantial, high-end appearance. The 180-degree hem folds hide the raw edges of the paperboard, creating a clean frame for cosmetics, electronics, or luxury goods.
Perimeter Impact Protection
The hollow side walls act as a crush zone, absorbing lateral impacts before they reach the product. This makes the tray a strong candidate for fragile items that need standoff protection without relying entirely on foam or plastic inserts.
Containing Small Parts or Powders
Because the corners are webbed rather than cut, the base of the tray remains continuous. This eliminates the small gaps typically found in standard roll-end trays, preventing loose components or fine materials from leaking out.
Framing High-Value Components
The thick, hollow side walls create a visual frame that draws attention to the central product. This makes the tray an excellent base for custom inserts holding jewelry, watches, or limited-edition items.
Retail and Product Contexts
High-End Boutiques and Cosmetics
Brands looking for a premium unboxing presentation often choose this style for its thick-walled look. The hidden edges and clean interior walls provide an excellent backdrop for premium graphics and custom inserts.
Electronics and Component Kits
The combination of side-impact buffers and gapless corners makes this tray a strong fit for kitting delicate electronics alongside small accessories like screws or connectors.
Luxury Confectionery and Chocolates
For premium chocolates or delicate baked goods, the hollow side walls provide a standoff distance that prevents crushing during handling, while the gapless corners keep crumbs or decorative powders contained.
When to Consider a Simpler Tray
High-Speed Automated Packing
This tray requires a multi-step manual assembly process to properly fold the corner gussets and roll over the buffer walls. If your packing line relies on automated tray erectors, a standard glued tray or a simpler crash-lock base is a better choice.
Strict Material Efficiency
The roll-over walls and extended corner gussets require a much larger flat blank than a standard single-wall tray. If minimizing paperboard usage is the primary goal, review a standard roll-end tray instead.
Board, Assembly, and Buffer Choices
Board Flexibility and Cracking Risk
The design relies on 180-degree hem folds and complex diagonal creases in the corners. It requires a high-quality, flexible folding boxboard to prevent the ink or board from cracking during assembly. Rigid or heavy uncoated boards are generally a poor fit.
Manual Assembly Labor
Because the tray uses friction locks and webbed corners, it is delivered flat and assembled by hand. Packers must fold the gussets inward while rolling the side walls over to lock them into the base. This labor time should be factored into the overall packaging cost.
Insert Compatibility
If you plan to use a custom insert to hold the product, the internal dimensions must account for the hollow buffer walls. The insert will sit between the inner rolled walls, not the outer perimeter.

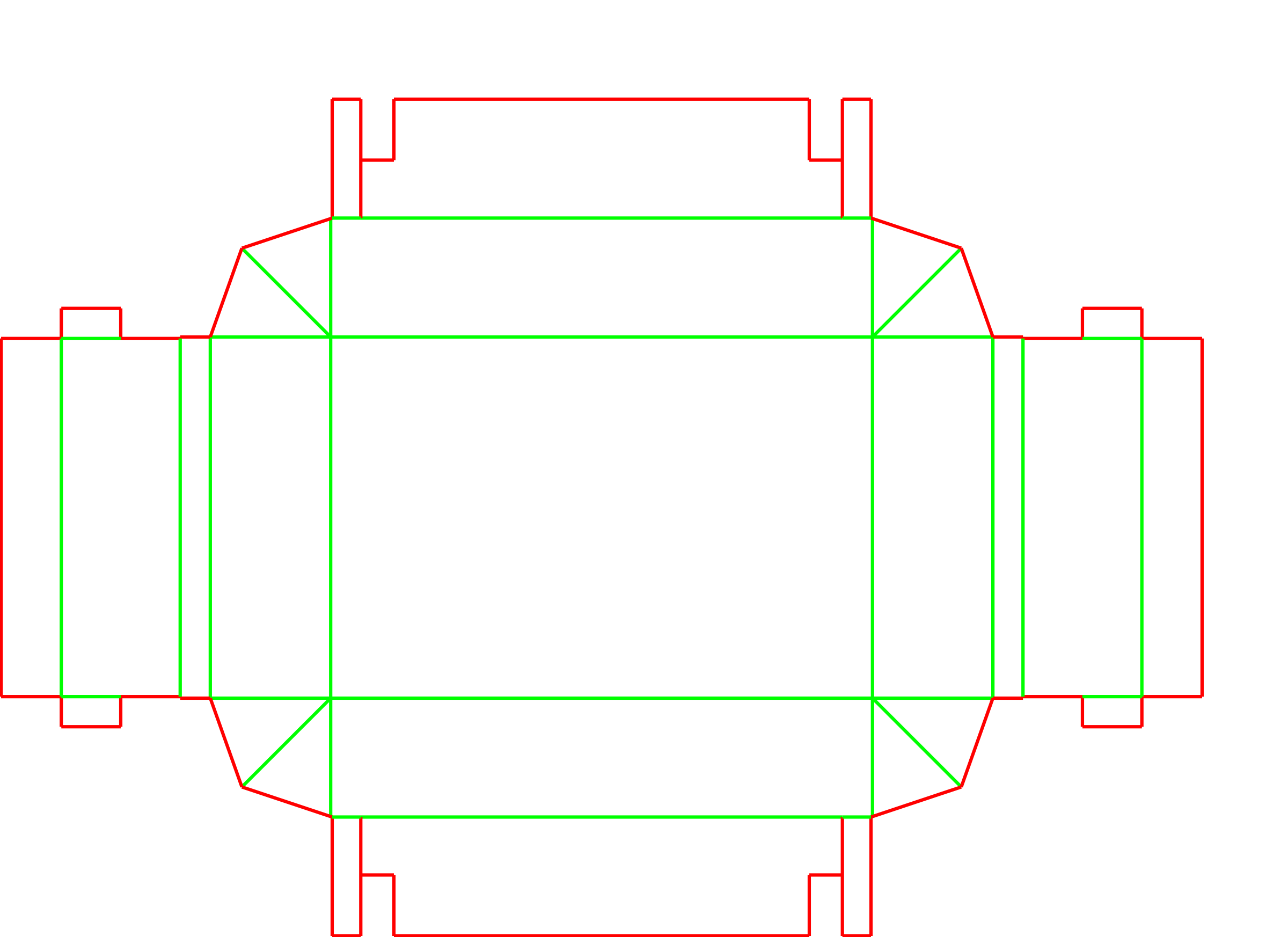

Flat Blank Footprint
The extended corner gussets and roll-over walls create a large flat blank. This means fewer units fit on a single pallet during shipping, and it requires more storage space before assembly.
Adjusting the Buffer and Dimensions
Buffer Wall Width
The width of the hollow side walls can be adjusted to increase the standoff distance for fragile products or to create a thicker visual frame. However, wider buffers increase the overall flat footprint of the tray.
Tray Depth
The overall height of the tray can be adjusted to accommodate taller items, but deeper trays require more dexterity to fold the corner gussets and roll the side walls into place.
Friction Lock Tension
The locking tabs that hold the rolled walls in place are sized based on the exact board thickness. If the board grade changes, these tabs and their receiving slots must be adjusted to maintain a secure hold.
Packing details
Flat Delivery and Storage
Despite its thick-walled final appearance, the tray ships completely flat. This provides excellent storage efficiency before use, though the larger blank size means fewer units per pallet compared to simpler tray styles.
Additional notes
Board thickness and locking tension
The friction locks in the base are precisely calculated based on the board thickness. If you change board grades between prototyping and production, the locking slots must be adjusted to ensure the tray stays assembled.
FAQs
Does this tray require glue or tape?
The tray is entirely self-locking. The side walls roll over the folded corner gussets and snap into slots on the floor of the tray, holding the structure together under tension without adhesive.
Can this tray be assembled by machine?
The diagonal bellows fold of the corner gussets requires human dexterity to collapse properly while the walls are rolled over. It is designed strictly for manual packing lines.
Are the hollow buffer walls on all four sides?
The hollow buffer walls are located on the left and right sides. The front and back walls are double-thick (folded over 180 degrees) but do not have a hollow standoff.
Can I use corrugated board for this tray?
Corrugated board is generally a poor fit. The complex webbed corners and 180-degree hem folds require a flexible folding carton board. Micro-flutes will likely crush or bind during assembly.
Will small items fall out of the corners?
Unlike standard trays that use cut flaps, this design uses continuous webbed corners that fold inward. This creates a gapless bottom, making it safe for small parts or powders.
Can the inside of the tray be printed?
Because the end walls fold over 180 degrees and the side walls roll inward, portions of the exterior print surface become the visible interior walls, allowing for continuous branding without double-sided printing.
How does the buffer wall stay in place?
The inner wall rolls over the collapsed corner gussets and features small tabs at the bottom. These tabs snap into slots on the base panel, holding the entire structure under tension.
Does the tray ship flat or assembled?
The tray is delivered completely flat to save on shipping and storage space. It is assembled by hand at the packing facility.
