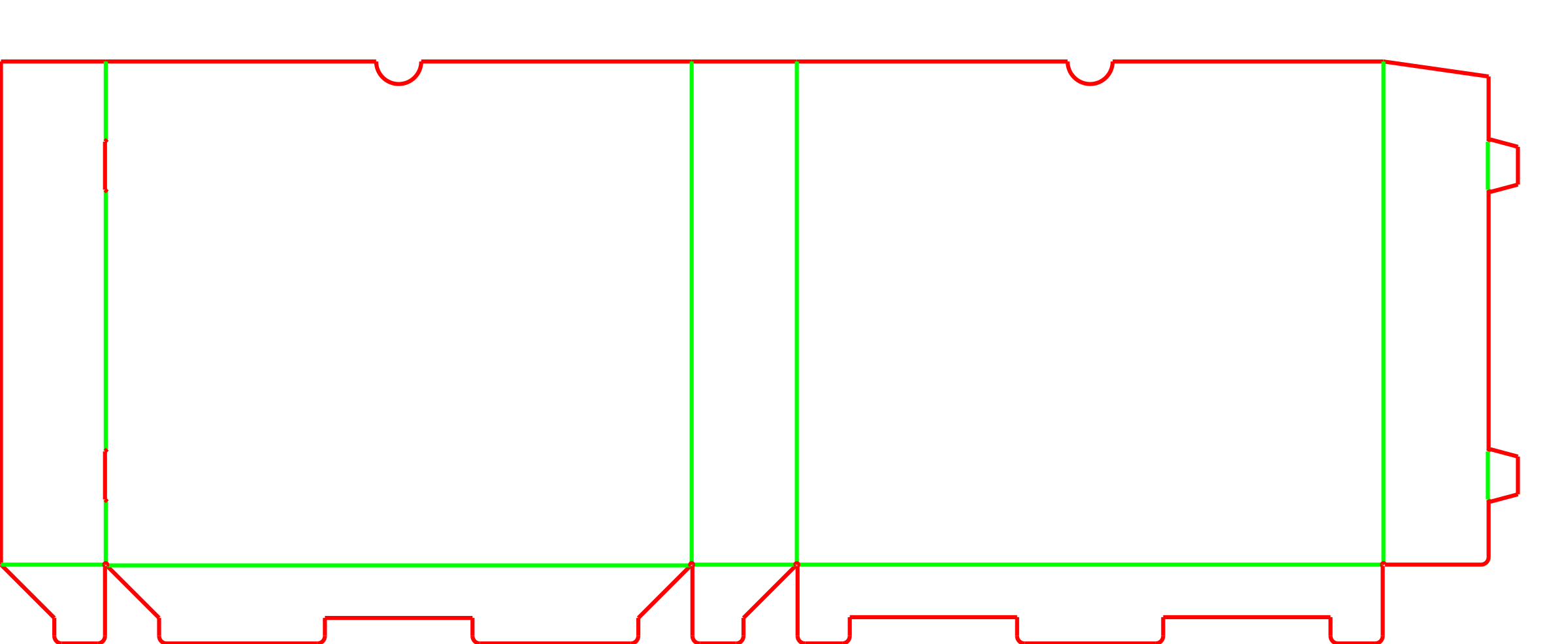

The EVF52020 is a five-sided folding carton slipcase that forms a rigid outer sleeve without the use of adhesive. Instead of a glued joint, it uses a mechanical tuck-tongue side wall and a 1-2-3 snap-lock base to secure the shape.
Because it bypasses the folder-gluer entirely, this slipcase is flexible for short runs and digital printing, though it shifts the setup time to the manual packing line.
The open front face and built-in thumb cuts make this a natural fit for books, media collections, and software boxes where the user needs to slide the inner product out frequently.
Premium Retail Kitting
Used as an outer cover for rigid inner cartons or multi-part sets. The snap-lock back prevents the inner contents from pushing all the way through, providing a clear front-facing presentation.
Software and Electronics Packaging
Often paired with a sliding inner tray to hold software manuals or small electronic devices. The mechanical locks keep the outer sleeve rigid while the tray slides out.
Limited Edition Promotional Sets
For short-run promotional items, the glue-free assembly allows for quick production turnarounds without needing specialized gluing equipment.
Fulfillment and Production Contexts
Short-Run and Digital Print Programs
Because the blank needs no gluing fixtures, it is efficient for limited editions, prototypes, and short digital runs. The entire manufacturing process is completed on the die-cutter.
Manual Fulfillment Operations
This package ships flat and is erected entirely by hand. Packers must fold the main tube, insert the two side-wall tuck tongues, and fold the four-flap snap-lock base. It fits operations where manual kitting is already part of the workflow.
Prototyping and Sampling
The mechanical locks make it easy to cut and test physical samples on a flatbed plotter without needing to hand-glue the joints, allowing for rapid iteration of the fit and artwork.
When to Consider Glued Alternatives
High-Volume Packing Lines
If your fulfillment center needs to process thousands of units quickly, the manual locking steps of this slipcase will slow down the line. A pre-glued slipcase is usually a better choice for high-speed packing.
Direct Parcel Shipping
The open front face and mechanical locks are meant for retail presentation. If the item is shipping directly to a consumer, the product is exposed and the base may open under heavy handling. Compare a fully enclosed mailer or add an outer shipping box.
Board, Grain, and Lock Clearances
Board Thickness and Lock Clearance
The tuck tongues and snap-lock flaps rely on precise clearances to lock securely without tearing. If you specify a thicker board, the slot widths and layer step creases must be adjusted to match the exact caliper.
Grain Direction
To prevent the large side panels from bowing outward, the paperboard grain should run parallel to the longest vertical folds. This keeps the slipcase rigid and helps maintain a smooth fit for the inner product.
Inner Product Friction
Because the inner narrow wall has an exposed flap edge from the mechanical lock, tight-fitting products may catch slightly during insertion. A physical prototype helps verify that the inner clearance allows smooth loading.
Base Closure Strength
The 1-2-3 snap lock holds the back face closed, but heavy inner products can push through if the slipcase is dropped or handled roughly. Evaluate the product weight to verify the mechanical base provides enough resistance.
Thumb Cut and Proportion Adjustments
Thumb Cut Sizing
The semi-circular cutouts on the open face can be adjusted in radius or removed entirely depending on how much finger access the inner product needs.
Aspect Ratio Limits
While the length, width, and height can be scaled, very wide or shallow proportions may change how easily the snap-lock base folds and holds tension.
Tuck Tongue Width
The width of the locking tabs on the side wall can be adjusted. Wider tabs provide a stronger mechanical hold but demand more effort from the packer to insert smoothly.
Packing details
Prototyping the mechanical locks
Because the tuck tongues and snap-lock base rely on exact board clearances, cutting a physical sample from the final production board is a practical step. This verifies that the locks hold tension without tearing and that the inner product slides in smoothly.
Additional notes
Grain direction and panel bowing
Large slipcases are prone to bowing on the wide panels. Aligning the board grain with the vertical standing height helps maintain a flat, rigid presentation.
A transparent PVC or PET alternative that allows the inner product or primary carton to remain fully visible on the retail shelf.
FAQs
Does this slipcase need any glue or tape?
No. The side wall secures with two tuck tongues that insert into slots, and the back face closes with a folding snap-lock mechanism. It is entirely self-locking.
How does the assembly time compare to a pre-glued slipcase?
It takes longer to assemble. A packer must manually lock the side wall and fold the four base flaps, whereas a pre-glued slipcase simply needs to be squared open.
Will the mechanical locks scratch or catch on my product?
The tuck tongues fold inward, creating a slight internal edge. If your product fits very tightly, it is worth testing a prototype to verify it slides in without catching.
Can this be made from heavy, rigid board?
It is typically cut from normal folding carton board. Thicker boards can be used, but the locking slots and snap-base creases must be carefully adjusted so the board does not bind or tear during folding.
Can I ship this directly in the mail?
No. The open front face leaves the product exposed, and the snap-lock base is not built for rough handling. It should be placed inside an outer shipping box.
Can the thumb cuts be removed?
Yes. The thumb cuts are optional features designed to help users grip the inner product. They can be resized or removed based on your presentation needs.
How much weight can the snap-lock base hold?
The base is built to keep retail items from sliding out the back, but it is not meant to support heavy loads during transit. Heavy books or metal components may push through the base if dropped.
Why choose a glue-free slipcase over a glued one?
A glue-free slipcase is often chosen for short runs, prototypes, or limited editions where bypassing the folder-gluer saves manufacturing setup time, even though it increases manual packing labor.
Review your product dimensions and fulfillment workflow to determine if a glue-free mechanical lock is the right fit for your presentation.
